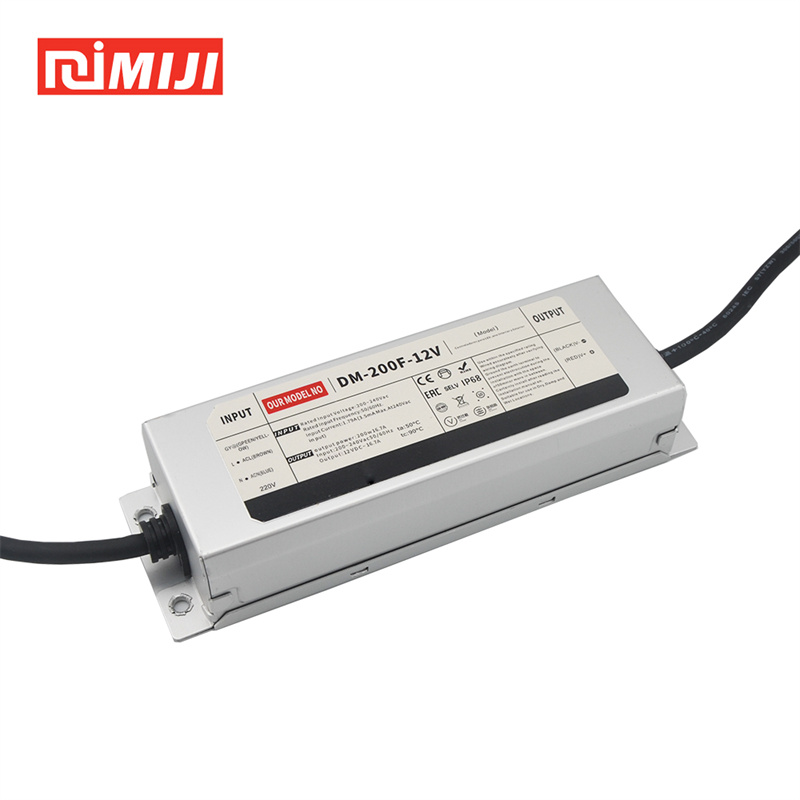

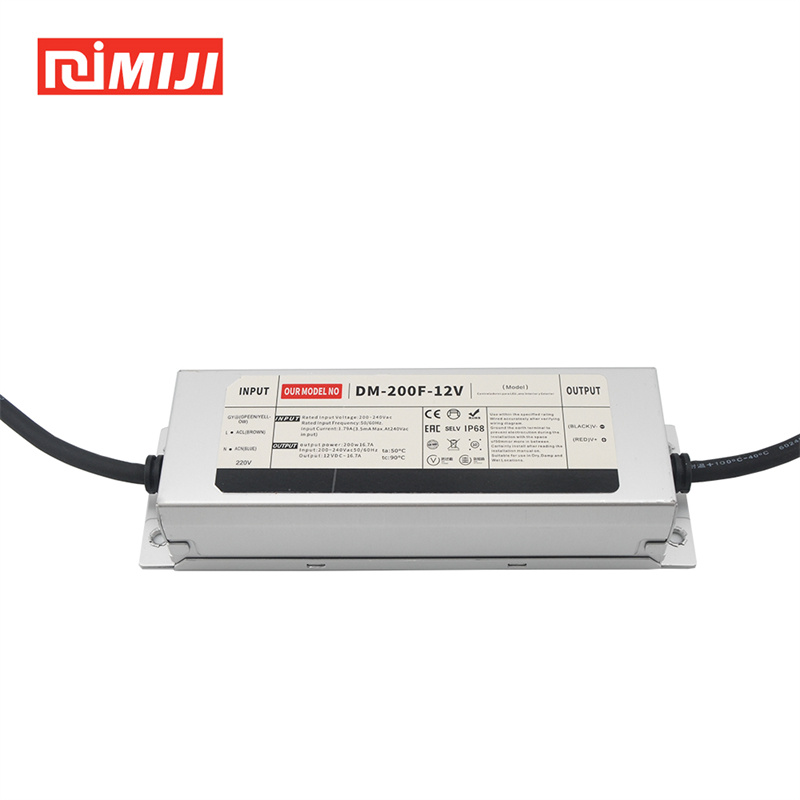

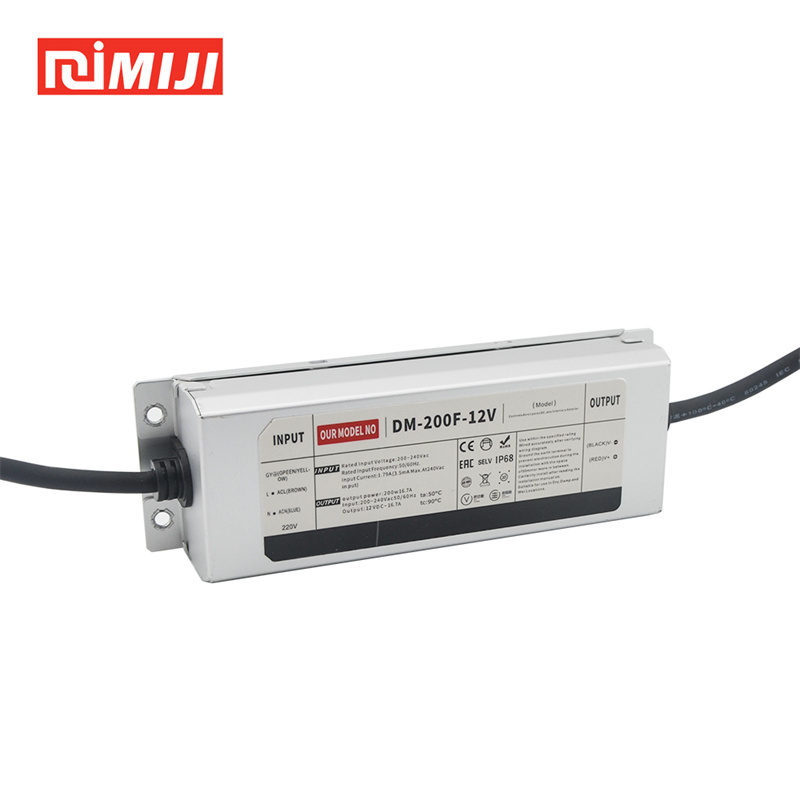

12V 16.7A 200W IP67 Outdoor Waterproof Power Supply
Feature
◎ 12VDC & 24VDC options available for ultra-thin waterproof power supply
◎ Superior heat dissipation with a fan less silent design
◎ Short circuit, overload, overvoltage, overcurrent and leakage protection
◎ Waide operating temperature range -20 ...+50ºC.
◎ 100% full load burn-in test. Widely used in Industrial automation, LED display, etc.
◎ Suitable for LED strip lights, led light bulbs, Computer Project, Outdoor Light, LED City lighting, advertising and decorating, building hotels, plazas bridge railing, Indoor home and any 12V DC led lights
specification
| MODEL | LED POWER SUPPLY | DM-200W 12V | DM-200W 24V |
| OUTPUT | Output voltage | 12V DC | 24V DC |
| Output voltage range | 12VDC±0.5VDC | 24VDC±0.5VDC | |
| Output Current | Max 16.7A | Max 8.3A | |
| Output power | Max 200W | ||
| Output power range | 0~200W | ||
| Ripple & Noise | ≤120mV | ≤240mV | |
| Linear Regulation | ±1% | ||
| Load Regulation | ±1% | ||
| Start-up Time (Typ) | 600ms/230VAC | ||
| Hold Up Time(Typ) | 100ms/230VAC | ||
| INPUT | Input voltage | 200-240Vac | |
| Frequency | 50/60Hz | ||
| Input сurrent | 0.52A/230Vac | ||
| Power factor | PF>0.8 | ||
| No-load power consumption | ≤3W | ||
| Efficiency (typ.) | 89% | 91% | |
| Inrush current(typ.) | Cold start 50A at 230Vac | ||
| Control surge capability | L,N:2KV L,N-PE:4KV | ||
| Leakage сurrent | Max. 0.5mA | ||
| ENVIRONMENT | Working temperature | ta: -30°C~ 50°C tc: 80°C | |
| Working humidity | 20 ~ 99%RH, condensing (Waterproof) | ||
| Storage temp., humidity | -40°C ~ 80°C, 10~95%RH | ||
| PROTECTION | Overtemperature | Protection type: Turn off the output voltage, after the temperature drops, re-energize to restore. | |
| Over load protection | Shut down the output when current load above 110%~150%, auto recovers. | ||
| Short circuit protection | Protection type: It can be automatically restored after the fault is eliminated. | ||
| SAFETY&EMC | Withstand voltage | I/P-O/P:3750Vac | |
| Isolation resistance | I/P-O/P: 100MΩ/500VDC/25°C/70%RH | ||
| Safety standards | IEC/EN61347;IEC/EN60950;IP67 | ||
| EMC Test Standards | EN55015: 2013;EN61547: 2009; EN61000-3-2:2014; EN61000-3-3:2013 | ||
| Reliabilityand Quality Control | Impact aging | 100% of the product is fully loaded and impacted for 4 hours under an environment of at least 40°C±5°C | |
| Component derating | Under the steady-state conditions of rated input and output, the stress of components will not exceed its maximum nominal value | ||
| NOTE | 1.All parameters not specifically mentioned are measured at 230VAC input, rated load and 25°C ambient temperature. 2.Ripple and noise test method: connect 0.1uF and 47uF capacitors in parallel at the terminal, and measure under 20MHZ bandwidth. 3.Ensure that the power supply is used under the rated parameters and environment. | ||
OEM Customer design
010203
Model List
Below DM series are 100% full load, and 5 years warranty! Our factory offers OEM customization, allowing us to tailor various models and parameters to meet your specific needs. Feel free to contact us for more information and personalized solutions.
| Model | Power Out | Input Voltage | Output Voltage | Output Current | Efficiency | IP | Size(mm) | Package |
| DM-36W 12V /24V | 36W | 200-240V AC | 12V/24V | 5.0A/ 1.5A | 93% | IP68 | 126*41*27 | 60 |
| DM-60W 12V /24V | 60W | 200-240V AC | 12V/24V | 5.0A/ 2.5A | 93% | IP68 | 143*49*31 | 40 |
| DM-100W 12V /24V | 100W | 200-240V AC | 12V/24V | 8.3A/ 4.1A | 93% | IP68 | 164*53*31 | 30 |
| DM-150W 12V /24V | 150W | 200-240V AC | 12V/24V | 12.5A/ 6.25A | 93% | IP68 | 176*57*34 | 20 |
| DM-200W 12V /24V | 200W | 200-240V AC | 12V/24V | 16.7A/ 8.33A | 92% | IP68 | 186*60*36 | 20 |
| DM-300W 12V /24V | 300W | 200-240V AC | 12V/24V | 25.0A/ 12.5A | 92% | IP68 | 200*67*36 | 16 |
| DM-400W 12V /24V | 400W | 200-240V AC | 12V/24V | 33.3A/ 16.7A | 92% | IP68 | 230*67*36 | 16 |
application
The 12V 16.7A 200W waterproof power supply is specifically engineered to deliver consistent and reliable power for various LED lighting applications, particularly in environments exposed to moisture, dust, and other challenging conditions. Its robust IP67-rated waterproof and dustproof enclosure ensures durability and safety, making it suitable for a wide range of indoor and outdoor LED installations.
Key Applications:
● LED Strip Lighting: Ideal for powering extensive runs of LED strip lights used in both residential and commercial settings, providing uniform illumination for spaces like living rooms, kitchens, offices, and retail displays.
● Outdoor LED Signage and Billboards: Ensures stable and efficient power for large-scale LED advertising displays, maintaining vibrant and uninterrupted operation in all weather conditions.
● Architectural and Landscape Lighting: Suitable for illuminating building facades, bridges, gardens, and public spaces, offering reliable performance in outdoor environments.
● LED Modules and Light Bars: Provides consistent power to LED modules, flex ribbons, and bar lights, commonly used in decorative lighting, cove lighting, and accent lighting applications.
● LED Wall Washers and Panel Lights: Supports the operation of LED wall washers and panel lights, enhancing the aesthetic appeal of architectural structures and interior spaces.
● Outdoor Landscape and Garden Lighting: Powers LED landscape lighting fixtures, such as pathway lights, spotlights, and floodlights, ensuring durability and performance in outdoor settings.
With its high efficiency, compact design, and robust construction, this power supply is an excellent choice for demanding LED lighting applications that require a stable 12V DC output in challenging environments.
