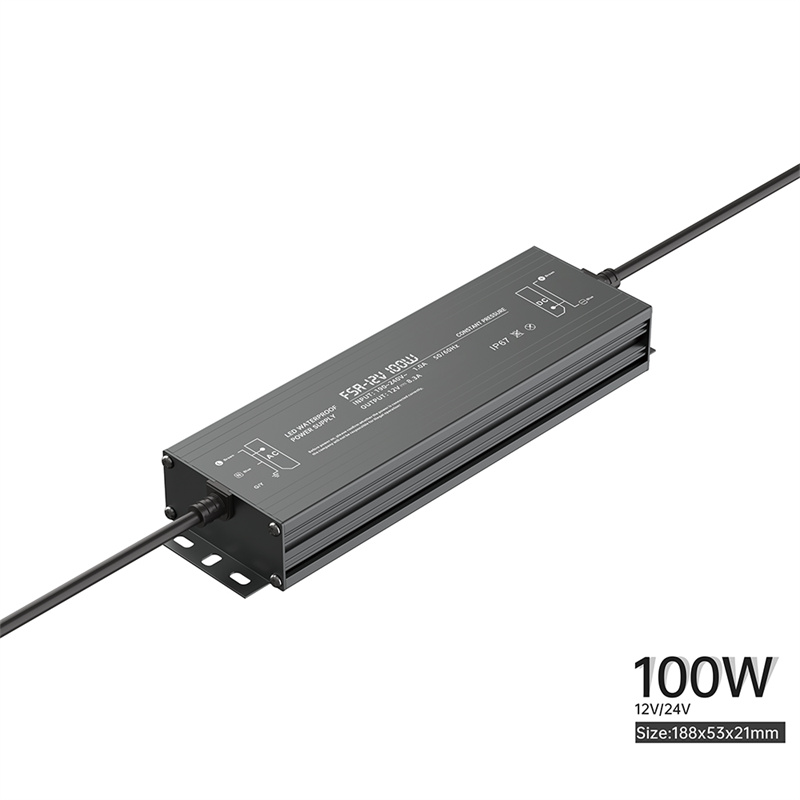

IP67 100W Waterproof LED driver - 12V/8.3A for Reliable Outdoor Lighting
Feature
◎ Superior IP67 Waterproof Rating: Fully dust-tight and protected against temporary water immersion, offering maximum reliability in wet outdoor environments.
◎ Silent Fanless Operation: Completely noiseless performance thanks to efficient passive cooling via the aluminum casing with integrated fins.
◎ Robust Sealed Construction: Features a durable aluminum profile housing, full silicone potting, and a double-sided PCB for enhanced protection and longevity.
◎ Certified & Cost-Effective: Provides excellent value while meeting BIS and CE certification standards for safety and compliance.
◎ Stable 100W Power Output: Delivers a reliable 12V DC at 8.3 Amps, perfect for various outdoor LED lighting and low-voltage applications.
specification
| MODEL | LED POWER SUPPLY | FSA-100W 12V | FSA-100W 24V |
| OUTPUT | Output voltage | 12V DC | 24V DC |
| Output voltage range | 12VDC±0.5VDC | 24VDC±0.5VDC | |
| Output Current | Max 8.3A | Max 4.1A | |
| Output power | Max 100W | ||
| Output power range | 0~100W | ||
| Ripple & Noise | ≤120mV | ≤240mV | |
| Linear Regulation | ±1% | ||
| Load Regulation | ±1% | ||
| Start-up Time (Typ) | 600ms/230VAC | ||
| Hold Up Time(Typ) | 100ms/230VAC | ||
| INPUT | Input voltage | 187-262Vac | |
| Frequency | 50/60Hz | ||
| Input сurrent | 0.52A/230Vac | ||
| Power factor | PF>0.8 | ||
| No-load power consumption | ≤3W | ||
| Efficiency (typ.) | 91% | 93% | |
| Inrush current(typ.) | Cold start 50A at 230Vac | ||
| Control surge capability | L,N:2KV L,N-PE:4KV | ||
| Leakage сurrent | Max. 0.5mA | ||
| ENVIRONMENT | Working temperature | ta: -30°C~ 50°C tc: 80°C | |
| Working humidity | 20 ~ 99%RH, condensing (Waterproof) | ||
| Storage temp., humidity | -40°C ~ 80°C, 10~95%RH | ||
| PROTECTION | Overtemperature | Protection type: Turn off the output voltage, after the temperature drops, re-energize to restore. | |
| Over load protection | Shut down the output when current load above 110%~150%, auto recovers. | ||
| Short circuit protection | Protection type: It can be automatically restored after the fault is eliminated. | ||
| SAFETY&EMC | Withstand voltage | I/P-O/P:3750Vac | |
| Isolation resistance | I/P-O/P: 100MΩ/500VDC/25°C/70%RH | ||
| Safety standards | IEC/EN61347;IEC/EN60950;IP67 | ||
| EMC Test Standards | EN55015: 2013;EN61547: 2009; EN61000-3-2:2014; EN61000-3-3:2013 | ||
| Reliabilityand Quality Control | Impact aging | 100% of the product is fully loaded and impacted for 4 hours under an environment of at least 40°C±5°C | |
| Component derating | Under the steady-state conditions of rated input and output, the stress of components will not exceed its maximum nominal value | ||
| NOTE | 1.All parameters not specifically mentioned are measured at 230VAC input, rated load and 25°C ambient temperature. 2.Ripple and noise test method: connect 0.1uF and 47uF capacitors in parallel at the terminal, and measure under 20MHZ bandwidth. 3.Ensure that the power supply is used under the rated parameters and environment. | ||
OEM Customer design
010203
Model List
Our factory offers OEM customization, allowing us to tailor various models and parameters to meet your specific needs. Feel free to contact us for more information and personalized solutions.
| Model | Power Out | Input Voltage | Output Voltage | Output Current | Efficiency | IP | Size(mm) | Package |
| FSA-60W 12V /24V | 60W | 187-262V AC | 12V/24V | 5.0A/ 2.5A | 93% | IP67 | 162*45*21 | 50 |
| FSA-100W 12V /24V | 100W | 187-262V AC | 12V/24V | 8.3A/ 4.1A | 93% | IP67 | 180*65*35 | 30 |
| FSA-150W 12V /24V | 150W | 187-262V AC | 12V/24V | 12.5A/ 6.25A | 92% | IP67 | 213*75*42 | 20 |
| FSA-200W 12V /24V | 200W | 187-262V AC | 12V/24V | 16.7A/ 8.33A | 92% | IP67 | 230*75*42 | 10 |
| FSA-300W 12V /24V | 300W | 187-262V AC | 12V/24V | 25.0A/ 12.5A | 90% | IP67 | 245*75*42 | 10 |
| FSA-400W 12V /24V | 400W | 187-262V AC | 12V/24V | 33.3A/ 16.7A | 90% | IP67 | 260*75*42 | 20 |
| FSA-500W 12V /24V | 500W | 187-262V AC | 12V/24V | 41.7A/ 20.8A | 90% | IP67 | 260*90*45 | 10 |
| FSA-600W 12V /24V | 600W | 187-262V AC | 12V/24V | 50A/ 25A | 90% | IP67 | 260*125*51 | 5 |
application
The robust IP67 FSA series waterproof rating of this 100W LED driver makes it the ideal and highly cost-effective choice for installations where direct exposure to water, rain, or high humidity is expected. Its reliable 12V/8.3A output is perfectly suited for:
Exposed Outdoor Advertising: Powering illuminated signage, channel letters, or light boxes located in areas without shelter, ensuring continuous operation despite rain or splashes.
Submersible-Prone LED Strips: Driving 12V LED strip lighting used in garden features, around pools (check local codes), pathways, or other areas potentially subject to temporary flooding or heavy water exposure.
Park & Landscape Lighting: Energizing landscape fixtures, decorative elements in park settings, or path lighting where sprinklers or rainfall necessitate true waterproof protection.
Bridge & Architectural Lighting: Suitable for powering LED fixtures used in bridge illumination or building facade uplighting projects where components are directly exposed to the elements.
Unprotected Security Equipment: Providing a dependable 12V source for outdoor security cameras (CCTV) or related monitoring devices installed in locations without cover from rain or moisture.
