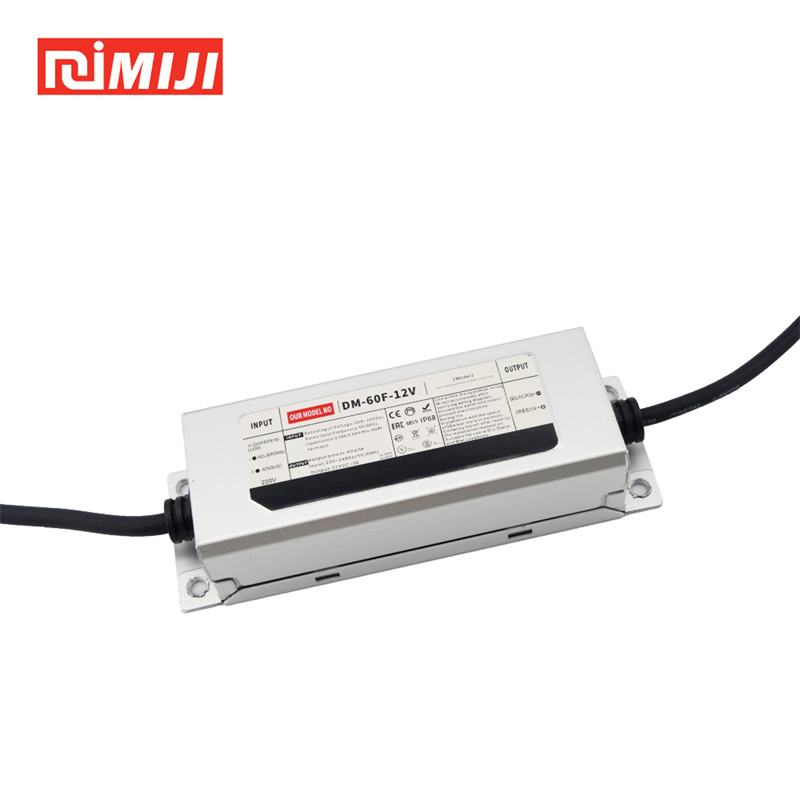

12V 5.0A 60W LED Outdoor Waterproof Power Supply
Feature
◎ Protections: short circuit/over load/over voltage/over temperature
◎ IP68 design for indoor or outdoor installation
◎ It can be used in dry, wet and rainy environment Cooling by free air, high reliability.
◎ 100% full load burn-in test. With 180days unstop test.
◎ Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ. Widely used in LED lighting and IT equipment
◎ Compliance to worldwide safety regulation for led lightings
specification
| MODEL | LED POWER SUPPLY | DM-12V 60W | DM-24V 60W |
| OUTPUT | Output voltage | 12V DC | 24V DC |
| Output voltage range | 12VDC±0.5VDC | 24VDC±0.5VDC | |
| Output Current | Max 5.0A | Max 2.5A | |
| Output power | Max 60W | ||
| Output power range | 0~60W | ||
| Ripple & Noise | ≤120mV | ≤240mV | |
| Linear Regulation | ±1% | ||
| Load Regulation | ±1% | ||
| Start-up Time (Typ) | 600ms/230VAC | ||
| Hold Up Time(Typ) | 100ms/230VAC | ||
| INPUT | Input voltage | 200-240Vac | |
| Frequency | 50/60Hz | ||
| Input сurrent | 0.52A/230Vac | ||
| Power factor | PF>0.8 | ||
| No-load power consumption | ＜3W | ||
| Efficiency (typ.) | 89% | 91% | |
| Inrush current(typ.) | Cold start 50A at 230Vac | ||
| Control surge capability | L,N:2KV L,N-PE:4KV | ||
| Leakage сurrent | Max. 0.5mA | ||
| ENVIRONMENT | Working temperature | ta: -30°C~ 50°C tc: 80°C | |
| Working humidity | 20 ~ 99%RH, condensing (Waterproof) | ||
| Storage temp., humidity | -40°C ~ 80°C, 10~95%RH | ||
| PROTECTION | Overtemperature | Protection type: Turn off the output voltage, after the temperature drops, re-energize to restore. | |
| Over load protection | Shut down the output when current load above 110%~150%, auto recovers. | ||
| Short circuit protection | Protection type: It can be automatically restored after the fault is eliminated. | ||
| SAFETY&EMC | Withstand voltage | I/P-O/P:3750Vac | |
| Isolation resistance | I/P-O/P: 100MΩ/500VDC/25°C/70%RH | ||
| Safety standards | IEC/EN61347;IEC/EN60950;IP67 | ||
| EMC Test Standards | EN55015: 2013;EN61547: 2009; EN61000-3-2:2014; EN61000-3-3:2013 | ||
| Reliabilityand Quality Control | Impact aging | 100% of the product is fully loaded and impacted for 4 hours under an environment of at least 40°C±5°C | |
| Component derating | Under the steady-state conditions of rated input and output, the stress of components will not exceed its maximum nominal value | ||
| NOTE | 1.All parameters not specifically mentioned are measured at 230VAC input, rated load and 25°C ambient temperature. 2.Ripple and noise test method: connect 0.1uF and 47uF capacitors in parallel at the terminal, and measure under 20MHZ bandwidth. 3.Ensure that the power supply is used under the rated parameters and environment. | ||
OEM Customer design
010203
Model List
Below DM series are 100% full load, and 5 years warranty! Our factory offers OEM customization, allowing us to tailor various models and parameters to meet your specific needs. Feel free to contact us for more information and personalized solutions.
| Model | Power Out | Input Voltage | Output Voltage | Output Current | Efficiency | IP | Size(mm) | Package |
| DM-36W 12V /24V | 36W | 200-240V AC | 12V/24V | 5.0A/ 1.5A | 93% | IP68 | 126*41*27 | 60 |
| DM-60W 12V /24V | 60W | 200-240V AC | 12V/24V | 5.0A/ 2.5A | 93% | IP68 | 143*49*31 | 40 |
| DM-100W 12V /24V | 100W | 200-240V AC | 12V/24V | 8.3A/ 4.1A | 93% | IP68 | 164*53*31 | 30 |
| DM-150W 12V /24V | 150W | 200-240V AC | 12V/24V | 12.5A/ 6.25A | 93% | IP68 | 176*57*34 | 20 |
| DM-200W 12V /24V | 200W | 200-240V AC | 12V/24V | 16.7A/ 8.33A | 92% | IP68 | 186*60*36 | 20 |
| DM-300W 12V /24V | 300W | 200-240V AC | 12V/24V | 25.0A/ 12.5A | 92% | IP68 | 200*67*36 | 16 |
| DM-400W 12V /24V | 400W | 200-240V AC | 12V/24V | 33.3A/ 16.7A | 92% | IP68 | 230*67*36 | 16 |
application
The 12V 5A 60W rainproof power supply is ideal for various outdoor and semi-outdoor LED applications, providing stable and reliable power in damp or rainy conditions.
● LED Signage & Billboards – Powers illuminated signs, advertising boards, and channel letters.
● LED Lightboxes – Ensures bright and consistent lighting for menu boards and display cases.
● Architectural & Decorative Lighting – Suitable for garden lights, facade illumination, and landscape lighting.
● LED Strip & Neon Lights – Used in outdoor decorative lighting and accent lighting projects.
● Small LED Display Screens – Supports stable performance for outdoor digital signs and scoreboards.
With rainproof protection, efficient heat dissipation, and BIS & CE certifications, this power supply ensures safe and durable operation in LED advertising and lighting projects.
