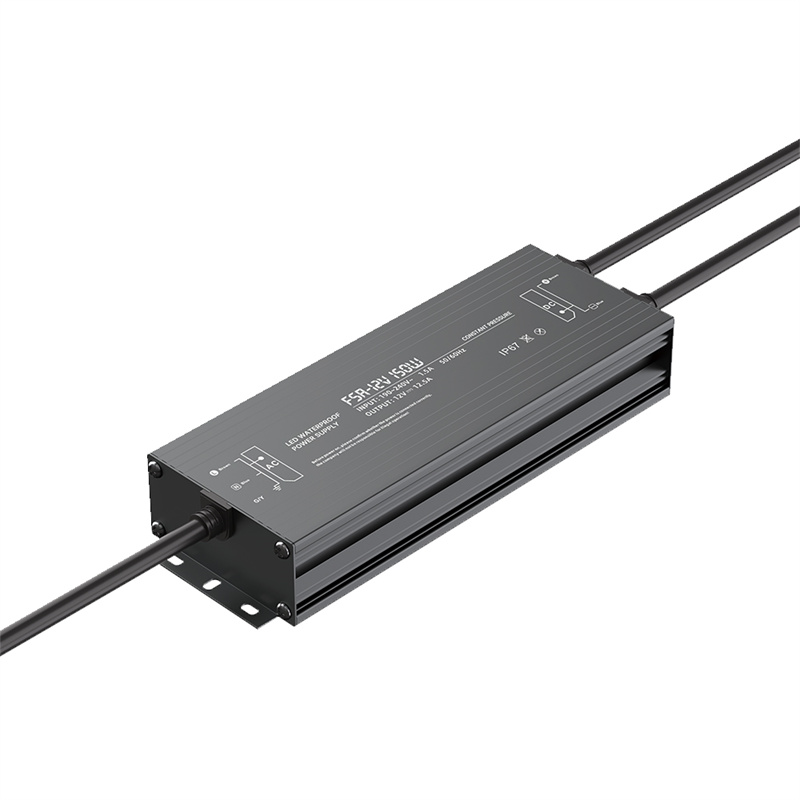

Ultra-Thin 150W 12V Waterproof Driver (IP67) - non-dimmable 12.5A Output
Feature
◎ IP67 Waterproof & Ultra-Thin: Superior dust and water protection (IP67) integrated into a remarkably slim, space-saving design.
◎ Stable 150W Non-Dim Output: Provides a consistent 12V DC at 12.5 Amps – ideal for applications requiring steady, non-adjustable brightness.
◎ Durable Anodized Aluminum Casing: Features an anti-rust, wear-resistant housing with elegant, durable laser-printed markings.
◎ High Efficiency & Wide Input: Offers stable performance using quality components, operating efficiently on 187-262VAC input voltage.
◎ Reliable Silent Performance: Fanless design ensures completely noiseless operation, suitable for all environments.
specification
| MODEL | LED POWER SUPPLY | FSA-150W 12V | FSA-150W 24V |
| OUTPUT | Output voltage | 12V DC | 24V DC |
| Output voltage range | 12VDC±0.5VDC | 24VDC±0.5VDC | |
| Output Current | Max 12.5A | Max 6.25A | |
| Output power | Max 150W | ||
| Output power range | 0~150W | ||
| Ripple & Noise | ≤120mV | ≤240mV | |
| Linear Regulation | ±1% | ||
| Load Regulation | ±1% | ||
| Start-up Time (Typ) | 600ms/230VAC | ||
| Hold Up Time(Typ) | 100ms/230VAC | ||
| INPUT | Input voltage | 187-262Vac | |
| Frequency | 50/60Hz | ||
| Input сurrent | 0.52A/230Vac | ||
| Power factor | PF>0.8 | ||
| No-load power consumption | ≤3W | ||
| Efficiency (typ.) | 91% | 93% | |
| Inrush current(typ.) | Cold start 50A at 230Vac | ||
| Control surge capability | L,N:2KV L,N-PE:4KV | ||
| Leakage сurrent | Max. 0.5mA | ||
| ENVIRONMENT | Working temperature | ta: -30°C~ 50°C tc: 80°C | |
| Working humidity | 20 ~ 99%RH, condensing (Waterproof) | ||
| Storage temp., humidity | -40°C ~ 80°C, 10~95%RH | ||
| PROTECTION | Overtemperature | Protection type: Turn off the output voltage, after the temperature drops, re-energize to restore. | |
| Over load protection | Shut down the output when current load above 110%~150%, auto recovers. | ||
| Short circuit protection | Protection type: It can be automatically restored after the fault is eliminated. | ||
| SAFETY&EMC | Withstand voltage | I/P-O/P:3750Vac | |
| Isolation resistance | I/P-O/P: 100MΩ/500VDC/25°C/70%RH | ||
| Safety standards | IEC/EN61347;IEC/EN60950;IP67 | ||
| EMC Test Standards | EN55015: 2013;EN61547: 2009; EN61000-3-2:2014; EN61000-3-3:2013 | ||
| Reliabilityand Quality Control | Impact aging | 100% of the product is fully loaded and impacted for 4 hours under an environment of at least 40°C±5°C | |
| Component derating | Under the steady-state conditions of rated input and output, the stress of components will not exceed its maximum nominal value | ||
| NOTE | 1.All parameters not specifically mentioned are measured at 230VAC input, rated load and 25°C ambient temperature. 2.Ripple and noise test method: connect 0.1uF and 47uF capacitors in parallel at the terminal, and measure under 20MHZ bandwidth. 3.Ensure that the power supply is used under the rated parameters and environment. | ||

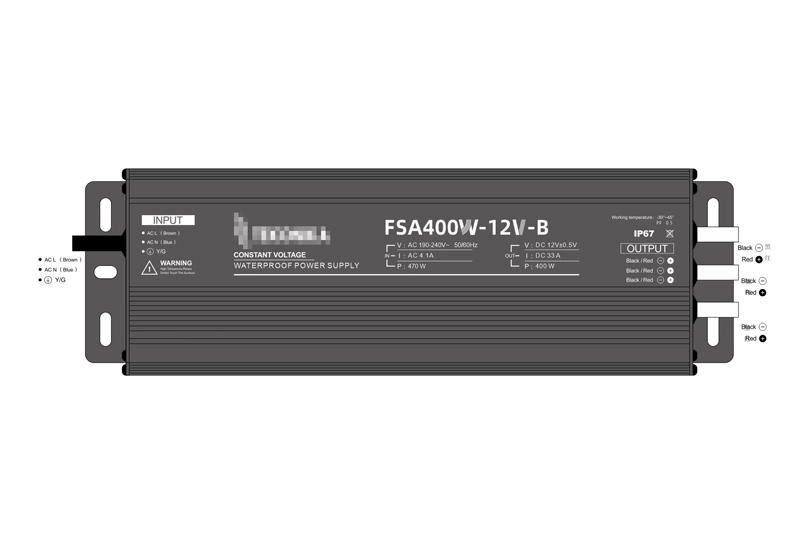

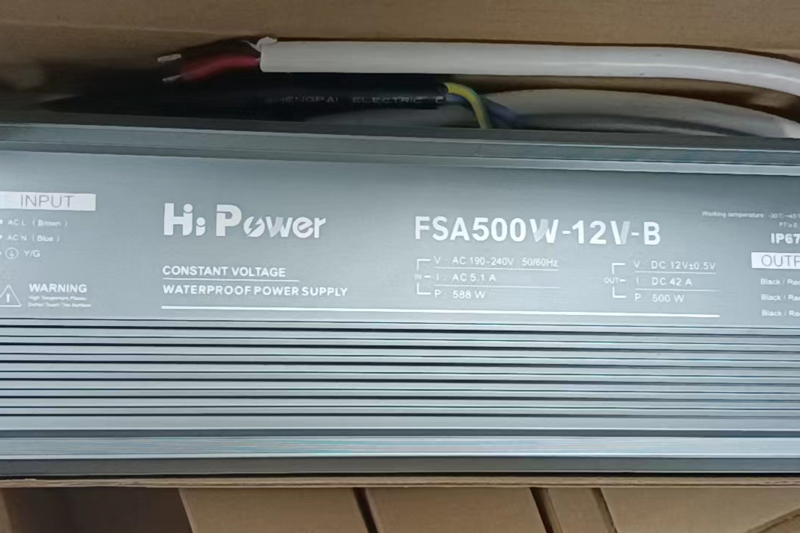

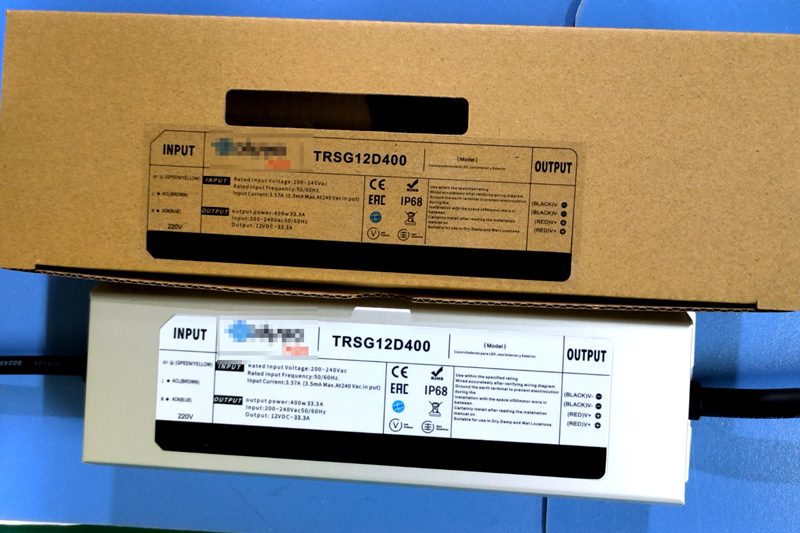

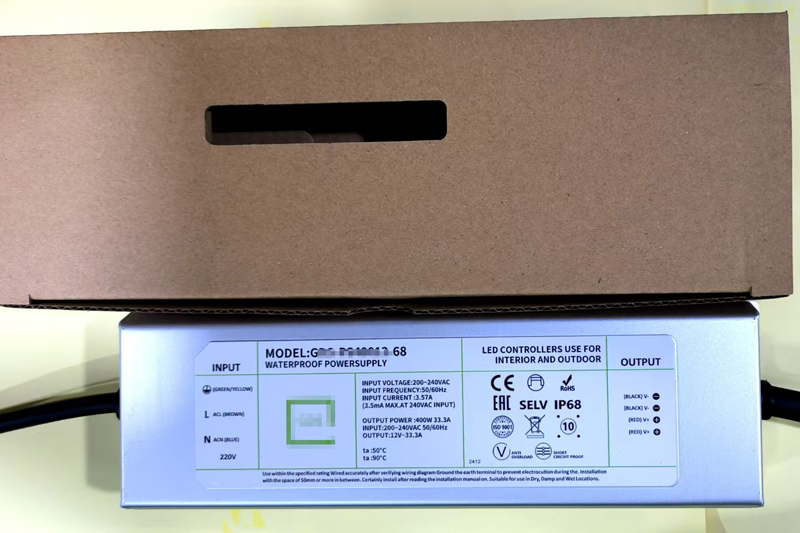

OEM Customer design
010203
Model List
Our factory offers OEM customization, allowing us to tailor various models and parameters to meet your specific needs. Feel free to contact us for more information and personalized solutions.
| Model | Power Out | Input Voltage | Output Voltage | Output Current | Efficiency | IP | Size(mm) | Package |
| FSA-60W 12V /24V | 60W | 187-262V AC | 12V/24V | 5.0A/ 2.5A | 93% | IP67 | 162*45*21 | 50 |
| FSA-100W 12V /24V | 100W | 187-262V AC | 12V/24V | 8.3A/ 4.1A | 93% | IP67 | 180*65*35 | 30 |
| FSA-150W 12V /24V | 150W | 187-262V AC | 12V/24V | 12.5A/ 6.25A | 92% | IP67 | 213*75*42 | 20 |
| FSA-200W 12V /24V | 200W | 187-262V AC | 12V/24V | 16.7A/ 8.33A | 92% | IP67 | 230*75*42 | 10 |
| FSA-300W 12V /24V | 300W | 187-262V AC | 12V/24V | 25.0A/ 12.5A | 90% | IP67 | 245*75*42 | 10 |
| FSA-400W 12V /24V | 400W | 187-262V AC | 12V/24V | 33.3A/ 16.7A | 90% | IP67 | 260*75*42 | 20 |
| FSA-500W 12V /24V | 500W | 187-262V AC | 12V/24V | 41.7A/ 20.8A | 90% | IP67 | 260*90*45 | 10 |
| FSA-600W 12V /24V | 600W | 187-262V AC | 12V/24V | 50A/ 25A | 90% | IP67 | 260*125*51 | 5 |
application
The unique combination of an ultra-thin profile, IP67 waterproof rating, and reliable non-dimmable 150W output makes this 12V driver exceptionally versatile for both indoor and outdoor applications, especially where space is constrained or moisture is present. It's ideally suited for:
Strip Lighting: Powering significant lengths of 12V LED strip lights, particularly in outdoor settings, bathrooms, kitchens, or tight channels where both water resistance and a slim design are beneficial.
Decoration Lighting: Energizing decorative LED fixtures or installations for events, landscaping, or architectural accents, ensuring reliable operation even when exposed to weather.
Cabinet Lighting: Its ultra-thin form factor makes it perfect for installation within or above cabinets (like under-cabinet or display cabinet lighting), providing clean, non-dimmable illumination.

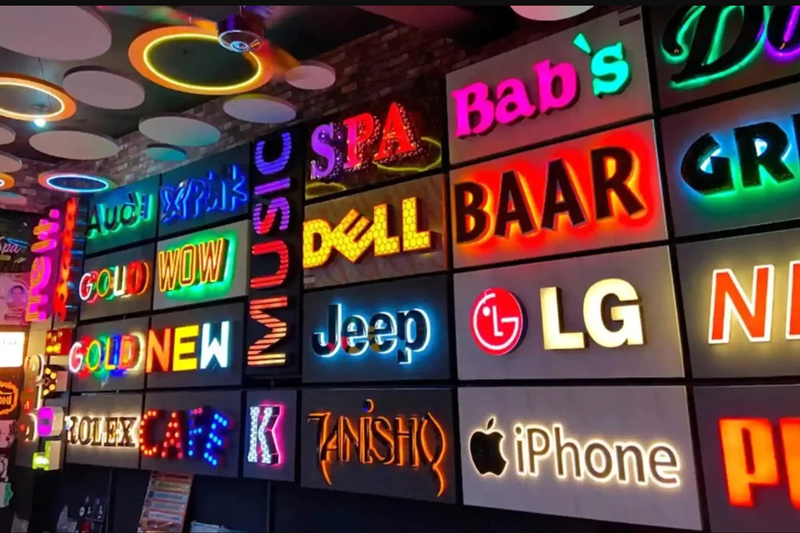

Signage and Display: Driving illuminated signs, retail displays, or exhibition stands where a compact, reliable, and potentially weather-resistant power source is needed.
Cove Lighting: Easily concealable in narrow coves or soffits for indirect accent lighting, offering consistent brightness without dimming complexity.
Household Device Lighting: Providing a safe, low-voltage 12V source for various integrated lighting applications within household appliances or custom fixtures requiring waterproof protection.
This driver excels in scenarios needing dependable, straightforward (non-dimmable) 12V 150W power in a compact, durable, and waterproof package.
