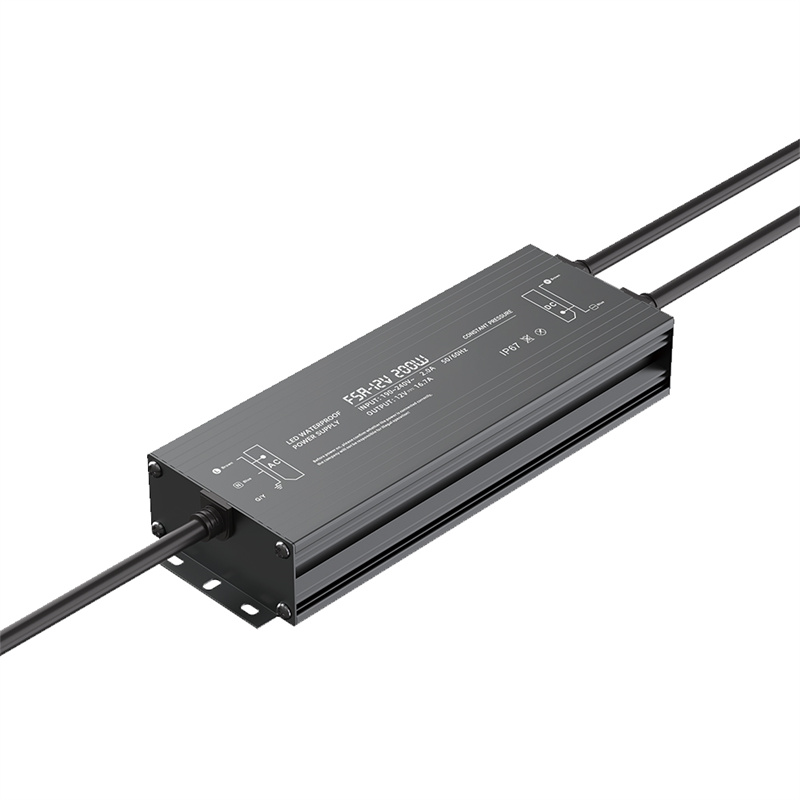

Ultra-Slim 200W 12V Constant Voltage Waterproof Driver (IP67) - 16.7A, 187-262Vac
Feature
◎ IP67 Waterproof & Ultra-Slim: Fully protected against dust/water (IP67) in a remarkably compact, space-saving design.
◎ Reliable 200W Constant Voltage: Delivers stable 12V DC at 16.7A (Non-Dimmable), ideal for consistent LED strip and module performance.
◎ Wide Input & High Efficiency: Operates reliably on 187-262Vac input with high efficiency, ensuring cooler operation and longer lifespan.
◎ Comprehensive Protection Suite: Features safeguards against input surge, over current, over voltage, short circuit, and over temperature.
◎ Professional Grade Reliability: Engineered with improved components for challenging environments like architectural and signage lighting.
specification
| MODEL | LED POWER SUPPLY | FSA-200W 12V | FSA-200W 24V |
| OUTPUT | Output voltage | 12V DC | 24V DC |
| Output voltage range | 12VDC±0.5VDC | 24VDC±0.5VDC | |
| Output Current | Max 16.7A | Max 8.3A | |
| Output power | Max 200W | ||
| Output power range | 0~200W | ||
| Ripple & Noise | ≤120mV | ≤240mV | |
| Linear Regulation | ±1% | ||
| Load Regulation | ±1% | ||
| Start-up Time (Typ) | 600ms/230VAC | ||
| Hold Up Time(Typ) | 100ms/230VAC | ||
| INPUT | Input voltage | 187-262Vac | |
| Frequency | 50/60Hz | ||
| Input сurrent | 0.52A/230Vac | ||
| Power factor | PF>0.8 | ||
| No-load power consumption | ≤3W | ||
| Efficiency (typ.) | 91% | 93% | |
| Inrush current(typ.) | Cold start 50A at 230Vac | ||
| Control surge capability | L,N:2KV L,N-PE:4KV | ||
| Leakage сurrent | Max. 0.5mA | ||
| ENVIRONMENT | Working temperature | ta: -30°C~ 50°C tc: 80°C | |
| Working humidity | 20 ~ 99%RH, condensing (Waterproof) | ||
| Storage temp., humidity | -40°C ~ 80°C, 10~95%RH | ||
| PROTECTION | Overtemperature | Protection type: Turn off the output voltage, after the temperature drops, re-energize to restore. | |
| Over load protection | Shut down the output when current load above 110%~150%, auto recovers. | ||
| Short circuit protection | Protection type: It can be automatically restored after the fault is eliminated. | ||
| SAFETY&EMC | Withstand voltage | I/P-O/P:3750Vac | |
| Isolation resistance | I/P-O/P: 100MΩ/500VDC/25°C/70%RH | ||
| Safety standards | IEC/EN61347;IEC/EN60950;IP67 | ||
| EMC Test Standards | EN55015: 2013;EN61547: 2009; EN61000-3-2:2014; EN61000-3-3:2013 | ||
| Reliabilityand Quality Control | Impact aging | 100% of the product is fully loaded and impacted for 4 hours under an environment of at least 40°C±5°C | |
| Component derating | Under the steady-state conditions of rated input and output, the stress of components will not exceed its maximum nominal value | ||
| NOTE | 1.All parameters not specifically mentioned are measured at 230VAC input, rated load and 25°C ambient temperature. 2.Ripple and noise test method: connect 0.1uF and 47uF capacitors in parallel at the terminal, and measure under 20MHZ bandwidth. 3.Ensure that the power supply is used under the rated parameters and environment. | ||
OEM Customer design
010203
Model List
Our factory offers OEM customization, allowing us to tailor various models and parameters to meet your specific needs. Feel free to contact us for more information and personalized solutions.
| Model | Power Out | Input Voltage | Output Voltage | Output Current | Efficiency | IP | Size(mm) | Package |
| FSA-60W 12V /24V | 60W | 187-262V AC | 12V/24V | 5.0A/ 2.5A | 93% | IP67 | 162*45*21 | 50 |
| FSA-100W 12V /24V | 100W | 187-262V AC | 12V/24V | 8.3A/ 4.1A | 93% | IP67 | 180*65*35 | 30 |
| FSA-150W 12V /24V | 150W | 187-262V AC | 12V/24V | 12.5A/ 6.25A | 92% | IP67 | 213*75*42 | 20 |
| FSA-200W 12V /24V | 200W | 187-262V AC | 12V/24V | 16.7A/ 8.33A | 92% | IP67 | 230*75*42 | 10 |
| FSA-300W 12V /24V | 300W | 187-262V AC | 12V/24V | 25.0A/ 12.5A | 90% | IP67 | 245*75*42 | 10 |
| FSA-400W 12V /24V | 400W | 187-262V AC | 12V/24V | 33.3A/ 16.7A | 90% | IP67 | 260*75*42 | 20 |
| FSA-500W 12V /24V | 500W | 187-262V AC | 12V/24V | 41.7A/ 20.8A | 90% | IP67 | 260*90*45 | 10 |
| FSA-600W 12V /24V | 600W | 187-262V AC | 12V/24V | 50A/ 25A | 90% | IP67 | 260*125*51 | 5 |
application
Engineered for superior performance in demanding environments, this Ultra-Slim 200W Waterproof Driver is the professional choice for various 12V Constant Voltage lighting applications where reliability and protection are key. Its robust IP67 rating, wide input range, and comprehensive protections make it ideal for:
Architectural Lighting: Powering LED strips or fixtures integrated into building facades, landscapes, or structures exposed to varying weather conditions, ensuring consistent, non-dimmable illumination.
Decorative Lighting: Driving elaborate decorative displays or installations, both indoors and outdoors, where a slim profile allows for discreet placement and waterproof protection ensures longevity.
Signage Lighting: Reliably energizing LED light box modules or illuminated channel letters for commercial signage, offering stable performance and protection against the elements required for continuous operation.
Large LED Strip Installations: Providing ample power (up to 200W) for substantial runs of 12V LED strips used in cove lighting, under-cabinet lighting, or other applications needing dependable, non-dimmable power.
Challenging Environments: Suitable for any similar application requiring industry safety compliance, robust packaging against moisture/dust, and superior electrical performance (like marine accents, industrial settings, etc.).
Its ultra-slim design further enhances its suitability for installations with tight space constraints, making it a versatile and highly reliable power solution for professional-grade lighting projects.
