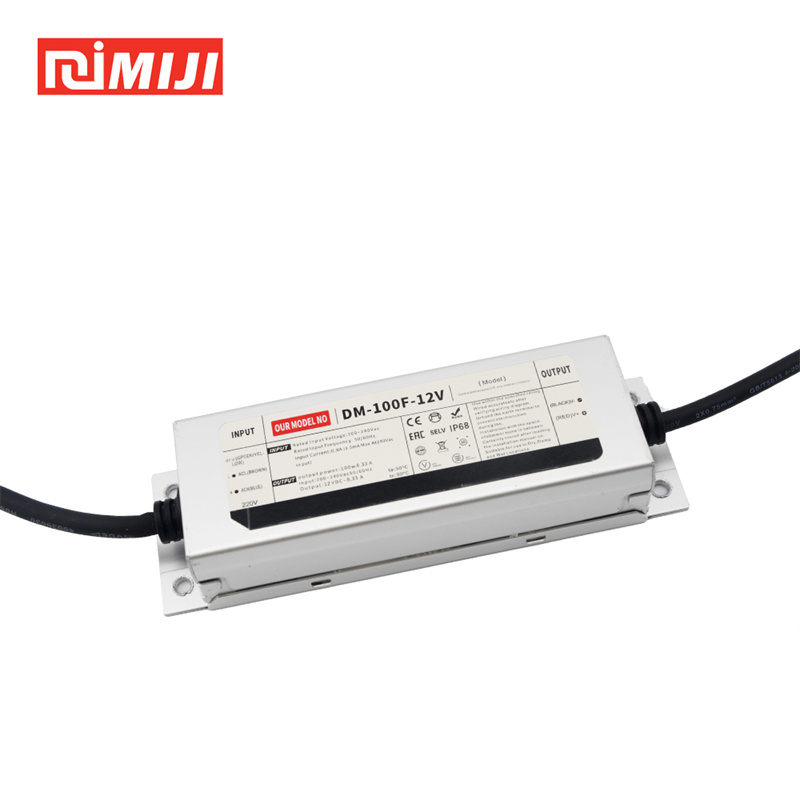

12V 8.3A 100W High End Quality Waterproof LED Driver
Feature
◎ 100% full load burn-in test, 100% fresh new components.
◎ CE, RoHS BIS certified. Hot selling in Poland and Europe market.
◎ Protection: Overload, short circuit, over voltage, over-temperature protection
◎ Constant voltage triac dimming driver dimming range 0-100%
◎ Aluminum plastic shell with internal irrigation design in line with the requirements of IP67 waterproof
◎ Apply to indoor and outdoor LED lighting, electronic billboards, decorative lighting applications garden scaping
specification
| MODEL | LED POWER SUPPLY | DM-100W 12V | DM-100W 24V |
| OUTPUT | Output voltage | 12V DC | 24V DC |
| Output voltage range | 12VDC±0.5VDC | 24VDC±0.5VDC | |
| Output Current | Max 8.3A | Max 4.16A | |
| Output power | Max 100W | ||
| Output power range | 0~100W | ||
| Ripple & Noise | ≤120mV | ≤240mV | |
| Linear Regulation | ±1% | ||
| Load Regulation | ±1% | ||
| Start-up Time (Typ) | 600ms/230VAC | ||
| Hold Up Time(Typ) | 100ms/230VAC | ||
| INPUT | Input voltage | 200-240Vac | |
| Frequency | 50/60Hz | ||
| Input сurrent | 0.52A/230Vac | ||
| Power factor | PF>0.8 | ||
| No-load power consumption | ≤3W | ||
| Efficiency (typ.) | 89% | 91% | |
| Inrush current(typ.) | Cold start 50A at 230Vac | ||
| Control surge capability | L,N:2KV L,N-PE:4KV | ||
| Leakage сurrent | Max. 0.5mA | ||
| ENVIRONMENT | Working temperature | ta: -30°C~ 50°C tc: 80°C | |
| Working humidity | 20 ~ 99%RH, condensing (Waterproof) | ||
| Storage temp., humidity | -40°C ~ 80°C, 10~95%RH | ||
| PROTECTION | Overtemperature | Protection type: Turn off the output voltage, after the temperature drops, re-energize to restore. | |
| Over load protection | Shut down the output when current load above 110%~150%, auto recovers. | ||
| Short circuit protection | Protection type: It can be automatically restored after the fault is eliminated. | ||
| SAFETY&EMC | Withstand voltage | I/P-O/P:3750Vac | |
| Isolation resistance | I/P-O/P: 100MΩ/500VDC/25°C/70%RH | ||
| Safety standards | IEC/EN61347;IEC/EN60950;IP67 | ||
| EMC Test Standards | EN55015: 2013;EN61547: 2009; EN61000-3-2:2014; EN61000-3-3:2013 | ||
| Reliabilityand Quality Control | Impact aging | 100% of the product is fully loaded and impacted for 4 hours under an environment of at least 40°C±5°C | |
| Component derating | Under the steady-state conditions of rated input and output, the stress of components will not exceed its maximum nominal value | ||
| NOTE | 1.All parameters not specifically mentioned are measured at 230VAC input, rated load and 25°C ambient temperature. 2.Ripple and noise test method: connect 0.1uF and 47uF capacitors in parallel at the terminal, and measure under 20MHZ bandwidth. 3.Ensure that the power supply is used under the rated parameters and environment. | ||
OEM Customer design
010203
Model List
Below DM series are 100% full load, and 5 years warranty! Our factory offers OEM customization, allowing us to tailor various models and parameters to meet your specific needs. Feel free to contact us for more information and personalized solutions.
| Model | Power Out | Input Voltage | Output Voltage | Output Current | Efficiency | IP | Size(mm) | Package |
| DM-36W 12V /24V | 36W | 200-240V AC | 12V/24V | 5.0A/ 1.5A | 93% | IP68 | 126*41*27 | 60 |
| DM-60W 12V /24V | 60W | 200-240V AC | 12V/24V | 5.0A/ 2.5A | 93% | IP68 | 143*49*31 | 40 |
| DM-100W 12V /24V | 100W | 200-240V AC | 12V/24V | 8.3A/ 4.1A | 93% | IP68 | 164*53*31 | 30 |
| DM-150W 12V /24V | 150W | 200-240V AC | 12V/24V | 12.5A/ 6.25A | 93% | IP68 | 176*57*34 | 20 |
| DM-200W 12V /24V | 200W | 200-240V AC | 12V/24V | 16.7A/ 8.33A | 92% | IP68 | 186*60*36 | 20 |
| DM-300W 12V /24V | 300W | 200-240V AC | 12V/24V | 25.0A/ 12.5A | 92% | IP68 | 200*67*36 | 16 |

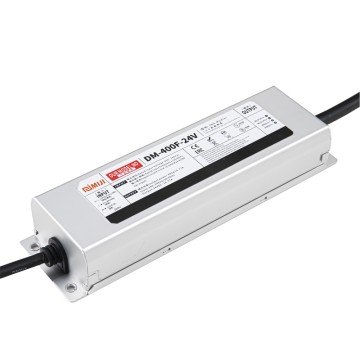

| DM-400W 12V /24V | 400W | 200-240V AC | 12V/24V | 33.3A/ 16.7A | 92% | IP68 | 230*67*36 | 16 |
application
The 12V 8.3A 100W IP68 waterproof power supply is built for demanding outdoor and industrial environments, offering stable and reliable power for LED lighting and electronic applications exposed to water, dust, and harsh weather conditions. Its fully sealed waterproof design ensures safe operation in extreme settings.
● LED Pool & Fountain Lighting – Ideal for underwater LED lights, fountain displays, and swimming pool illumination, ensuring safe and stable operation in submerged conditions.
● Outdoor Billboard & Neon Sign Power Supply – Provides reliable power for LED advertising boards, large outdoor signages, and neon light displays, even in rainy, dusty, and high-moisture areas.
● Bridge & Tunnel LED Lighting – Suitable for highway tunnels, pedestrian underpasses, and bridge illumination, resistant to constant exposure to moisture and pollutants.
● Solar & Off-Grid LED Lighting Systems – Works with solar-powered LED street lights, security lighting, and remote lighting systems, offering efficient, stable output in off-grid locations.
● Food Processing & Cold Storage Lighting – Designed for LED lighting in food-grade environments, such as refrigerated warehouses, food processing plants, and clean rooms, where moisture and sanitation are critical factors.
● Heavy-Duty Outdoor Decorative Lighting – Perfect for architectural facade lighting, landscape projects, and dynamic RGB LED installations, ensuring long-lasting illumination in extreme conditions.
With its IP68 waterproof rating, corrosion-resistant build, and high efficiency, this power supply ensures durability, safety, and reliability in both industrial and commercial LED lighting applications, making it an excellent choice for long-term outdoor and high-humidity environments.
