Bright 12V LED Module (6113) - IP65 Injection, 1.5W 3x 2835 for Letters
Feature
◎ High Brightness (130lm): Delivers excellent luminous flux from 3 efficient SMD 2835 LEDs using 1.5W power.
◎ IP65 Waterproof Injection Molding: Durable construction resistant to dust and water spray, suitable for protected outdoor use.

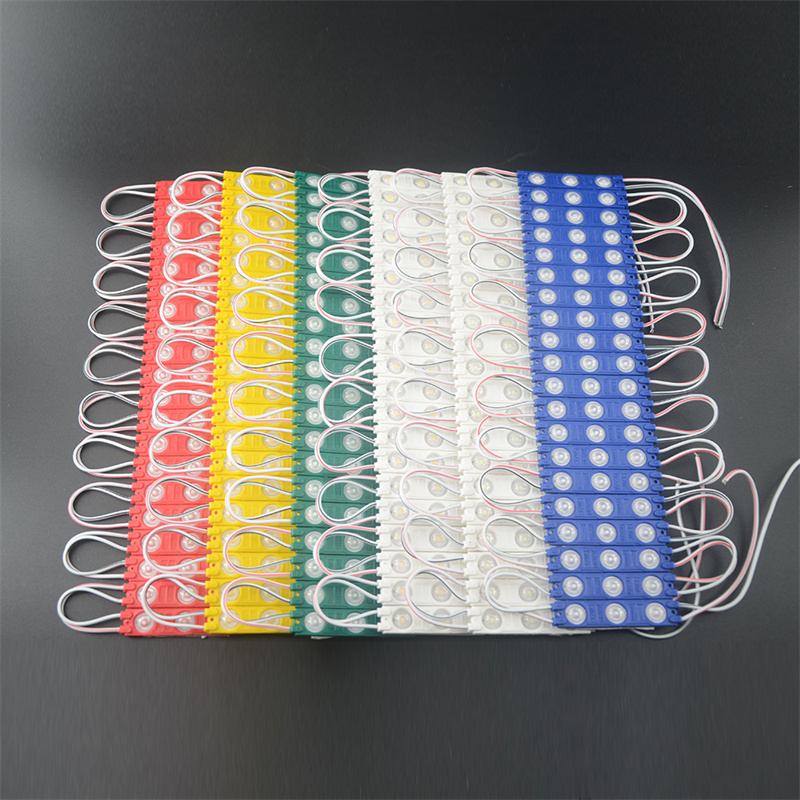

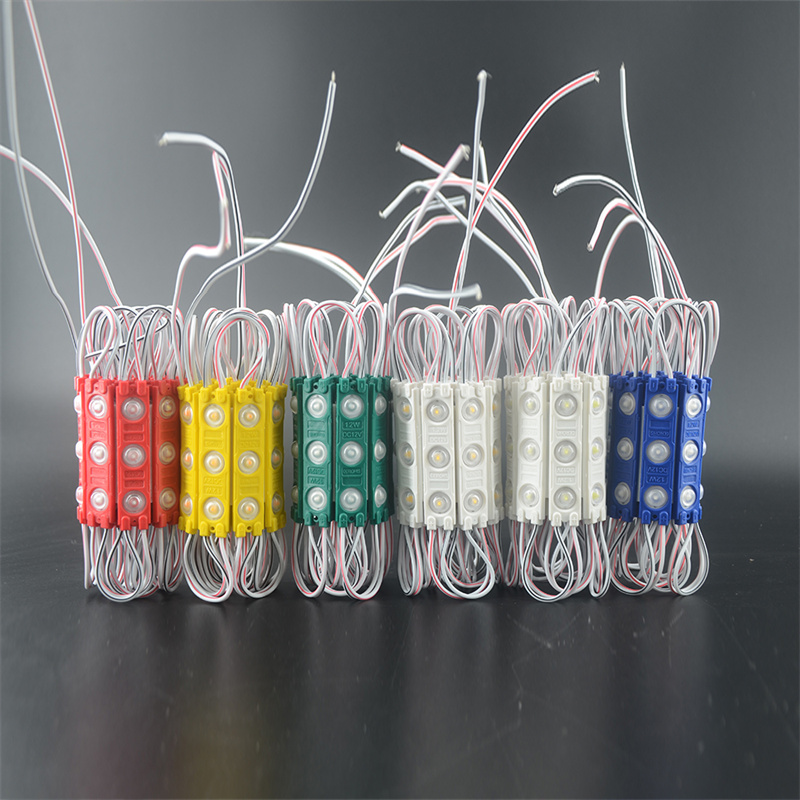

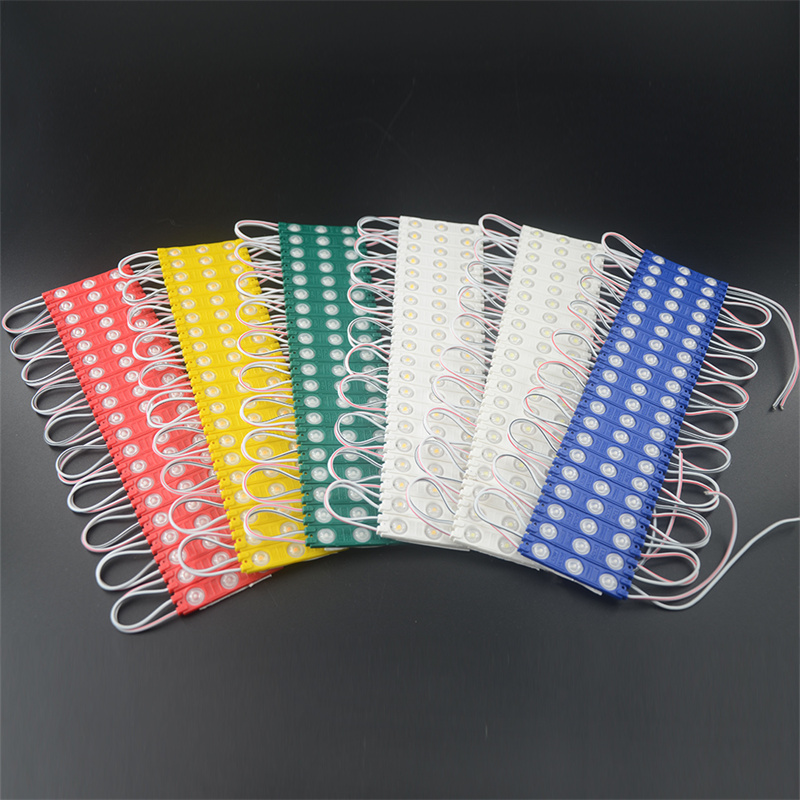

◎ Versatile Color Options: Available in a wide range of colors and white temperatures (CRI 80) to suit various designs.
◎ Long Lifespan (50,000 hrs): Engineered for durability and sustained performance in signage applications.
◎ Safe 12V DC Operation: Runs on low voltage for safety and ease of integration (20pcs/set typical).
specification
| Model No. | 6113-2835 | 1 LED Power | 0.3-0.5W |
| Power | 1.5W | LED Chips | SANAN |
| IP Rating | IP65 | LED Color | CW/ WW/ NW/ R/ G/ B/ Y/P |
| Work Voltage | DC 12V | Lumens | 100-150LM |
| PCB Material | Aluminum | Quantity per Srting | 20PCS |
| Viewing Angle | 165° | Warranty | 2 years |
| Color Rendering index(Ra) | 85 | Operating Temperature | -20~60°C |
| Life-Span | 50,000h | Pcs/Ctn | 5000pcs |
| Application | LED advertising signs | Trademark | MIJI/ OEM/ ODM |
| Specification | 61*13mm | HS Code | 9405409000 |
Model List
| Model | Size | SMD | Power | Lumen | Beam Angle | IP | Pcs/Carton | Carton size /cm |

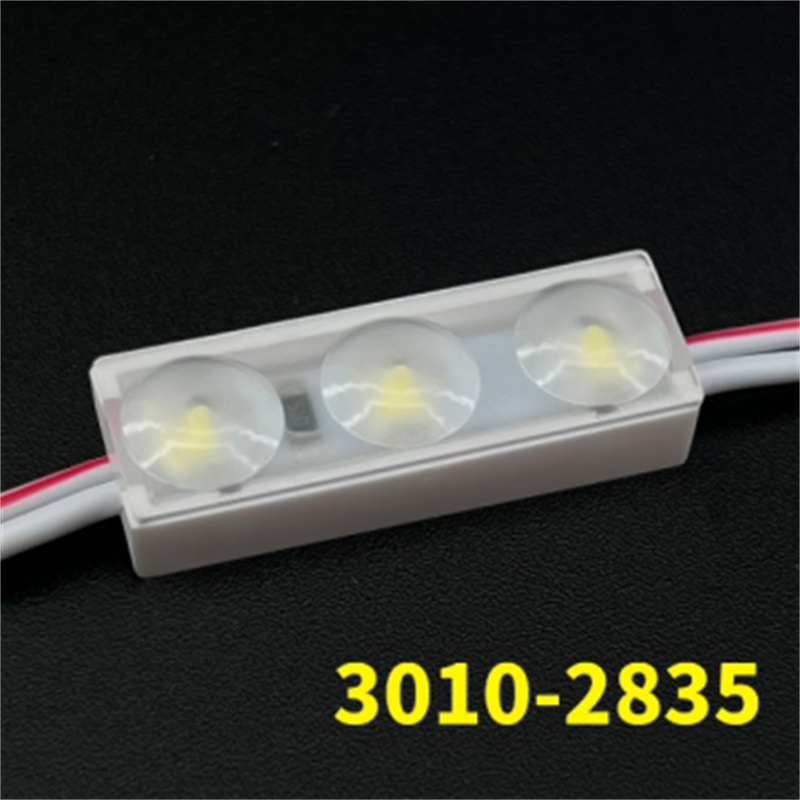

| 3010-2835 | 30*10mm | 2835 | 1.5W | 120LM | 165° | IP68 | 5000pcs | 53*23*25 |

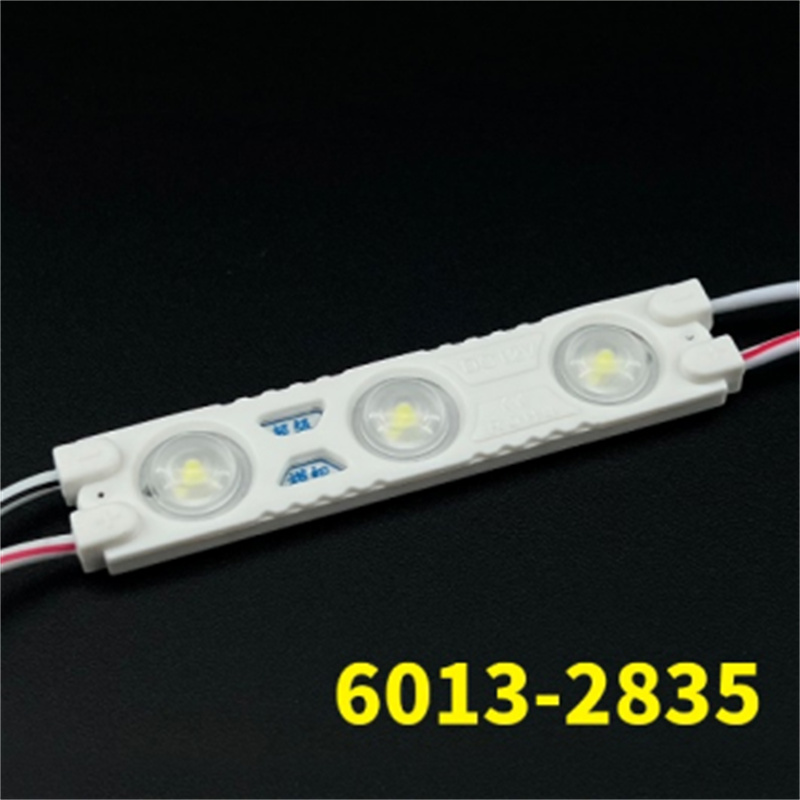

| 6013-2835 | 60*13mm | 2835 | 1.5W | 120LM | 165° | IP68 | 5000pcs | 60*27.5*30 |

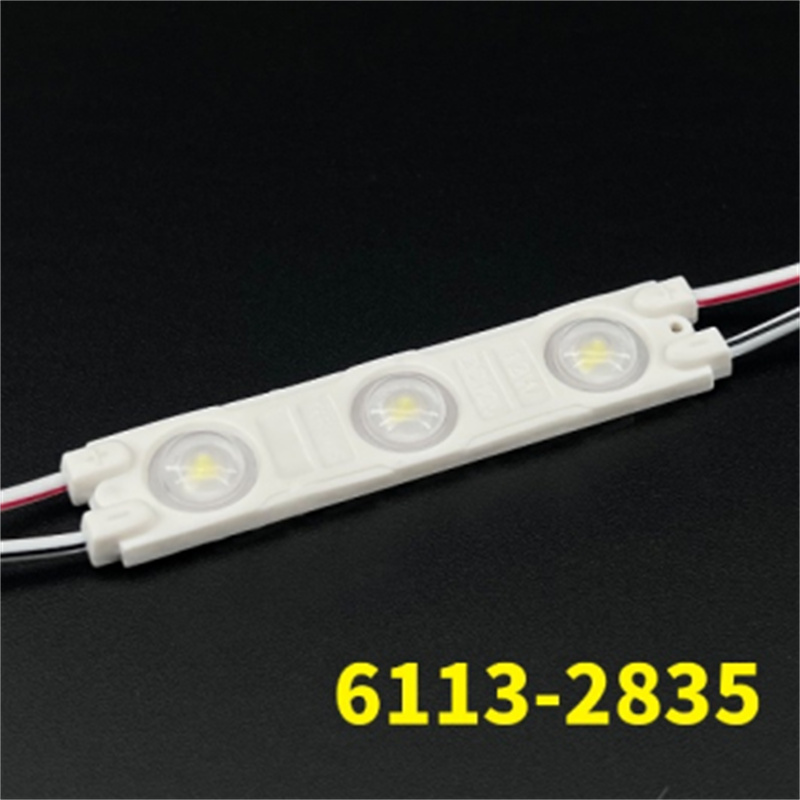

| 6113-2835 | 61*13mm | 2835 | 1.5W | 120LM | 165° | IP65 | 5000pcs | 60*27.5*30 |

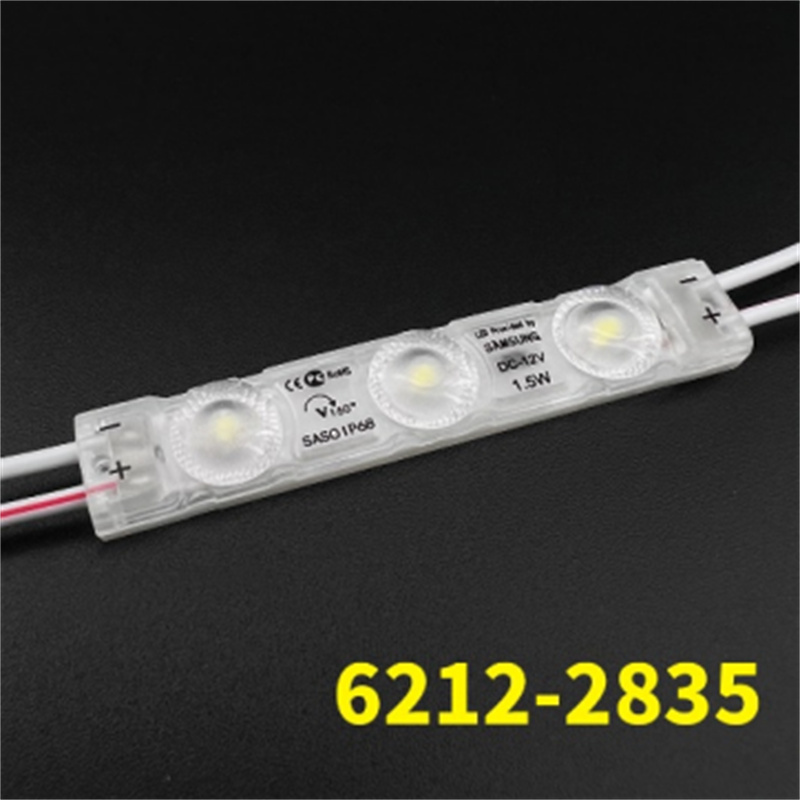

| 6212-2835 | 62*12mm | 2835 | 1.5W | 120LM | 165° | IP68 | 4000pcs | 57*27*35 |

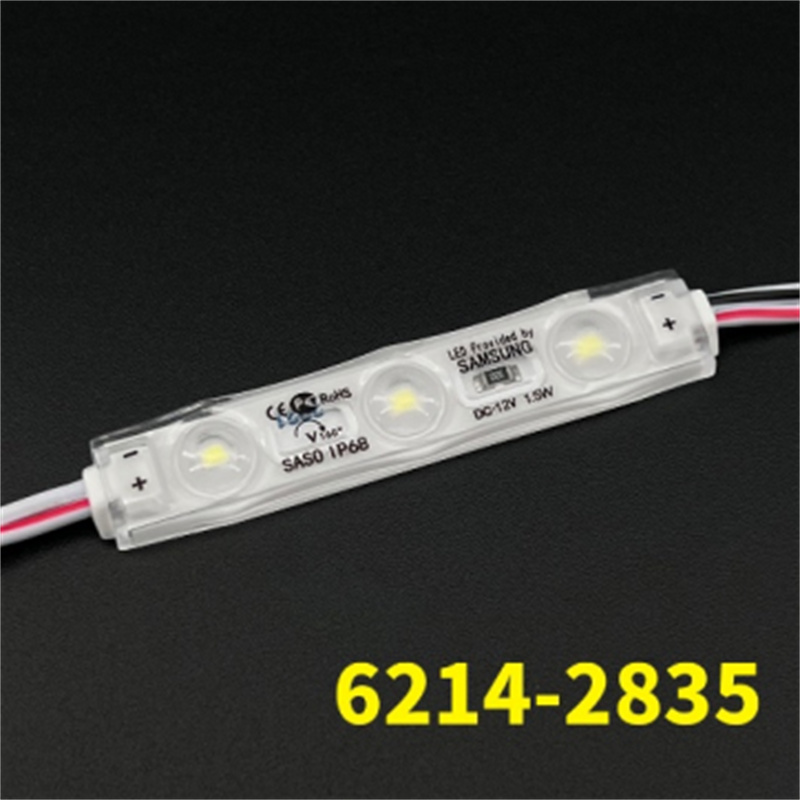

| 6214-2835 | 62*14mm | 2835 | 1.5W | 120LM | 165° | IP68 | 4000pcs | 57*27*35 |

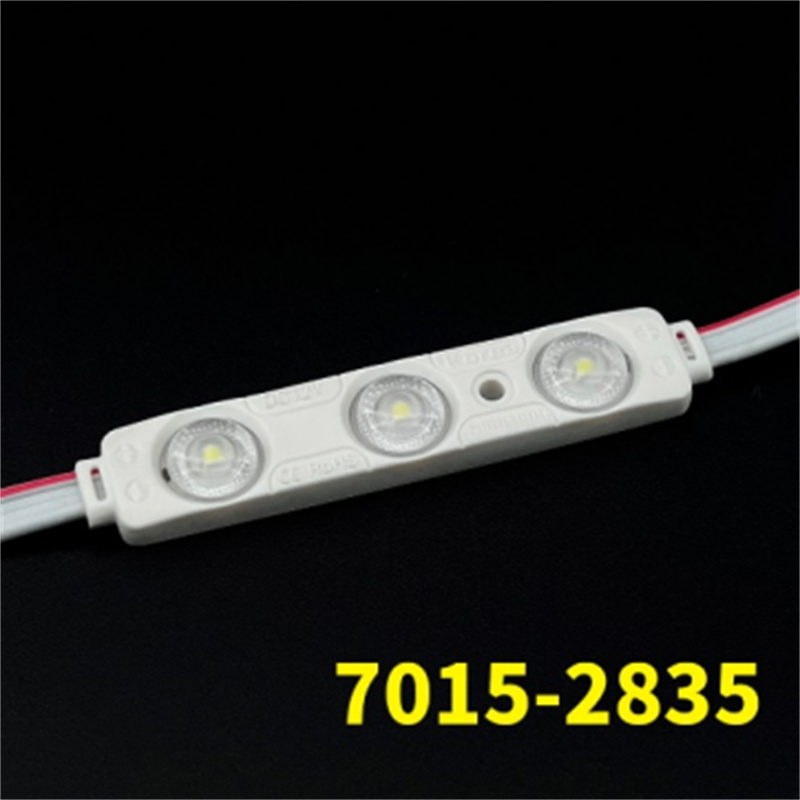

| 7015-2835 | 70*15mm | 2835 | 1.5W | 120LM | 165° | IP65 | 2000pcs | 58*40*16.5 |

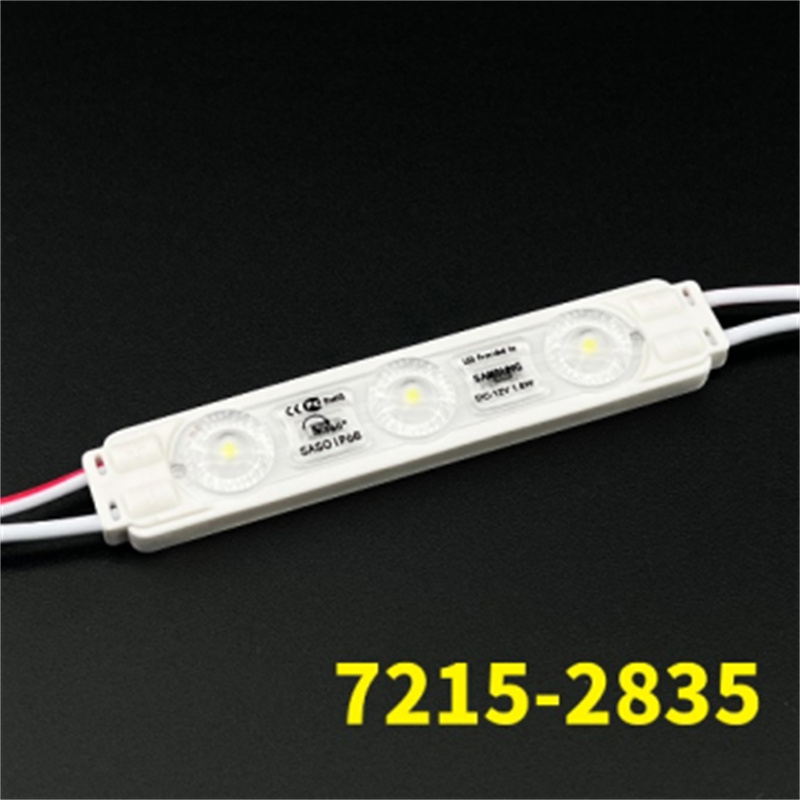

| 7215-2835 | 72*15mm | 2835 | 1.8W | 180LM | 165° | IP65 | 2000pcs | 57.5*36*18.5 |

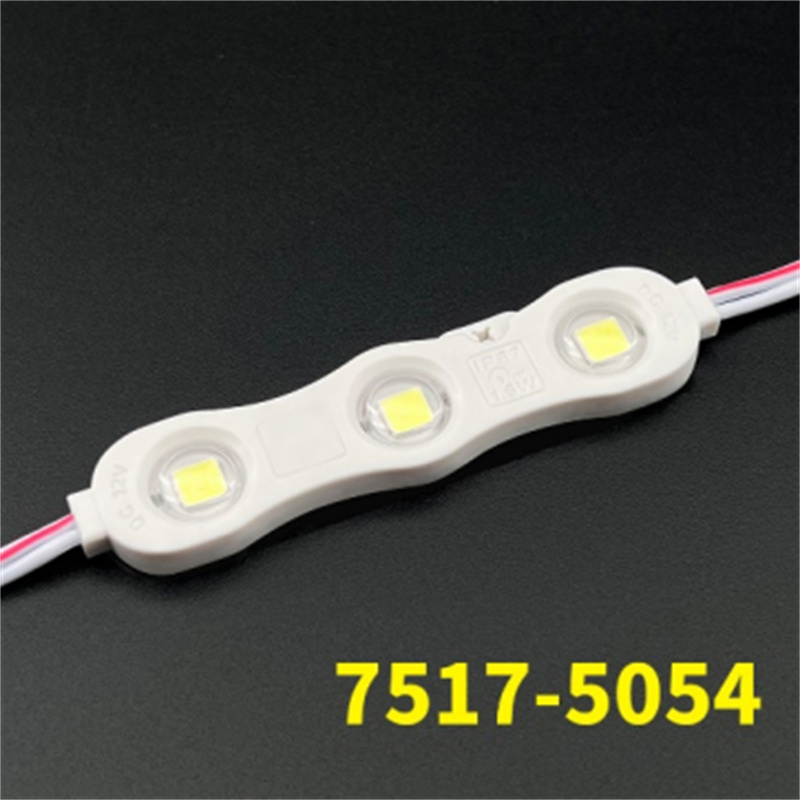

| 7517-5054 | 75*17mm | 5054 | 1.5W | 180LM | 165° | IP65 | 2000pcs | 57.5*36*20 |
application
This Bright 12V LED Module (6113), featuring 1.5W power output and robust IP65 injection molding, is specifically designed as a high-performance lighting solution for:

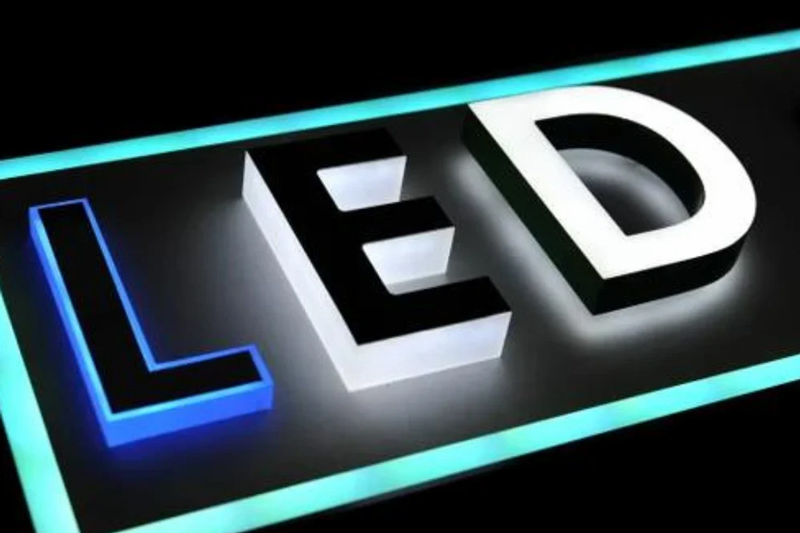

Channel Letters: Providing vibrant and uniform illumination for both standard and reverse channel letters, ensuring excellent visibility for commercial signage.

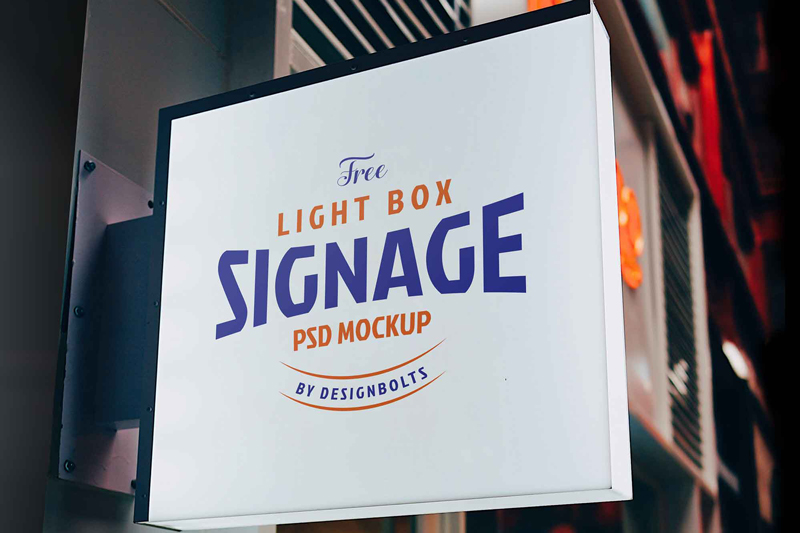

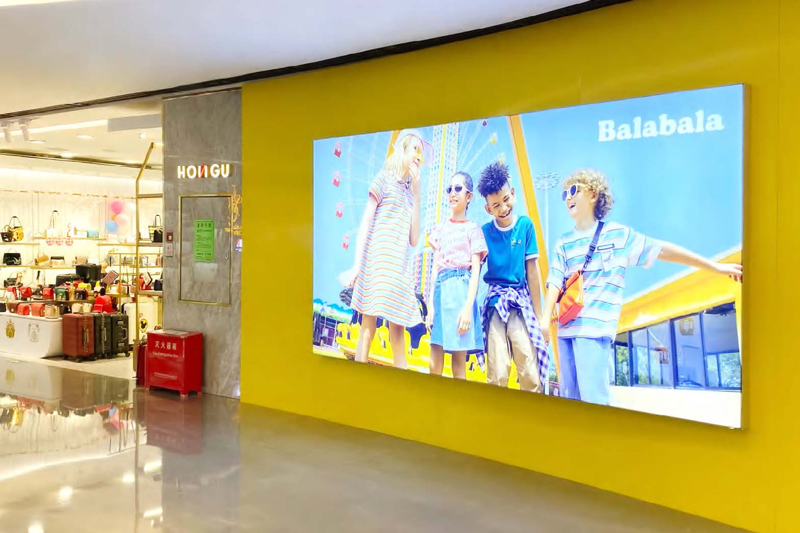

Lightboxes: Ideal for backlighting various sizes of lightboxes used in advertising, retail displays, and information kiosks, offering bright light (130lm) and good color rendering (CRI 80).
Advertising Signs & LED Signage: Suitable for a wide range of general illuminated signage applications where brightness, reliability, and resistance to dust/water spray (IP65) are important.
Protected Outdoor Use: The IP65 rating makes it suitable for outdoor signs or displays that are shielded from direct heavy rain but may encounter moisture, dust, or splashes.

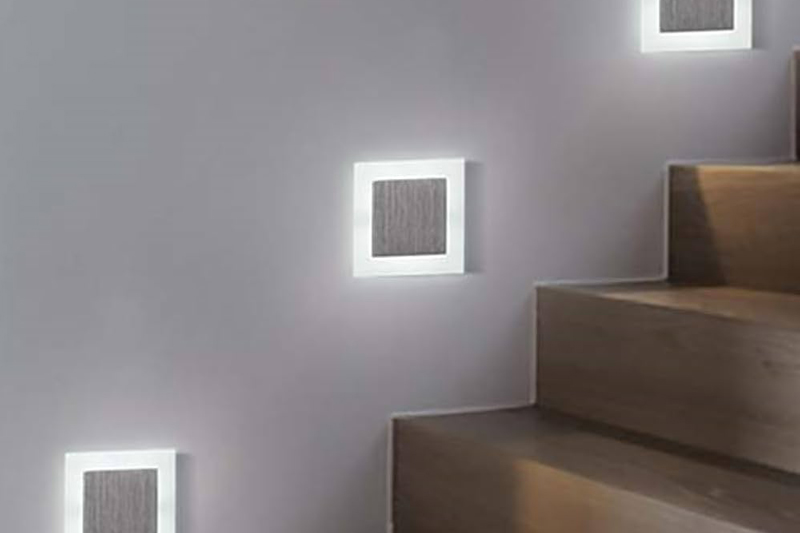

Accent & Decorative Lighting: Can be used creatively for accent lighting or decorative purposes where a bright, compact, and durable 12V module is needed.
Its combination of high brightness, long lifespan, multiple color options, and IP65 protection makes it a versatile and dependable choice for illuminating various forms of signage and displays effectively.
