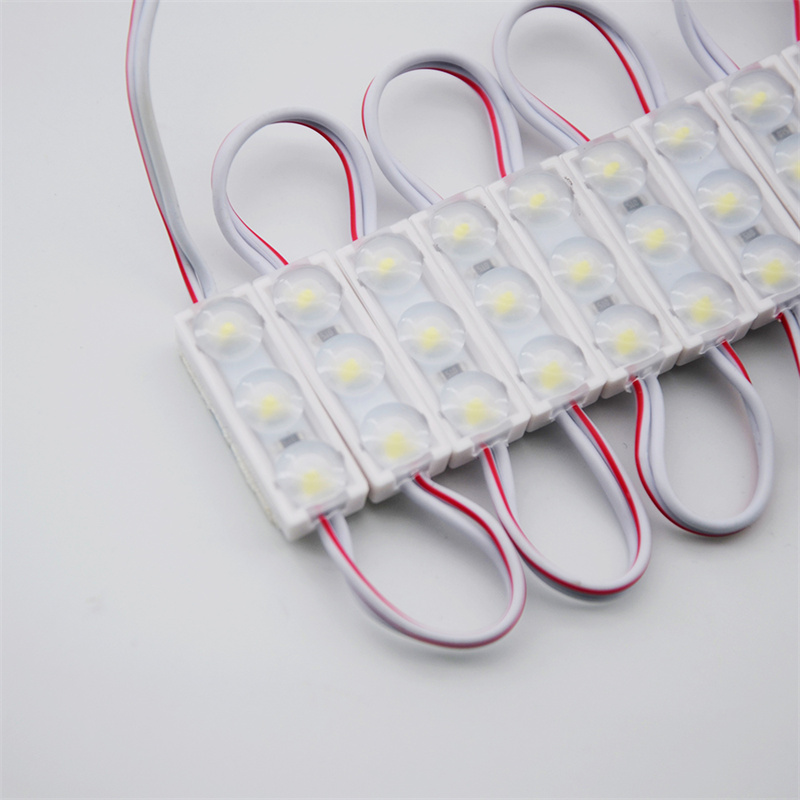

Mini LED Module for Small Letters - 3x SMD 2835, 12V Signage Lighting
Feature
◎ Compact Mini Design: Perfectly sized for illuminating intricate details and small channel letters.
◎ Bright SMD 2835 LEDs: Features 3 high-brightness LEDs for vibrant, uniform light (full color range available).
◎ Easy & Safe Installation: Operates on safe 12V DC and includes 3M adhesive tape for quick mounting.
◎ Long Lifespan (50,000 hrs): Built on an aluminum PCB for excellent heat dissipation and durability.
◎ Durable Molded Unit: Features insulated wires within a protective molded body for reliability.
specification
| Model No. | 3010-2835 | 1 LED Power | 0.3-0.5W |
| Power | 1.5W | LED Chips | SANAN |
| IP Rating | IP68 | LED Color | CW/ WW/ NW/ R/ G/ B/ Y/P |
| Work Voltage | DC 12V | Lumens | 100-150LM |
| PCB Material | Aluminum | Quantity per Srting | 20PCS |
| Viewing Angle | 165° | Warranty | 2 years |
| Color Rendering index(Ra) | 85 | Operating Temperature | -20~60°C |
| Life-Span | 50,000h | Pcs/Ctn | 5000pcs |
| Application | Led mini signage letter | Trademark | MIJI/ OEM/ ODM |

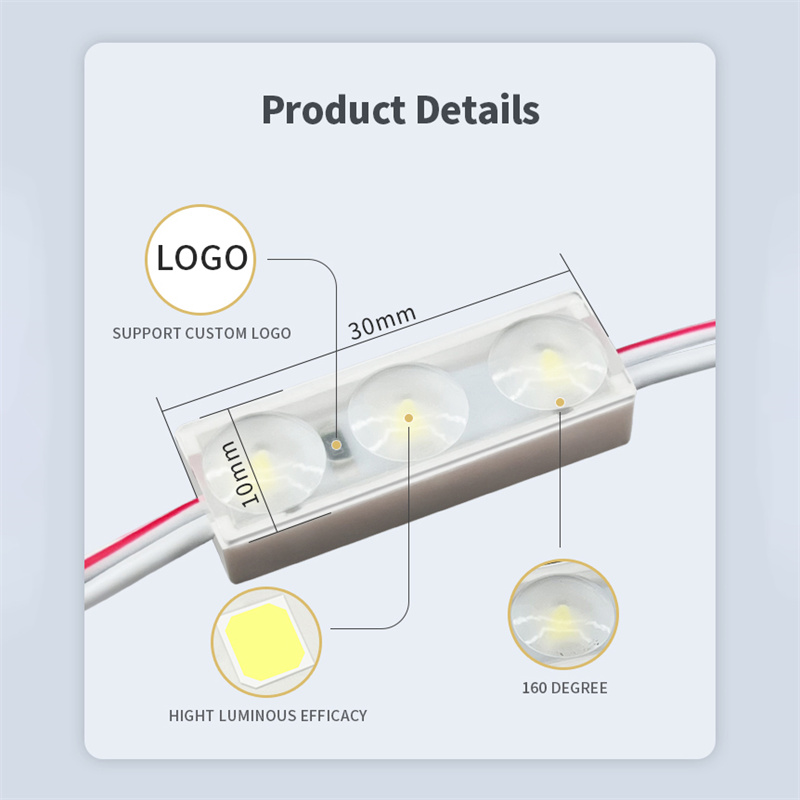

| Specification | 30*10mm | HS Code | 9405409000 |
Model List
Our factory offers OEM customization, allowing us to tailor various models and parameters to meet your specific needs. Feel free to contact us for more information and personalized solutions.
| Model | Size | SMD | Power | Lumen | Beam Angle | IP | Pcs/Carton | Carton size /cm |
| 3010-2835 | 30*10mm | 2835 | 1.5W | 120LM | 165° | IP68 | 5000pcs | 53*23*25 |

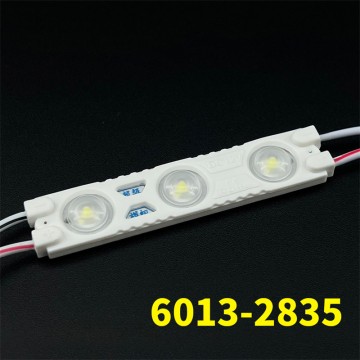

| 6013-2835 | 60*13mm | 2835 | 1.5W | 120LM | 165° | IP68 | 5000pcs | 60*27.5*30 |

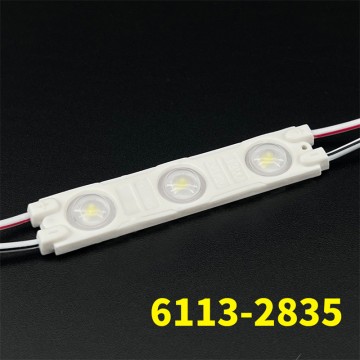

| 6113-2835 | 61*13mm | 2835 | 1.5W | 120LM | 165° | IP65 | 5000pcs | 60*27.5*30 |
| 6212-2835 | 62*12mm | 2835 | 1.5W | 120LM | 165° | IP68 | 4000pcs | 57*27*35 |
| 6214-2835 | 62*14mm | 2835 | 1.5W | 120LM | 165° | IP68 | 4000pcs | 57*27*35 |
| 7015-2835 | 70*15mm | 2835 | 1.5W | 120LM | 165° | IP65 | 2000pcs | 58*40*16.5 |

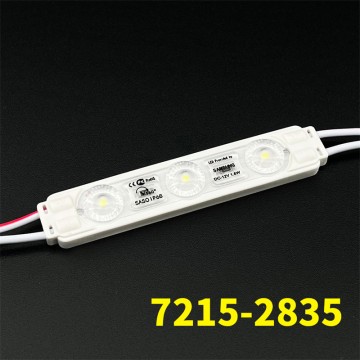

| 7215-2835 | 72*15mm | 2835 | 1.8W | 180LM | 165° | IP65 | 2000pcs | 57.5*36*18.5 |
| 7517-5054 | 75*17mm | 5054 | 1.5W | 180LM | 165° | IP65 | 2000pcs | 57.5*36*20 |
application
This versatile Mini LED Module is specifically designed for applications demanding bright, compact illumination, particularly excelling in:
Detailed Signage: Ideal for evenly lighting small channel letters (both standard and reverse), intricate LED luminous letters, compact LED light boxes, and detailed advertising signs or LED signage where larger modules won't fit.
Backlighting: Perfectly suited for providing backlight for smaller signs or displays, and can be used in arrays for large area back lighting if needed.
Accent & Concealed Lighting: Its small size allows for discreet installation in cove lighting, under-cabinet lighting (kitchens, displays), under-counter lighting, illuminating display cases, and various forms of indirect accent decor lighting.
Architectural & Decorative: Can be integrated into architectural lighting details or used for various other decorative purposes requiring small, bright, low-voltage light points.
Its ease of installation and reliable performance make it a go-to choice for achieving precise illumination in confined spaces across signage, display, and decorative applications.
