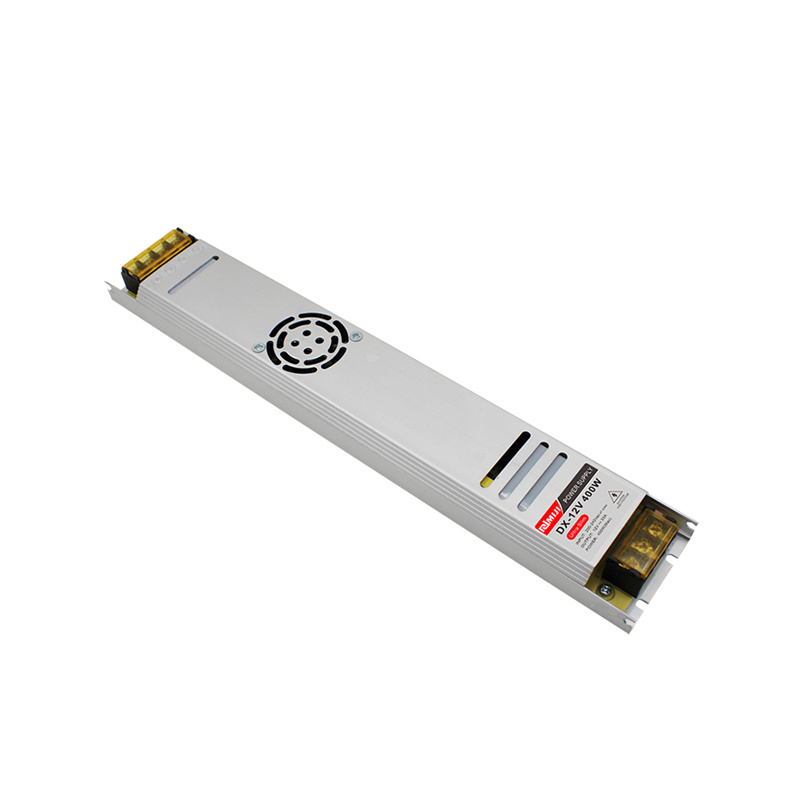

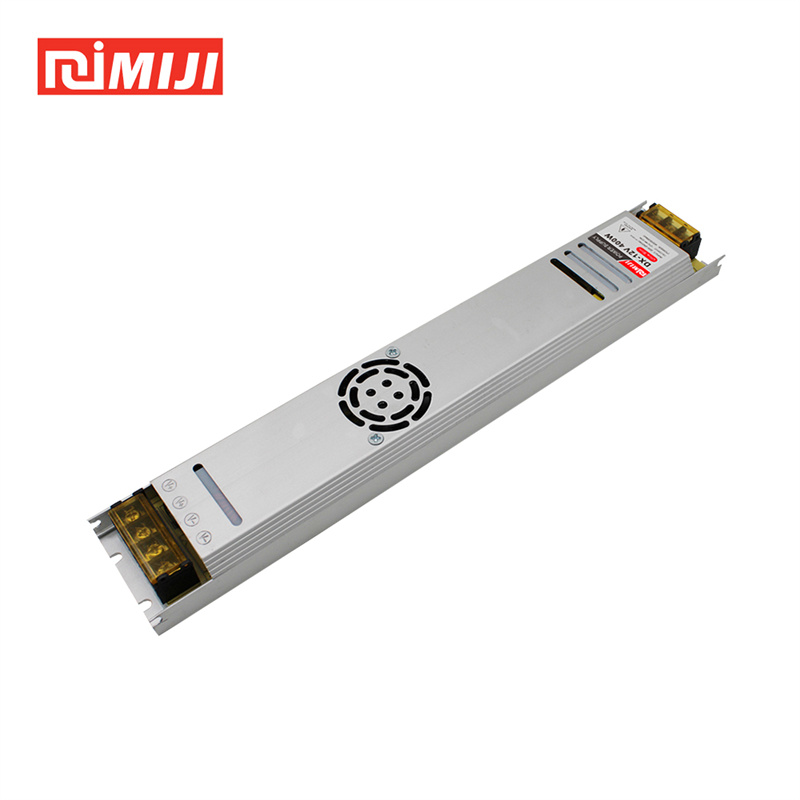

400W Ultra-Slim Linear Power Supply - 12V/24V for Indoor LED Light Box
Feature
◎ Unique Ultra-Slim Linear Design: Elongated, thin profile specifically engineered for easy integration into narrow LED light boxes and tight indoor spaces.
◎ High 400W Power Capacity: Delivers substantial power suitable for large or bright indoor light box applications.
◎ Dual Voltage Options (12V/24V): Available in both common low-voltage outputs to match diverse LED requirements.
◎ Optimized for Dynamic Light Boxes: Ideal power source for complex magic color and dynamic motion light box effects.
◎ High-Quality Indoor Performance: Built with reliable components for consistent energy delivery in indoor environments.
specification
| Model | DX-400W 12V FAN | DX-400W 24V FAN | |
| OUTPUT | DC voltage | 12V | 24V |
| Rated current | 33.3A | 16.7A | |
| Cuttent range | 0-33.3A | 0-16.7A | |
| Rated output power | 400W | 400W | |
| Ripples and noise | ≤200mVp-p | ≤300mVp-p | |
| Output current range | 11.5-12.5V | 23-25V | |
| Precision of output voltage regulation | ±0.5% | ±0.5% | |
| Rate of lenear adjustment | ±0.5% | ±0.5% | |
| Load adjustment rate | ±0.5% | ±0.5% | |
| The startup time | ≤2s/230VAC | ||
| INPUT | Keep time | 10ms/230VAC | |
| Voltage range | 176-264VAC | ||
| Frequency range | 50Hz | ||
| Power factor | PF≥0.6/230VAC | ||
| Efficiency | ≥89% | ≥91% | |
| Alternating current | 3.4A/230VAC | ||
| Surge current | 50A/230VAC | ||
| Leakage current | <5mA/230VAC | ||
| PROTECTION | Overload | 110%-140%: rated 110%-140% of the total power input | |
| protection mode:Auto recovery mode.the system automatically recovers when abnormal load conditions are removed | |||
| Short circuit | protection mode:Auto recovery mode.the system automatically recovers when abnormal load conditions are removed | ||
| Over voltage | protection mode:self-recovery mode,automatic recovery when the overvoltage is removed | ||
| Over temperature | protection mode:self-recovery mode,automatically recover when the temperature drops | ||
| ENVIRONMEN | working temperature | -35~+50°C | |
| working humidity | 20-90% RH | ||
| storage temperature;humidity | -30~+85°C； 10~95% RH | ||
| temperature coefficient | ±0.1%/°C(0-35°C) | ||
| resistance to vibration | 10-500Hz, 3G 10min. / 1 cycle, 60 min. each axes | ||
| SAFETY&EMC | safety norms | EN60950 , GB4943.1 -2011 | |
| withstand voltage | l/P-O/P:1.5KVAC l/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||
| insulation impedance | l/P-O/P, l/P-FG, 0/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | ||
| EMC | -- | ||
| other | protection grade | IP20 | |
| MTBF | ≥30khour 25℃ | ||
| power supply size | L313*W53*H21mm | ||
| power supply weight | 385g | ||
| NOTE | 1.Unless otherwise specified , all specification are measured at an input of 230VAC,rarted negative cut,and ambient temperature of 25°C | ||
| 2.Ripple and noise measurement method:the measured end is connected in parallel with a 0.1uF+10uF capacitor,the oscilloscope is set to 20MHZ bandwidth,and the probe is tested with cap off and full load at 25°C | |||
| 3.Accuracy :includes setting error , linear adjustment rate and load adjustment rate . | |||
| 4. The output power is reduced when the input voltage is less than 200VAC. | |||
OEM Customer design
0102030405
Model List
DX lighting box series. Our factory offers OEM customization, allowing us to tailor various models and parameters to meet your specific needs. Feel free to contact us for more information and personalized solutions.
| Model | Power Out | Input Voltage | Output Voltage | Output Current | Efficiency | IP | Size(mm) | Package |
| DX-60W 12V /24V | 60W | 200-240V AC | 12V/24V | 5.0A/ 2.5A | 89% | IP20 | 148*53*21 | 85 |
| DX-100W 12V /24V | 100W | 200-240V AC | 12V/24V | 8.3A/ 4.1A | 89% | IP20 | 172*53*21 | 85 |
| DX-150W 12V /24V | 150W | 200-240V AC | 12V/24V | 12.5A/ 6.25A | 89% | IP20 | 234*53*18 | 78 |
| DX-200W 12V /24V | 200W | 200-240V AC | 12V/24V | 16.7A/ 8.33A | 89% | IP20 | 313*53*21 | 60 |
| DX-300W 12V /24V | 300W | 200-240V AC | 12V/24V | 25.0A/ 12.5A | 85% | IP20 | 313*53*21 | 60 |
| DX-400W 12V /24V | 400W | 200-240V AC | 12V/24V | 33.3A/ 16.7A | 85% | IP20 | 313*53*21 | 60 |
| DX-300W 12V /24V FAN | 300W | 200-240V AC | 12V/24V | 25.0A/ 12.5A | 88% | IP20 | 313*53*21 | 60 |
| DX-400W 12V /24V 1FAN | 400W | 200-240V AC | 12V/24V | 33.3A/ 16.7A | 84% | IP20 | 313*53*21 | 60 |
| DX-400W 12V /24V 2FAN | 400W | 200-240V AC | 12V/24V | 33.3A/ 16.7A | 86% | IP20 | 373*53*21 | 45 |
application
The distinctive ultra-slim, linear form factor of this 400W Power Supply makes it the premier choice for powering a wide variety of Indoor LED Light Boxes, particularly those with minimal depth or unique shape requirements. Its specialized design excels in applications such as:
Ultra-Thin LED Light Boxes: Seamlessly integrates into extremely shallow light box frames where traditional block-style power supplies won't fit, maintaining a clean aesthetic.
Magic Color / RGB Chasing Light Boxes: Provides the robust 400W power needed to drive the complex controllers and multiple LED segments found in vibrant, color-changing advertising displays.
Dynamic Motion Light Boxes: Reliably energizes light boxes featuring animated effects, scrolling text, or other dynamic elements requiring consistent and substantial power.
Standard Backlit & Edge-Lit Displays: Offers a high-capacity power solution for large or very bright standard indoor light boxes used for advertising, menus, or informational displays.
Linear Architectural Lighting: Its elongated shape can also be advantageous for powering long, continuous runs of indoor LED strips integrated into coves, soffits, or custom linear fixtures.
Available in both 12V and 24V outputs, this power supply caters to the specific voltage requirements of various LED modules and strips commonly used within these innovative indoor lighting and display applications. Choose this linear design when space, form factor, and high power are critical considerations for your indoor light box project.
