12V LED Injection Module for Signage 6013 Model
Feature
◎ 12V Low-voltage operation and robust construction contribute to reliability and safety.
◎ Modules are designed 60*13mm and easily integrated into various applications.
◎ Backlighting for channel letters, advertising signs, and light boxes
◎ Modules can have a lifespan of 50,000 hours or more.

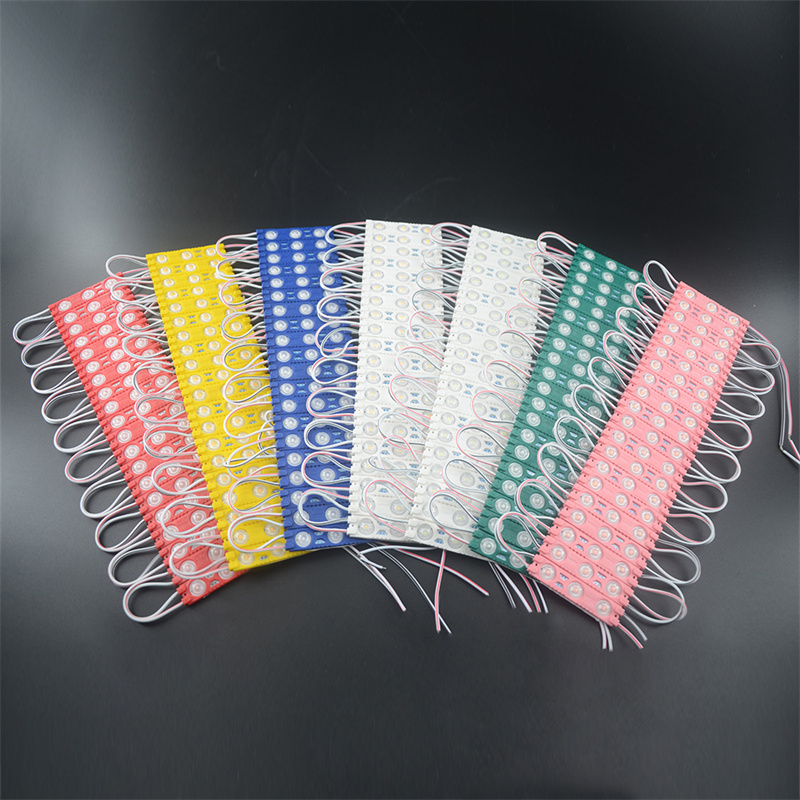

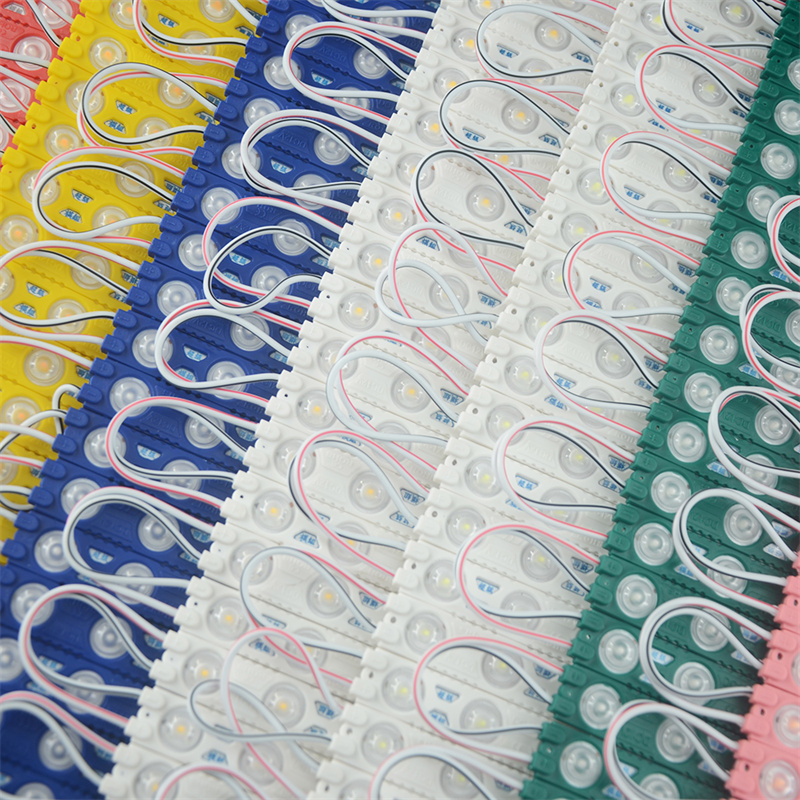

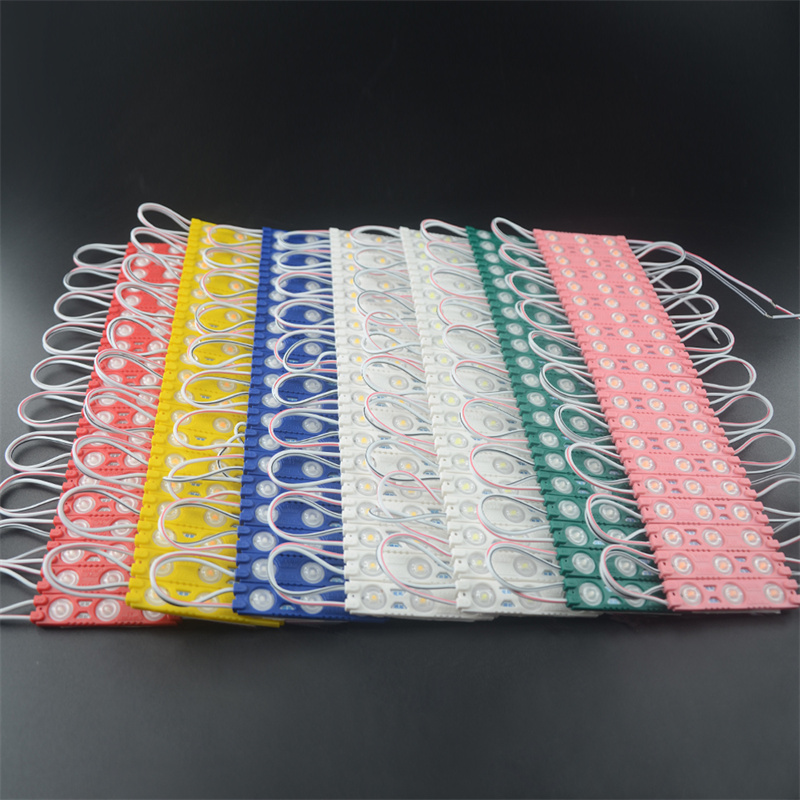

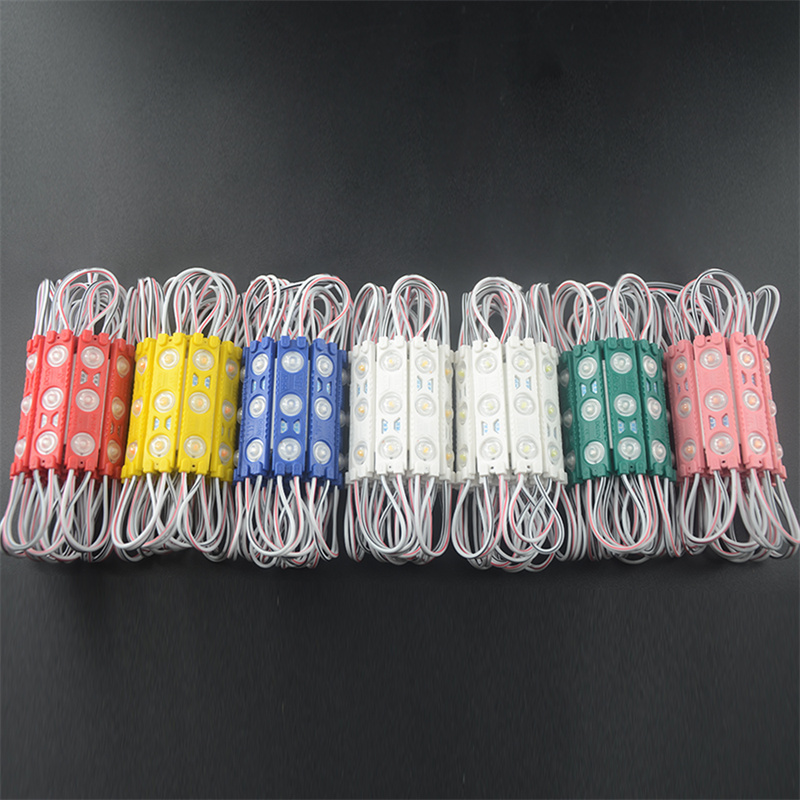

◎ Available in various colors, including cool whites, warm whites, yellow, blue, red, green, pink, purple, options.
◎ 20pcs per chain, 20000pcs can make logo design.
specification
| Model No. | 6013-2835 | 1 LED Power | 0.3-0.5W |
| Power | 1.5W | LED Chips | SANAN |
| IP Rating | IP65 | LED Color | CW/ WW/ NW/ R/ G/ B/ Y/P |
| Work Voltage | DC 12V | Lumens | 100-150LM |
| PCB Material | Aluminum | Quantity per Srting | 20PCS |
| Viewing Angle | 165° | Warranty | 2 years |
| Color Rendering index(Ra) | 85 | Operating Temperature | -20~60°C |
| Life-Span | 50,000h | Pcs/Ctn | 5000pcs |
| Application | Led Signage letter | Trademark | MIJI/ OEM/ ODM |
| Specification | 60*13mm | HS Code | 9405409000 |
Model List
| Model | Size | SMD | Power | Lumen | Beam Angle | IP | Pcs/Carton | Carton size /cm |
| 3010-2835 | 30*10mm | 2835 | 1.5W | 120LM | 165° | IP68 | 5000pcs | 53*23*25 |
| 6013-2835 | 60*13mm | 2835 | 1.5W | 120LM | 165° | IP68 | 5000pcs | 60*27.5*30 |
| 6113-2835 | 61*13mm | 2835 | 1.5W | 120LM | 165° | IP65 | 5000pcs | 60*27.5*30 |
| 6212-2835 | 62*12mm | 2835 | 1.5W | 120LM | 165° | IP68 | 4000pcs | 57*27*35 |
| 6214-2835 | 62*14mm | 2835 | 1.5W | 120LM | 165° | IP68 | 4000pcs | 57*27*35 |
| 7015-2835 | 70*15mm | 2835 | 1.5W | 120LM | 165° | IP65 | 2000pcs | 58*40*16.5 |
| 7215-2835 | 72*15mm | 2835 | 1.8W | 180LM | 165° | IP65 | 2000pcs | 57.5*36*18.5 |
| 7517-5054 | 75*17mm | 5054 | 1.5W | 180LM | 165° | IP65 | 2000pcs | 57.5*36*20 |
application
With 2 years warranty, here's a more detailed breakdown of 12V 3 chip LED module applications:
Signage and Illumination:
● Illuminated Signs:
12V LED modules are ideal for illuminating signs, including channel letters, light boxes, and advertising displays.
● Backlighting:
They are used for backlighting or edge-lighting in various applications, including retail displays, tradeshows, and exhibitions.
● Signage Letters:
12V LED modules can be used for illuminating signage letters, both indoor and outdoor.
● Light Boxes:
They are suitable for illuminating light boxes in various settings like stores, restaurants, and airports.
Decorative and Accent Lighting:
● Decorative Lighting:
12V LED modules can be used for decorative lighting in retail stores, restaurants, casinos, lounges, and residential homes.
● Outdoor Landscape and Accent Lighting:
They can be used for outdoor landscape and accent lighting, providing a low-profile and versatile lighting solution.
● Strip Lighting:
LED modules can be used for strip lighting in cupboards, drawers, cabinets, and other small spaces.
● Bathroom Mirror Lining:
They can be used for decorative lighting on bathroom mirror lining sides or sides of the bath.
Other Applications:
● Car/Vehicle Dashboard Lighting: 12V LED modules can be used to illuminate the dashboard of cars or vehicles.
● Night or Reading Lights: They can serve as night or reading lights.
● LED Headlamps and Flashlights: They can be used in LED headlamps and flashlights.
● Refrigerated Case Lighting: LEDs are increasingly used in refrigerated case lighting.
● Modular Lighting: They can be used in modular lighting applications.
● Task Lighting: They can be used for task lighting.
● Secondary Warning Lights: They can be used as secondary warning lights, for example, on the side of the road.
