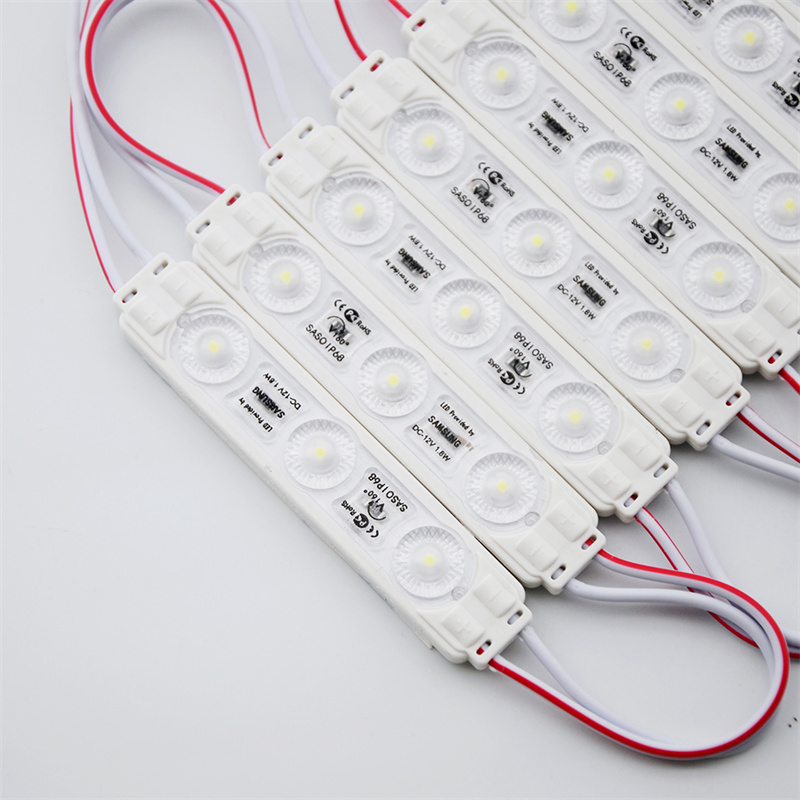

Premium 1.8W Samsung 2835 LED Module - 12V High Brightness (7215)
Feature
◎ Exceptional High Brightness: Delivers intense illumination using premium Samsung 2835 LEDs (Pure White 6000K).
◎ Premium Quality & Efficiency: Utilizes high-grade Samsung components for reliable performance at an efficient 1.8W per module.
◎ Long Lifespan & Maintenance-Free: Engineered for 50,000+ hours of operation with minimal upkeep required.

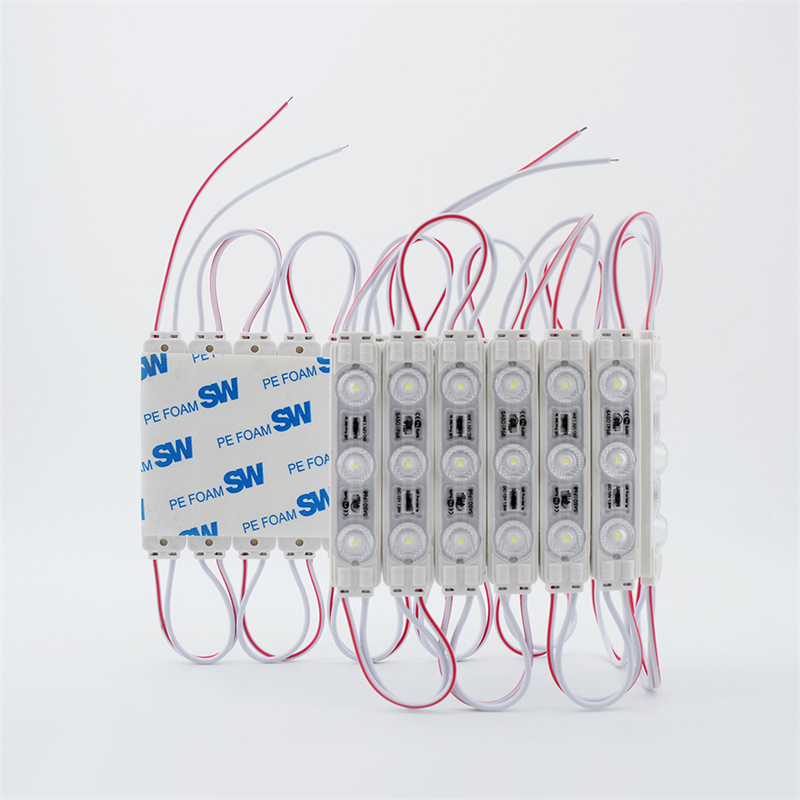

◎ Easy & Safe Installation: Operates on safe 12V DC and features 3M adhesive backing for convenient mounting.
◎ Versatile & Weather Resistant: Suitable for diverse signage and lighting applications with IP65 protection against dust/water spray.
specification
| Model No. | 7215-2835 | 1 LED Power | 0.5-0.7W |
| Power | 1.8W | LED Chips | SANAN |
| IP Rating | IP65 | LED Color | CW/ WW/ NW/ R/ G/ B/ Y/P |
| Work Voltage | DC 12V | Lumens | 150-180LM |
| PCB Material | Aluminum | Quantity per Srting | 20PCS |
| Viewing Angle | 165° | Warranty | 2 years |
| Color Rendering index(Ra) | 85 | Operating Temperature | -20~60°C |
| Life-Span | 50,000h | Pcs/Ctn | 5000pcs |
| Application | LED advertising signs | Trademark | MIJI/ OEM/ ODM |
| Specification | 72*15mm | HS Code | 9405409000 |
Model List
| Model | Size | SMD | Power | Lumen | Beam Angle | IP | Pcs/Carton | Carton size /cm |
| 3010-2835 | 30*10mm | 2835 | 1.5W | 120LM | 165° | IP68 | 5000pcs | 53*23*25 |
| 6013-2835 | 60*13mm | 2835 | 1.5W | 120LM | 165° | IP68 | 5000pcs | 60*27.5*30 |
| 6113-2835 | 61*13mm | 2835 | 1.5W | 120LM | 165° | IP65 | 5000pcs | 60*27.5*30 |
| 6212-2835 | 62*12mm | 2835 | 1.5W | 120LM | 165° | IP68 | 4000pcs | 57*27*35 |
| 6214-2835 | 62*14mm | 2835 | 1.5W | 120LM | 165° | IP68 | 4000pcs | 57*27*35 |
| 7015-2835 | 70*15mm | 2835 | 1.5W | 120LM | 165° | IP65 | 2000pcs | 58*40*16.5 |
| 7215-2835 | 72*15mm | 2835 | 1.8W | 180LM | 165° | IP65 | 2000pcs | 57.5*36*18.5 |
| 7517-5054 | 75*17mm | 5054 | 1.5W | 180LM | 165° | IP65 | 2000pcs | 57.5*36*20 |
application
Leveraging its premium Samsung LEDs and exceptional high brightness, this 1.8W module is the ideal choice for impactful illumination across various applications, particularly:
Primary Signage Lighting: Excels in providing bright, clear light for channel letter lighting, serving as the main lighting source for light boxes, and illuminating advertisement billboards or signs from within.
Backlight & Edge Lighting: Perfectly suited for creating uniform backlighting for advertising signs or providing sharp, bright edge lighting for signage elements where visibility is key.
Decorative & Event Lighting: Its high brightness makes it effective for eye-catching decorative lights for holidays, events, shows, and exhibitions, adding vibrancy and drawing attention.
DIY & Home Use: Excellent for DIY lighting projects and home decoration tasks requiring bright, reliable, low-voltage illumination points, such as accent lighting or task lighting enhancements.
General Purpose Accentuation: Can be used as a small, bright lighting unit in various situations needing accentuation, benefiting from its IP65 weather resistance for protected outdoor or damp indoor locations.
Its combination of high brightness, energy efficiency, and ease of use makes it a superior replacement for traditional lighting in demanding signage and decorative contexts.
