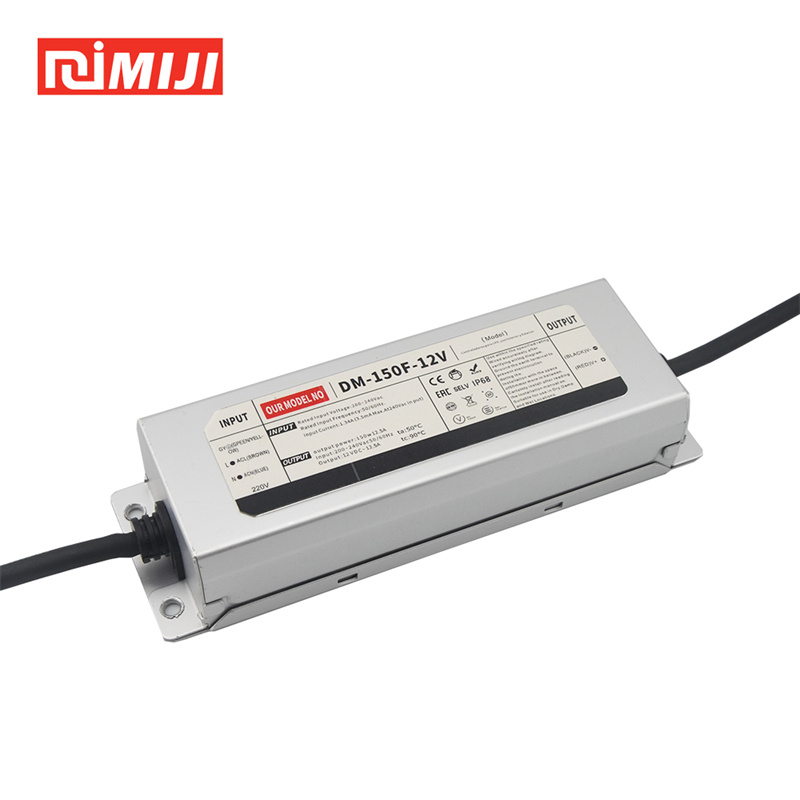

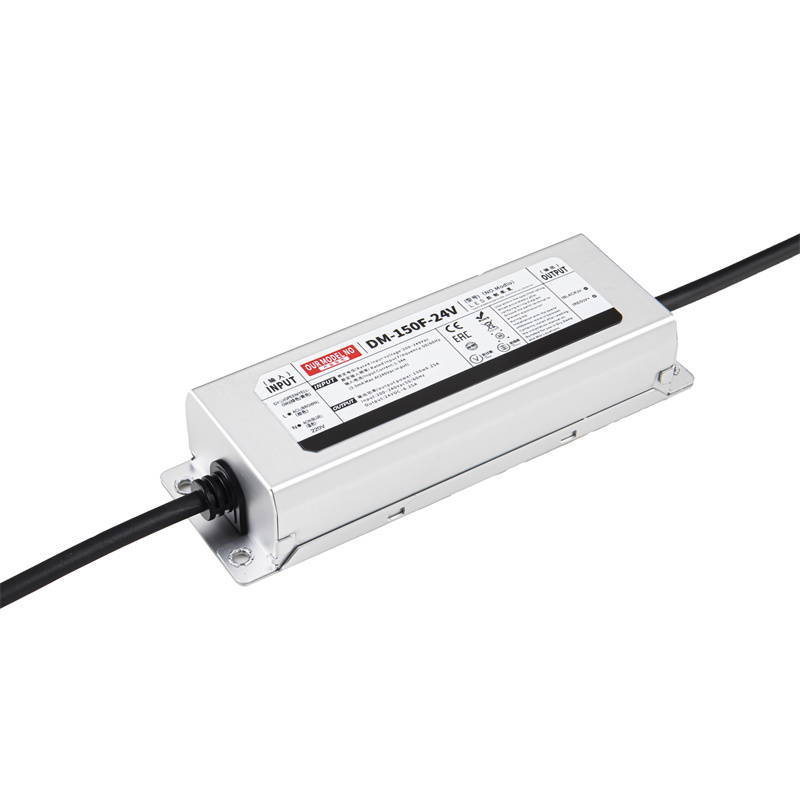

12V 12.5A 150W IP67 LED Lighting Waterproof LED Driver
Feature
◎ High-Performance Power Supply: Provides a consistent 12V 12.5A output with 150W capacity, perfect for LED systems, surveillance equipment, and industrial electronics.
◎ Weatherproof Construction: Built with a robust, moisture-resistant enclosure, making it suitable for outdoor and high-humidity environments. Protects against rain, dust, and extreme conditions.
◎ Versatile Input Compatibility: Operates within a wide AC input range (200V-240V), ensuring seamless integration with various electrical setups worldwide.
◎ Advanced Safety Features: Equipped with overload, short-circuit, and voltage fluctuation protection, preventing electrical failures and ensuring stable operation.
◎ Optimized Thermal Management: Engineered with a durable aluminum casing that enhances heat dissipation, minimizes temperature buildup, and extends product longevity.
specification
| MODEL | LED POWER SUPPLY | DM-150W 12V | DM-150W 24V |
| OUTPUT | Output voltage | 12V DC | 24V DC |
| Output voltage range | 12VDC±0.5VDC | 24VDC±0.5VDC | |
| Output Current | Max 12.5A | Max 6.25A | |
| Output power | Max 150W | ||
| Output power range | 0~150W | ||
| Ripple & Noise | ≤120mV | ≤240mV | |
| Linear Regulation | ±1% | ||
| Load Regulation | ±1% | ||
| Start-up Time (Typ) | 600ms/230VAC | ||
| Hold Up Time(Typ) | 100ms/230VAC | ||
| INPUT | Input voltage | 200-240Vac | |
| Frequency | 50/60Hz | ||
| Input сurrent | 0.52A/230Vac | ||
| Power factor | PF>0.8 | ||
| No-load power consumption | ≤3W | ||
| Efficiency (typ.) | 89% | 91% | |
| Inrush current(typ.) | Cold start 50A at 230Vac | ||
| Control surge capability | L,N:2KV L,N-PE:4KV | ||
| Leakage сurrent | Max. 0.5mA | ||
| ENVIRONMENT | Working temperature | ta: -30°C~ 50°C tc: 80°C | |
| Working humidity | 20 ~ 99%RH, condensing (Waterproof) | ||
| Storage temp., humidity | -40°C ~ 80°C, 10~95%RH | ||
| PROTECTION | Overtemperature | Protection type: Turn off the output voltage, after the temperature drops, re-energize to restore. | |
| Over load protection | Shut down the output when current load above 110%~150%, auto recovers. | ||
| Short circuit protection | Protection type: It can be automatically restored after the fault is eliminated. | ||
| SAFETY&EMC | Withstand voltage | I/P-O/P:3750Vac | |
| Isolation resistance | I/P-O/P: 100MΩ/500VDC/25°C/70%RH | ||
| Safety standards | IEC/EN61347;IEC/EN60950;IP67 | ||
| EMC Test Standards | EN55015: 2013;EN61547: 2009; EN61000-3-2:2014; EN61000-3-3:2013 | ||
| Reliabilityand Quality Control | Impact aging | 100% of the product is fully loaded and impacted for 4 hours under an environment of at least 40°C±5°C | |
| Component derating | Under the steady-state conditions of rated input and output, the stress of components will not exceed its maximum nominal value | ||
| NOTE | 1.All parameters not specifically mentioned are measured at 230VAC input, rated load and 25°C ambient temperature. 2.Ripple and noise test method: connect 0.1uF and 47uF capacitors in parallel at the terminal, and measure under 20MHZ bandwidth. 3.Ensure that the power supply is used under the rated parameters and environment. | ||

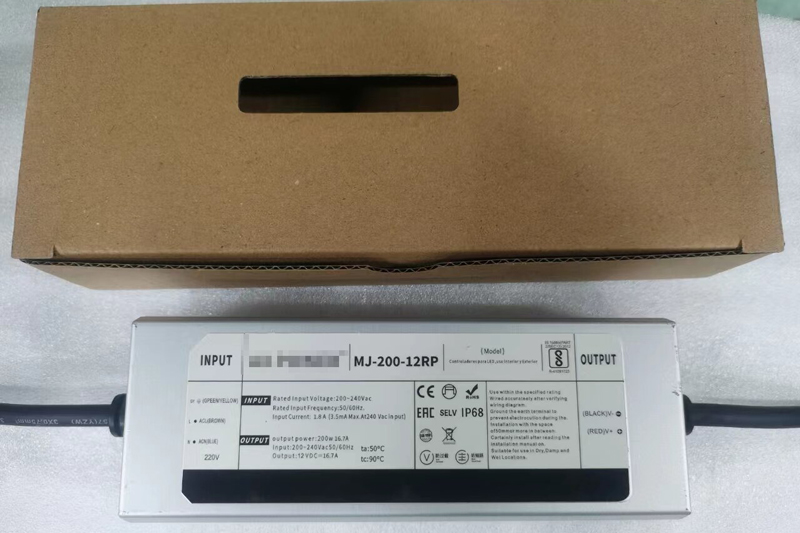

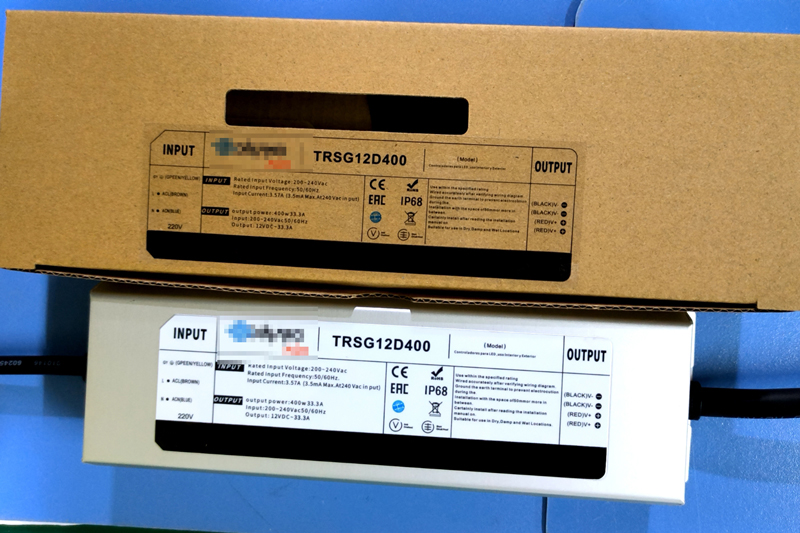

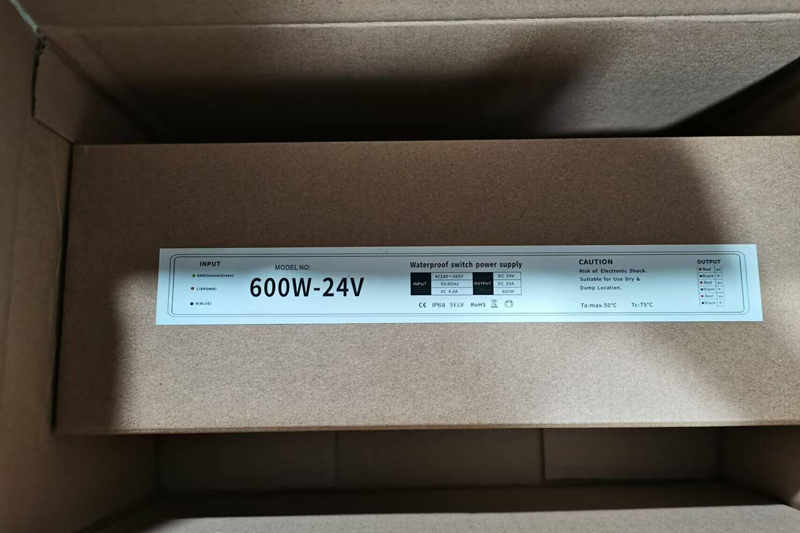

OEM Customer design
010203
Model List
Below DM series are 100% full load, and 5 years warranty! Our factory offers OEM customization, allowing us to tailor various models and parameters to meet your specific needs. Feel free to contact us for more information and personalized solutions.
| Model | Power Out | Input Voltage | Output Voltage | Output Current | Efficiency | IP | Size(mm) | Package |

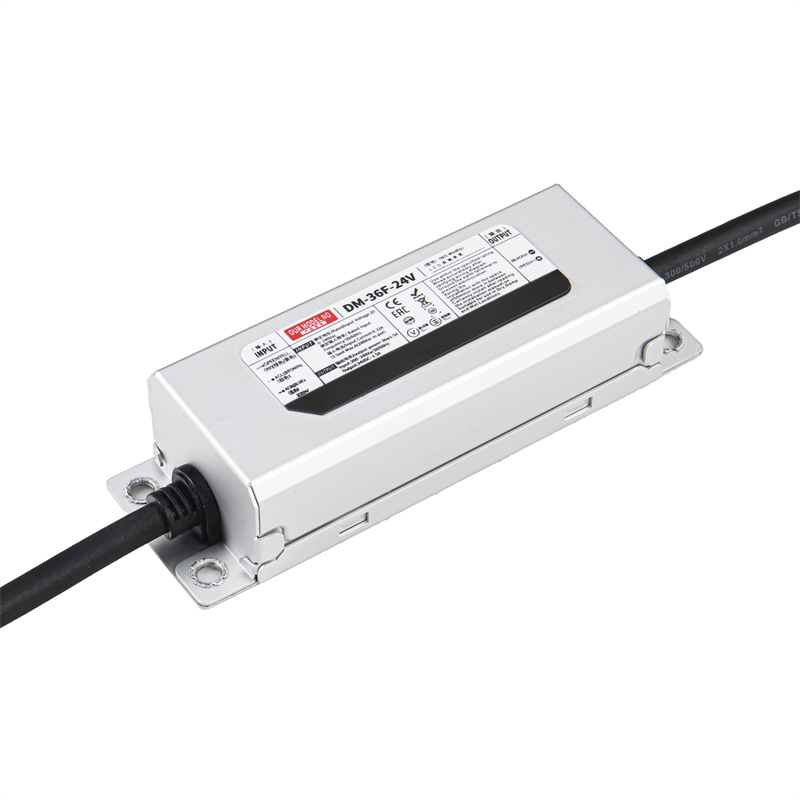

| DM-36W 12V /24V | 36W | 200-240V AC | 12V/24V | 5.0A/ 1.5A | 93% | IP68 | 126*41*27 | 60 |

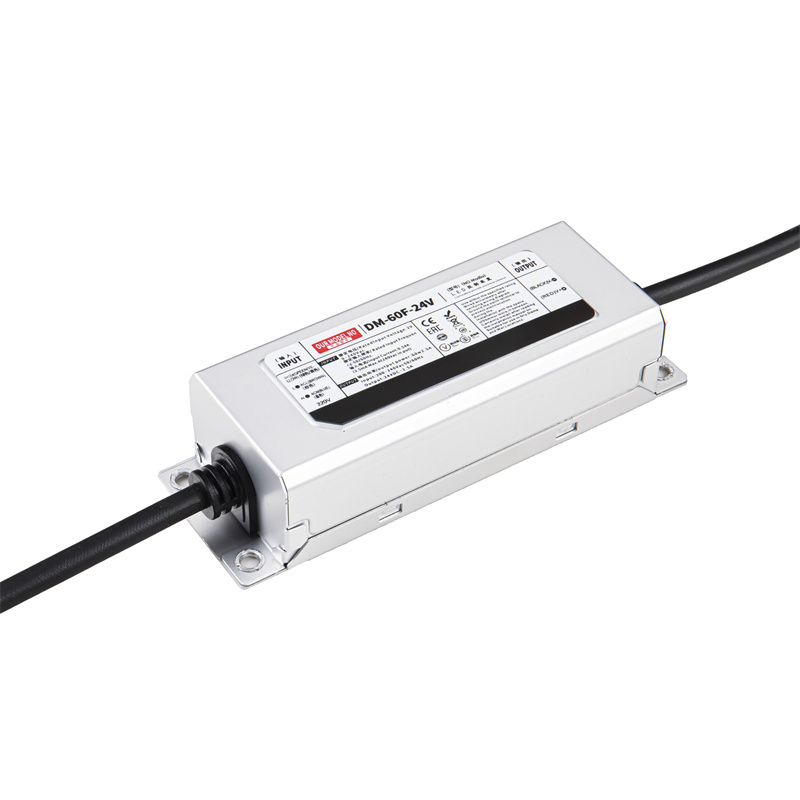

| DM-60W 12V /24V | 60W | 200-240V AC | 12V/24V | 5.0A/ 2.5A | 93% | IP68 | 143*49*31 | 40 |
| DM-100W 12V /24V | 100W | 200-240V AC | 12V/24V | 8.3A/ 4.1A | 93% | IP68 | 164*53*31 | 30 |
| DM-150W 12V /24V | 150W | 200-240V AC | 12V/24V | 12.5A/ 6.25A | 93% | IP68 | 176*57*34 | 20 |

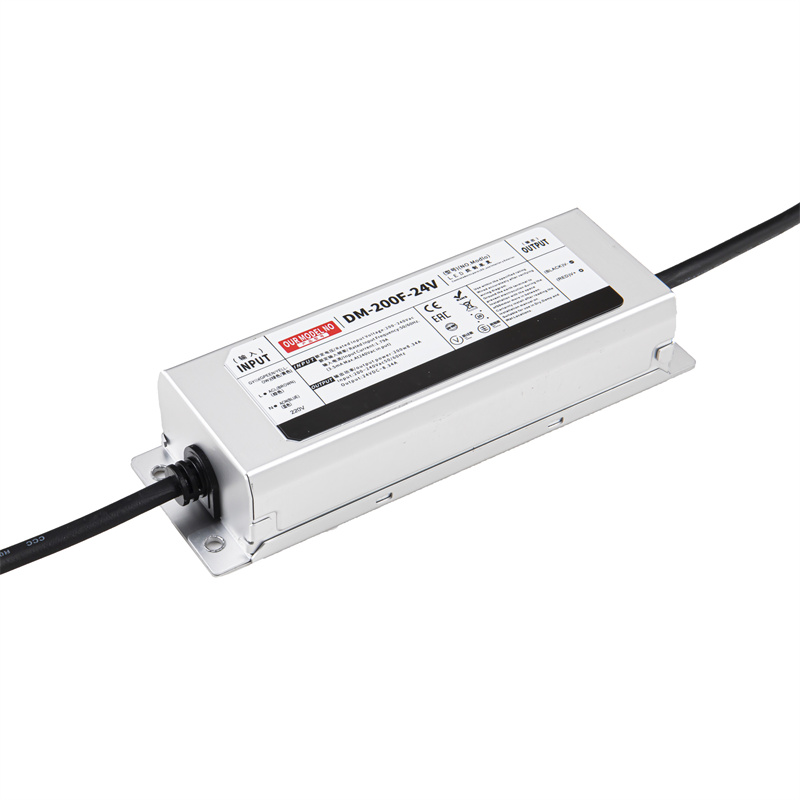

| DM-200W 12V /24V | 200W | 200-240V AC | 12V/24V | 16.7A/ 8.33A | 92% | IP68 | 186*60*36 | 20 |

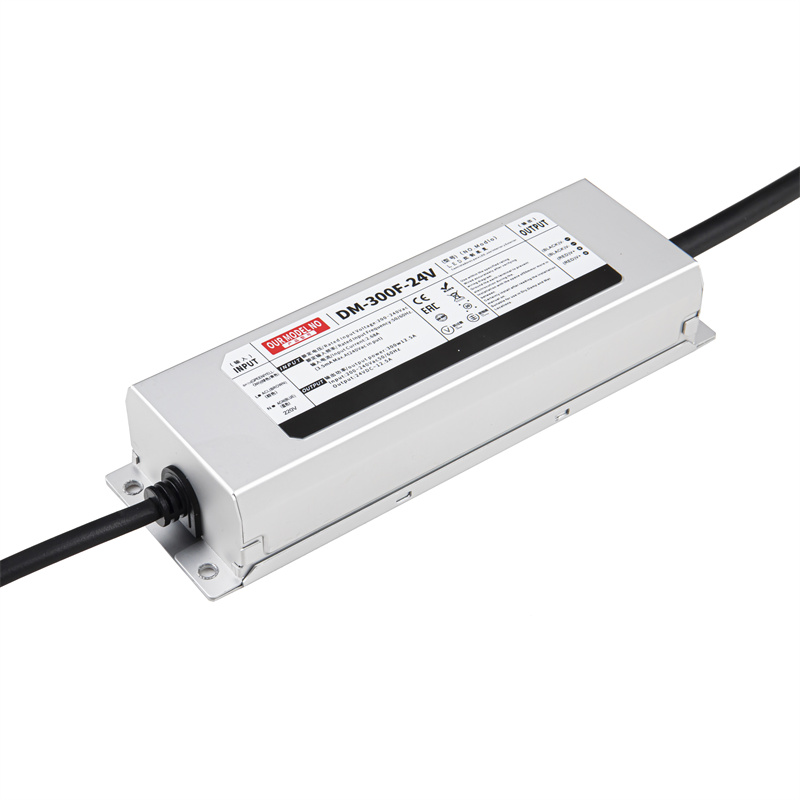

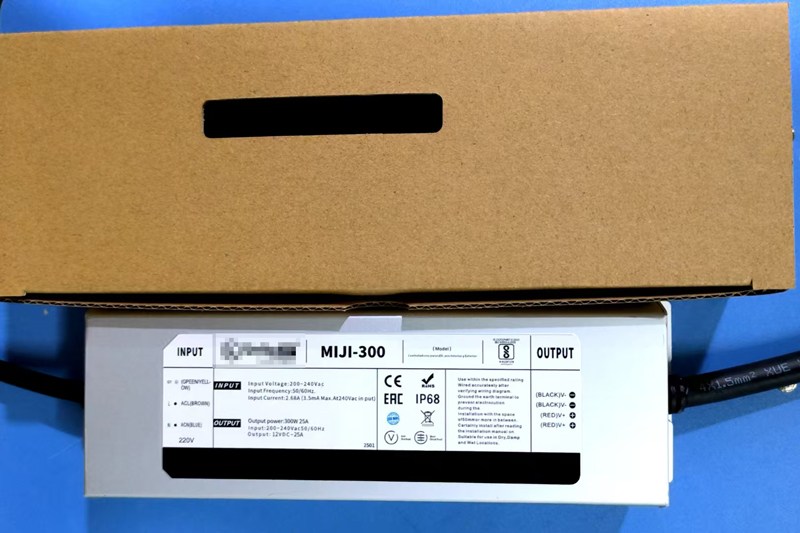

| DM-300W 12V /24V | 300W | 200-240V AC | 12V/24V | 25.0A/ 12.5A | 92% | IP68 | 200*67*36 | 16 |

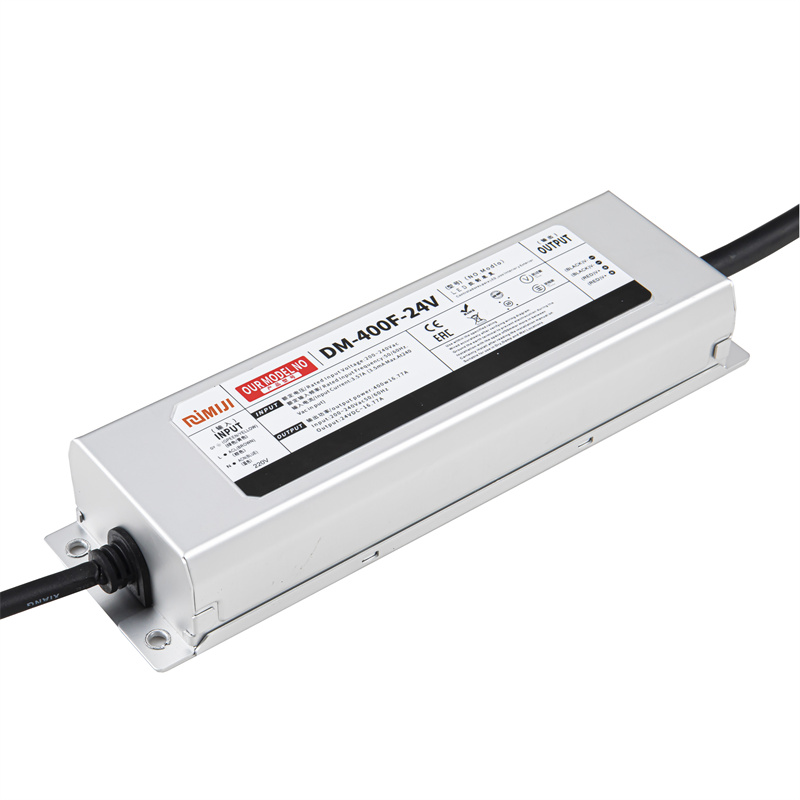

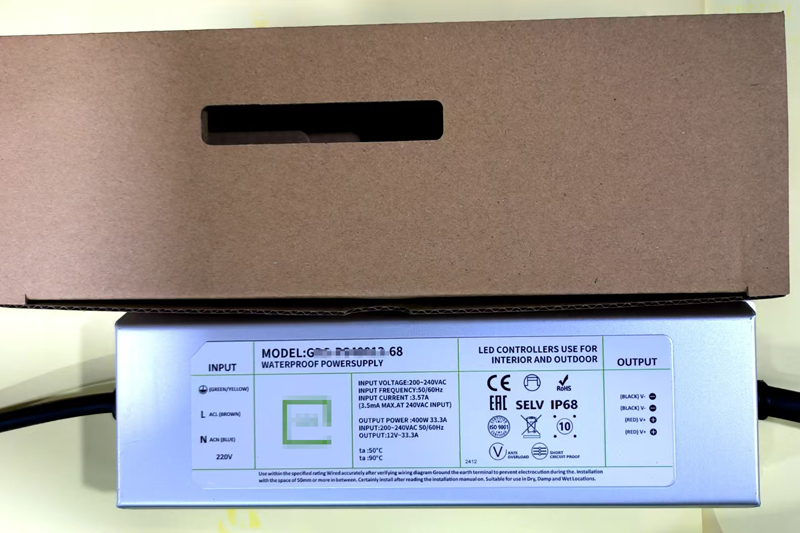

| DM-400W 12V /24V | 400W | 200-240V AC | 12V/24V | 33.3A/ 16.7A | 92% | IP68 | 230*67*36 | 16 |
application
The 12V 12.5A 150W waterproof power supply is engineered to provide reliable and stable power in environments where exposure to moisture, dust, and varying temperatures is a concern. Its robust design and waterproof rating make it suitable for a wide range of applications:

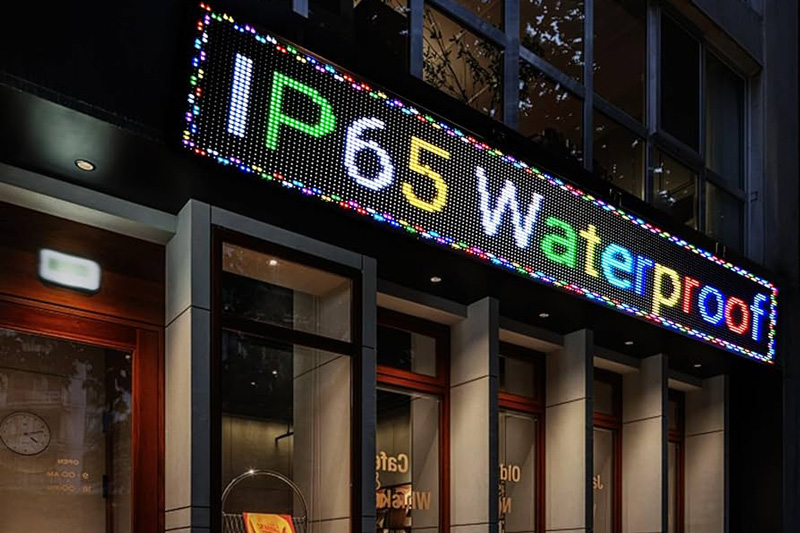

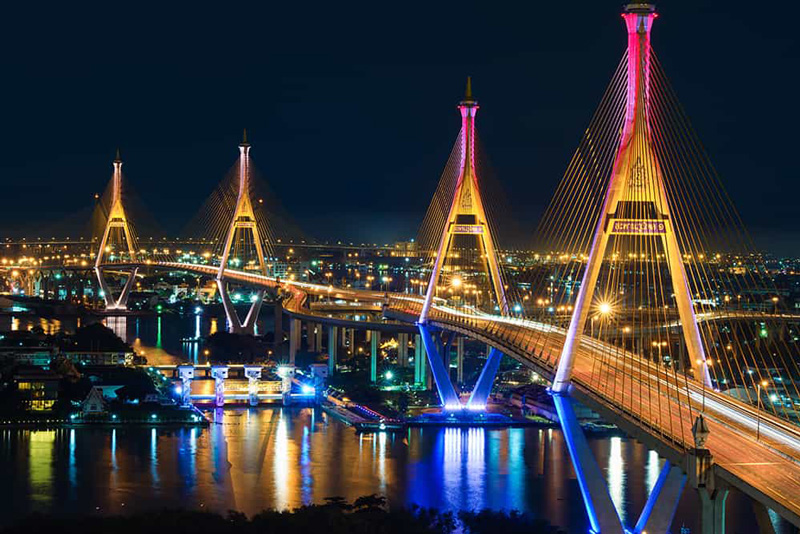

● Outdoor LED Displays: Ideal for powering large-scale outdoor LED signage and advertising displays, ensuring consistent brightness and performance regardless of weather conditions.
● Marine and Dock Lighting: Suitable for marine environments, this power supply can be used for boat lighting, dock illumination, and other applications where exposure to water and salt is common.
● Industrial Automation Systems: Provides stable power to industrial control systems and automation equipment, even in environments with high levels of dust and moisture.
● Remote Surveillance Systems: Ensures reliable operation of outdoor security cameras and monitoring equipment, protecting against power interruptions due to environmental factors.
● Agricultural Lighting: Suitable for powering LED lighting systems in agricultural settings, such as greenhouses and barns, where humidity and dust are prevalent.
With its IP67 waterproof rating, this power supply is designed to withstand harsh conditions, making it a versatile solution for both indoor and outdoor applications that require dependable performance.
