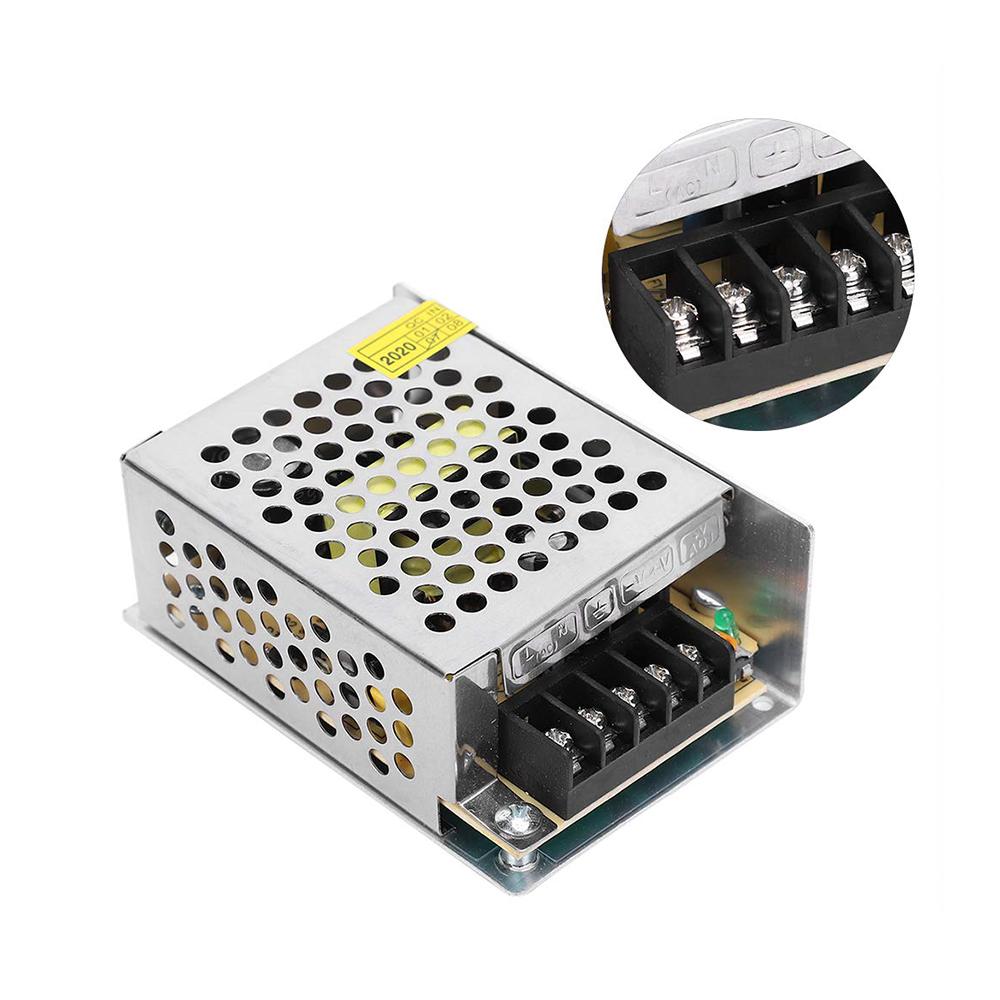

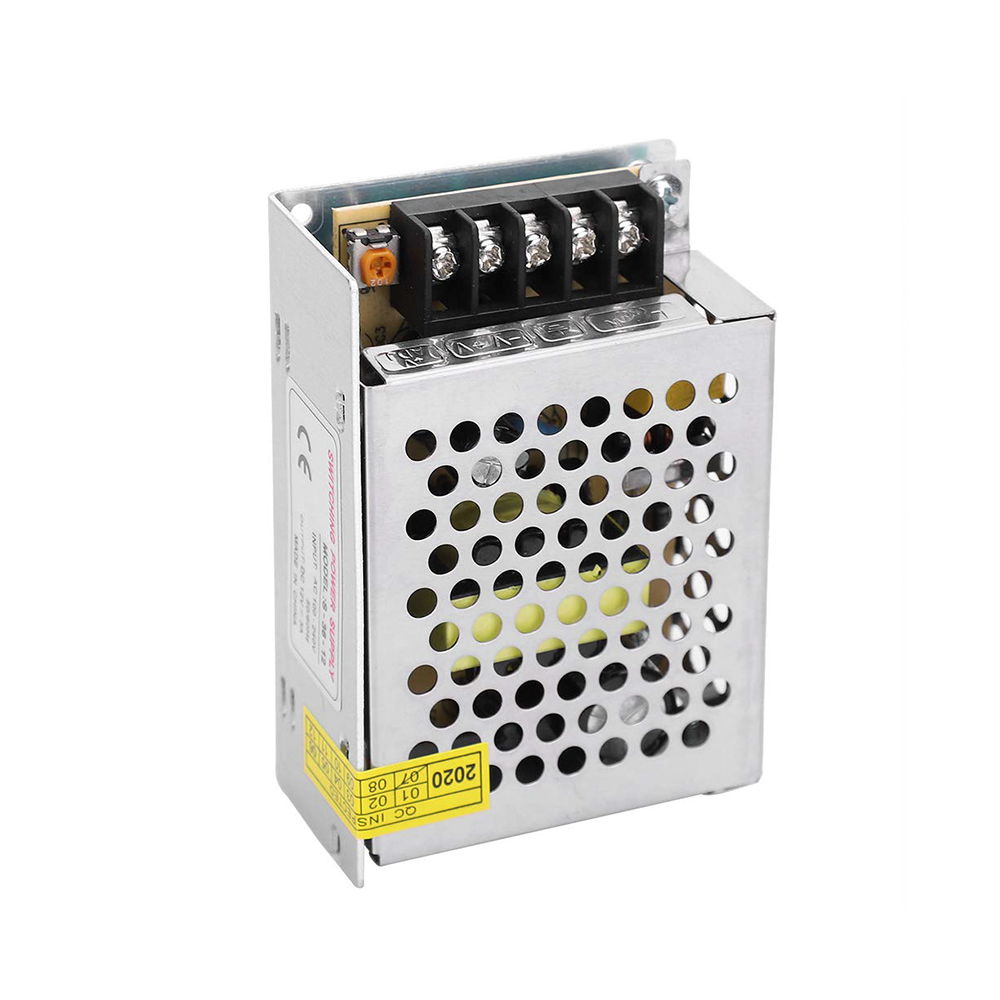

Universal 36W AC to DC Power Converter (S-36-12)
Feature
◎ Universal AC Input: Features a wide input voltage range (AC 100-240V), making it versatile and suitable for use in various countries and electrical standards.
◎ Compact & Durable Design: The lightweight aluminum alloy shell not only provides durability but also ensures superior passive heat dissipation, all within a compact 86x58x32mm frame.
◎ Proven Reliability: Each unit undergoes 100% full-load burn-in testing to guarantee high efficiency, long life, and strong reliability for any application.
specification
| MODEL | LED POWER SUPPLY | SS-36W 12V | SS-36W 24V |
| OUTPUT | Output voltage | 12V DC | 24V DC |
| Output voltage range | 12VDC±0.5VDC | 24VDC±0.5VDC | |
| Output Current | Max 3.0A | Max 1.5A | |
| Output power | Max 36W | ||
| Output power range | 0~36W | ||
| Ripple & Noise | ≤120mV | ≤240mV | |
| Linear Regulation | ±1% | ||
| Load Regulation | ±1% | ||
| Start-up Time (Typ) | 600ms/230VAC | ||
| Hold Up Time(Typ) | 100ms/230VAC | ||
| INPUT | Input voltage | 200-240Vac | |
| Frequency | 50/60Hz | ||
| Input сurrent | 0.52A/230Vac | ||
| Power factor | PF>0.8 | ||
| No-load power consumption | ≤3W | ||
| Efficiency (typ.) | 91% | 93% | |
| Inrush current(typ.) | Cold start 50A at 230Vac | ||
| Control surge capability | L,N:2KV L,N-PE:4KV | ||
| Leakage сurrent | Max. 0.5mA | ||
| ENVIRONMENT | Working temperature | ta: -30°C~ 50°C tc: 80°C | |
| Working humidity | 20 ~ 99%RH, condensing (Waterproof) | ||
| Storage temp., humidity | -40°C ~ 80°C, 10~95%RH | ||
| PROTECTION | Overtemperature | Protection type: Turn off the output voltage, after the temperature drops, re-energize to restore. | |
| Over load protection | Shut down the output when current load above 110%~150%, auto recovers. | ||
| Short circuit protection | Protection type: It can be automatically restored after the fault is eliminated. | ||
| SAFETY&EMC | Withstand voltage | I/P-O/P:3750Vac | |
| Isolation resistance | I/P-O/P: 100MΩ/500VDC/25°C/70%RH | ||
| Safety standards | IEC/EN61347;IEC/EN60950;IP67 | ||
| EMC Test Standards | EN55015: 2013;EN61547: 2009; EN61000-3-2:2014; EN61000-3-3:2013 | ||
| Reliabilityand Quality Control | Impact aging | 100% of the product is fully loaded and impacted for 4 hours under an environment of at least 40°C±5°C | |
| Component derating | Under the steady-state conditions of rated input and output, the stress of components will not exceed its maximum nominal value | ||
| NOTE | 1.All parameters not specifically mentioned are measured at 230VAC input, rated load and 25°C ambient temperature. 2.Ripple and noise test method: connect 0.1uF and 47uF capacitors in parallel at the terminal, and measure under 20MHZ bandwidth. 3.Ensure that the power supply is used under the rated parameters and environment. | ||
OEM Customer design
Model List
| Model | Power Out | Input Voltage | Output Voltage | Output Current | Efficiency | IP | Size(mm) | Package |
| SS-36W 12V /24V | 36W | 100-240V AC | 12V/24V | 3.0A/ 1.5A | 93% | IP62 | 85*59*33 | 100 |

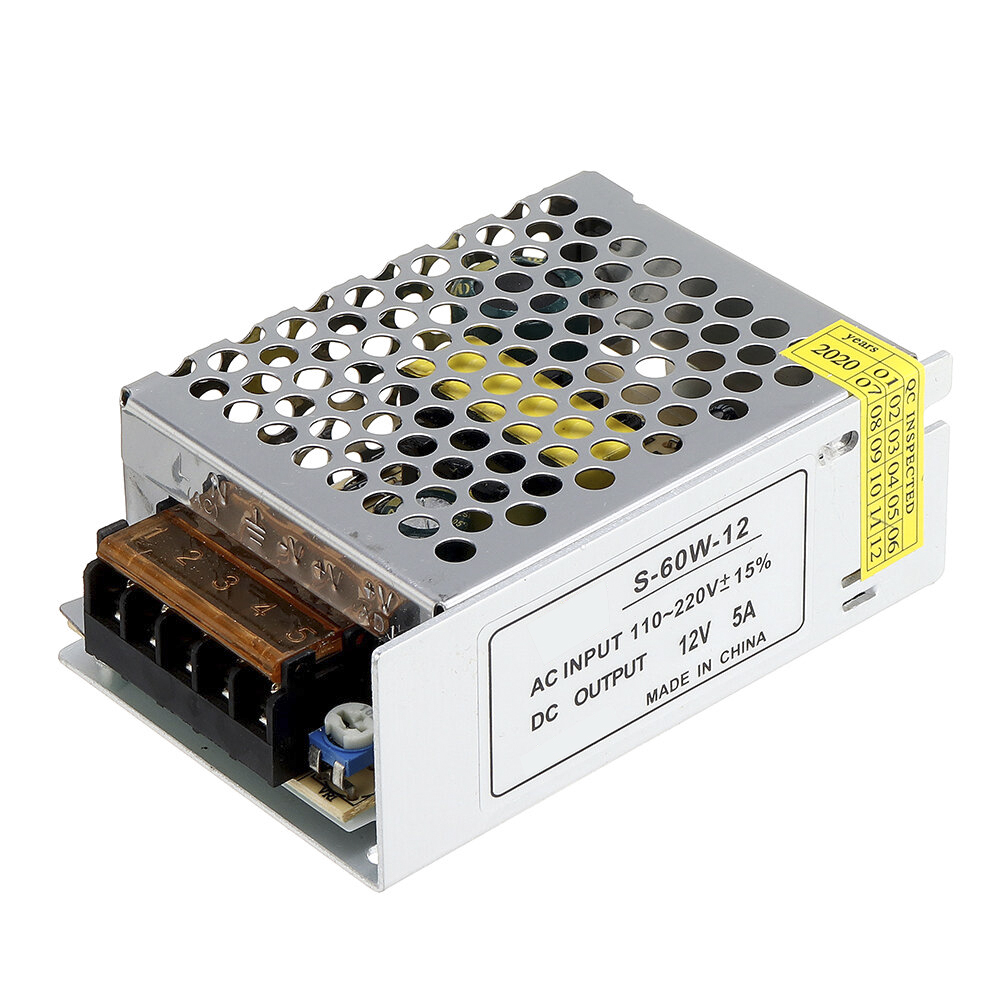

| SS-60W 12V /24V | 60W | 100-240V AC | 12V/24V | 5.0A/ 2.5A | 93% | IP62 | 143*49*31 | 100 |

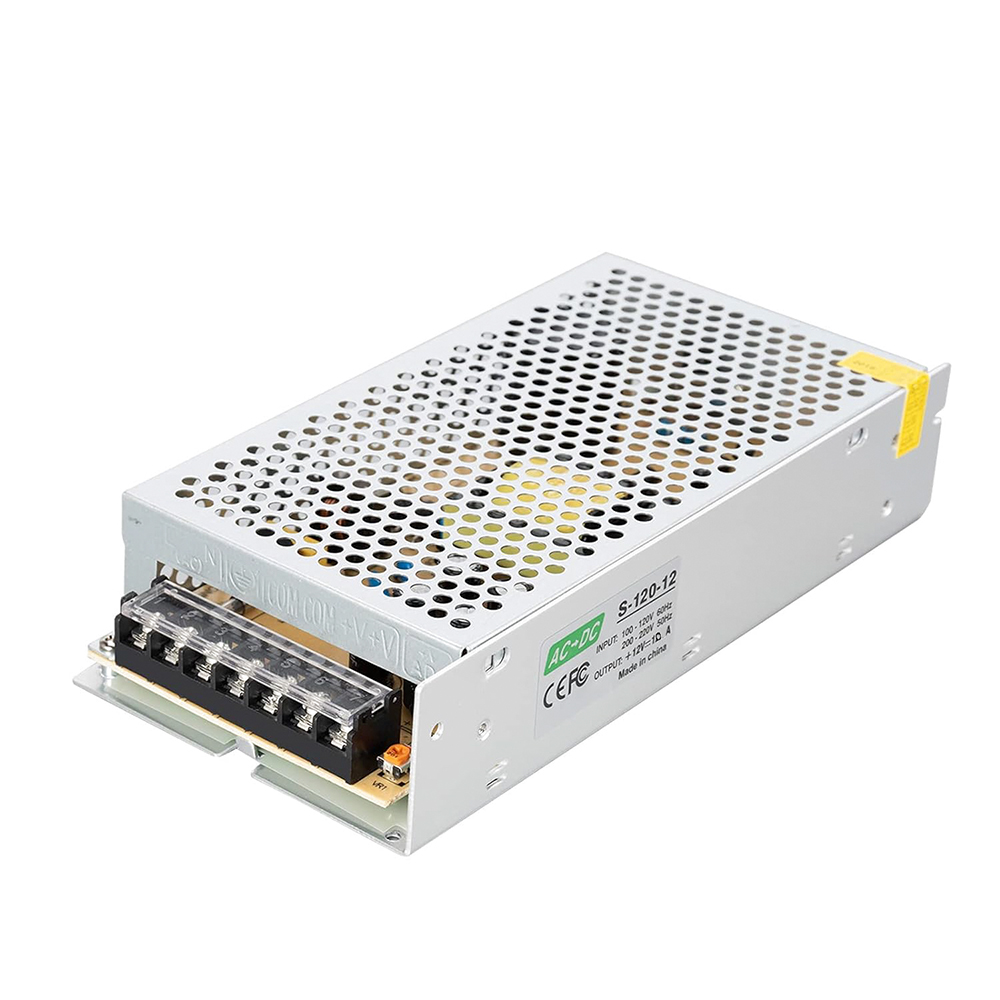

| SS-120W 12V /24V | 120W | 100-240V AC | 12V/24V | 10.0A/ 5.0A | 93% | IP62 | 159*98*42 | 50 |
| SS-180W 12V /24V | 180W | 100-240V AC | 12V/24V | 15.0A/ 7.5A | 93% | IP62 | 198*98*42 | 40 |

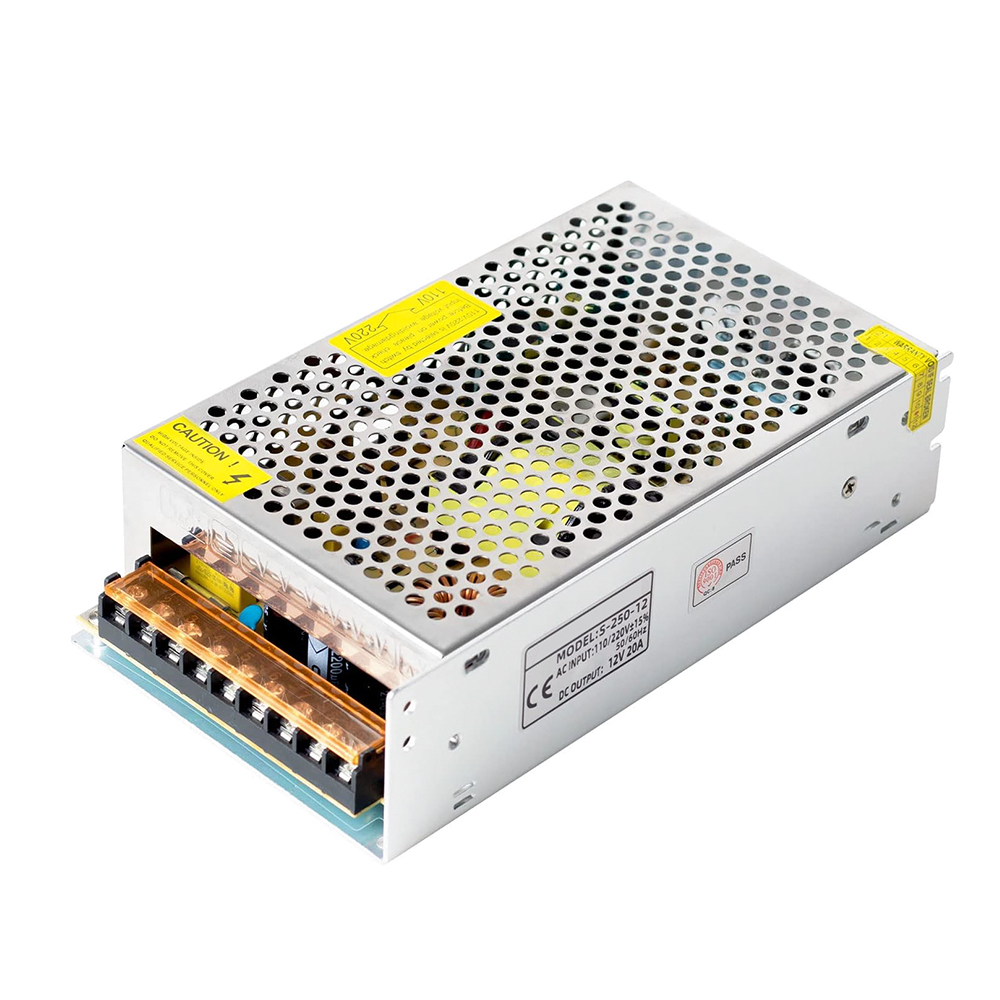

| SS-250W 12V /24V | 250W | 100-240V AC | 12V/24V | 20.8A/ 10.0A | 92% | IP62 | 200*109*50 | 36 |

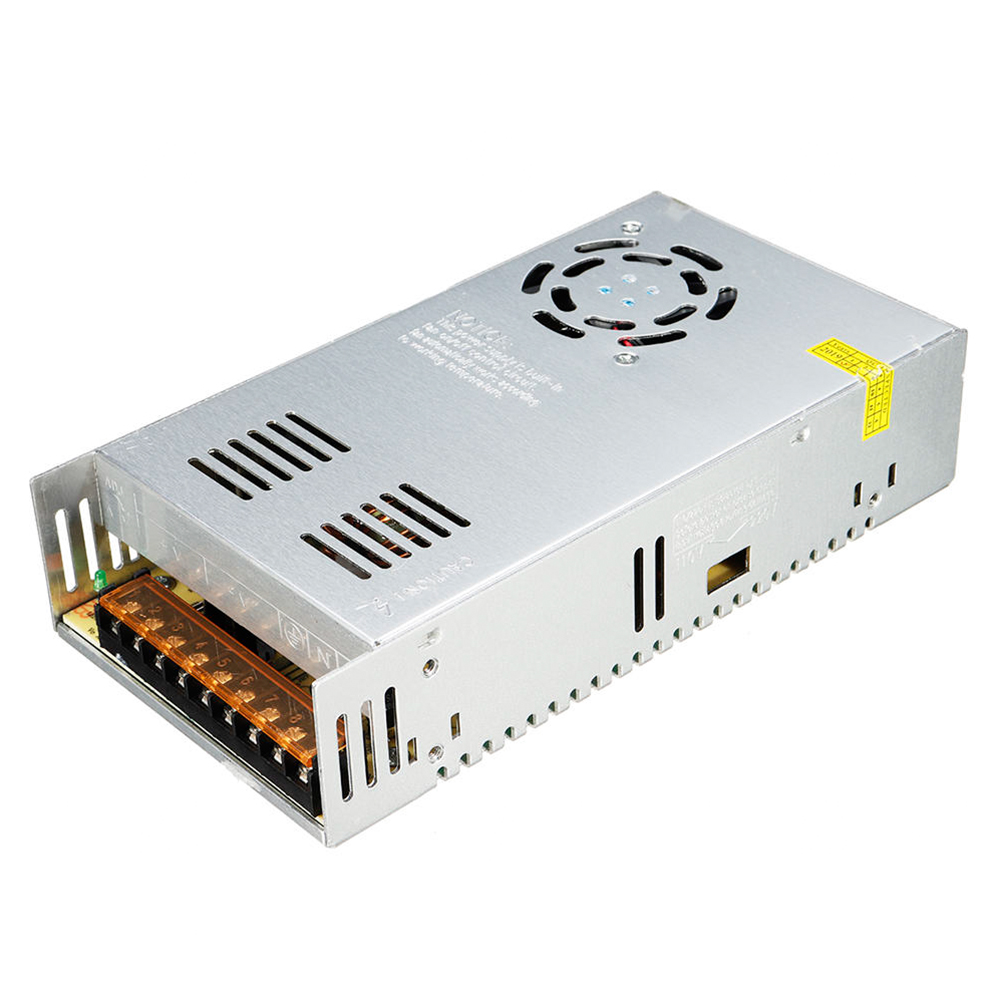

| SS-360W 12V /24V | 360W | 100-240V AC | 12V/24V | 30.0A/ 15A | 92% | IP62 | 200*109*50 | 36 |
| SS-400W 12V /24V | 400W | 100-240V AC | 12V/24V | 33.3A/ 16.7A | 92% | IP62 | 200*109*50 | 36 |
application
The S-36-12 36W Switching Power Supply is the quintessential workhorse for a vast array of 12V DC applications. It is engineered to be a versatile, no-frills power core that balances reliable performance, a compact footprint, and exceptional value. Its perforated metal enclosure is designed for durability and effective cooling, making it a dependable choice for both enclosed projects and open-frame installations. This SMPS is the go-to solution for hobbyists, technicians, and manufacturers who need a fundamental, trustworthy power source without unnecessary complexity.
LED Lighting Systems: An ideal power source for a variety of general-purpose LED lighting, including LED strip lights for accent lighting, modules for small signs, and powering LED screen light bars. Its stable output ensures flicker-free operation.
DIY Electronics & Hobbyist Projects: A favorite within the maker community, this power supply provides the stable 12V rail needed for projects involving Arduino, Raspberry Pi accessories, small DC motors, fans, and other custom electronic circuits.
Security & Surveillance: Perfectly suited to power individual or small groups of 12V security cameras (CCTV), IR illuminators, or other components within a surveillance system, offering a more robust alternative to standard wall adapters.
General Purpose & Small Equipment: Provides the necessary power for a range of small devices such as portable printers, 3D printer components, communication equipment, and other low-voltage equipment that requires a stable 12V DC input.
In summary, the S-36-12 36W Switching Power Supply is the definition of a fundamental, essential component. It is the perfect choice for anyone who needs a cost-effective, reliable, and easy-to-integrate 12V power source. Whether you are illuminating a space, building a new gadget, or setting up a security system, this power supply provides the dependable energy foundation required to get the job done right.
