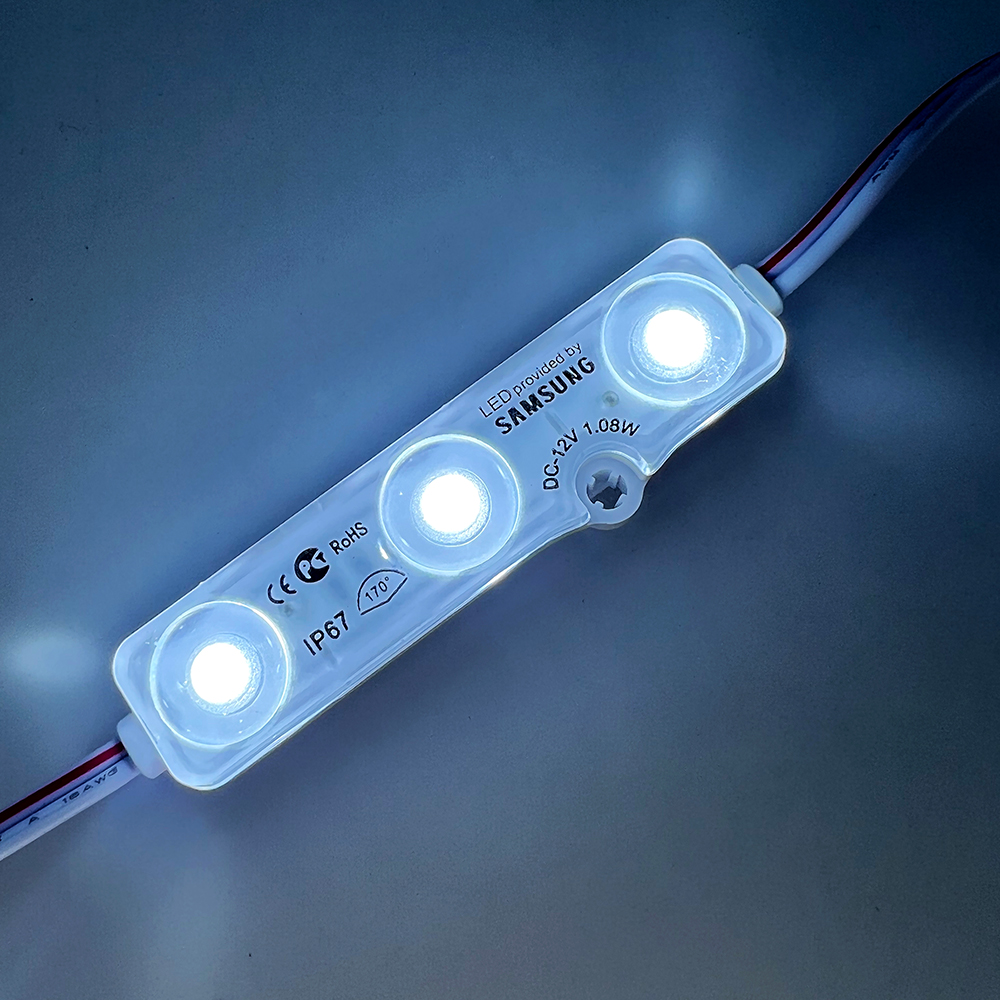

Ultrasonic IP68 LED Backlight Module 12V 1.08W
Feature
◎ Superior Fire Safety (UL94V-0): Constructed with materials that meet the highest UL94V-0 fire-retardant classification, ensuring maximum safety and compliance for commercial and public installations.
◎ Brilliant Samsung LEDs: Equipped with 3 premium Samsung SMD2835 LEDs per module, delivering bright, consistent, and highly reliable illumination for vibrant signage.
◎ Durable Series-Parallel Design: Comes in strings of 50 modules connected in a stable series-parallel circuit, ensuring reliable performance and consistent brightness across the entire sign.
◎ Professional Signage
Application: Specifically engineered as a high-performance backlighting source
for advertising lightboxes, channel letters, and large-scale storefront signs.
specification
| Model No. | 6818-2835 | 1 LED Power | 0.3-0.4W |
| Power | 1.08W | LED Chips | SUMSUNG |
| IP Rating | IP68 | LED Color | CW/ WW/ NW/ R/ G/ B/ Y/P |
| Work Voltage | DC 12V | Lumens | 120-150LM |
| PCB Material | Aluminum | Quantity per Srting | 50PCS |
| Viewing Angle | 165° | Warranty | 2 years |
| Color Rendering index(Ra) | 90 | Operating Temperature | -20~60°C |
| Life-Span | 50,000h | Pcs/Ctn | 2000pcs |
| Application | LED advertising signs | Trademark | MIJI/ OEM/ ODM |

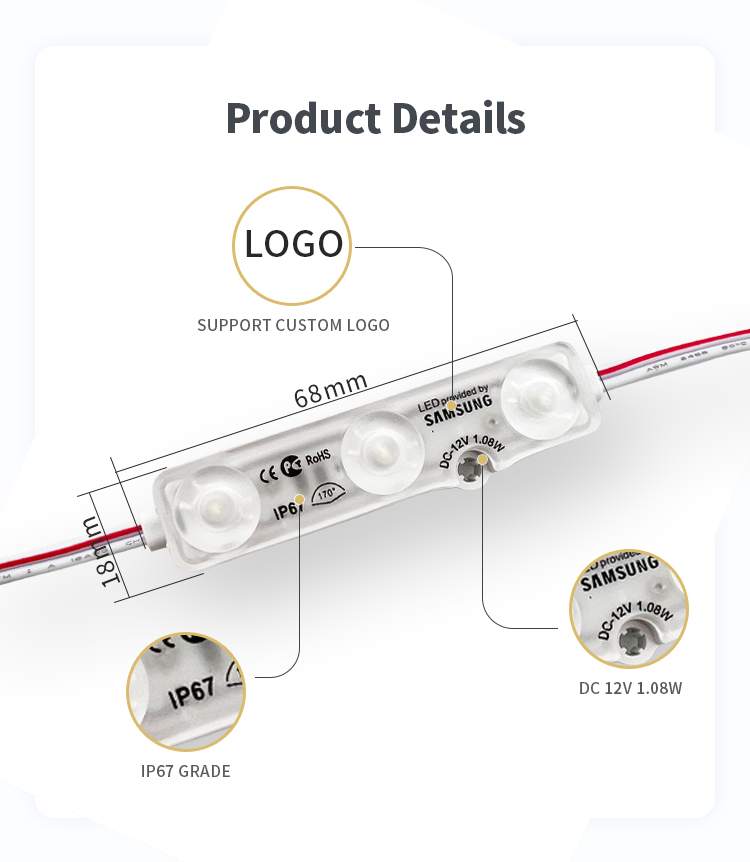

| Specification | 68*18mm | HS Code | 9405409000 |
Model List
| Model | Size | SMD | Power | Lumen | Beam Angle | IP | Pcs/Carton | Carton size /cm |
| 3010-2835 | 30*10mm | 2835 | 1.5W | 120LM | 165° | IP68 | 5000pcs | 53*23*25 |
| 6013-2835 | 60*13mm | 2835 | 1.5W | 120LM | 165° | IP68 | 5000pcs | 60*27.5*30 |
| 6113-2835 | 61*13mm | 2835 | 1.5W | 120LM | 165° | IP65 | 5000pcs | 60*27.5*30 |
| 6212-2835 | 62*12mm | 2835 | 1.5W | 120LM | 165° | IP68 | 4000pcs | 57*27*35 |
| 6214-2835 | 62*14mm | 2835 | 1.5W | 120LM | 165° | IP68 | 4000pcs | 57*27*35 |
| 7015-2835 | 70*15mm | 2835 | 1.5W | 120LM | 165° | IP65 | 2000pcs | 58*40*16.5 |
| 7215-2835 | 72*15mm | 2835 | 1.8W | 180LM | 165° | IP65 | 2000pcs | 57.5*36*18.5 |
| 7517-5054 | 75*17mm | 5054 | 1.5W | 180LM | 165° | IP65 | 2000pcs | 57.5*36*20 |
application
The Ultrasonic IP68 LED Backlight Module represents a significant advancement in signage technology, engineered specifically for environments where failure is not an option. Its core innovation lies in the use of ultrasonic welding, a process that creates a single, solid-state bond, offering a far more reliable and permanent seal than traditional glue or mechanical enclosures. This guarantees true IP68 waterproofing against harsh weather. Critically, this module is also built to the UL94V-0 fire safety standard, making it one of the safest choices for public and commercial signage. Powered by premium Samsung LEDs, it delivers not just durability, but also brilliant and consistent illumination.
Application Scenarios
Outdoor Channel Letters & Building Signage: This is the primary application where the module excels. Mounted on the facades of buildings, these signs are directly exposed to rain, snow, sun, and temperature extremes. The IP68 ultrasonic seal prevents any moisture ingress, while the UL94V-0 rating provides essential fire safety, often required by commercial building codes.
Large-Scale Advertising Lightboxes: For large, illuminated billboards, pylon signs, and transit shelter advertisements, reliability is paramount. The consistent brightness from the Samsung LEDs ensures the entire sign face is evenly lit without hotspots, while the robust, waterproof design minimizes costly maintenance calls and ensures the advertisement is always visible.
Storefront & Business Fascia Signs: For retail stores, restaurants, and corporate offices, a sign is a critical brand asset. These modules ensure the sign remains bright and operational for years, reflecting the quality of the business itself. The fire-retardant properties offer an added layer of safety and peace of mind for the business owner.
Marine & Coastal Environment Signage: In areas with high humidity, salt spray, and corrosive air, standard LED modules can fail quickly. The hermetically sealed, non-metallic casing created by ultrasonic welding provides superior resistance to corrosion, making these modules ideal for marinas, boardwalks, and coastal businesses.
