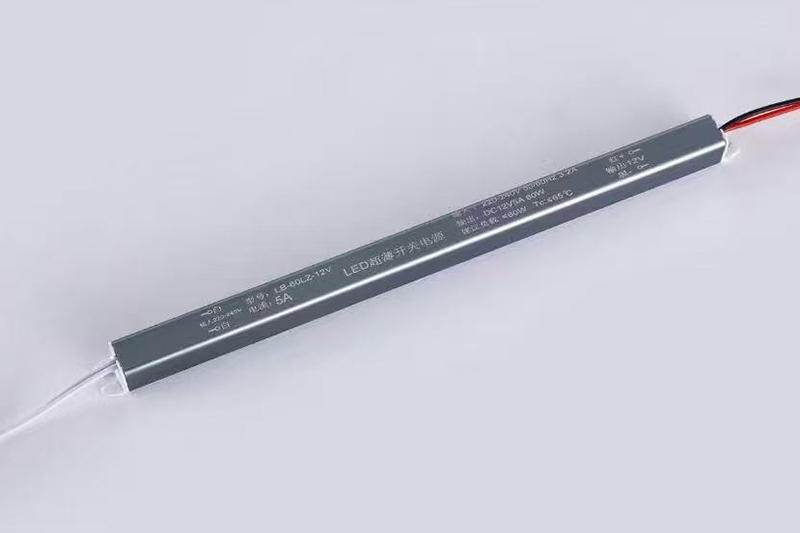

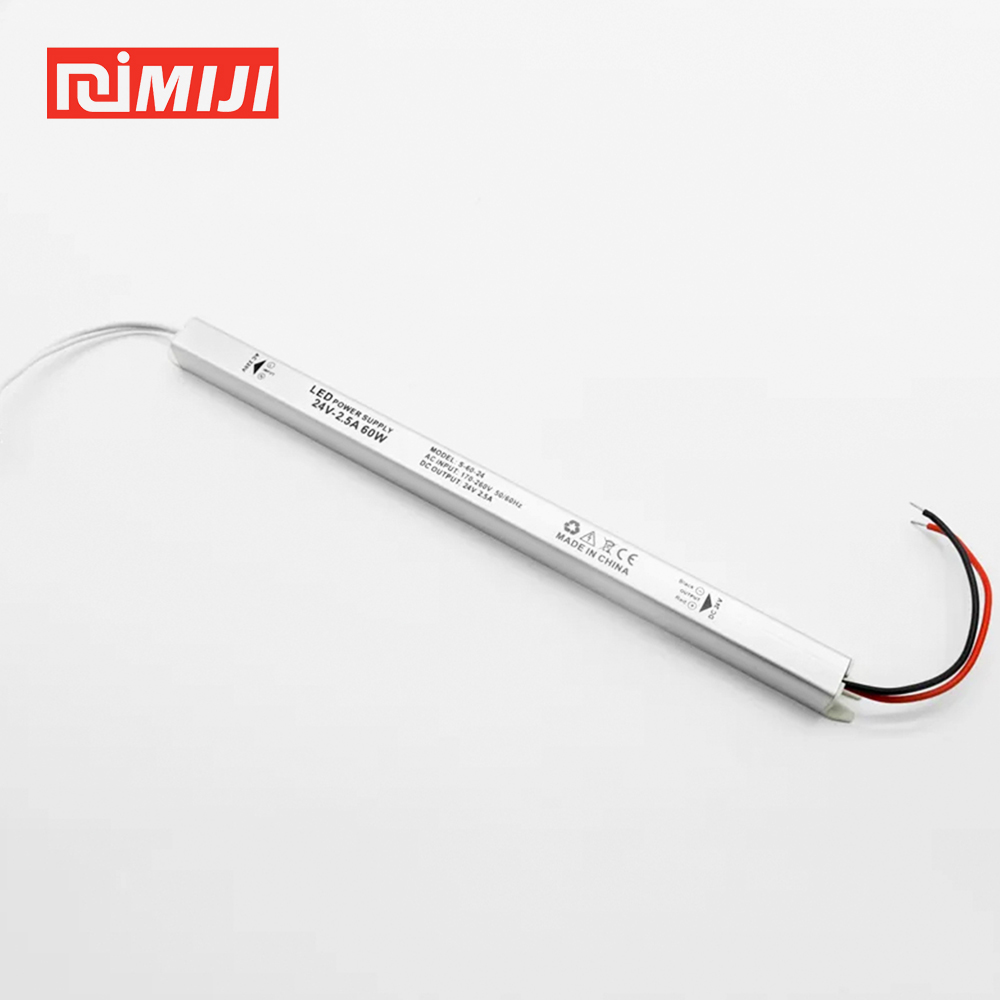

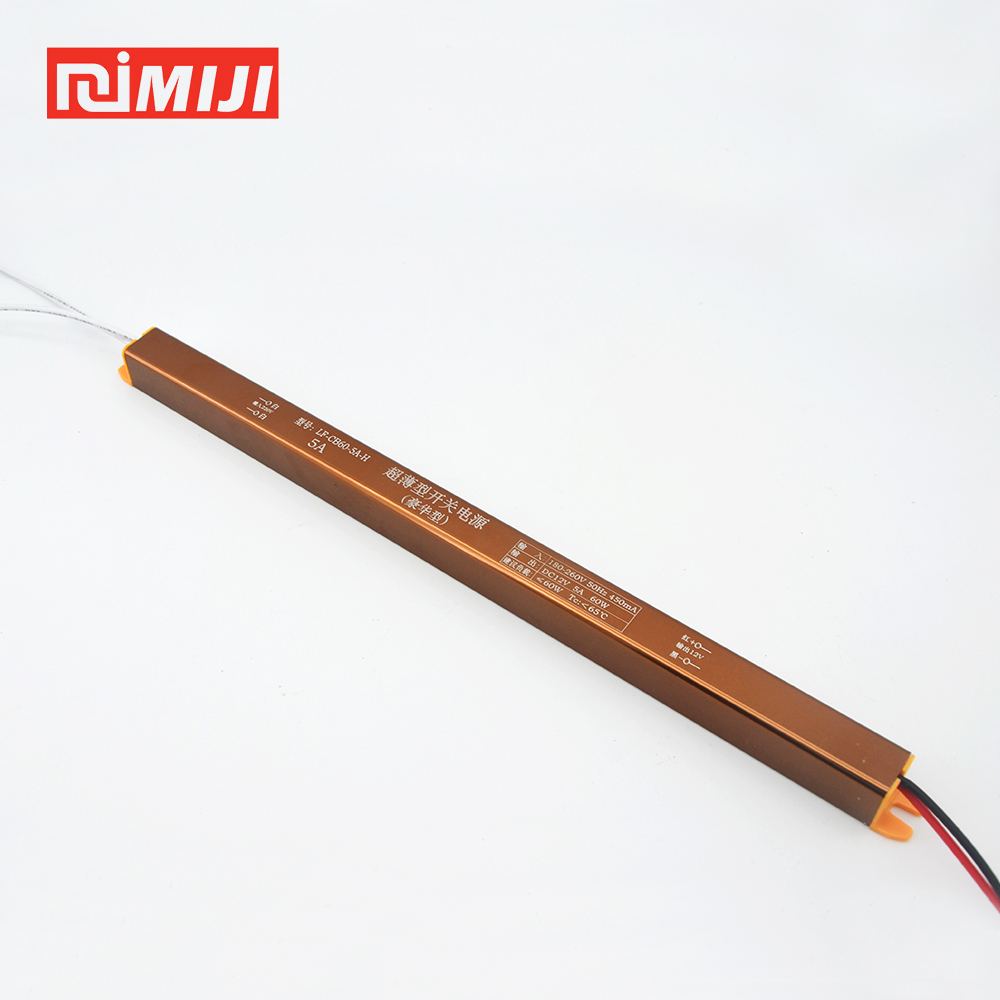

Ultra-Slim Profile 12V 5A 60W LED Power Supply
Feature
specification
| Model | CB-60W 12V | CB-60W 24V | |
| OUTPUT | DC voltage | 12V | 24V |
| Rated current | 5.0A | 2.5A | |
| Cuttent range | 0-5.0A | 0-2.5A | |
| Rated output power | 60W | 60W | |
| Ripples and noise | ≤200mVp-p | ≤500mVp-p | |
| Output current range | 12VDC±0.5VDC | 24VDC±0.5VDC | |
| Precision of output voltage regulation | ±0.5% | ±0.5% | |
| Rate of lenear adjustment | ±0.5% | ±0.5% | |
| Load adjustment rate | ±0.5% | ±0.5% | |
| The startup time | ≤2s/230VAC | ||
| INPUT | Keep time | 10ms/230VAC | |
| Voltage range | 176-264VAC | ||
| Frequency range | 50Hz | ||
| Power factor | PF≥0.6/230VAC | ||
| Efficiency | ≥93% | ≥93% | |
| Alternating current | 3.4A/230VAC | ||
| Surge current | 50A/230VAC | ||
| Leakage current | <5mA/230VAC | ||
| PROTECTION | Overload | 110%-140%: rated 110%-140% of the total power input | |
| protection mode:Auto recovery mode.the system automatically recovers when abnormal load conditions are removed | |||
| Short circuit | protection mode:Auto recovery mode.the system automatically recovers when abnormal load conditions are removed | ||
| Over voltage | protection mode:self-recovery mode,automatic recovery when the overvoltage is removed | ||
| Over temperature | protection mode:self-recovery mode,automatically recover when the temperature drops | ||
| ENVIRONMEN | working temperature | -35~+50°C | |
| working humidity | 20-90% RH | ||
| storage temperature;humidity | -30~+85°C； 10~95% RH | ||
| temperature coefficient | ±0.1%/°C(0-35°C) | ||
| resistance to vibration | 10-500Hz, 3G 10min. / 1 cycle, 60 min. each axes | ||
| SAFETY&EMC | safety norms | EN60950 , GB4943.1 -2011 | |
| withstand voltage | l/P-O/P:1.5KVAC l/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||
| insulation impedance | l/P-O/P, l/P-FG, 0/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | ||
| EMC | -- | ||
| other | protection grade | IP62 | |
| MTBF | ≥30khour 25℃ | ||
| power supply size | L313*W18*H18mm | ||
| power supply weight | 66.5g | ||
| NOTE | 1.Unless otherwise specified , all specification are measured at an input of 230VAC,rarted negative cut,and ambient temperature of 25°C | ||
| 2.Ripple and noise measurement method:the measured end is connected in parallel with a 0.1uF+10uF capacitor,the oscilloscope is set to 20MHZ bandwidth,and the probe is tested with cap off and full load at 25°C | |||
| 3.Accuracy :includes setting error , linear adjustment rate and load adjustment rate . | |||
| 4. The output power is reduced when the input voltage is less than 200VAC. | |||

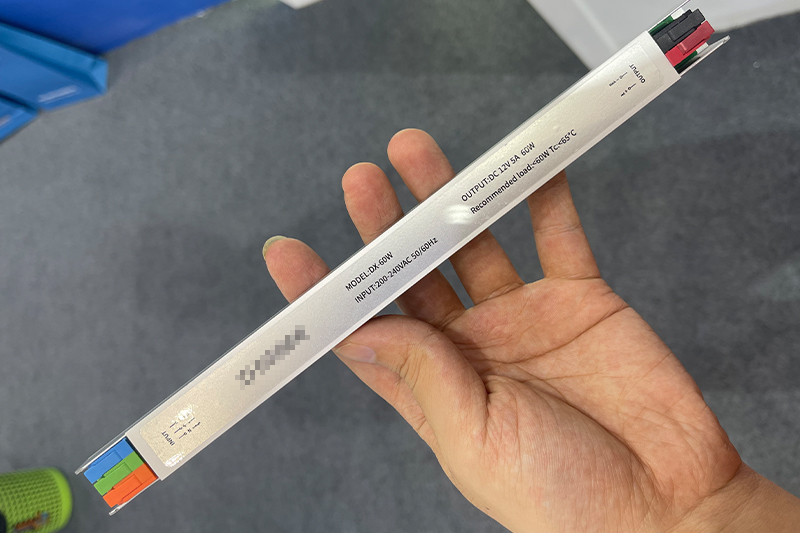

OEM Customer design

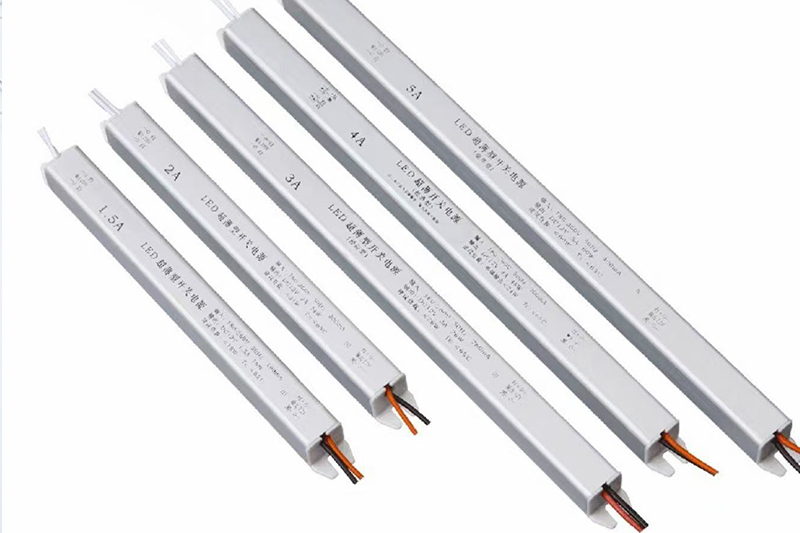

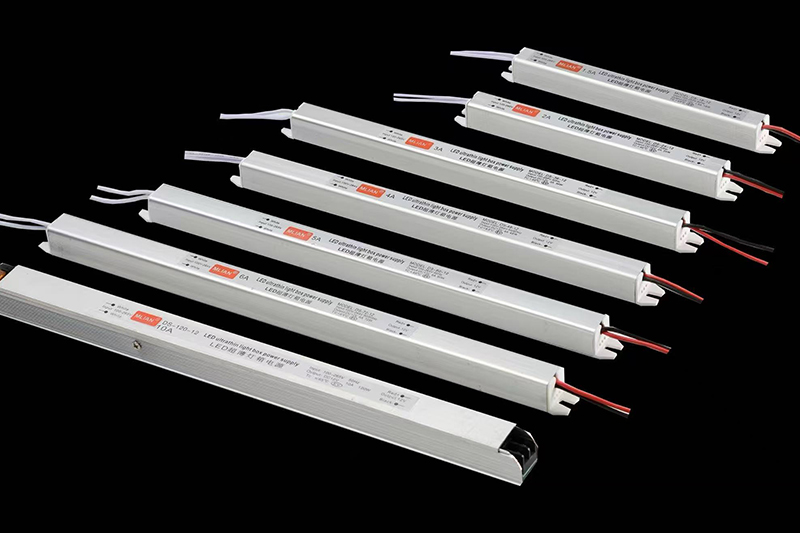

Model List
| Model | Power Out | Input Voltage | Output Voltage | Output Current | Efficiency | IP | Size(mm) | Package |
| CB-18W 12V | 18W | 200-240V AC | 12V / 24V | 1.5A / 0.75A | 93% | IP20 | 172*18*18 | 400 |
| CB-24W 12V | 24W | 200-240V AC | 12V / 24V | 2.0A / 1.0A | 93% | IP20 | 172*18*18 | 400 |
| CB-36W 12V | 36W | 200-240V AC | 12V / 24V | 3.0A / 1.5A | 93% | IP20 | 283*18*18 | 200 |
| CB-48W 12V | 48W | 110-240V AC | 12V / 24V | 4.0A / 2.0A | 92% | IP20 | 313*18*18 | 200 |
| CB-60W 12V | 60W | 200-240V AC | 12V / 24V | 5.0A / 2.5A | 92% | IP20 | 313*18*18 | 200 |
| CB-72W 12V | 72W | 200-240V AC | 12V / 24V | 6.0A / 3.0A | 91% | IP20 | 373*18*18 | 200 |

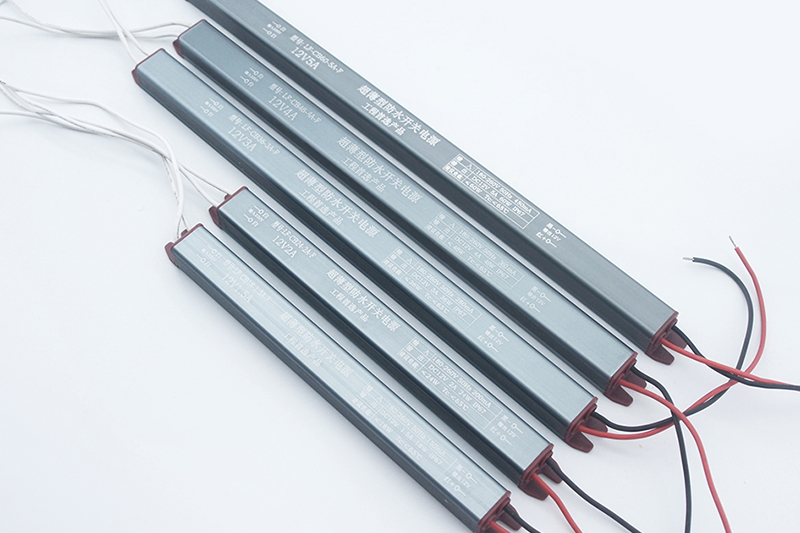

| IP 67 Waterproof super ultra slim series | ||||||||
| CB-18W 12V F | 18W | 200-240V AC | 12V / 24V | 1.5A / 0.75A | 93% | IP 67 | 192*18*14.8 | 200 |
| CB-24W 12V F | 24W | 200-240V AC | 12V / 24V | 2.0A / 1.0A | 93% | IP 67 | 192*18*14.8 | 200 |
| CB-36W 12V F | 36W | 200-240V AC | 12V / 24V | 3.0A / 1.5A | 93% | IP 67 | 292*18*14.8 | 100 |
| CB-48W 12V F | 48W | 110-240V AC | 12V / 24V | 4.0A / 2.0A | 92% | IP 67 | 292*18*14.8 | 100 |
| CB-60W 12V F | 60W | 200-240V AC | 12V / 24V | 5.0A / 2.5A | 92% | IP 67 | 312*18*14.8 | 100 |
| CB-72W 12V F | 72W | 200-240V AC | 12V / 24V | 6.0A / 3.0A | 91% | IP 67 | 375*18*14.8 | 100 |
application
The defining ultra-slim profile (18mm x 18mm) of this 60W LED Power Supply makes it the go-to solution for installations where space is at an absolute premium. Its compact dimensions allow for discreet and seamless integration into:
MINI Channel Letters & Intricate Signage: Perfectly sized to fit within the narrow channels of small or detailed illuminated letters and compact signs.
Slimline Light Boxes: Ideal for powering thin menu boards, retail displays, or order menu light boxes where a bulky power supply is not an option.
Integrated Furniture & Display Lighting: Easily concealed within cabinets, wardrobes (under-cabinet and wardrobe lighting), display cases, or shelves to power LED strips for accent or task lighting.
Linear LED Lighting Solutions: An excellent choice for driving linear LED strips installed in tight coves, architectural reveals, or custom-built linear fixtures.
Mirror & Frame Illumination: Provides a compact power source for LED strips around bathroom mirrors or embedded within illuminated picture frames and artwork.

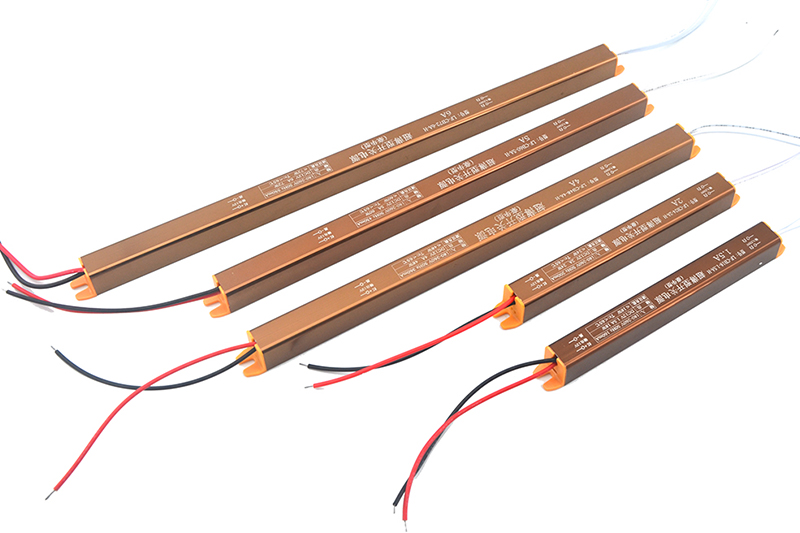

OEM & Custom Projects: Its customizable options (color/logo) and versatile voltage/wattage range (18W-72W, 12V/24V) make it highly suitable for integration into unique product designs.
This power supply excels wherever standard-sized units cannot fit, offering reliable power for a variety of precise and space-sensitive LED lighting applications.
