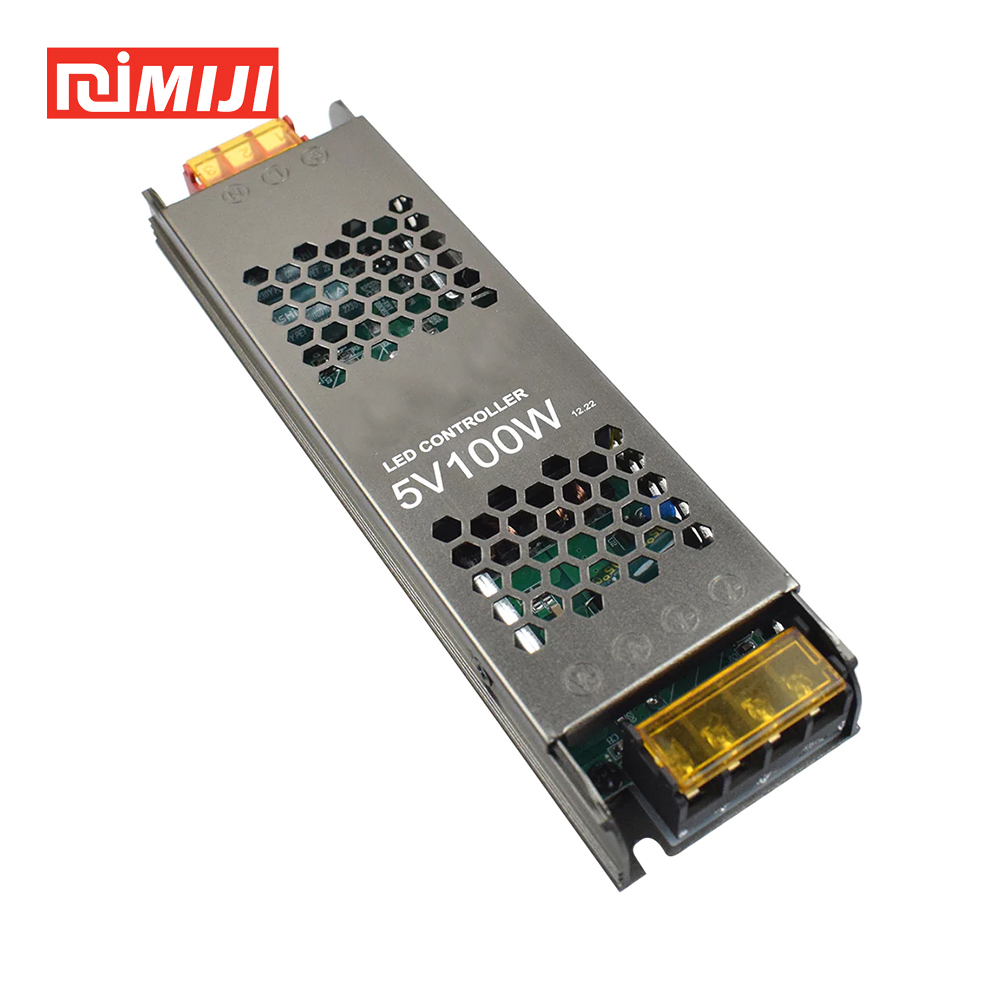

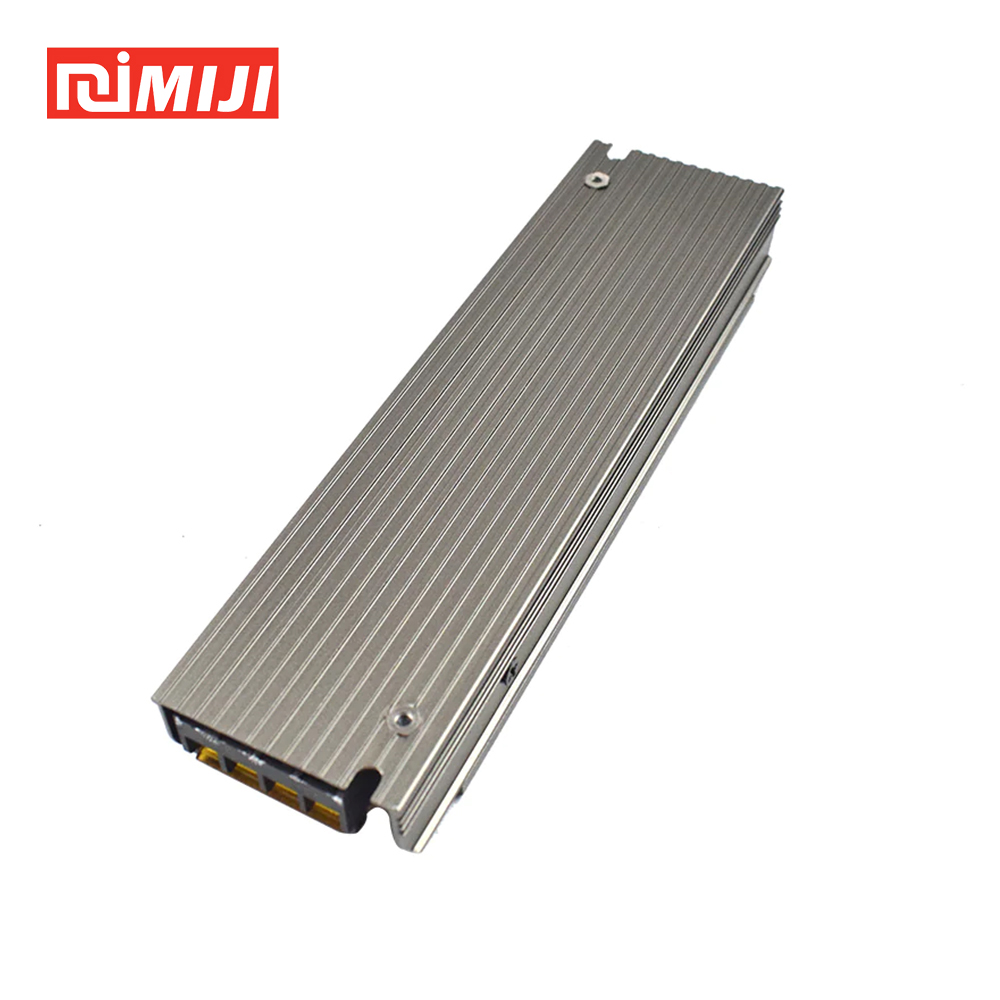

Super Slim 100W 5V 20A Power Supply for LED Displays
Feature
◎ Stable 5V 20A Power Output: Delivers a consistent 100W of power, specifically engineered for the demanding requirements of LED display modules.
◎ High Reliability & Tested Performance: Features all-new components and undergoes a 100% full-load aging test to ensure a failure rate of less than 0.1%.
◎ Effortless Installation & Cost-Effective: Designed for quick, easy setup, providing a high-value, budget-friendly power solution for any project.
◎ OEM Customization Available:
Offers the option to customize with your own logo, perfect for system
integrators and branded solutions.
specification
| Model | KS-75-5HA | KS-100-5HB | |
| OUTPUT | DC voltage | 5V | 5V |
| Rated current | 15A | 20A | |
| Cuttent range | 0-15A | 0-20A | |
| Rated output power | 75W | 100W | |
| Ripples and noise | ≤200mVp-p | ≤200mVp-p | |
| Output current range | 4.5-5.5V | 4.5-5.5V | |
| Precision of output voltage regulation | ±0.5% | ±0.5% | |
| Rate of lenear adjustment | ±0.5% | ±0.5% | |
| Load adjustment rate | ±0.5% | ±0.5% | |
| The startup time | ≤2s/230VAC | ||
| INPUT | Keep time | 10ms/230VAC | |
| Voltage range | 176-264VAC | ||
| Frequency range | 50Hz | ||
| Power factor | PF≥0.6/230VAC | ||
| Efficiency | ≥89% | ≥91% | |
| Alternating current | 3.4A/230VAC | ||
| Surge current | 50A/230VAC | ||
| Leakage current | <5mA/230VAC | ||
| PROTECTION | Overload | 110%-140%: rated 110%-140% of the total power input | |
| protection mode:Auto recovery mode.the system automatically recovers when abnormal load conditions are removed | |||
| Short circuit | protection mode:Auto recovery mode.the system automatically recovers when abnormal load conditions are removed | ||
| Over voltage | protection mode:self-recovery mode,automatic recovery when the overvoltage is removed | ||
| Over temperature | protection mode:self-recovery mode,automatically recover when the temperature drops | ||
| ENVIRONMEN | working temperature | -35~+50°C | |
| working humidity | 20-90% RH | ||
| storage temperature;humidity | -30~+85°C； 10~95% RH | ||
| temperature coefficient | ±0.1%/°C(0-35°C) | ||
| resistance to vibration | 10-500Hz, 3G 10min. / 1 cycle, 60 min. each axes | ||
| SAFETY&EMC | safety norms | EN60950 , GB4943.1 -2011 | |
| withstand voltage | l/P-O/P:1.5KVAC l/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||
| insulation impedance | l/P-O/P, l/P-FG, 0/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | ||
| EMC | -- | ||
| other | protection grade | IP62 | |
| MTBF | ≥30khour 25℃ | ||
| power supply size | L180*W50*H23mm | ||
| power supply weight | 285g | ||
| NOTE | 1.Unless otherwise specified , all specification are measured at an input of 230VAC,rarted negative cut,and ambient temperature of 25°C | ||
| 2.Ripple and noise measurement method:the measured end is connected in parallel with a 0.1uF+10uF capacitor,the oscilloscope is set to 20MHZ bandwidth,and the probe is tested with cap off and full load at 25°C | |||
| 3.Accuracy :includes setting error , linear adjustment rate and load adjustment rate . | |||
| 4. The output power is reduced when the input voltage is less than 200VAC. | |||
OEM Customer design
Model List
| Model | Power Out | Input Voltage | Output Voltage | Output Current | Efficiency | IP | Size(mm) | Package |
| KS-100-5HA | 100W | 200-240V AC | 5V | 20A | 93% | IP20 | 180*50*23 | 90 |
| KS-200-5HA | 200W | 200-240V AC | 5V | 40A | 89% | IP20 | 199*81*30 | 40 |
| KS-200-5HB | 200W | 200-240V AC | 5V | 40A | 93% | IP20 | 199*81*30 | 40 |
| KS-200-5HC | 200W | 110-240V AC | 5V | 40A | 95% | IP20 | 199*81*30 | 40 |
| KS-300-5HA | 300W | 200-240V AC | 5V | 60A | 92% | IP20 | 199*81*30 | 40 |
| KS-300-5HC | 300W | 200-240V AC | 5V | 60A | 92% | IP20 | 220*81*30 | 40 |
application
Storefront LED Signs: Its ultra-slim profile allows for seamless integration into thin digital storefront banners and scrolling "ticker" signs, ensuring bright and reliable advertisements without bulky hardware.
Public Transit Vehicle Displays: Perfectly suited for bus and taxi LED screens, providing stable 5V power to display routes, advertisements, and passenger information clearly, even on the move.
MINI LED Displays: An ideal power source for compact and high-density MINI LED modules, where space is at a premium but consistent, flicker-free power is critical for visual performance.
Retail & Information Displays: Powers indoor LED information boards, promotional signs, and menu displays in shops, restaurants, and public venues, offering a dependable and cost-effective solution.
Custom LED Projects: The easy installation and OEM customization make it a go-to choice for integrators building custom-sized LED message boards or unique digital art installations.
This 100W 5V 20A power supply is the definitive choice for any application demanding a reliable, compact, and economical power source. Its slim design simplifies installation in both stationary signs and mobile displays, while its rigorous testing guarantees long-term performance. Whether for commercial advertising, public transportation, or custom projects, it delivers the stable power needed to make your LED displays shine.
