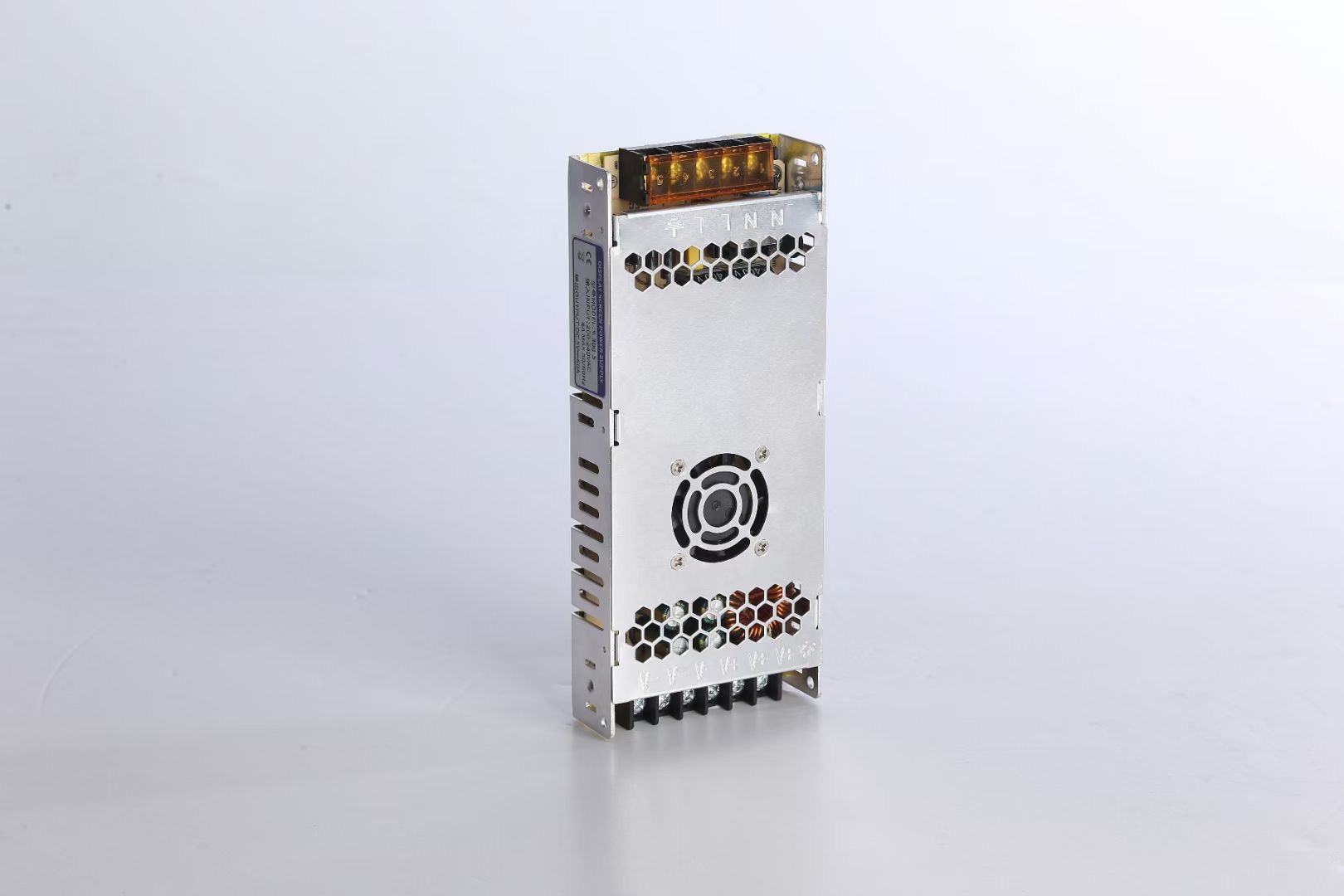

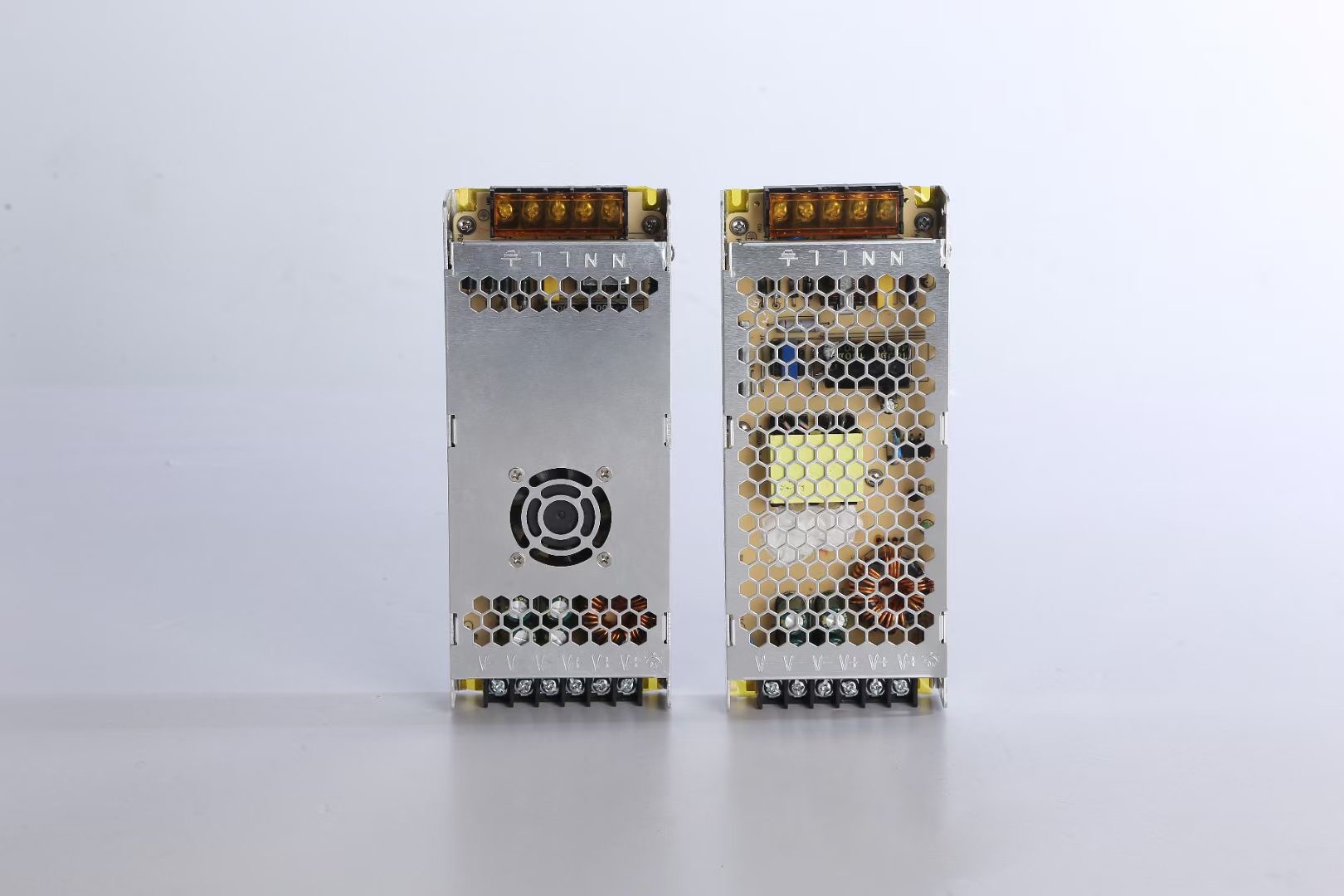

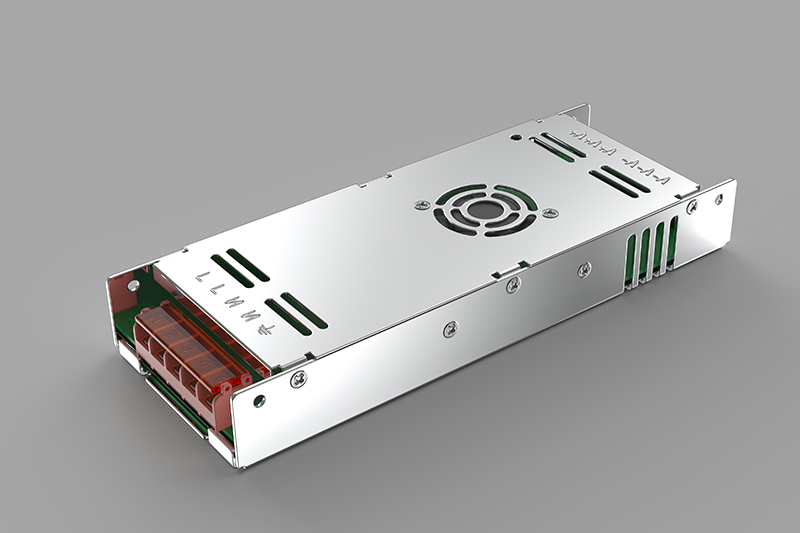

Slim 200W 5V LED Display PSU (40A) - Value Series for Rental & Door Head Screens
Feature
specification
| Model | KS-200-5HA | KS-200-5HB | |
| OUTPUT | DC voltage | 5V | 5V |
| Rated current | 40A | 40A | |
| Cuttent range | 0-40A | 0-40A | |
| Rated output power | 200W | 200W | |
| Ripples and noise | ≤200mVp-p | ≤300mVp-p | |
| Output current range | 4.5-5.5V | 4.5-5.5V | |
| Precision of output voltage regulation | ±0.5% | ±0.5% | |
| Rate of lenear adjustment | ±0.5% | ±0.5% | |
| Load adjustment rate | ±0.5% | ±0.5% | |
| The startup time | ≤2s/230VAC | ||
| INPUT | Keep time | 10ms/230VAC | |
| Voltage range | 176-264VAC | ||
| Frequency range | 50Hz | ||
| Power factor | PF≥0.6/230VAC | ||
| Efficiency | ≥89% | ≥91% | |
| Alternating current | 3.4A/230VAC | ||
| Surge current | 50A/230VAC | ||
| Leakage current | <5mA/230VAC | ||
| PROTECTION | Overload | 110%-140%: rated 110%-140% of the total power input | |
| protection mode:Auto recovery mode.the system automatically recovers when abnormal load conditions are removed | |||
| Short circuit | protection mode:Auto recovery mode.the system automatically recovers when abnormal load conditions are removed | ||
| Over voltage | protection mode:self-recovery mode,automatic recovery when the overvoltage is removed | ||
| Over temperature | protection mode:self-recovery mode,automatically recover when the temperature drops | ||
| ENVIRONMEN | working temperature | -35~+50°C | |
| working humidity | 20-90% RH | ||
| storage temperature;humidity | -30~+85°C； 10~95% RH | ||
| temperature coefficient | ±0.1%/°C(0-35°C) | ||
| resistance to vibration | 10-500Hz, 3G 10min. / 1 cycle, 60 min. each axes | ||
| SAFETY&EMC | safety norms | EN60950 , GB4943.1 -2011 | |
| withstand voltage | l/P-O/P:1.5KVAC l/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||
| insulation impedance | l/P-O/P, l/P-FG, 0/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | ||
| EMC | -- | ||
| other | protection grade | IP62 | |
| MTBF | ≥30khour 25℃ | ||
| power supply size | L190*W81*H30mm | ||
| power supply weight | 320g | ||
| NOTE | 1.Unless otherwise specified , all specification are measured at an input of 230VAC,rarted negative cut,and ambient temperature of 25°C | ||
| 2.Ripple and noise measurement method:the measured end is connected in parallel with a 0.1uF+10uF capacitor,the oscilloscope is set to 20MHZ bandwidth,and the probe is tested with cap off and full load at 25°C | |||
| 3.Accuracy :includes setting error , linear adjustment rate and load adjustment rate . | |||
| 4. The output power is reduced when the input voltage is less than 200VAC. | |||

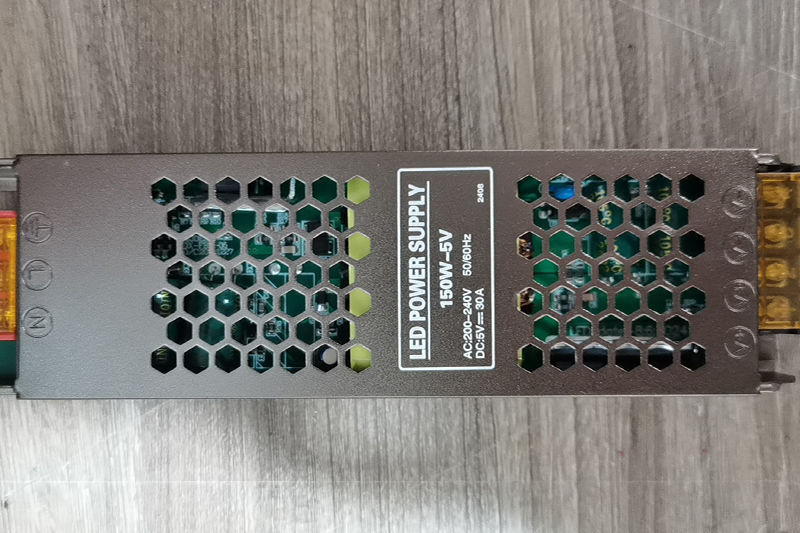

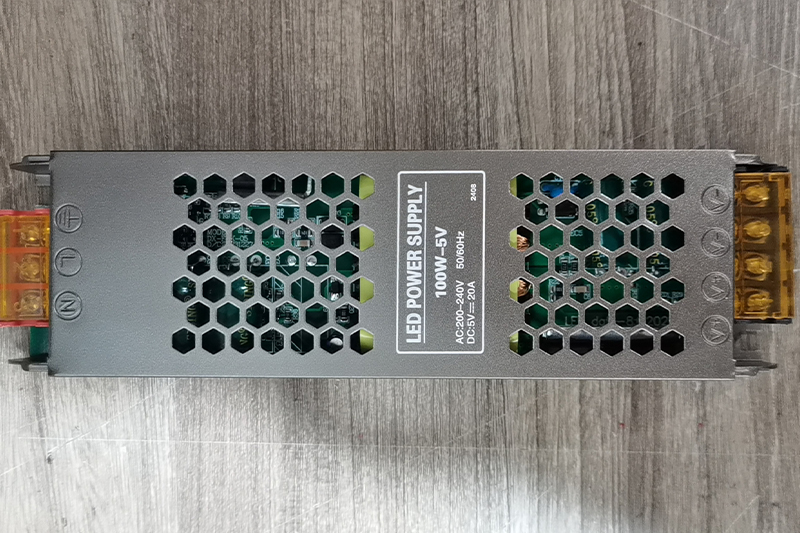

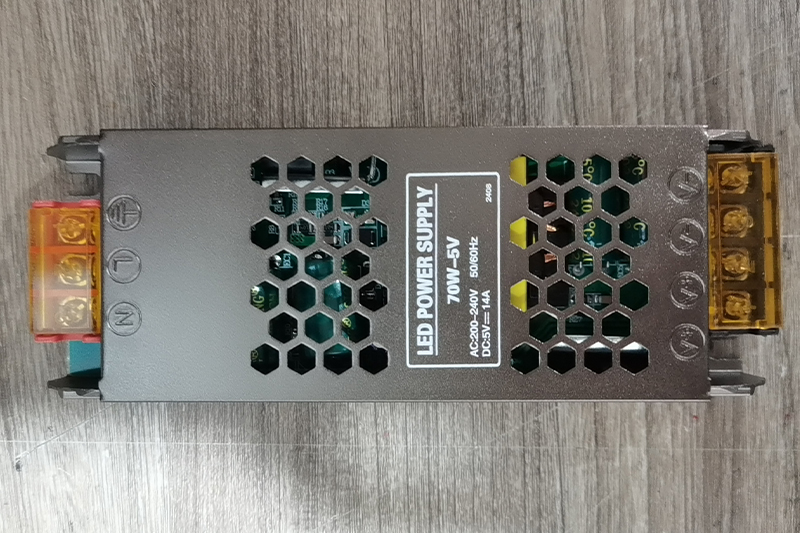

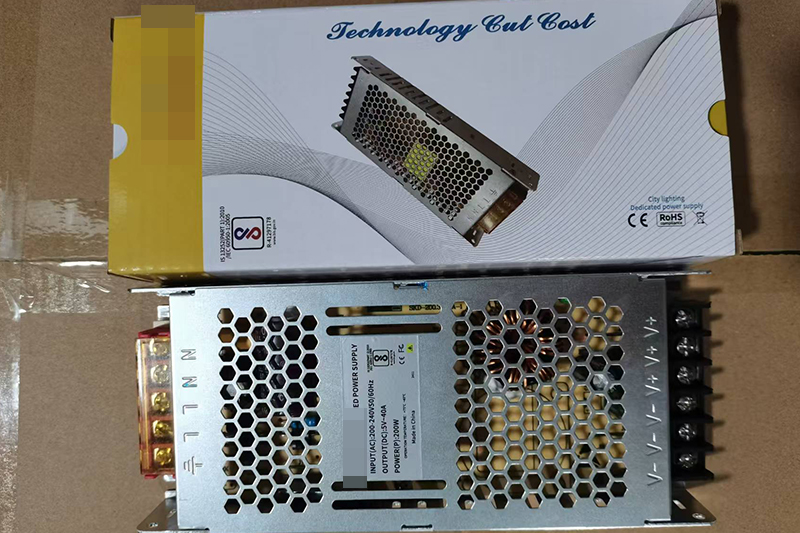

OEM Customer design
Model List
| Model | Power Out | Input Voltage | Output Voltage | Output Current | Efficiency | IP | Size(mm) | Package |
| KS-100-5HA | 100W | 200-240V AC | 5V | 20A | 93% | IP20 | 180*50*23 | 90 |
| KS-200-5HA | 200W | 200-240V AC | 5V | 40A | 89% | IP20 | 199*81*30 | 40 |
| KS-200-5HB | 200W | 200-240V AC | 5V | 40A | 93% | IP20 | 199*81*30 | 40 |
| KS-200-5HC | 200W | 110-240V AC | 5V | 40A | 95% | IP20 | 199*81*30 | 40 |
| KS-300-5HA | 300W | 200-240V AC | 5V | 60A | 92% | IP20 | 199*81*30 | 40 |
| KS-300-5HC | 300W | 200-240V AC | 5V | 60A | 92% | IP20 | 220*81*30 | 40 |
application
This Slim 200W 5V LED Display PSU from our Value Series is specifically engineered as a highly economical and efficient power solution for:

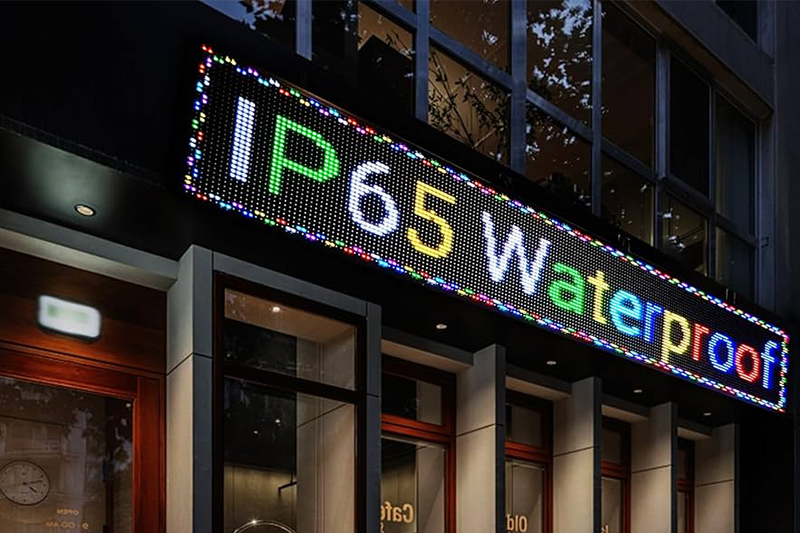

Outdoor Door Head Screens: Providing reliable, cost-effective power for shop front LED displays or similar entrance signage, particularly those using P10 or P8 modules.

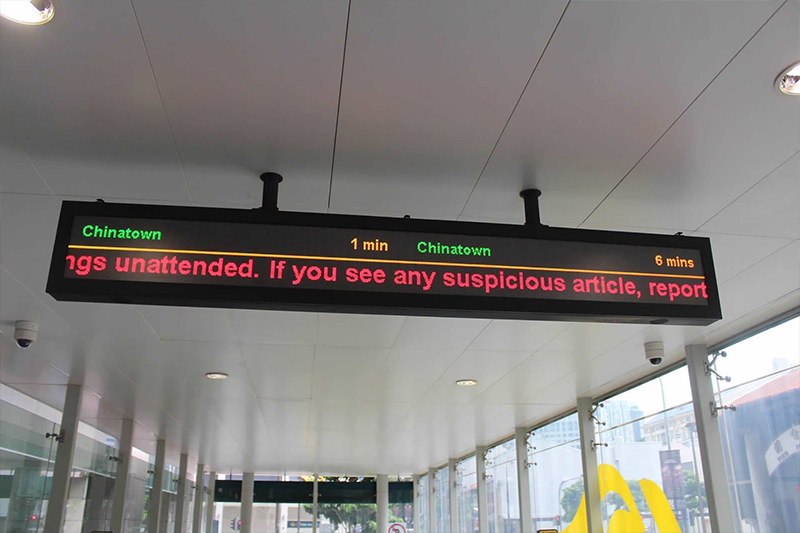

Scrolling Text Displays: Ideal for energizing single-color or full-color LED message boards and scrolling text signs commonly used for announcements or advertising.

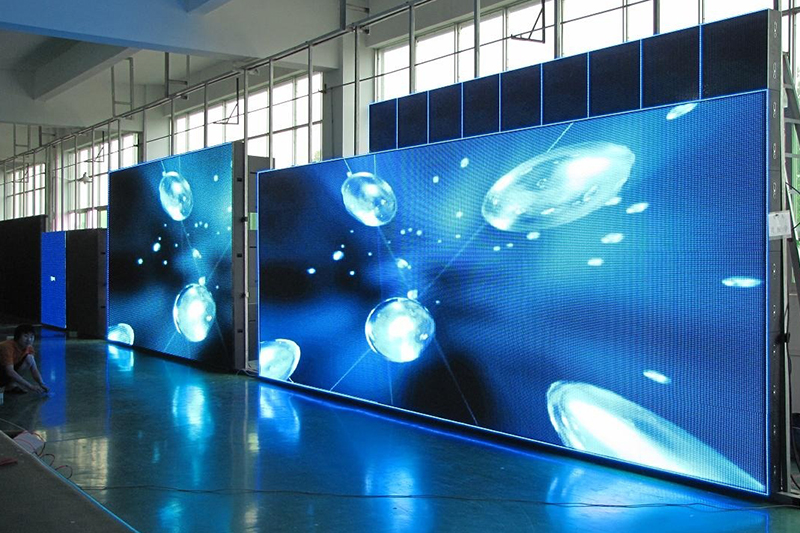

Rental LED Screens: Its ultra-thin, lightweight, and fanless design makes it suitable for portable rental display systems where ease of installation and silent operation are beneficial.
P10 & P8 LED Module Projects: Specifically optimized to power displays built with these common pixel pitch modules, whether monochrome or full-color, offering a tailored and budget-friendly power source.
General Purpose Low-Profile LED Displays: Suitable for various other LED display applications where a compact, silent, efficient, and cost-effective 5V 200W power supply is required for integration into display cabinets.
Its combination of high efficiency, robust protection, and an ultra-thin, fanless design makes it an excellent choice for achieving reliable LED display performance within budget constraints.
