Stop Outdoor Short-Circuits: Why Resin-Sealed 220V LED Grid Lamps are the Only Choice for Large-Scale Signage
Expert Analysis: Moving Beyond the Failures of IP20 in High-Voltage Outdoor Environments
The "Short-Circuit Crisis" in Outdoor 220V Projects
If you've managed large-scale outdoor signage or building facade projects, you know the nightmare: a week after installation, a section of the 220V grid lamps goes dark. The culprit? IP20 non-waterproof modules used in "semi-outdoor" environments.
Common Failure Points of IP20 High-Voltage Lamps:
- 🔴 Moisture & Rain Ingress: Even in protected lightboxes, humidity causes condensation, leading to immediate arcing in 220V high-voltage circuits.
- 🔴 Insect Nesting: Ants, spiders, and small insects are attracted to the warmth of the PCBs. In IP20 open-housing modules, their presence frequently causes catastrophic short-circuits.
- 🔴 Component Corrosion: Exposure to air accelerates the oxidation of the Linear IC and resistors, drastically shortening the 50,000-hour lifespan.
The MIJI Solution: Professional Resin-Sealed (Gluing) Technology
To eliminate these risks, MIJI has engineered the 220V Waterproof Grid Lamp Series. Unlike standard injection molding, our Resin-Filling (灌胶) process completely encapsulates the PCB and every electronic component in a high-grade, thermal-conductive polymer.

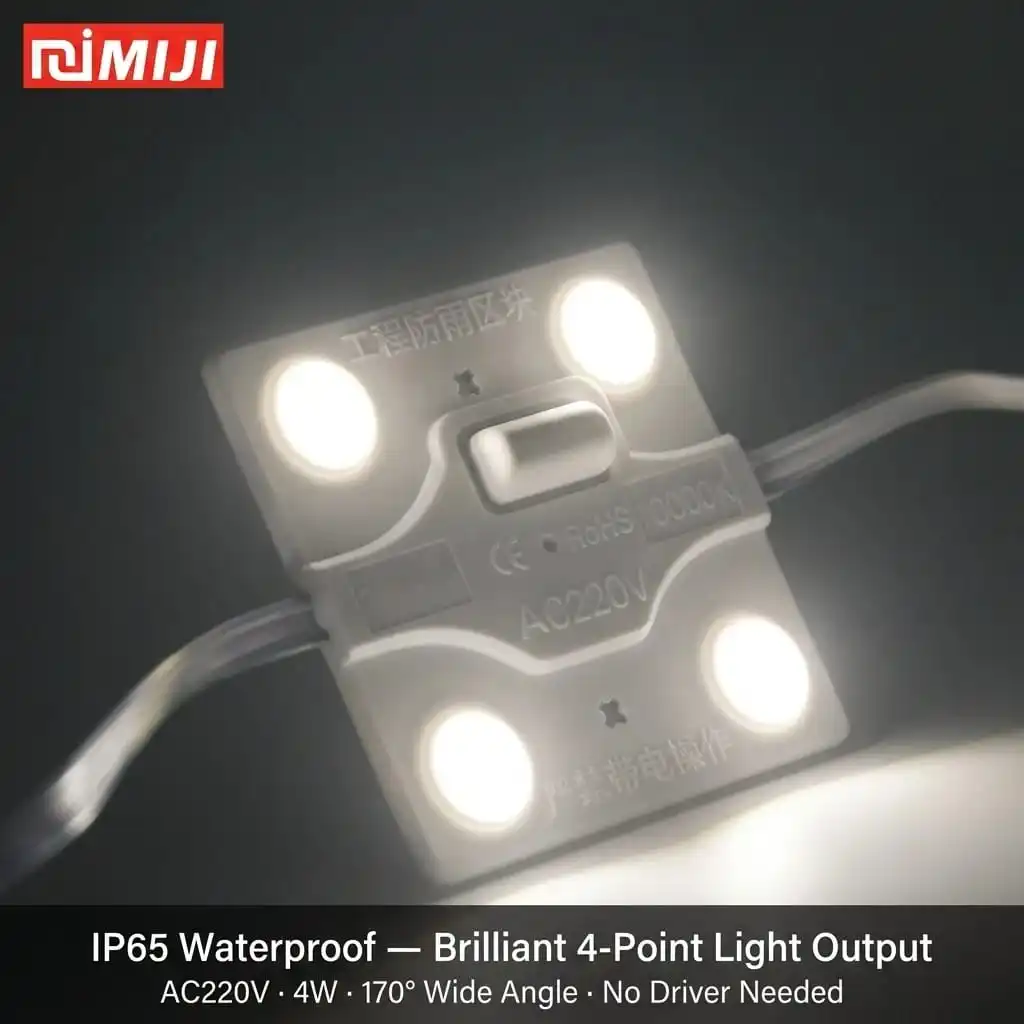

▲ MIJI's IP65 Rated Resin-Sealed Housing: Dust-proof, Bug-proof, and Water-proof.
This "Full-Block" protection means even if rain enters the lightbox or insects crawl into the gaps, the actual high-voltage circuit remains perfectly sealed and operational. It’s not just a cover; it’s a permanent barrier.
Engineering Specifications
- ◎ Input Voltage: AC 110V/220V (Driverless)
- ◎ Power Consumption: 4W per module (High Efficiency)
- ◎ Light Output: Brilliant 4-Point SMD Technology
- ◎ Beam Angle: 170° Wide-Angle Optical Lens
- ◎ IP Rating: IP65/IP66 (Full Resin-Sealed)
- ◎ Voltage Drop: Zero Voltage Drop for up to 50 modules
- ◎ Max Connection: Directly links to AC power
- ◎ Working Temp: -20°C ~ +50°C
Efficiency in Installation: No Transformers, No Complexity
The 220V Grid Lamp isn’t just safer; it’s faster to install. By removing the need for bulky 12V/24V power supplies, you reduce the failure points of the entire system.

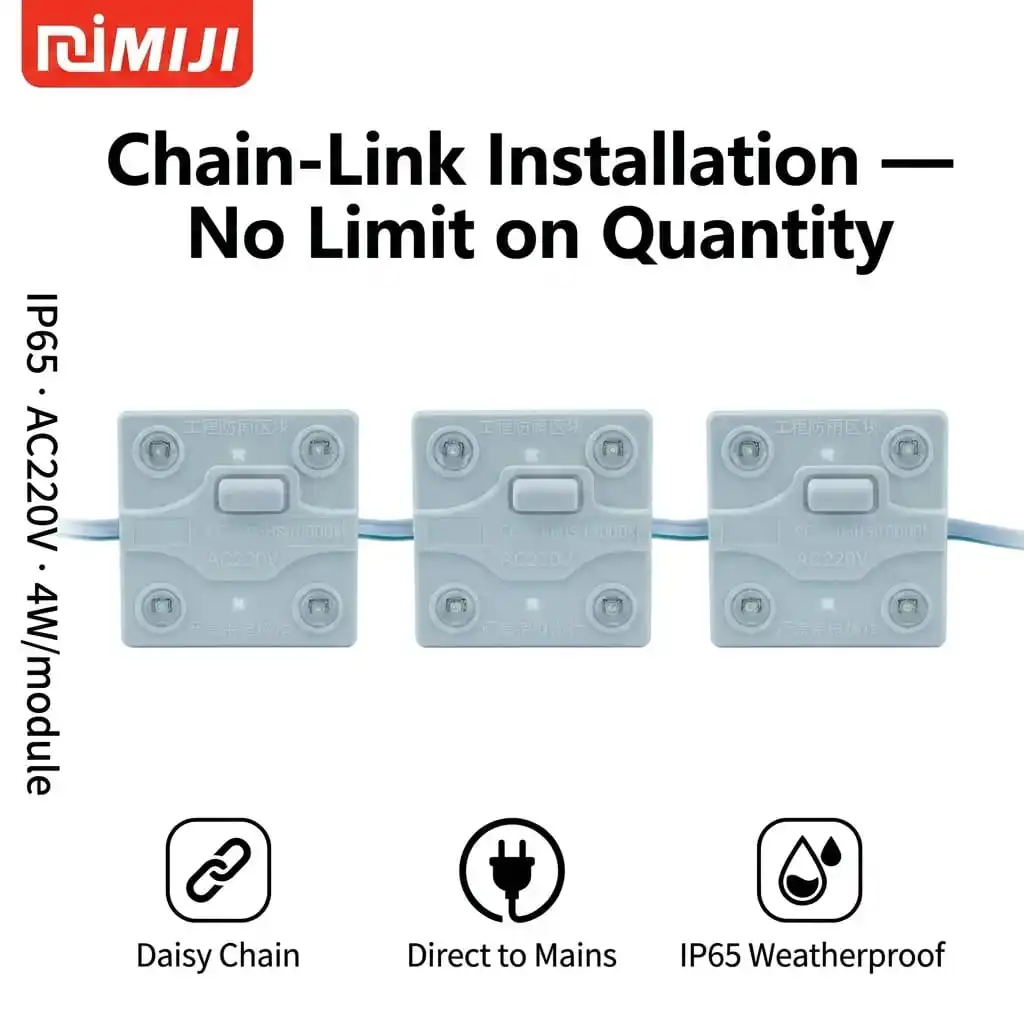

▲ Chain-link installation with no voltage drop—ideal for skyscrapers and large airports.
Whether it’s a Soft Film Ceiling in a flagship store or a Skyline Billboard, our resin-sealed grid lamps provide the uniform, high-lumen output required by modern B2B standards without the maintenance headaches of low-voltage cabling.
Eliminate Your Outdoor Lighting Failures Today
Request a free sample of our 220V Resin-Sealed Grid Lamps and test the MIJI difference in your next project.
Contact Our Engineering Team
