Integrated Dimming Power Supply or Separate Dimmer and Driver?
Choosing between an integrated dimming Power Supply and a separate dimmer-and-driver system is mainly an architecture decision. The correct choice depends on the LED load, the required control method, installation space, service access and the documentation available for the project.
What is the difference?
An integrated dimming power supply combines local brightness control and a constant-voltage LED power supply in one product. A separate architecture uses an independent dimmer or control device together with a separate Led Driver or power supply.
Neither architecture is automatically better. The useful question is which arrangement matches the project requirements with the fewest unresolved assumptions.
Integrated system vs separate system
| Decision point | Integrated dimming power supply | Separate dimmer and driver |
|---|---|---|
| Control | Local rotary control is built into the wall-mounted product. | Control depends on the selected external dimmer or control system. |
| System layout | Wall control and constant-voltage power supply are combined. | The control device and LED driver are installed as separate components. |
| Power-supply location | Designed around an 86-type wall-box installation format. | The driver may be placed away from the wall control, subject to the project design. |
| Selection starting point | Confirm output voltage, required wattage, load type and wall-box space. | Confirm the control protocol, selected driver and installation relationship. |
| When to consider it | Projects that want local rotary control and one combined wall-mounted product. | Projects requiring another control interface, remote ecosystem or a specific external driver. |

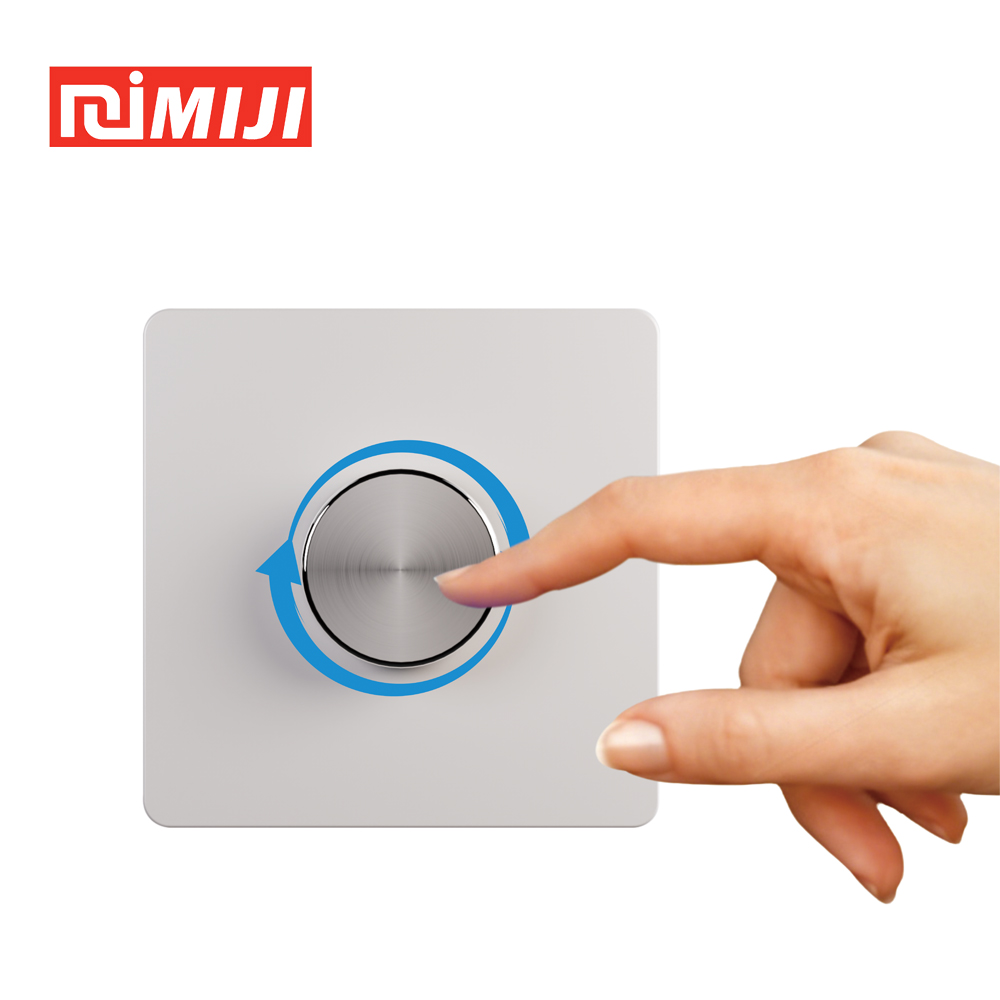

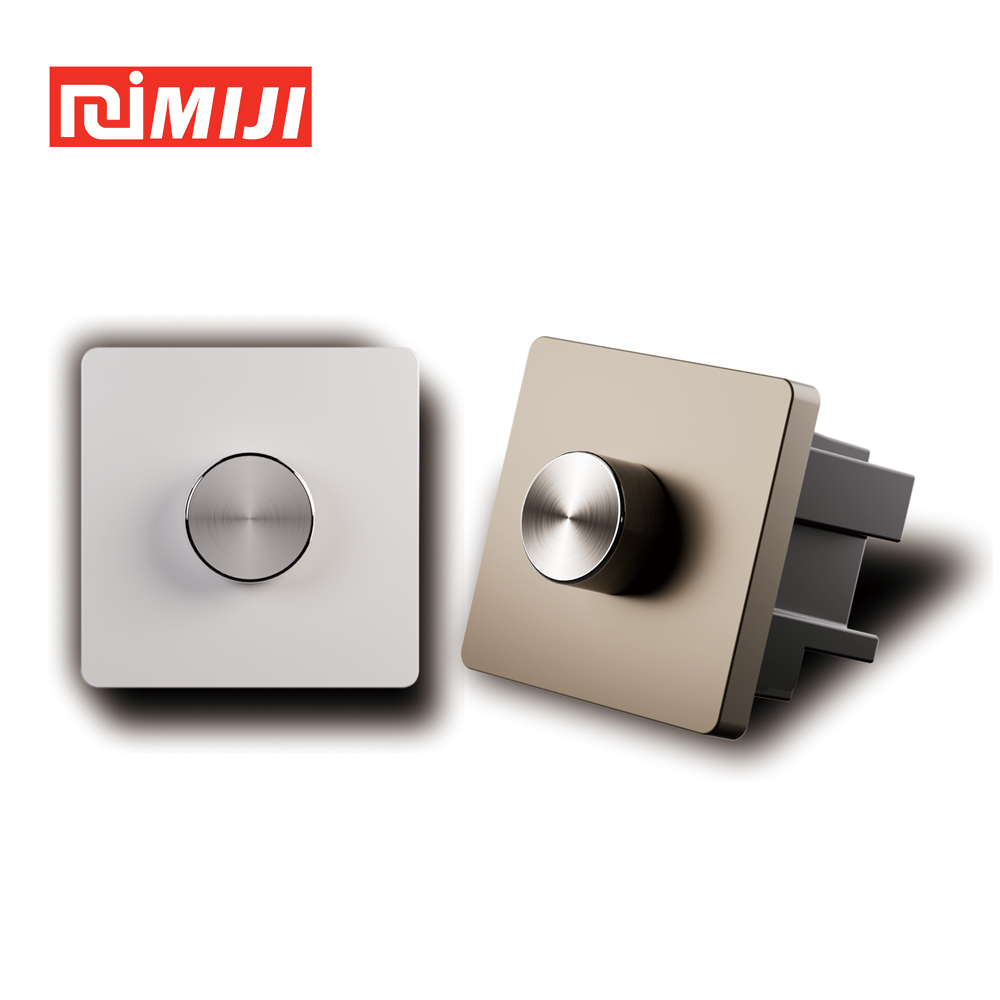

When an integrated 86-type product may fit
- The project wants local wall-mounted rotary control.
- The LED load requires 12V DC or 24V DC constant-voltage output.
- The connected wattage can be matched to an available model.
- The project prefers one combined wall-control and power-supply product.
The recorded MIJI Series 86 portfolio includes 12V and 24V options at 60W, 100W and 150W: SDP-12V 60W, SDP-12V 100W, SDP-12V 150W, SDP-24V 60W, SDP-24V 100W and SDP-24V 150W. Model suitability still needs to be confirmed against the actual load.
When a separate system may need consideration
- The project requires a different control interface or remote-control ecosystem.
- The LED power supply must be placed away from the wall control.
- The project specification names a particular external LED driver.
- The required load or installation conditions cannot be confirmed against the available Series 86 information.
Buyer checklist before selecting an architecture
- Confirm whether the LED load is 12V DC or 24V DC.
- Calculate the total connected wattage and allow for the project engineer's required design margin.
- Describe the LED load type and the expected control behavior.
- Confirm the available 86-type wall-box space and service access.
- State the destination market and required project documents.
- Request project-specific model confirmation before ordering.
- Record OEM logo and packaging requirements separately.
Frequently asked questions
Is the MIJI Series 86 product controlled by Bluetooth?
No Bluetooth function is confirmed in the approved product information. The recorded control method is a local rotary button. Projects requiring wireless or remote control should describe that requirement before model selection.
What output options are recorded?
The current model list includes 12V DC and 24V DC versions at 60W, 100W and 150W. Output voltage and wattage must match the actual connected load.
Can one model work with every LED strip or lighting load?
No universal compatibility claim is made. Confirm the load voltage, total wattage, load type and expected dimming behavior for the individual project.
Is an integrated system always cheaper or more reliable?
This guide does not make comparative cost, lifetime or reliability claims. Those conclusions require project-specific component, installation and test information.
Next step
Review the available MIJI LED power supply products or contact MIJI with the load voltage, total wattage, installation space and control requirement. The team can then confirm whether an integrated Series 86 model or a separate architecture is the more appropriate starting point.
Important: Final suitability should be confirmed for the individual project. This guide does not make comparative safety, compatibility, cost, lifetime or installation-performance claims.
