How to Plan a 12V LED Rigid Bar Layout for Uniform Signage
Uniform signage backlighting starts with a layout, not with a wattage guess. Two light boxes with the same external size can require different LED arrangements because the cabinet depth, diffuser, graphic material and reflective surfaces are different.
A useful layout process separates optical decisions from electrical decisions. First determine how the light must spread across the sign face. Then calculate the number of bars, the connected load and the wiring plan. Finally, build and inspect a sample before approving production.
Step 1: record the real cabinet dimensions
Begin with the illuminated width and height, not only the outside dimensions of the sign. Record the usable mounting area, internal depth, frame width and any components that interrupt the lighting plane.
Cabinet depth is especially important. A deeper cavity gives adjacent beams more distance to overlap before reaching the diffuser. A shallow cabinet needs a wider distribution pattern or closer spacing to avoid visible hot spots.
Also note the edge distance. If the first LED row is too far from the frame, the perimeter may look dark. If it is too close, the edge may look brighter than the center.
Step 2: select a light-distribution approach
MIJI Rigid Bar-2R-145 uses a 170-degree PMMA optical lens to spread light across a broad area. The bar has 12 SMD 2835 three-chip LEDs on a 920 mm aluminum PCB and is rated at 12W, 1100-1200 lm per bar on DC 12V.
These specifications are useful inputs, but they do not define a universal bar-to-bar spacing. The correct spacing changes with the diffuser, cabinet depth, reflective backing and required visual uniformity.
Start with a symmetrical row arrangement. Keep the rows parallel and maintain the same center-to-center distance across the illuminated area. Avoid making the center dense while leaving the edges underlit unless a sample test shows that the design needs that compensation.
Step 3: plan cut points before wiring

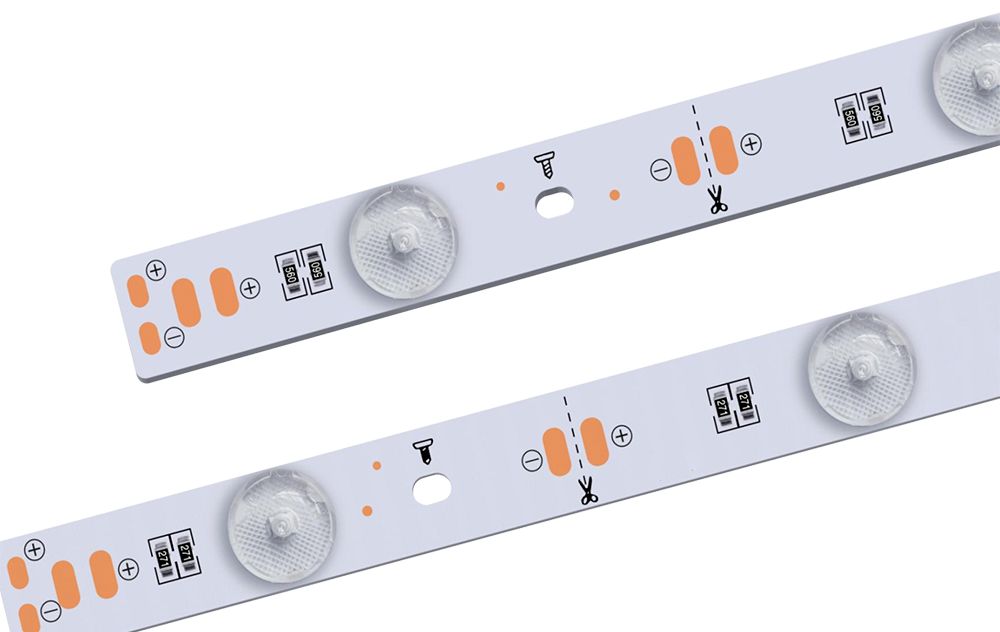

Rigid Bar-2R-145 can be cut after each LED section at the printed cut line. This makes it possible to adjust the illuminated length for cabinets that do not match the full 920 mm PCB.
Mark every intended cut on the layout drawing before cutting any bar. Cutting should only be performed with power disconnected. After cutting, use the printed positive and negative pads and maintain the correct polarity throughout the row.
Do not cut through an LED, lens, resistor or unmarked PCB area. If a cabinet requires several shortened bars, prepare one sample bar first and verify its fit and operation before processing the full quantity.
Step 4: calculate the DC load
The bar requires a regulated DC 12V constant-voltage supply. Calculate the connected load from the number of full bars and the approved electrical value for any shortened sections. Do not connect the bars directly to AC mains.
The final power-supply selection should include the engineering margin approved for the project. Cable length, conductor size, voltage drop, enclosure ventilation and ambient conditions can affect the result. Divide a large cabinet into practical wiring groups when needed so that cable runs and voltage distribution remain manageable.
Before energizing the assembly, check:
- power-supply output is DC 12V;
- polarity is correct at every connection;
- no exposed conductor can contact the aluminum PCB or cabinet;
- wiring is mechanically supported;
- the connected load matches the approved power-supply plan.
Step 5: mount the bars consistently
The rigid aluminum PCB includes mounting holes for screw fastening. Use the mounting points shown on the product and avoid overtightening, which may damage the PCB or distort the installed row.
Keep all lenses facing the diffuser at the same angle. A small change in orientation can shift the light pattern and create a visible stripe. Confirm that wiring loops do not lift one end of a bar away from the mounting surface.
The confirmed PCB dimensions are 920 x 14.5 x 1 mm. The 1 mm value is the PCB thickness and excludes lens height. Confirm mounting-hole spacing, screw selection and required clearances against an approved sample before machining a cabinet in volume.
Step 6: perform a full-face lighting test
Test the complete sign face in the expected viewing conditions. A short bench test without the final diffuser cannot confirm uniformity.
Inspect the sample from the normal viewing distance and from several angles. Look for hot spots, dark bands, edge shadows and color differences. Photograph the illuminated face with fixed camera settings so that layout alternatives can be compared consistently.
If the result is uneven, change one variable at a time:
- adjust the spacing between rows;
- adjust the distance from the outer rows to the frame;
- test a different cabinet depth or diffuser;
- verify that every bar receives the correct voltage;
- confirm that the rows are aligned and facing the same direction.
Changing one factor at a time makes it easier to identify the real cause of the problem.
Information needed for a project review
To prepare a more useful rigid-bar layout recommendation, provide:
- illuminated width, height and internal depth;
- diffuser and printed-face material;
- target CCT: 3000K, 4000K, 6000K or 10000K;
- required brightness or an approved reference sample;
- indoor or protected installation conditions;
- project quantity and destination;
- drawings or clear cabinet photos.
MIJI can then review the bar arrangement and the matching 12V power-supply requirement. Send the project details through the contact page.
