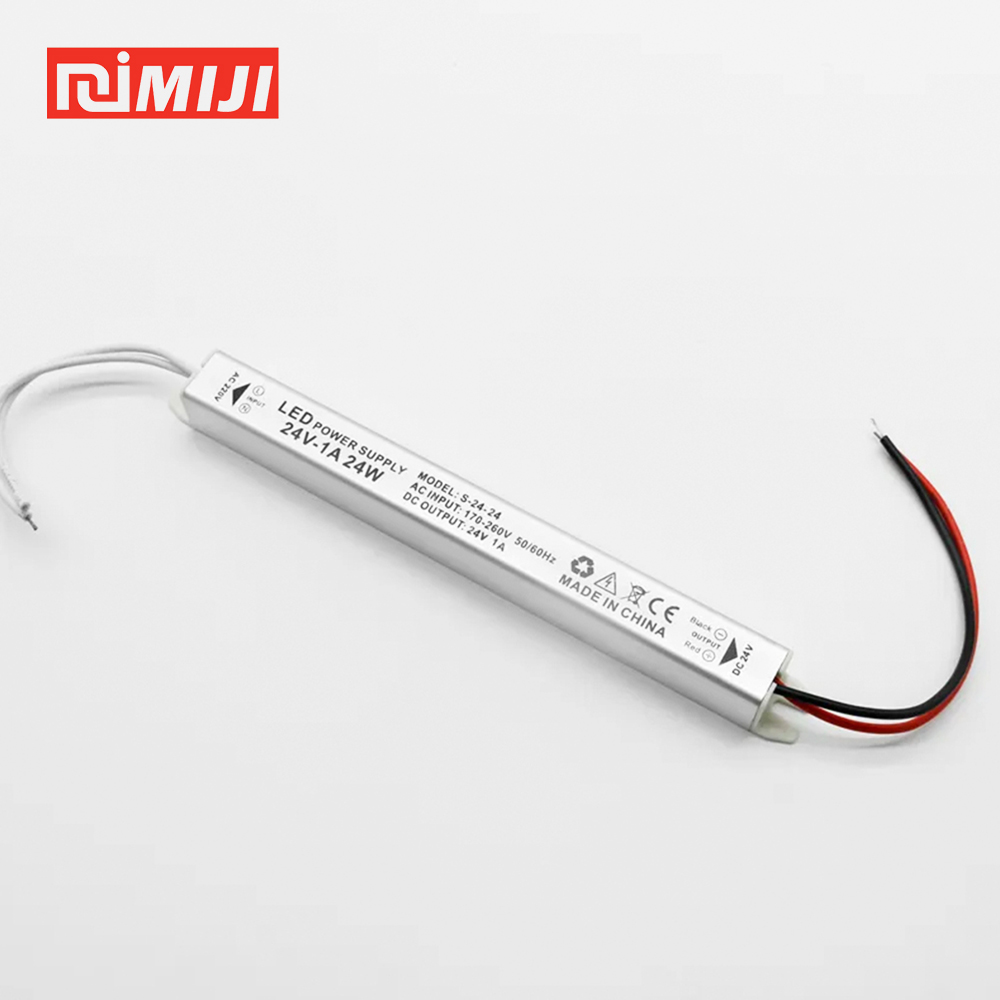

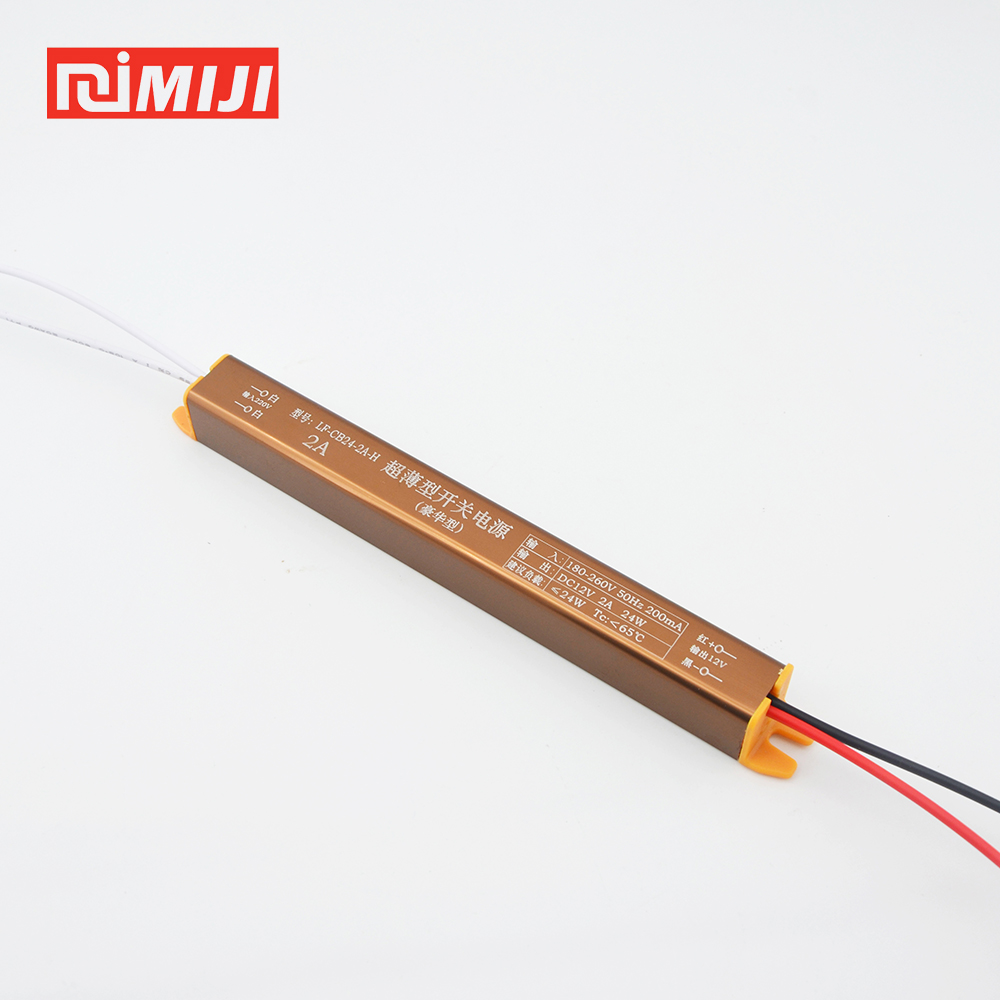

Mini 24W 12V/24V LED Power Supply
Feature
◎ Efficient 24W Power Output: Available in 12V 2A or 24V 1A, providing perfect, stable power for low-wattage LED strips and signage.
◎ Advanced Safety Protections: Equipped with integrated overload, short-circuit, and over-voltage protection for secure and reliable operation.
◎ Durable Aluminum Casing: The slim aluminum body not only looks sleek but also ensures efficient heat dissipation for a longer lifespan.
◎ CE & RoHS Certified: Fully certified for safety and environmental standards, making it a trustworthy choice for both residential and commercial use.
specification
| Model | CB-24W 12V | CB-24W 24V | |
| OUTPUT | DC voltage | 12V | 24V |
| Rated current | 2.0A | 1.0A | |
| Cuttent range | 0-2.0A | 0-1.0A | |
| Rated output power | 24W | 24W | |
| Ripples and noise | ≤200mVp-p | ≤500mVp-p | |
| Output current range | 12VDC±0.5VDC | 24VDC±0.5VDC | |
| Precision of output voltage regulation | ±0.5% | ±0.5% | |
| Rate of lenear adjustment | ±0.5% | ±0.5% | |
| Load adjustment rate | ±0.5% | ±0.5% | |
| The startup time | ≤2s/230VAC | ||
| INPUT | Keep time | 10ms/230VAC | |
| Voltage range | 176-264VAC | ||
| Frequency range | 50Hz | ||
| Power factor | PF≥0.6/230VAC | ||
| Efficiency | ≥93% | ≥93% | |
| Alternating current | 3.4A/230VAC | ||
| Surge current | 50A/230VAC | ||
| Leakage current | <5mA/230VAC | ||
| PROTECTION | Overload | 110%-140%: rated 110%-140% of the total power input | |
| protection mode:Auto recovery mode.the system automatically recovers when abnormal load conditions are removed | |||
| Short circuit | protection mode:Auto recovery mode.the system automatically recovers when abnormal load conditions are removed | ||
| Over voltage | protection mode:self-recovery mode,automatic recovery when the overvoltage is removed | ||
| Over temperature | protection mode:self-recovery mode,automatically recover when the temperature drops | ||
| ENVIRONMEN | working temperature | -35~+50°C | |
| working humidity | 20-90% RH | ||
| storage temperature;humidity | -30~+85°C； 10~95% RH | ||
| temperature coefficient | ±0.1%/°C(0-35°C) | ||
| resistance to vibration | 10-500Hz, 3G 10min. / 1 cycle, 60 min. each axes | ||
| SAFETY&EMC | safety norms | EN60950 , GB4943.1 -2011 | |
| withstand voltage | l/P-O/P:1.5KVAC l/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||
| insulation impedance | l/P-O/P, l/P-FG, 0/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | ||
| EMC | -- | ||
| other | protection grade | IP62 | |
| MTBF | ≥30khour 25℃ | ||
| power supply size | L172*W18*H18mm | ||
| power supply weight | 41g | ||
| NOTE | 1.Unless otherwise specified , all specification are measured at an input of 230VAC,rarted negative cut,and ambient temperature of 25°C | ||
| 2.Ripple and noise measurement method:the measured end is connected in parallel with a 0.1uF+10uF capacitor,the oscilloscope is set to 20MHZ bandwidth,and the probe is tested with cap off and full load at 25°C | |||
| 3.Accuracy :includes setting error , linear adjustment rate and load adjustment rate . | |||
| 4. The output power is reduced when the input voltage is less than 200VAC. | |||
OEM Customer design
Model List
| Model | Power Out | Input Voltage | Output Voltage | Output Current | Efficiency | IP | Size(mm) | Package |
| CB-18W 12V | 18W | 200-240V AC | 12V / 24V | 1.5A / 0.75A | 93% | IP20 | 172*18*18 | 400 |
| CB-24W 12V | 24W | 200-240V AC | 12V / 24V | 2.0A / 1.0A | 93% | IP20 | 172*18*18 | 400 |
| CB-36W 12V | 36W | 200-240V AC | 12V / 24V | 3.0A / 1.5A | 93% | IP20 | 283*18*18 | 200 |
| CB-48W 12V | 48W | 110-240V AC | 12V / 24V | 4.0A / 2.0A | 92% | IP20 | 313*18*18 | 200 |
| CB-60W 12V | 60W | 200-240V AC | 12V / 24V | 5.0A / 2.5A | 92% | IP20 | 313*18*18 | 200 |
| CB-72W 12V | 72W | 200-240V AC | 12V / 24V | 6.0A / 3.0A | 91% | IP20 | 373*18*18 | 200 |

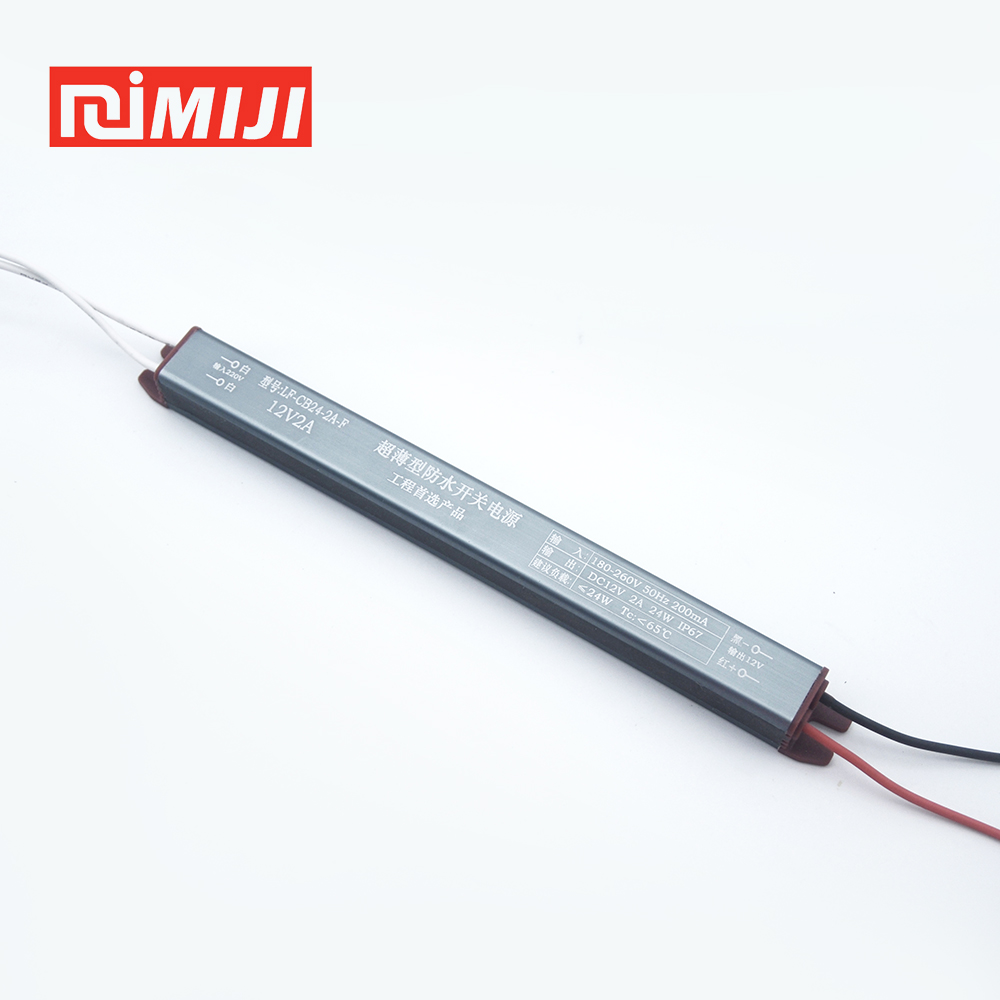

| IP 67 Waterproof super ultra slim series | ||||||||
| CB-18W 12V F | 18W | 200-240V AC | 12V / 24V | 1.5A / 0.75A | 93% | IP 67 | 192*18*14.8 | 200 |
| CB-24W 12V F | 24W | 200-240V AC | 12V / 24V | 2.0A / 1.0A | 93% | IP 67 | 192*18*14.8 | 200 |
| CB-36W 12V F | 36W | 200-240V AC | 12V / 24V | 3.0A / 1.5A | 93% | IP 67 | 292*18*14.8 | 100 |
| CB-48W 12V F | 48W | 110-240V AC | 12V / 24V | 4.0A / 2.0A | 92% | IP 67 | 292*18*14.8 | 100 |
| CB-60W 12V F | 60W | 200-240V AC | 12V / 24V | 5.0A / 2.5A | 92% | IP 67 | 312*18*14.8 | 100 |
| CB-72W 12V F | 72W | 200-240V AC | 12V / 24V | 6.0A / 3.0A | 91% | IP 67 | 375*18*14.8 | 100 |
application
The Mini 24W LED Power Supply is the ultimate solution for powering light in the most restricted spaces. While slim drivers solve many concealment challenges, this mini driver is specifically engineered for micro-applications where even a standard slim profile is too large. Measuring just 172mm in length, its purpose is to deliver safe and stable 12V or 24V power for shorter, low-wattage LED strips. It empowers creators to integrate lighting into projects that were previously impossible to illuminate, bringing professional-grade power and safety to the smallest scale.
Detailed Model Making & Dioramas: Perfect for hobbyists building architectural models, model train sets, or detailed dioramas. Its miniature size allows it to be hidden within structures to light up windows, streetlights, or special effects.
Custom DIY & Electronics Projects: An ideal power source for makers creating custom PC case lighting, illuminated cosplay props, or small electronic art installations where space and heat management are critical.
Accent Lighting in Small Furniture: Use it to add a touch of light inside jewelry boxes, display cases for collectibles, or small, bespoke shelving units. Its tiny footprint ensures the focus remains on the object, not the hardware.
Compact Signage & Lettering: Excellent for illuminating individual small letters, compact logos, or point-of-purchase displays. It can be easily tucked into the back of a single letter or a small sign frame without adding bulk.
Task Lighting for Nooks & Crannies: Provides dedicated light for small work areas, such as a sewing machine nook, a small reading corner, or over a compact workbench where only a short segment of LED strip is needed.
In essence, the Mini 24W LED Power Supply excels where all other drivers fail due to size constraints. It is the definitive power source for any low-wattage, small-scale lighting task. By combining a minuscule form factor with essential safety features and reliable performance, it opens up a new world of creative possibilities for hobbyists, designers, and installers who need to think small without compromising on quality.
