JT 12V 33.3A 400W Rainproof Power Supply
Feature
◎ 100% full load, 100% aging test
◎ Quality aluminum shell with oxidation gold finish
◎ Good quantity can customize shell color and LOGO
◎ All 100% new component, long life and high reliability
◎ Intelligent chip control, over voltage, over current, short protection
◎ High speed and quality Fan cooling, with good dissipation and reliable
specification
| Model | JT-12V 400W | JT-24V 400W | |
| OUTPUT | DC voltage | 12V | 24V |
| Rated current | 33.3A | 16.7A | |
| Cuttent range | 0-33.3A | 0-16.7A | |
| Rated output power | 400W | 400W | |
| Ripples and noise | ≤200mVp-p | ≤300mVp-p | |
| Output current range | 11.5-12.5V | 23-25V | |
| Precision of output voltage regulation | ±0.5% | ±0.5% | |
| Rate of lenear adjustment | ±0.5% | ±0.5% | |
| Load adjustment rate | ±0.5% | ±0.5% | |
| The startup time | ≤2s/230VAC | ||
| INPUT | Keep time | 10ms/230VAC | |
| Voltage range | 176-264VAC | ||
| Frequency range | 50Hz | ||
| Power factor | PF≥0.6/230VAC | ||
| Efficiency | ≥89% | ≥91% | |
| Alternating current | 3.4A/230VAC | ||
| Surge current | 50A/230VAC | ||
| Leakage current | <5mA/230VAC | ||
| PROTECTION | Overload | 110%-140%: rated 110%-140% of the total power input | |
| protection mode:Auto recovery mode.the system automatically recovers when abnormal load conditions are removed | |||
| Short circuit | protection mode:Auto recovery mode.the system automatically recovers when abnormal load conditions are removed | ||
| Over voltage | protection mode:self-recovery mode,automatic recovery when the overvoltage is removed | ||
| Over temperature | protection mode:self-recovery mode,automatically recover when the temperature drops | ||
| ENVIRONMEN | working temperature | -35~+50°C | |
| working humidity | 20-90% RH | ||
| storage temperature;humidity | -30~+85°C； 10~95% RH | ||
| temperature coefficient | ±0.1%/°C(0-35°C) | ||
| resistance to vibration | 10-500Hz, 3G 10min. / 1 cycle, 60 min. each axes | ||
| SAFETY&EMC | safety norms | EN60950 , GB4943.1 -2011 | |
| withstand voltage | l/P-O/P:1.5KVAC l/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||
| insulation impedance | l/P-O/P, l/P-FG, 0/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | ||
| EMC | -- | ||
| other | protection grade | IP62 | |
| MTBF | ≥30khour 25℃ | ||
| power supply size | L182*W118*H50mm | ||
| power supply weight | 457g | ||
| NOTE | 1.Unless otherwise specified , all specification are measured at an input of 230VAC,rarted negative cut,and ambient temperature of 25°C | ||
| 2.Ripple and noise measurement method:the measured end is connected in parallel with a 0.1uF+10uF capacitor,the oscilloscope is set to 20MHZ bandwidth,and the probe is tested with cap off and full load at 25°C | |||
| 3.Accuracy :includes setting error , linear adjustment rate and load adjustment rate . | |||
| 4. The output power is reduced when the input voltage is less than 200VAC. | |||

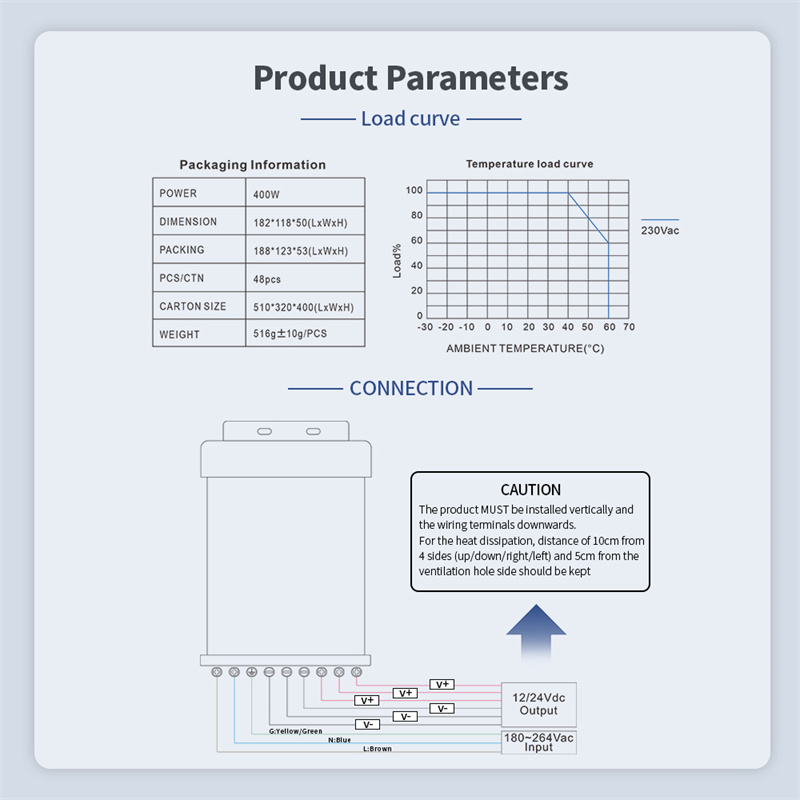

Caution
● The product MUST be installed vertically and the wiring terminals downwards.
● For the heat dissipation, distance of 10cm from 4 sides (up/down/right/left) and 5cm from the ventilation hole side should be kept
OEM Customer design
01020304
Model List
Our factory offers OEM customization, allowing us to tailor various models and parameters to meet your specific needs. Feel free to contact us for more information and personalized solutions.
| Model | Power Out | Input Voltage | Output Voltage | Output Current | Efficiency | IP | Size(mm) | Package |
| JT-60W 12V | 60W | 200-240V AC | 12V | 5.0A | 93% | IP43 | 130*74*42 | 100 |
| JT-100W 12V | 100W | 200-240V AC | 12V | 8.3A | 93% | IP43 | 148*74*42 | 100 |
| JT-150W 12V | 150W | 200-240V AC | 12V | 12.5A | 93% | IP43 | 148*74*42 | 100 |
| JT-200W 12V | 200W | 200-240V AC | 12V | 16.7A | 92% | IP43 | 195*74*42 | 80 |
| JT-300W 12V | 300W | 200-240V AC | 12V | 25.0A | 92% | IP43 | 182*93*50 | 50 |
| JT-400W 12V F | 400W | 200-240V AC | 12V | 33.3A | 80% | IP43 | 182*118*50 | 48 |
| JT-400W 12V E | 400W | 200-240V AC | 12V | 33.3A | 80% | IP43 | 182*118*50 | 48 |
| JT-400W 12V C | 400W | 200-240V AC | 12V | 33.3A | 92% | IP43 | 182*118*50 | 48 |
| JT-500W 12V | 500W | 200-240V AC | 12V | 41.7A | 90% | IP43 | 205*118*50 | 30 |
| JT-600W 12V | 600W | 200-240V AC | 12V | 50.0A | 90% | IP43 | 205*118*50 | 30 |
| JT-700W 12V | 700W | 200-240V AC | 12V | 58.3A | 90% | IP43 | 220*118*50 | 30 |
| JT-1000W 12V | 1000W | 200-240V AC | 12V | 83.3A | 90% | IP43 | 220*118*50 | 30 |
| JT-400W 24V | 400W | 200-240V AC | 24V | 16.7A | 92% | IP43 | 182*118*50 | 48 |
| JT-700W 24V | 700W | 200-240V AC | 24V | 29.1A | 90% | IP43 | 220*118*50 | 30 |
| JT-200W 5V | 200W | 200-240V AC | 5V | 40.0A | 92% | IP43 | 182*118*50 | 48 |
| JT-300W 5V | 300W | 200-240V AC | 5V | 60.0A | 92% | IP43 | 182*118*50 | 48 |
| JT-350W 5V | 350W | 200-240V AC | 5V | 70.0A | 90% | IP43 | 205*118*50 | 30 |
| JT-400W 5V | 400W | 200-240V AC | 5V | 80.0A | 90% | IP43 | 205*118*50 | 30 |
| JT-500W 5V | 500W | 200-240V AC | 5V | 100.0A | 89% | IP43 | 220*118*50 | 30 |
application

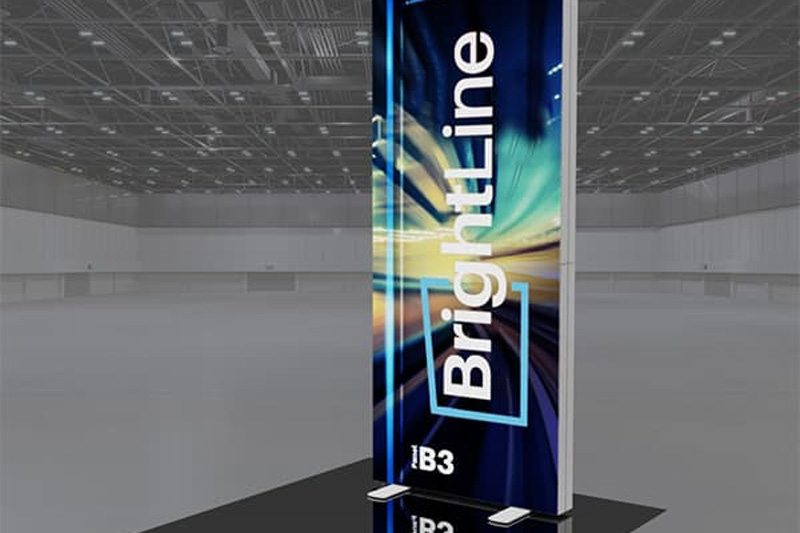

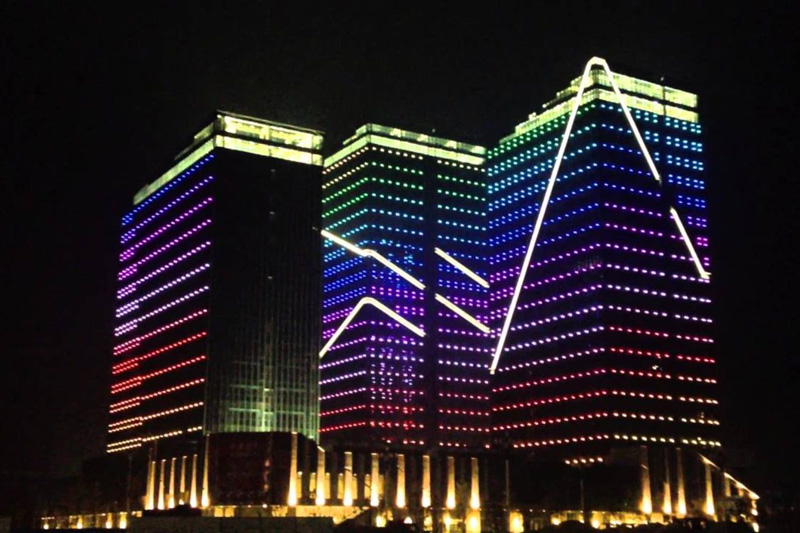

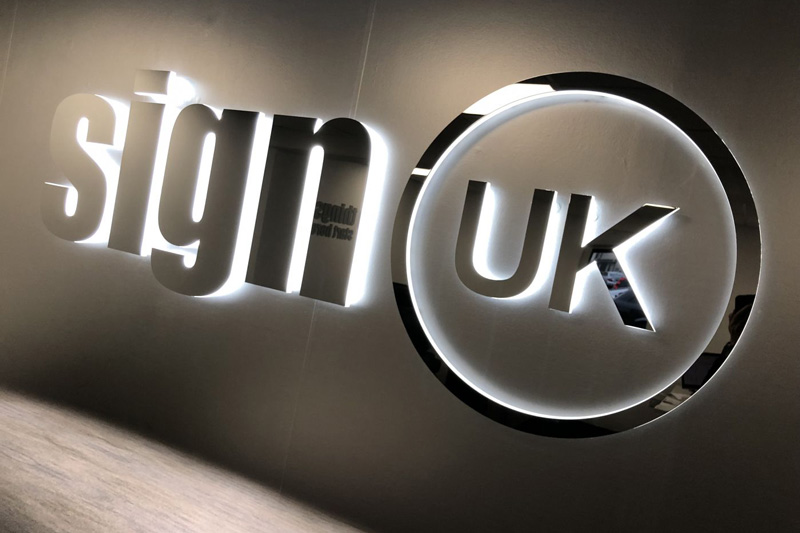

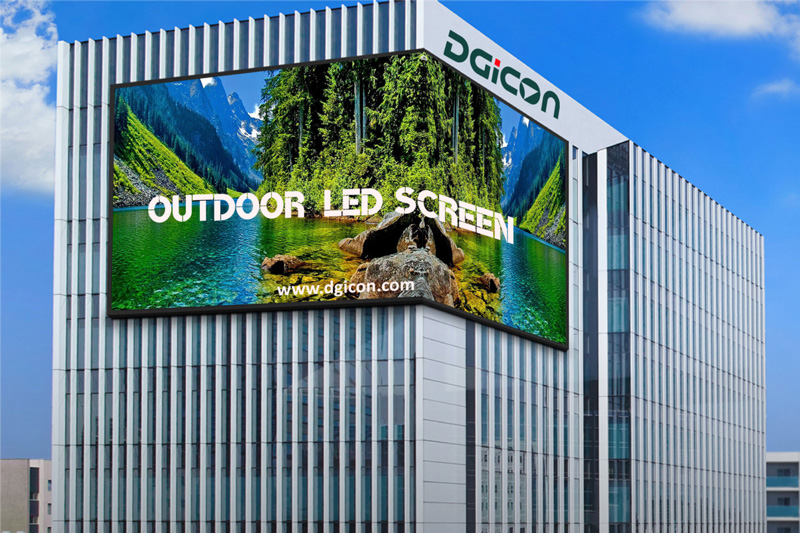

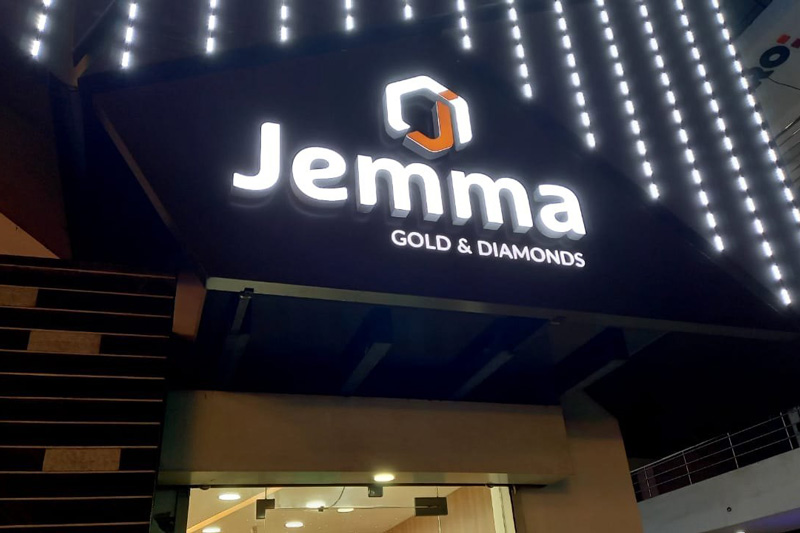

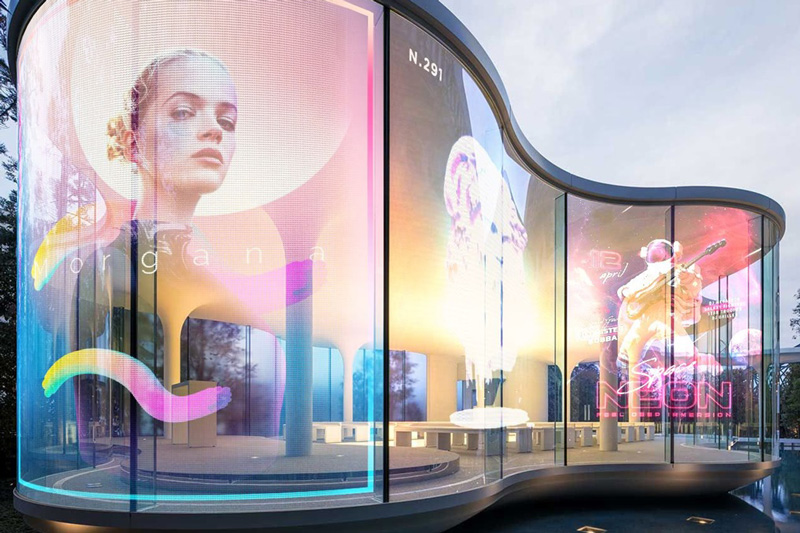

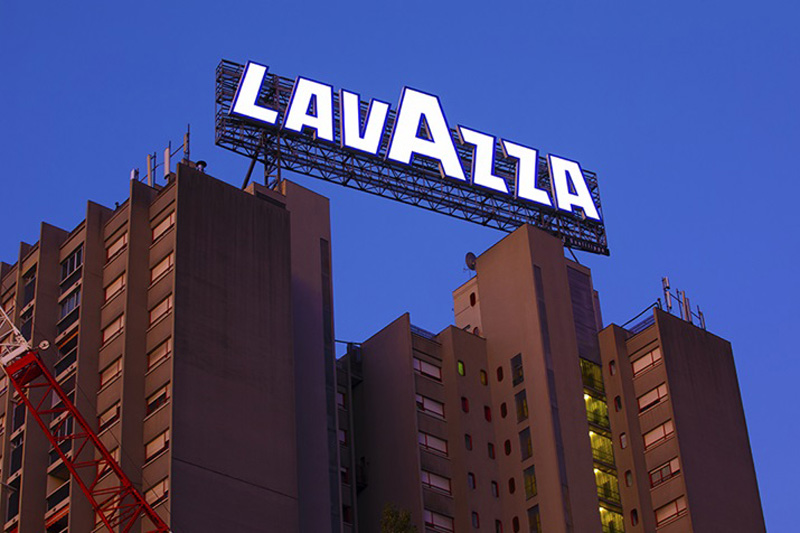

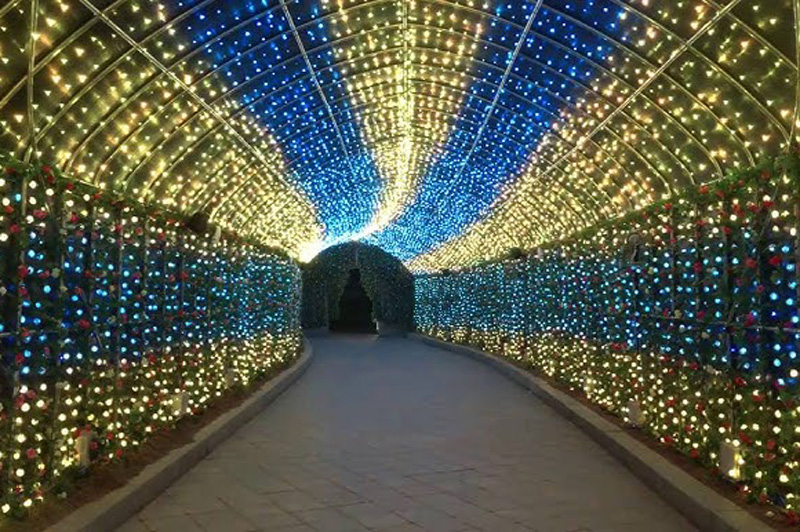

The MIJI LED Rainproof Power Supply is ideal for powering LED channel letters, illuminated signs, and outdoor LED advertising. Designed with a rainproof structure, it provides reliable performance for outdoor LED signage, LED lightboxes, and advertising displays. Perfect for storefront signs, commercial billboards, and various outdoor LED lighting applications, MIJI power supplies ensure stable and durable power in all outdoor environments.
