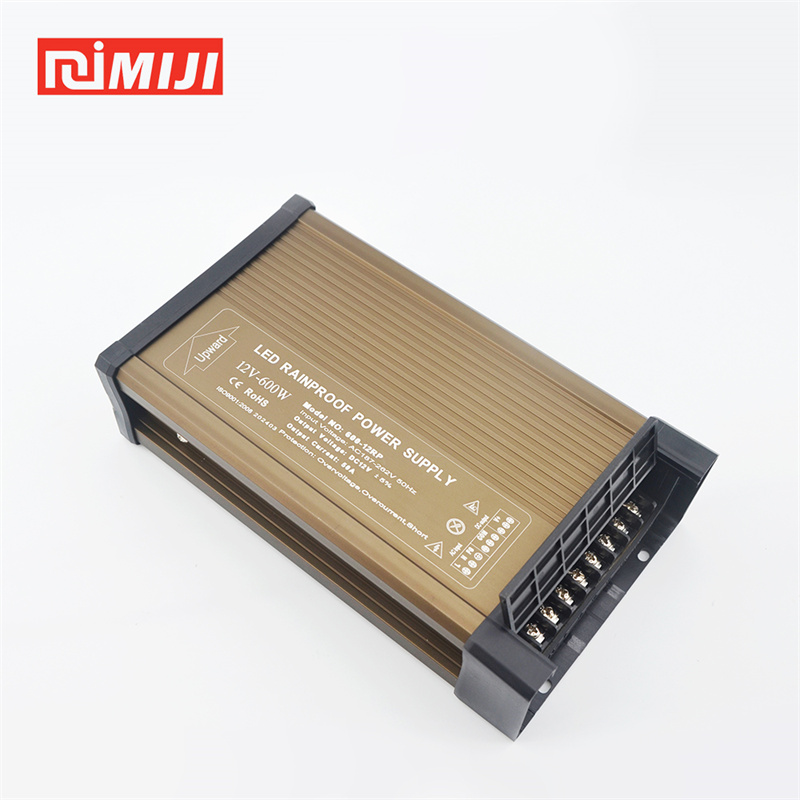

Dominant 600W 12V rainproof power supply - 50A for Major HI LIGHT Applications
Feature
◎ True 600W Full Load Capacity: Delivers a massive 50 Amps at 12V DC, engineered to reliably sustain its maximum rated output without derating.
◎ High-Power Segment Leader: Recognized as the bestselling HI LIGHT model in the demanding 12V 500W-1000W outdoor power supply category.
◎ Robust Build & Quality Materials: Features a substantial size reflecting the premium components used, ensuring durability and performance under heavy load.
◎ Comprehensive Safety Protections: Integrates Over-Voltage (OVP), Over-Current (OCP), and Short-Circuit (SCP) protection for safe, worry-free operation.
◎ Reliable Rainproof Design: Built with a weather-resistant enclosure specifically for dependable performance in outdoor environments.
specification
| Model | MJ-600W 12V | MJ-600W 24V | |
| OUTPUT | DC voltage | 12V | 24V |
| Rated current | 50A | 25A | |
| Cuttent range | 0-50A | 0-25A | |
| Rated output power | 600W | 600W | |
| Ripples and noise | ≤200mVp-p | ≤300mVp-p | |
| Output current range | 11.5-12.5V | 23-25V | |
| Precision of output voltage regulation | ±0.5% | ±0.5% | |
| Rate of lenear adjustment | ±0.5% | ±0.5% | |
| Load adjustment rate | ±0.5% | ±0.5% | |
| The startup time | ≤2s/230VAC | ||
| INPUT | Keep time | 10ms/230VAC | |
| Voltage range | 176-264VAC | ||
| Frequency range | 50Hz | ||
| Power factor | PF≥0.6/230VAC | ||
| Efficiency | ≥89% | ≥91% | |
| Alternating current | 3.4A/230VAC | ||
| Surge current | 50A/230VAC | ||
| Leakage current | <5mA/230VAC | ||
| PROTECTION | Overload | 110%-140%: rated 110%-140% of the total power input | |
| protection mode:Auto recovery mode.the system automatically recovers when abnormal load conditions are removed | |||
| Short circuit | protection mode:Auto recovery mode.the system automatically recovers when abnormal load conditions are removed | ||
| Over voltage | protection mode:self-recovery mode,automatic recovery when the overvoltage is removed | ||
| Over temperature | protection mode:self-recovery mode,automatically recover when the temperature drops | ||
| ENVIRONMEN | working temperature | -35~+50°C | |
| working humidity | 20-90% RH | ||
| storage temperature;humidity | -30~+85°C； 10~95% RH | ||
| temperature coefficient | ±0.1%/°C(0-35°C) | ||
| resistance to vibration | 10-500Hz, 3G 10min. / 1 cycle, 60 min. each axes | ||
| SAFETY&EMC | safety norms | EN60950 , GB4943.1 -2011 | |
| withstand voltage | l/P-O/P:1.5KVAC l/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||
| insulation impedance | l/P-O/P, l/P-FG, 0/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | ||
| EMC | -- | ||
| other | protection grade | IP62 | |
| MTBF | ≥30khour 25℃ | ||
| power supply size | L205*W120*H56mm | ||
| power supply weight | 625g | ||
| NOTE | 1.Unless otherwise specified , all specification are measured at an input of 230VAC,rarted negative cut,and ambient temperature of 25°C | ||
| 2.Ripple and noise measurement method:the measured end is connected in parallel with a 0.1uF+10uF capacitor,the oscilloscope is set to 20MHZ bandwidth,and the probe is tested with cap off and full load at 25°C | |||
| 3.Accuracy :includes setting error , linear adjustment rate and load adjustment rate . | |||
| 4. The output power is reduced when the input voltage is less than 200VAC. | |||
Caution
● The product MUST be installed vertically and the wiring terminals downwards.
● For the heat dissipation, distance of 10cm from 4 sides (up/down/right/left) and 5cm from the ventilation hole side should be kept.

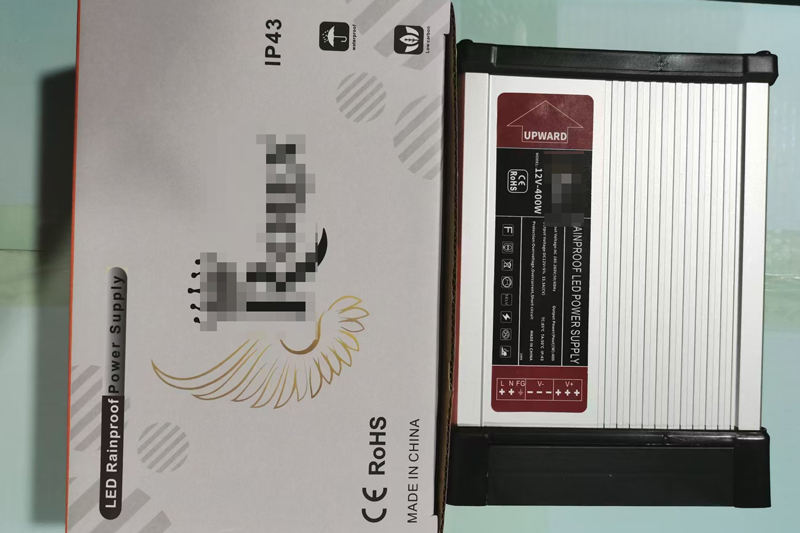

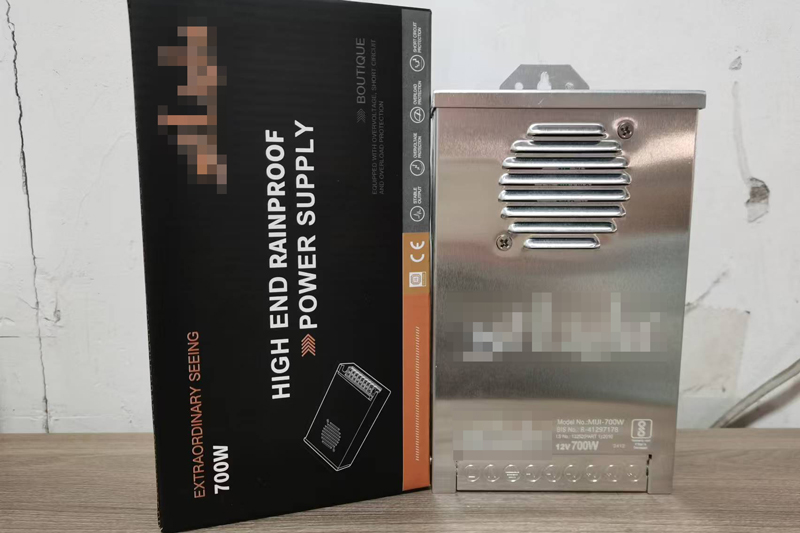

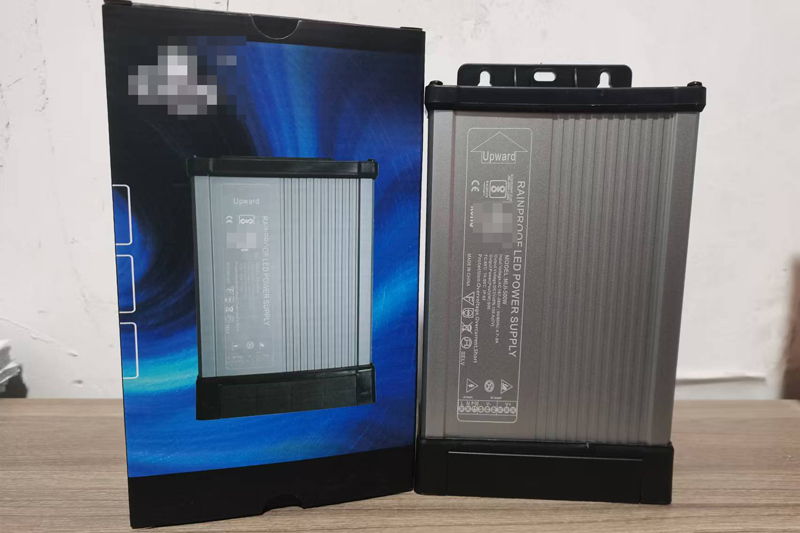

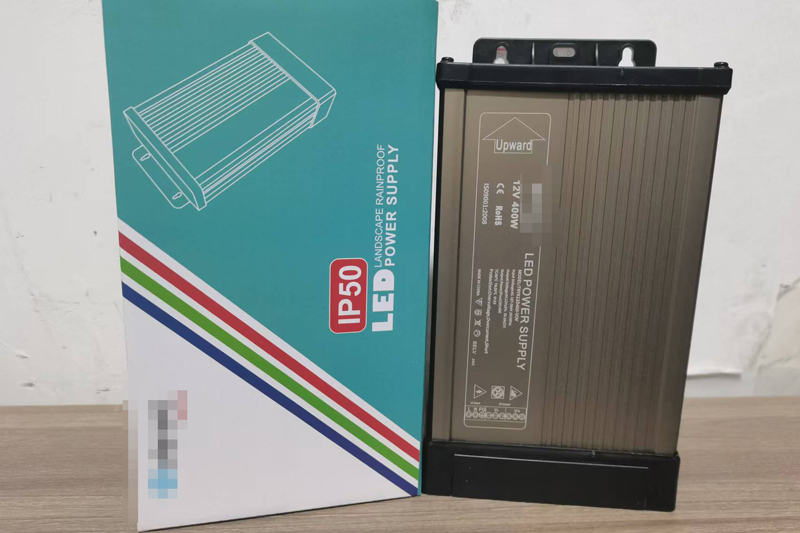

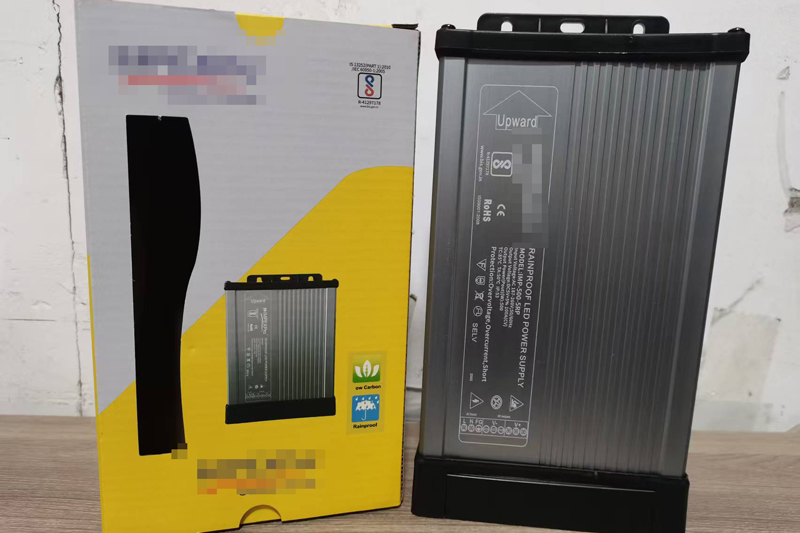

OEM Customer design
Model List
Our factory offers OEM customization, allowing us to tailor various models and parameters to meet your specific needs. Feel free to contact us for more information and personalized solutions.
| Model | Power Out | Input Voltage | Output Voltage | Output Current | Efficiency | IP | Size(mm) | Package |
| MJ-60W 12V | 60W | 200-240V AC | 12V | 5.0A | 93% | IP62 | 130*76*42 | 100 |
| MJ-100W 12V | 100W | 200-240V AC | 12V | 8.3A | 93% | IP62 | 148*76*42 | 100 |
| MJ-150W 12V | 150W | 200-240V AC | 12V | 12.5A | 93% | IP62 | 148*76*42 | 100 |
| MJ-200W 12V | 200W | 200-240V AC | 12V | 16.7A | 92% | IP62 | 195*76*42 | 80 |
| MJ-300W 12V | 300W | 200-240V AC | 12V | 25.0A | 92% | IP62 | 182*100*50 | 50 |
| MJ-400W 12V F | 400W | 200-240V AC | 12V | 33.3A | 80% | IP62 | 182*120*56 | 40 |
| MJ-400W 12V C | 400W | 200-240V AC | 12V | 33.3A | 92% | IP62 | 182*120*56 | 40 |
| MJ-400W 12V A | 400W | 200-240V AC | 12V | 33.3A | 92% | IP62 | 205*120*56 | 30 |
| MJ-500W 12V | 500W | 200-240V AC | 12V | 41.7A | 90% | IP62 | 205*120*56 | 30 |
| MJ-600W 12V | 600W | 200-240V AC | 12V | 50.0A | 90% | IP62 | 205*120*56 | 30 |
| MJ-700W 12V | 700W | 200-240V AC | 12V | 58.3A | 90% | IP62 | 220*120*56 | 30 |
| MJ-1000W 12V | 1000W | 200-240V AC | 12V | 83.3A | 90% | IP62 | 220*120*56 | 30 |
| MJ-400W 24V | 400W | 200-240V AC | 24V | 16.7A | 93% | IP62 | 182*120*56 | 40 |
| MJ-700W 24V | 700W | 200-240V AC | 24V | 29.1A | 91% | IP62 | 220*120*56 | 30 |
| MJ-200W 5V | 200W | 200-240V AC | 5V | 40.0A | 92% | IP62 | 182*120*56 | 40 |
| MJ-300W 5V | 300W | 200-240V AC | 5V | 60.0A | 92% | IP62 | 182*120*56 | 40 |
| MJ-350W 5V | 350W | 200-240V AC | 5V | 70.0A | 90% | IP62 | 205*120*56 | 30 |
| MJ-400W 5V | 400W | 200-240V AC | 5V | 80.0A | 90% | IP62 | 205*120*56 | 30 |
| MJ-500W 5V | 500W | 200-240V AC | 5V | 100.0A | 89% | IP62 | 220*120*56 | 30 |
application
As the leading choice in the high-power segment, this Dominant 600W 12V Rainproof Power Supply is engineered specifically for the most substantial and visually impactful outdoor LED installations, truly enabling major HI LIGHT projects. Its immense 50 Amp capability and proven ability to handle a full 600W load make it the premier power source for:

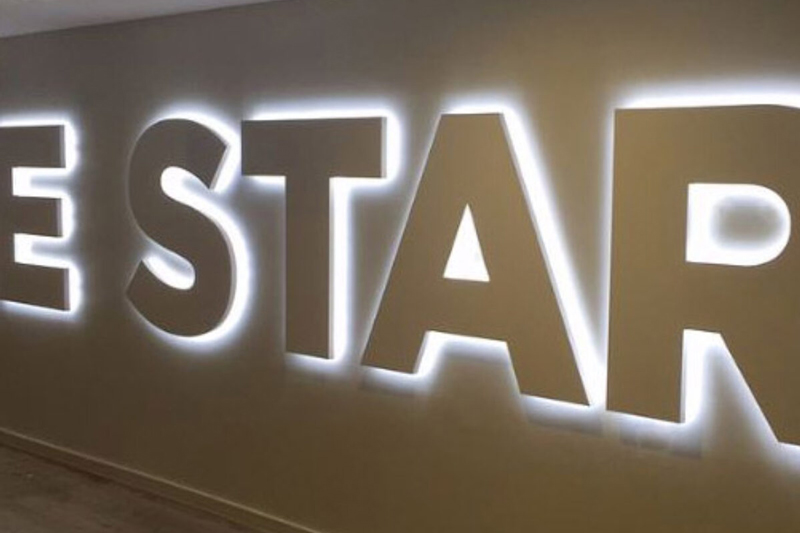

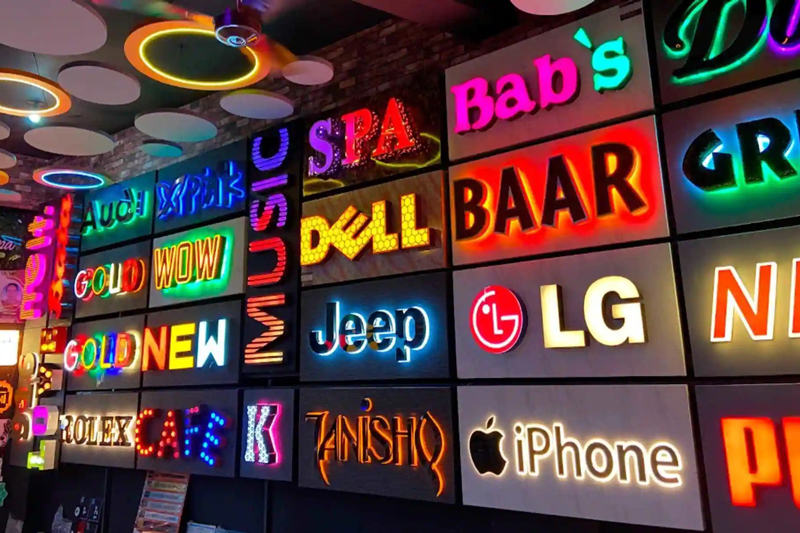

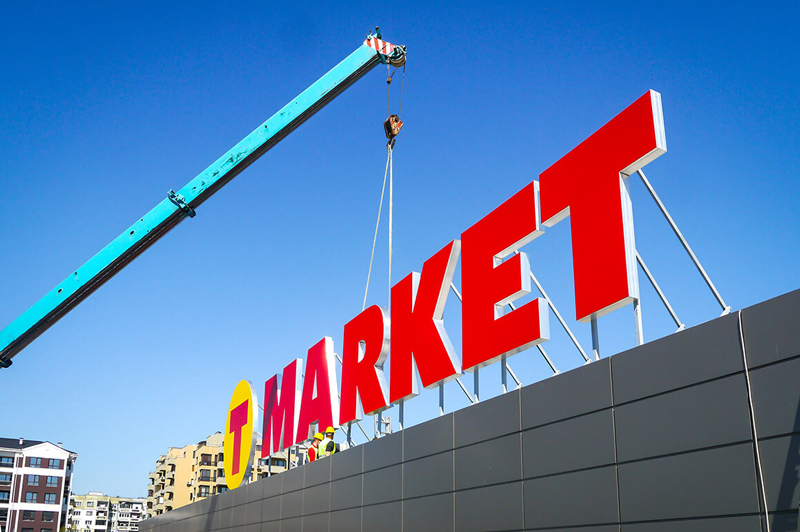

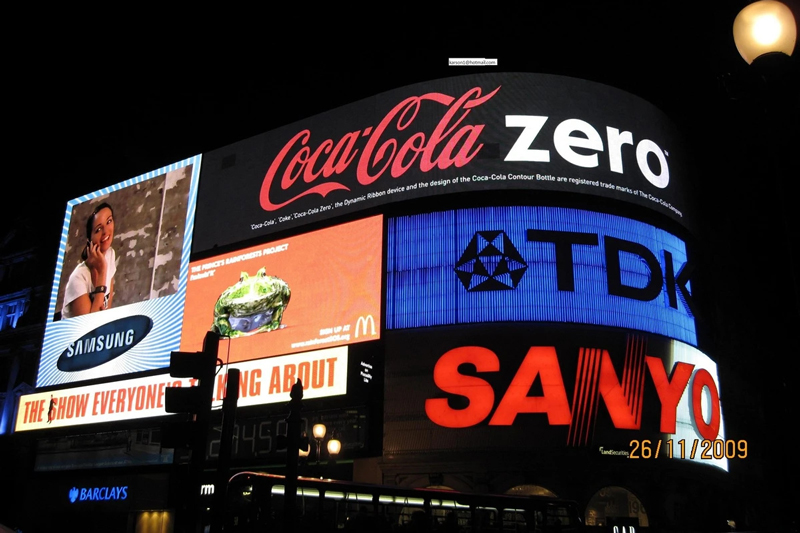

Massive LED Advertising Signs: Confidently driving the largest illuminated logos, sprawling channel letter displays, and high-impact digital billboards requiring significant, sustained power for maximum HI LIGHT visibility.
Oversized Display Light Boxes: Providing ample energy for expansive, brightly illuminated light boxes used in large retail environments, transportation hubs, or major public spaces.
Dynamic Building Facade Lighting: Powering complex and extensive "chaser" light effects or large-scale media facades, creating stunning HI LIGHT architectural statements.
Major Bridge & Infrastructure Illumination: Energizing long stretches of high-output LED fixtures used for illuminating bridge structures, tunnels, or other significant civil engineering projects.

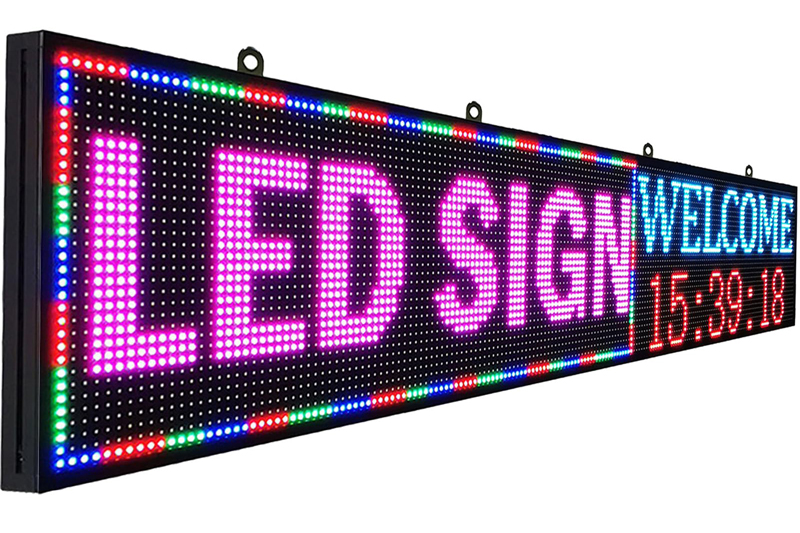

High-Density Pixel & Module Arrays: Suitable for powering large arrays of power-hungry LED pixels or modules used in creating custom large-format video displays or intricate HI LIGHT designs.
When your project scale demands uncompromising power delivery and the assurance of market-proven reliability under heavy load, this 600W, 50A unit provides the essential foundation for achieving brilliant, large-scale HI LIGHT illumination without concerns about power limitations or overload.
