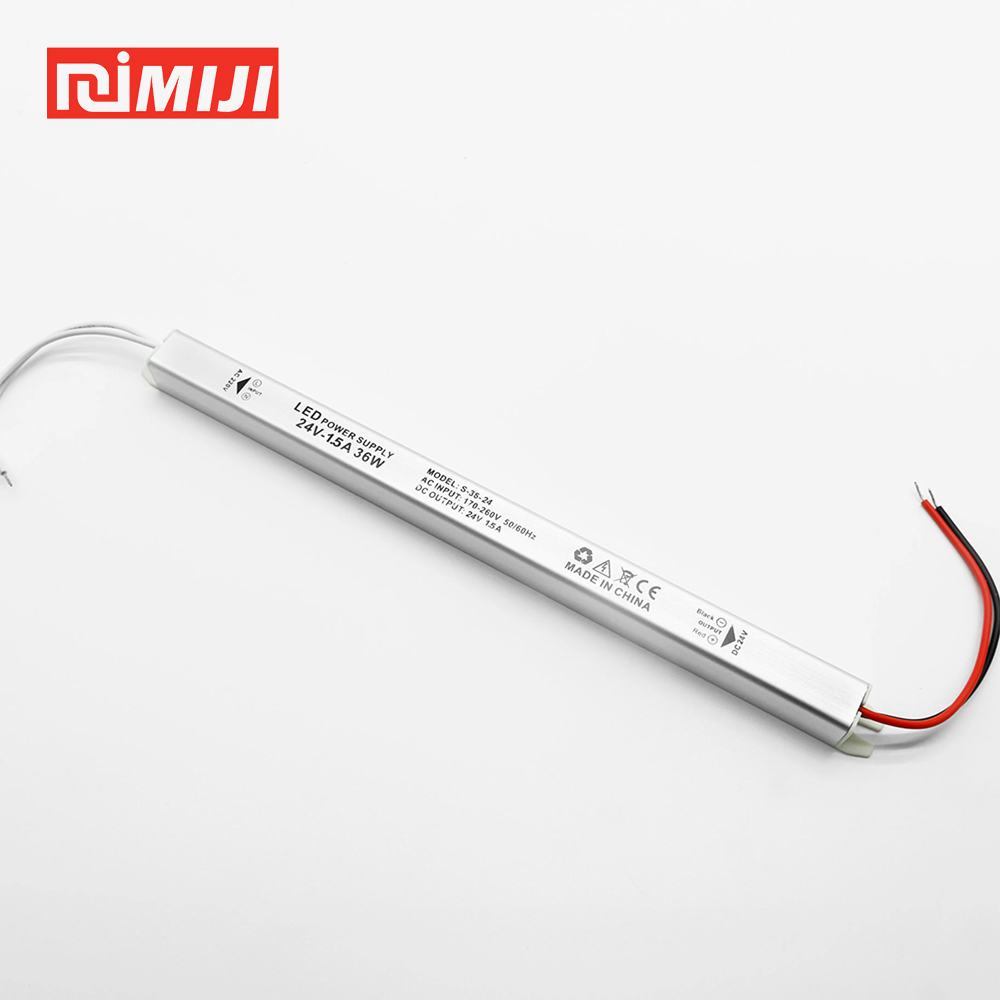

36W Mini Power Supply for LED Mirrors
Feature
◎ Dual Voltage Options: Available in 12V 3A and 24V 1.5A models to perfectly power 36W LED lighting systems.
◎ Ultra-Slim 18mm Profile: Maintains the signature slim design for easy concealment behind mirrors, in signs, or within custom fixtures.
◎ Stable Constant Voltage: Provides reliable, flicker-free power, crucial for illuminating mini channel letters and ensuring smooth light output.
◎ Ideal for Precision Projects: The perfect power solution for applications like small vanity mirrors, compact displays, and detailed signage.
specification
| Model | CB-36W 12V | CB-36W 24V | |
| OUTPUT | DC voltage | 12V | 24V |
| Rated current | 3.0A | 1.5A | |
| Cuttent range | 0-3.0A | 0-1.5A | |
| Rated output power | 36W | 36W | |
| Ripples and noise | ≤200mVp-p | ≤500mVp-p | |
| Output current range | 12VDC±0.5VDC | 24VDC±0.5VDC | |
| Precision of output voltage regulation | ±0.5% | ±0.5% | |
| Rate of lenear adjustment | ±0.5% | ±0.5% | |
| Load adjustment rate | ±0.5% | ±0.5% | |
| The startup time | ≤2s/230VAC | ||
| INPUT | Keep time | 10ms/230VAC | |
| Voltage range | 176-264VAC | ||
| Frequency range | 50Hz | ||
| Power factor | PF≥0.6/230VAC | ||
| Efficiency | ≥93% | ≥93% | |
| Alternating current | 3.4A/230VAC | ||
| Surge current | 50A/230VAC | ||
| Leakage current | <5mA/230VAC | ||
| PROTECTION | Overload | 110%-140%: rated 110%-140% of the total power input | |
| protection mode:Auto recovery mode.the system automatically recovers when abnormal load conditions are removed | |||
| Short circuit | protection mode:Auto recovery mode.the system automatically recovers when abnormal load conditions are removed | ||
| Over voltage | protection mode:self-recovery mode,automatic recovery when the overvoltage is removed | ||
| Over temperature | protection mode:self-recovery mode,automatically recover when the temperature drops | ||
| ENVIRONMEN | working temperature | -35~+50°C | |
| working humidity | 20-90% RH | ||
| storage temperature;humidity | -30~+85°C； 10~95% RH | ||
| temperature coefficient | ±0.1%/°C(0-35°C) | ||
| resistance to vibration | 10-500Hz, 3G 10min. / 1 cycle, 60 min. each axes | ||
| SAFETY&EMC | safety norms | EN60950 , GB4943.1 -2011 | |
| withstand voltage | l/P-O/P:1.5KVAC l/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||
| insulation impedance | l/P-O/P, l/P-FG, 0/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | ||
| EMC | -- | ||
| other | protection grade | IP62 | |
| MTBF | ≥30khour 25℃ | ||
| power supply size | L283*W18*H18mm | ||
| power supply weight | 60.5g | ||
| NOTE | 1.Unless otherwise specified , all specification are measured at an input of 230VAC,rarted negative cut,and ambient temperature of 25°C | ||
| 2.Ripple and noise measurement method:the measured end is connected in parallel with a 0.1uF+10uF capacitor,the oscilloscope is set to 20MHZ bandwidth,and the probe is tested with cap off and full load at 25°C | |||
| 3.Accuracy :includes setting error , linear adjustment rate and load adjustment rate . | |||
| 4. The output power is reduced when the input voltage is less than 200VAC. | |||
OEM Customer design
Model List
| Model | Power Out | Input Voltage | Output Voltage | Output Current | Efficiency | IP | Size(mm) | Package |
| CB-18W 12V | 18W | 200-240V AC | 12V / 24V | 1.5A / 0.75A | 93% | IP20 | 172*18*18 | 400 |
| CB-24W 12V | 24W | 200-240V AC | 12V / 24V | 2.0A / 1.0A | 93% | IP20 | 172*18*18 | 400 |
| CB-36W 12V | 36W | 200-240V AC | 12V / 24V | 3.0A / 1.5A | 93% | IP20 | 283*18*18 | 200 |
| CB-48W 12V | 48W | 110-240V AC | 12V / 24V | 4.0A / 2.0A | 92% | IP20 | 313*18*18 | 200 |
| CB-60W 12V | 60W | 200-240V AC | 12V / 24V | 5.0A / 2.5A | 92% | IP20 | 313*18*18 | 200 |
| CB-72W 12V | 72W | 200-240V AC | 12V / 24V | 6.0A / 3.0A | 91% | IP20 | 373*18*18 | 200 |
| IP 67 Waterproof super ultra slim series | ||||||||
| CB-18W 12V F | 18W | 200-240V AC | 12V / 24V | 1.5A / 0.75A | 93% | IP 67 | 192*18*14.8 | 200 |
| CB-24W 12V F | 24W | 200-240V AC | 12V / 24V | 2.0A / 1.0A | 93% | IP 67 | 192*18*14.8 | 200 |
| CB-36W 12V F | 36W | 200-240V AC | 12V / 24V | 3.0A / 1.5A | 93% | IP 67 | 292*18*14.8 | 100 |
| CB-48W 12V F | 48W | 110-240V AC | 12V / 24V | 4.0A / 2.0A | 92% | IP 67 | 292*18*14.8 | 100 |
| CB-60W 12V F | 60W | 200-240V AC | 12V / 24V | 5.0A / 2.5A | 92% | IP 67 | 312*18*14.8 | 100 |
| CB-72W 12V F | 72W | 200-240V AC | 12V / 24V | 6.0A / 3.0A | 91% | IP 67 | 375*18*14.8 | 100 |
application
The 36W Ultra-Slim LED Power Supply is engineered for precision and discretion in small-scale lighting applications. While sharing the same ultra-thin 18mm profile as its larger counterparts, its key advantage is its significantly more compact 283mm length. This design directly addresses the challenge of powering lighting in projects where space is extremely limited. By delivering a stable 36W of constant voltage power in either 12V or 24V, it enables clean, professional-grade lighting in applications where standard drivers simply will not fit.
Mini & Compact Bathroom Mirrors: Perfectly suited for smaller vanity mirrors, medicine cabinets, or custom-shaped decorative mirrors. On round or uniquely designed mirrors, the shorter 283mm body is far easier to conceal behind the frame without any part of the driver protruding, ensuring a truly flawless finish.
Mini Channel Letters & Signage: This is the ideal driver for intricate and detailed signage. The extremely narrow and shallow channels of mini letters leave no room for bulky power supplies. The compact size of this driver allows it to be integrated within the sign's housing or even within larger letter clusters, providing the precise power needed for crisp, bright illumination.
Mini Lightboxes & Product Displays: For countertop advertisements, boutique product displays, or accent lighting within larger retail fixtures, this power supply is a perfect fit. It can be easily integrated into the base or frame of a mini display, providing vibrant illumination without a visible, clumsy power brick.
Accent & Niche Lighting: An excellent choice for highlighting architectural details. Use it to light up small art niches, display cases, bookshelves, or integrated lighting elements within custom furniture. Its small footprint ensures that the focus remains on the illuminated object, not the hardware.
In summary, the 36W Ultra-Slim LED Power Supply excels where others fail due to size constraints. It is the go-to solution for any project that demands a powerful yet incredibly compact and hidden power source. For designers, sign fabricators, and lighting professionals working on detailed, space-limited installations, this driver is the essential component for achieving flawless, integrated lighting when every millimeter is critical.
