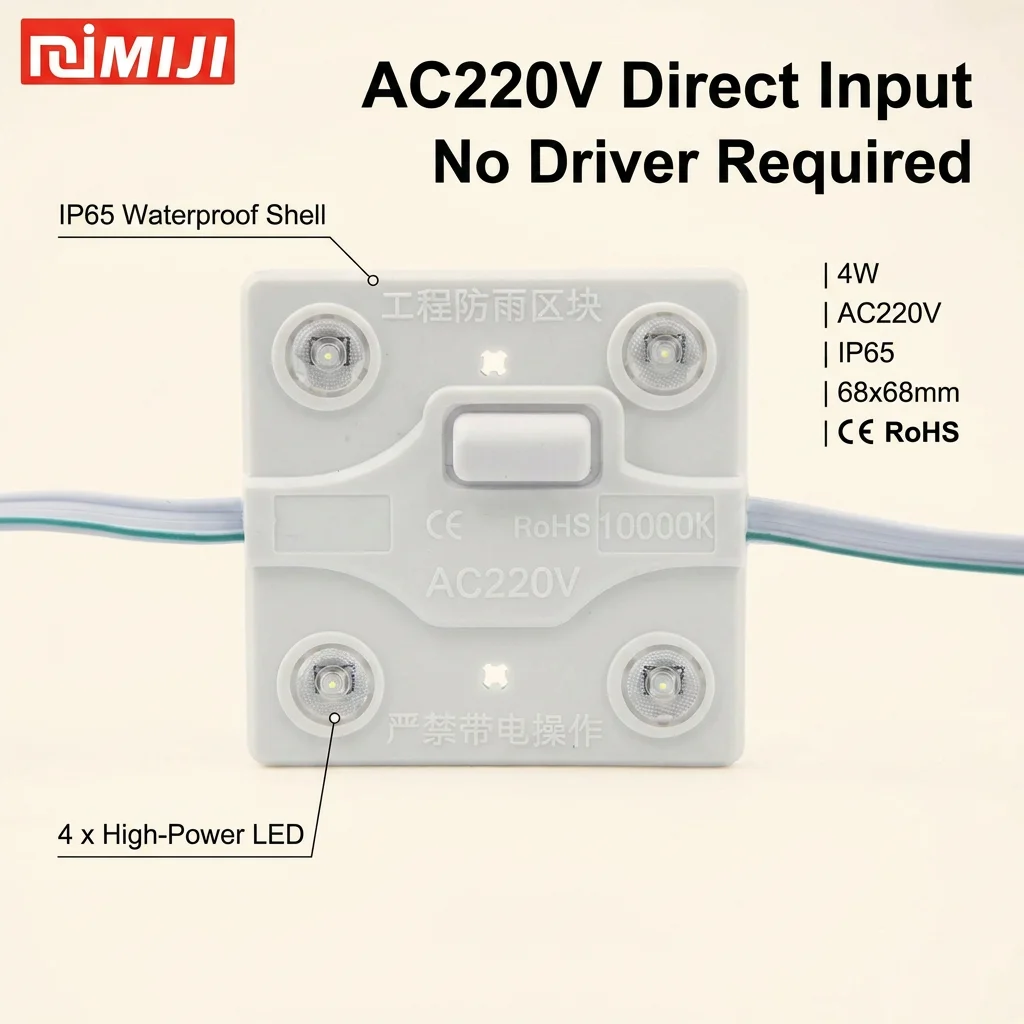

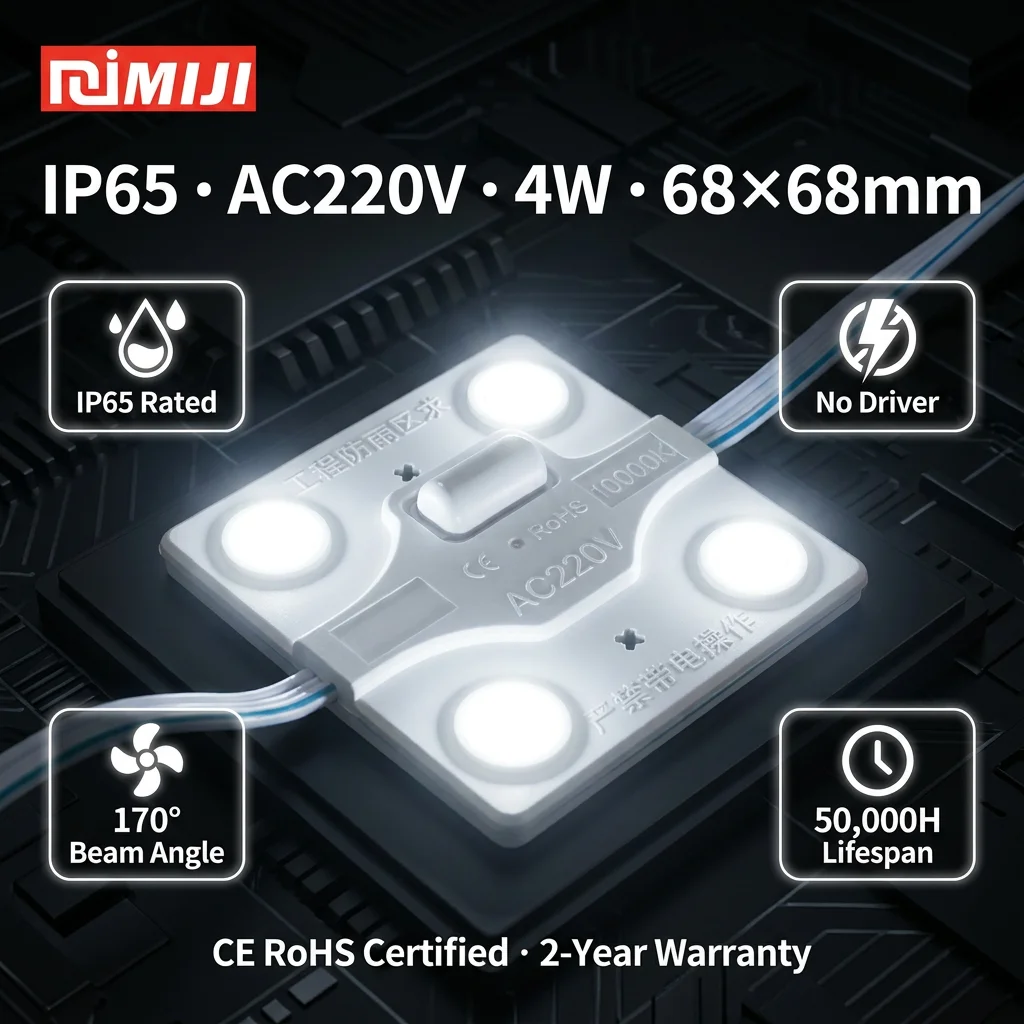

AC 220V Waterproof 4W LED Module - Driverless Solution for Billboards and Sky-Signs
Feature

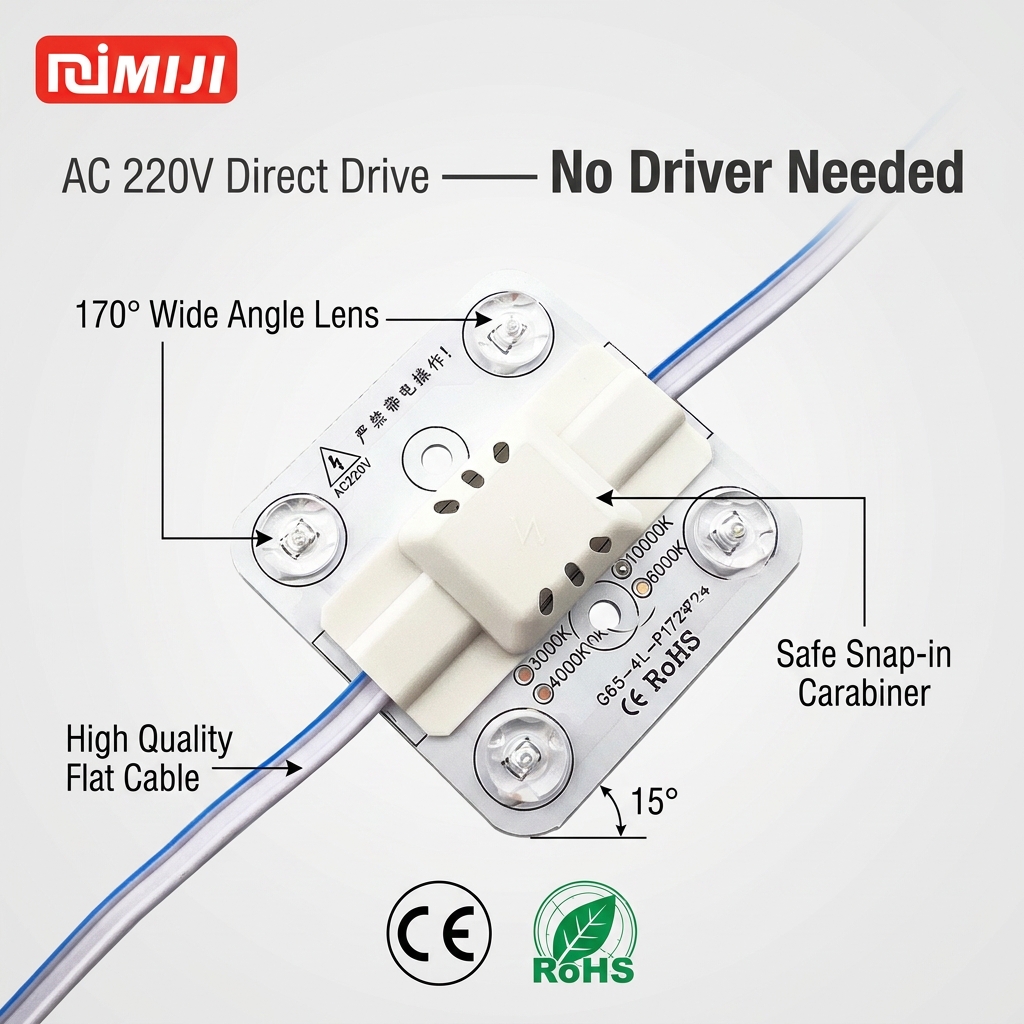

◎ Innovative Driverless Technology: Connects directly to AC 220V mains power, eliminating the need for bulky external power supplies (LED drivers) and reducing total system cost by 30%.
◎ High-Intensity 4W Power Output: Engineered to deliver superior brightness, making it the ideal choice for large-scale outdoor advertising, high-rise building facades, and deep lightboxes.
◎ 170° Ultra-Wide Beam Angle: Equipped with a professional-grade optical lens that ensures perfectly uniform light distribution and eliminates "hot spots," even in shallow signage or soft film ceilings.
◎ Scalable Connection without Voltage Drop: Designed for massive installations, allowing long series connections (up to 100-200 modules) with consistent brilliance from the first module to the last.
◎ IP67 Waterproof & Resin-Sealed: Fully protected against heavy rain, high humidity, and extreme weather conditions, ensuring long-term reliability for high-altitude outdoor engineering.
◎ Superior Durability & Heat Dissipation: Features a high-quality ABS injection-molded housing and an optimized PCB design for efficient heat management and a 50,000-hour lifespan.
◎ International Safety Certification: Fully CE and RoHS certified with integrated overvoltage and overcurrent protection, ensuring safe and stable operation in professional engineering projects.
◎ Versatile Color Temperature Options: Available in 3000K (Warm White), 4000K (Natural White), 6000K (Cool White), and 10000K (Ultra Cool) to match any brand identity.
specification
| Model No. | G65-4L-IP65 | 1 LED Power | 1W |
| Power | 4W | LED Chips | SANAN |
| IP Rating | IP65 | LED Color | CW/ WW/ NW/ |
| Work Voltage | AC 220V | Lumens | 110-120LM |
| PCB Material | Aluminum | Quantity per Srting | 50PCS |
| Viewing Angle | 170° | Warranty | 2 years |
| Color Rendering index(Ra) | 85 | Operating Temperature | -20~60°C |
| Life-Span | 50,000h | Pcs/Ctn | 800pcs |
| Application | LED advertising signs | Trademark | MIJI/ OEM/ ODM |
| Specification | 70*70mm | HS Code | 9405409000 |
Model List
| Model | Size | SMD | Power | Lumen | Beam Angle | IP | Pcs/Carton | Carton size /cm |
| G13-4L-20 | 63*63mm | 2835 | 4W | 120LM | 170° | IP20 | 1200pcs | 63.5*35.5*43.5 |
| G13-4L-65 | 68*68mm | 2835 | 4W | 120LM | 170° | IP65 | 800pcs | 61.5*42*35.8 |
| G13-4L-RGB-20 | 68*68mm | 2835 | 4W | 120LM | 170° | IP20 | 800pcs | 61.5*42*35.8 |
| G13-4L-RGB-65 | 70*70mm | 2835 | 4W | 120LM | 170° | IP65 | 800pcs | 61.5*42*35.8 |
1. High-Rise Building Facades & Skyline Branding
For high-altitude sky-signs where maintenance is difficult and costly, reliability is everything. Our IP65 Rated injection-molded modules are rain, humidity, and dust resistant, designed to survive the harshest elements on skyscraper roofs while delivering a brilliant 4-point light output.

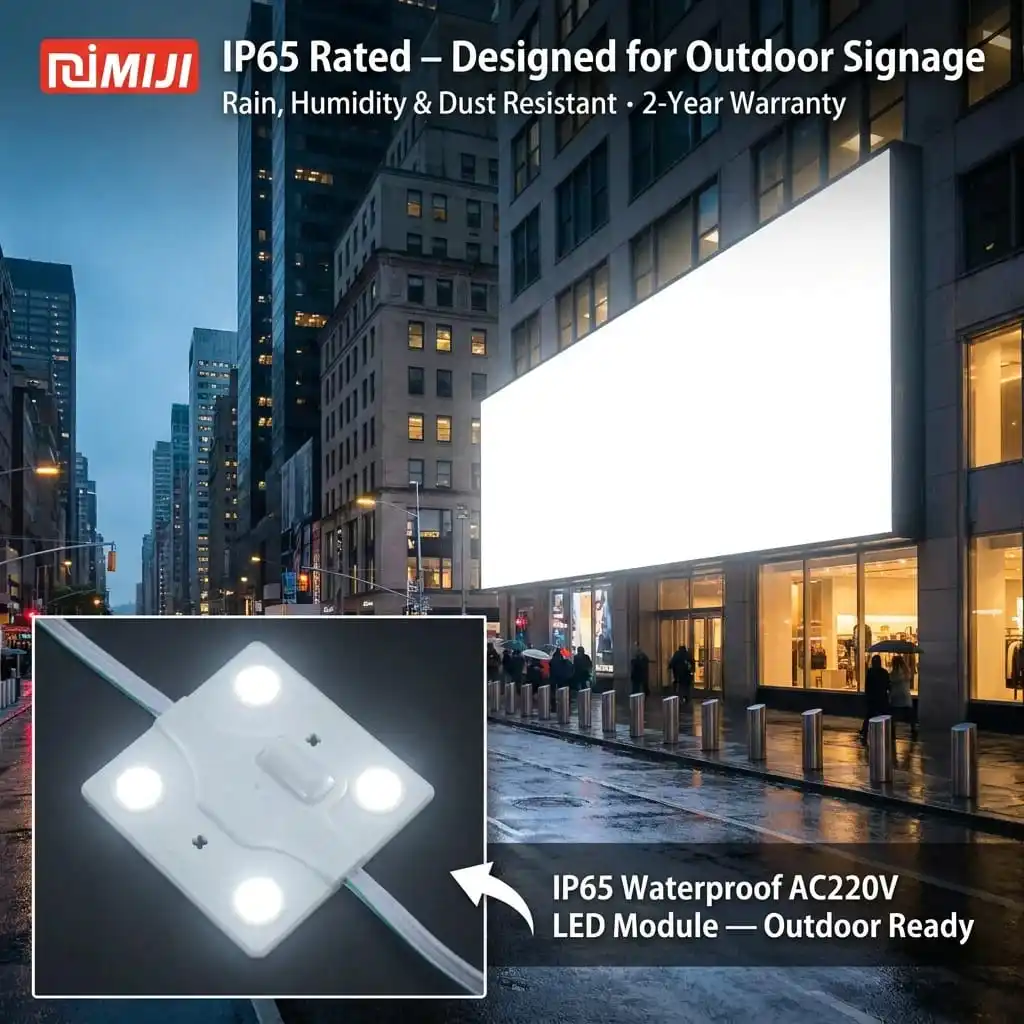

2. Massive Outdoor Advertising Billboards
Large-format billboards require uniform brilliance across massive areas. The AC 220V driverless system allows for endless chain-link connections with no limit on quantity and zero voltage drop. The IP65 weatherproof housing ensures stable 4W performance even during heavy storms.
3. Outdoor Soft Film & Fabric Lightboxes
Achieving a flawless, uniform glow in Outdoor Soft Film Lightboxes is easy with MIJI. Our IP65 Waterproof 220V modules feature a 170° wide-angle lens, eliminating hot spots in shallow cavities and providing a high-end visual experience for shopping mall exteriors and transit hubs.
4. Harsh Environments & Coastal Projects
Certified to IP6X (Dust Proof) and IPX5 (Water Jet Proof), our injection-molded series is built to survive the elements. Operating reliably between -20°C and +50°C, it is the preferred standard for projects in Southeast Asia and Middle Eastern coastal cities where humidity is a constant challenge.
5. Public Infrastructure & Transit Signage

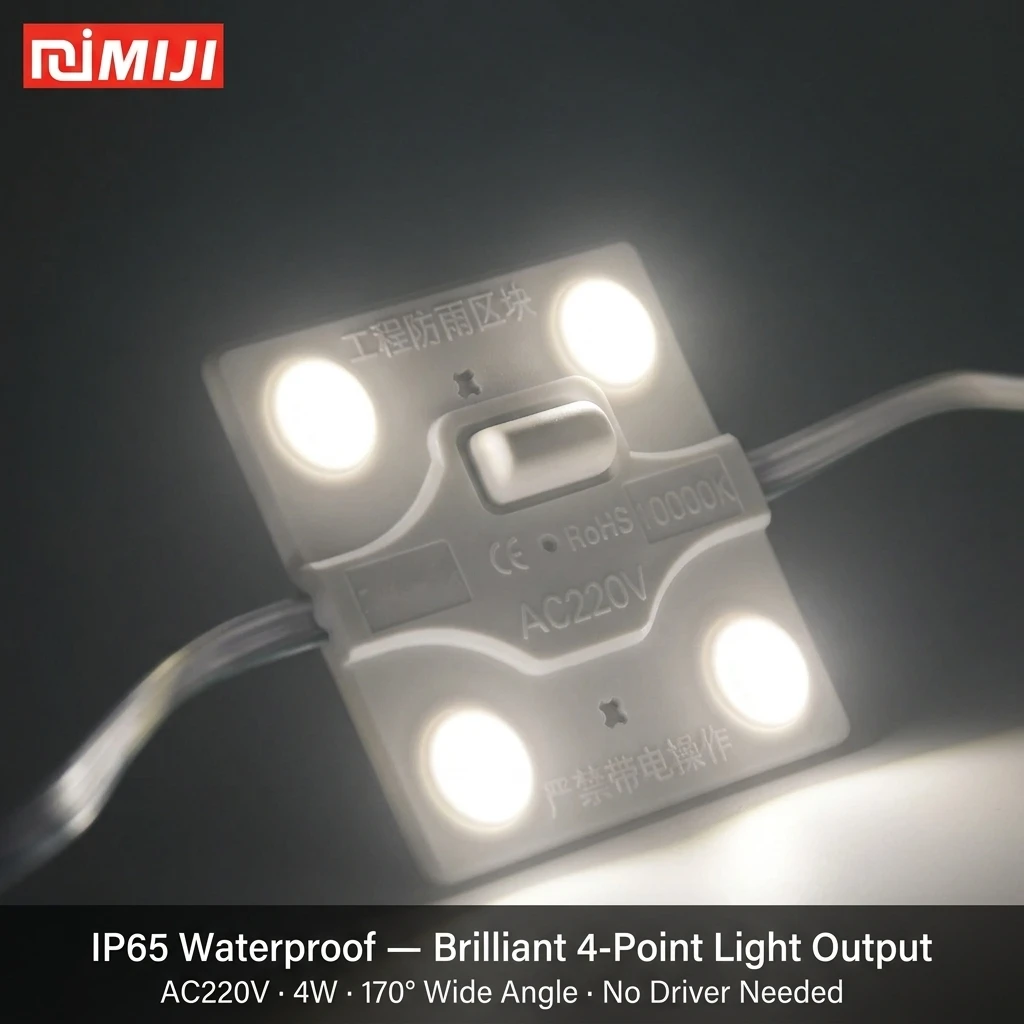

In semi-outdoor environments like metro station entrances and airport walkways, safety and high visibility are critical. The brilliant 4-point light output of our 220V IP65 modules ensures clear wayfinding and branding, supported by a maintenance-free 50,000-hour lifespan.
