AC 220V High Voltage LED Module | 4W Driverless Signage Solution | MIJI
Feature
◎ High-Intensity 4W Power Output: Engineered to deliver superior brightness, making it the ideal choice for large-scale outdoor advertising, high-rise building facades, and deep lightboxes.
◎ 170° Ultra-Wide Beam Angle: Equipped with a professional-grade optical lens that ensures perfectly uniform light distribution and eliminates "hot spots," even in shallow signage or soft film ceilings.
◎ Scalable Connection without Voltage Drop: Designed for massive installations, allowing long series connections (up to 100-200 modules) with consistent brilliance from the first module to the last.
◎ Superior Durability & Heat
Dissipation: Features a high-quality ABS injection-molded housing and an
optimized PCB design for efficient heat management and a 50,000-hour lifespan.
◎ Two Specialized Protection
Ratings: Available in IP20 (Non-waterproof) for premium indoor commercial
fit-outs and IP67 (Resin-sealed Waterproof) for harsh outdoor environments.
◎ International Safety Certification: Fully CE and RoHS certified with integrated overvoltage and overcurrent protection, ensuring safe and stable operation in professional engineering projects.

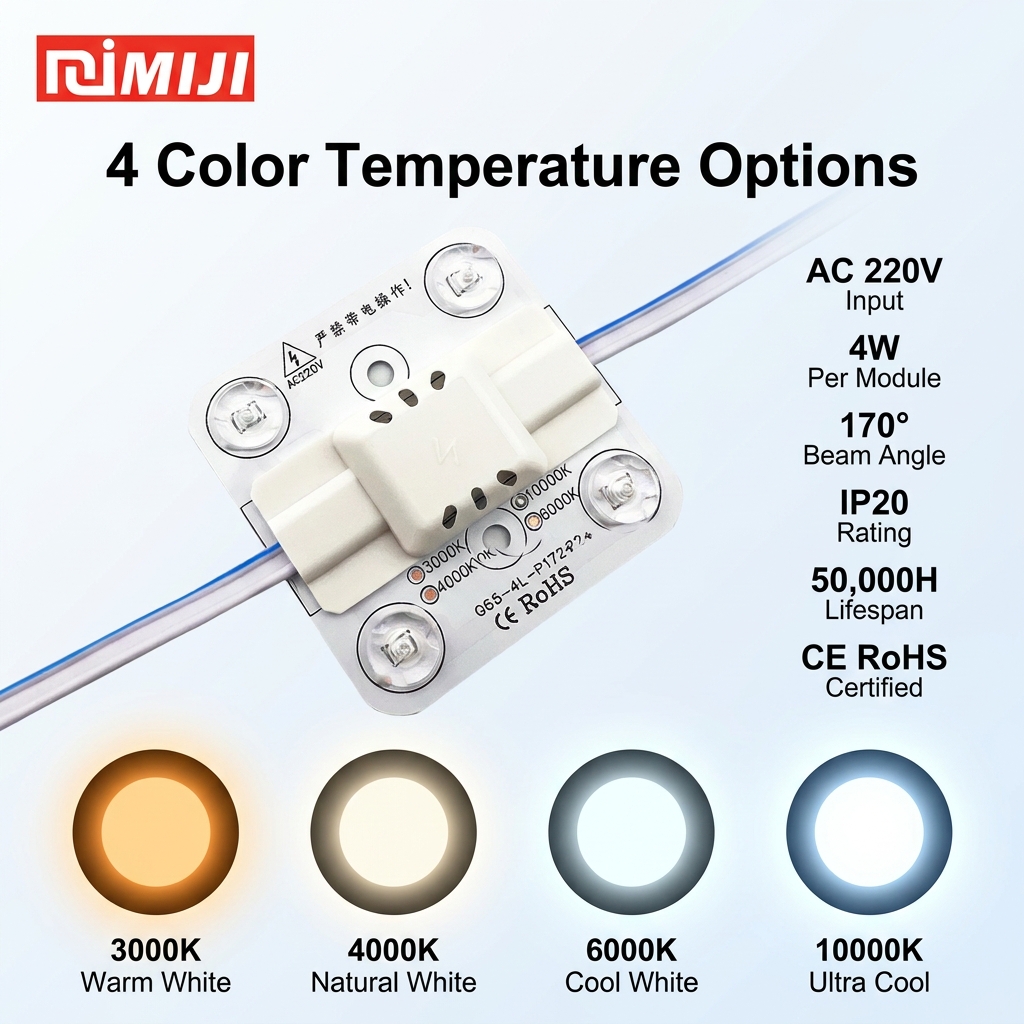

◎ Versatile Color Temperature Options: Available in 3000K (Warm White), 4000K (Natural White), 6000K (Cool White), and 10000K (Ultra Cool) to match any brand identity.
specification
| Model No. | G65-4L | 1 LED Power | 1W |
| Power | 4W | LED Chips | SANAN |
| IP Rating | IP20 | LED Color | CW/ WW/ NW/ |
| Work Voltage | AC 220V | Lumens | 110-120LM |
| PCB Material | Aluminum | Quantity per Srting | 50PCS |
| Viewing Angle | 170° | Warranty | 2 years |
| Color Rendering index(Ra) | 85 | Operating Temperature | -20~60°C |
| Life-Span | 50,000h | Pcs/Ctn | 1200pcs |
| Application | LED advertising signs | Trademark | MIJI/ OEM/ ODM |
| Specification | 63*63mm | HS Code | 9405409000 |
Model List
| Model | Size | SMD | Power | Lumen | Beam Angle | IP | Pcs/Carton | Carton size /cm |
| G13-4L-20 | 63*63mm | 2835 | 4W | 120LM | 170° | IP20 | 1200pcs | 63.5*35.5*43.5 |
| G13-4L-65 | 68*68mm | 2835 | 4W | 120LM | 170° | IP65 | 800pcs | 61.5*42*35.8 |
| G13-4L-RGB-20 | 68*68mm | 2835 | 4W | 120LM | 170° | IP20 | 800pcs | 61.5*42*35.8 |
| G13-4L-RGB-65 | 70*70mm | 2835 | 4W | 120LM | 170° | IP65 | 800pcs | 61.5*42*35.8 |
application
The Versatility of MIJI AC 220V Driverless LED Modules: One Solution for Endless Applications
The MIJI AC 220V High-Voltage LED Module is a masterpiece of modern engineering, designed to bypass the limitations of traditional DC systems. Featuring a high-intensity 4W power output and a specialized 170° ultra-wide beam angle, this driverless solution eliminates the need for external power supplies, offering unparalleled scalability and ease of installation. Built with durable injection molding and certified for safety (CE/RoHS), it is the ultimate choice for large-scale, out-of-reach engineering projects.

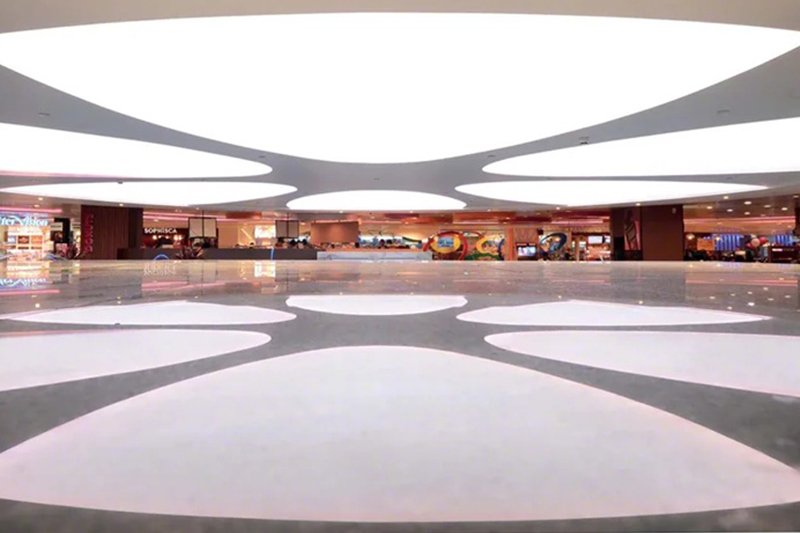

1. Luxury Soft Film Ceilings & Stretch Interiors
In high-end hotel lobbies, airports, and modern offices, Soft Film Ceilings require perfect light uniformity. Our AC 220V module, with its 170° lens, ensures "Zero Hot Spots" even in shallow cavities. It provides a seamless, sky-like glow that enhances the architectural aesthetics of premium interior spaces.

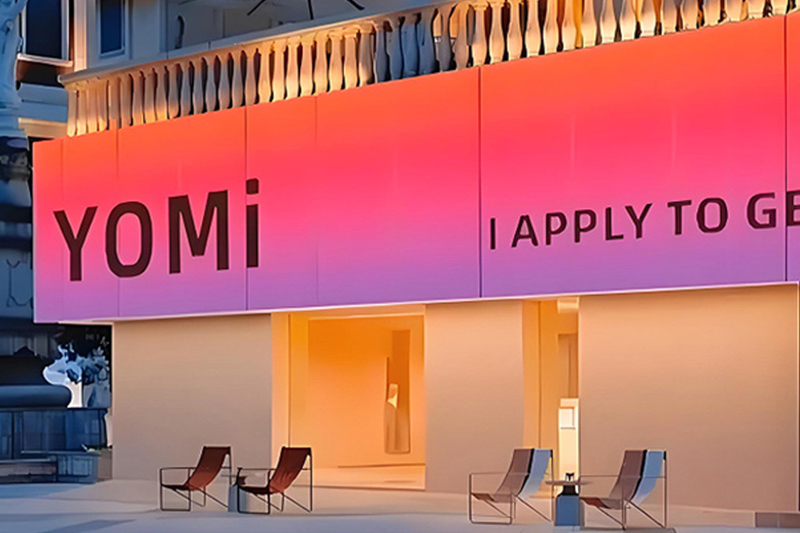

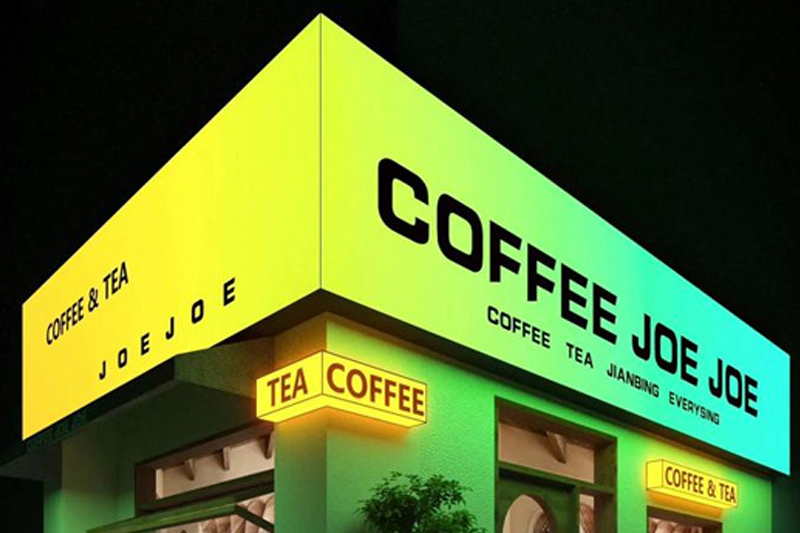

2. High-Rise Building Facades & Sky-Signage
For Sky-signs and Building Facades where maintenance is difficult and costly, reliability is paramount. The driverless design reduces failure points, while the 220V direct input allows for incredibly long series connections without voltage drop, making it the preferred choice for high-altitude outdoor branding.

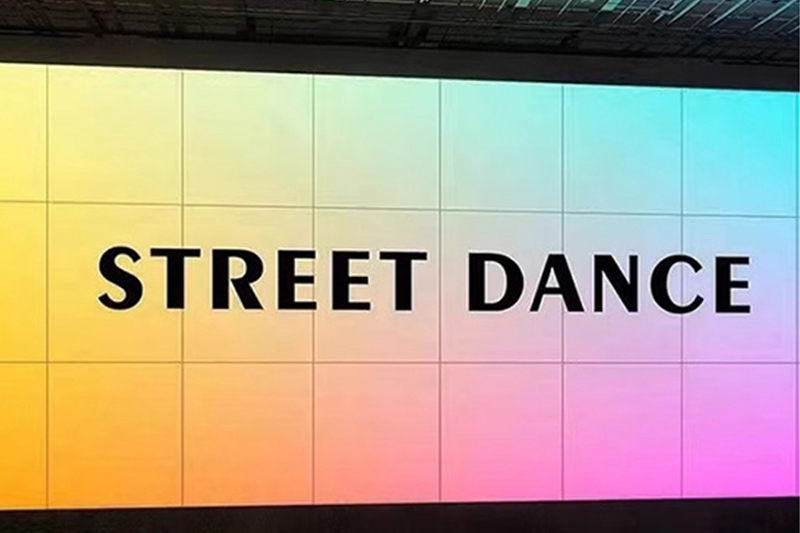

4. Large-Scale Outdoor Billboards & Advertising Hoardings
Traditional DC systems struggle with the scale of Massive Outdoor Billboards. MIJI’s 220V modules simplify the electrical layout by connecting directly to the grid. This significantly reduces the material cost for power supplies and heavy-duty cabling, especially in the booming infrastructure markets of Southeast Asia and the Middle East.

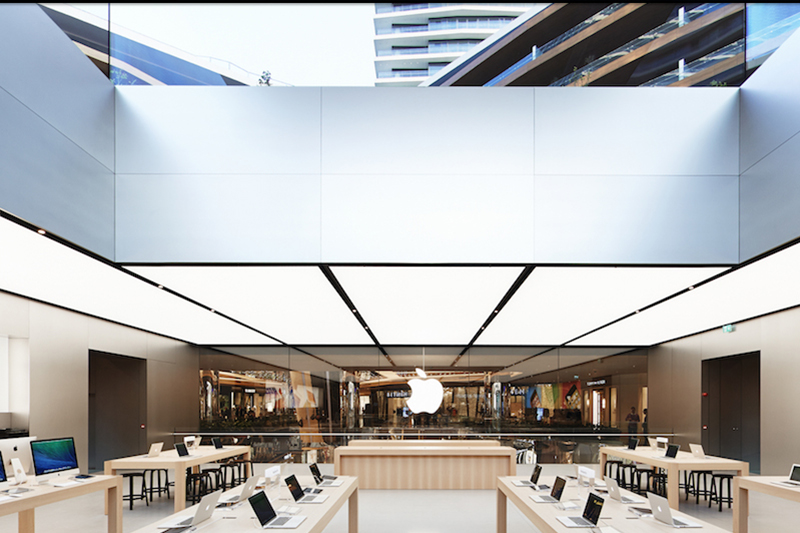

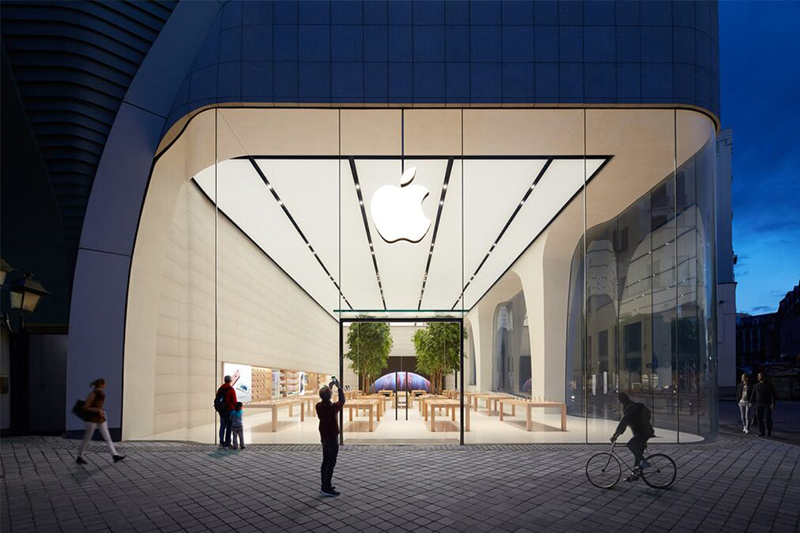

4. Premium Retail Flagship Stores & Fabric Lightboxes
Global brands like Apple and Huawei demand perfection in their Fabric Lightboxes and retail displays. Our 4W high-brightness modules deliver the punch required for vibrant, all-white fabric displays, ensuring that brand colors are reproduced with high consistency and zero flickering.
5. Commercial Complexes & Public Transport Hubs

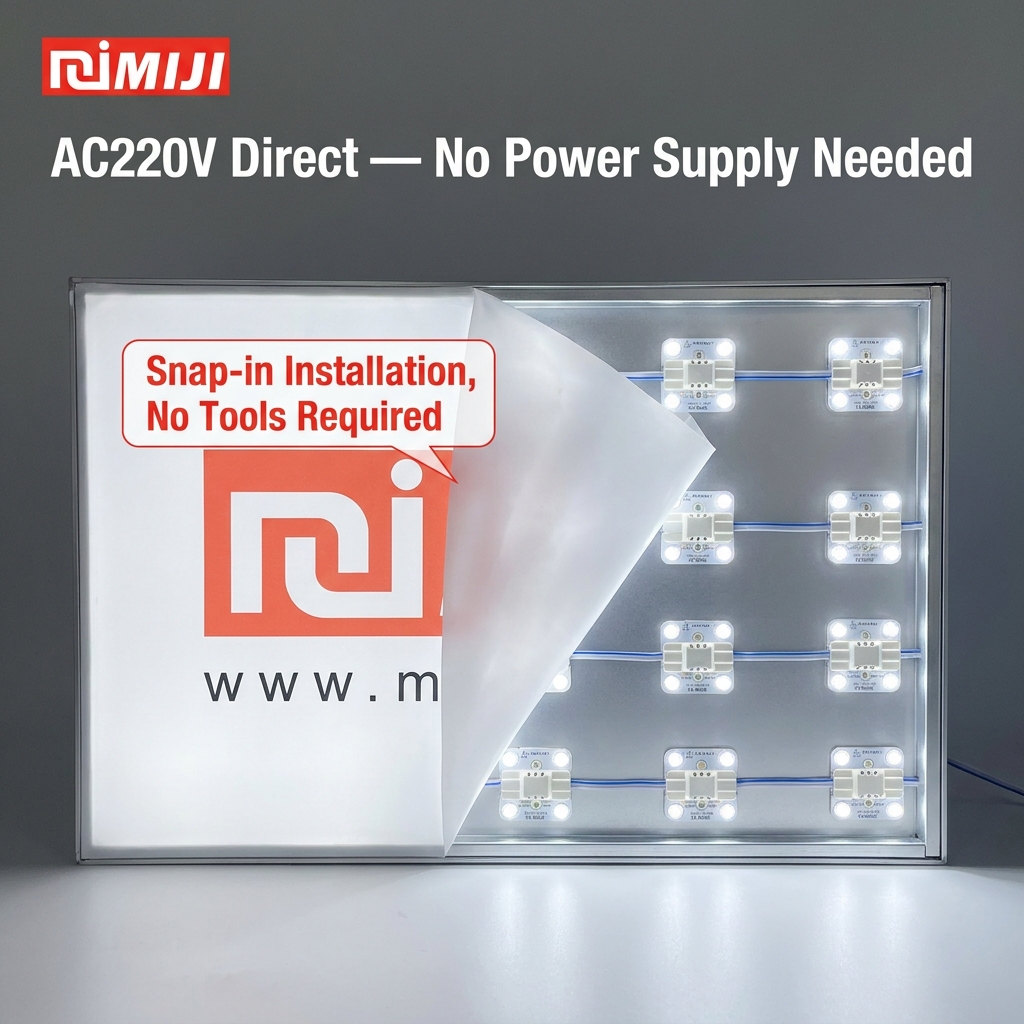

In high-traffic areas like Metro Stations and Shopping Malls, safety and ease of installation are critical. The snap-in, tool-free installation of MIJI 220V modules allows contractors to complete large-scale fit-outs 50% faster, minimizing disruption to public services while maintaining strict safety standards.
The Professional Choice for Future-Proof Lighting
Whether you are working on a high-rise sky-sign or a delicate indoor retail environment, the MIJI AC 220V High-Voltage LED Module provides the perfect balance of power, safety, and efficiency. We also offer DC 24V Low-Voltage options for projects with specific regional requirements, ensuring that MIJI remains your one-stop partner for all signage solutions.
