86-Type Dimming Switch Power Supply
Feature
- Dimming Switch Panel + LED Driver + Soft Start & Soft Fade + Smart Dimming Control
One device replaces the traditional multi-component dimming system.

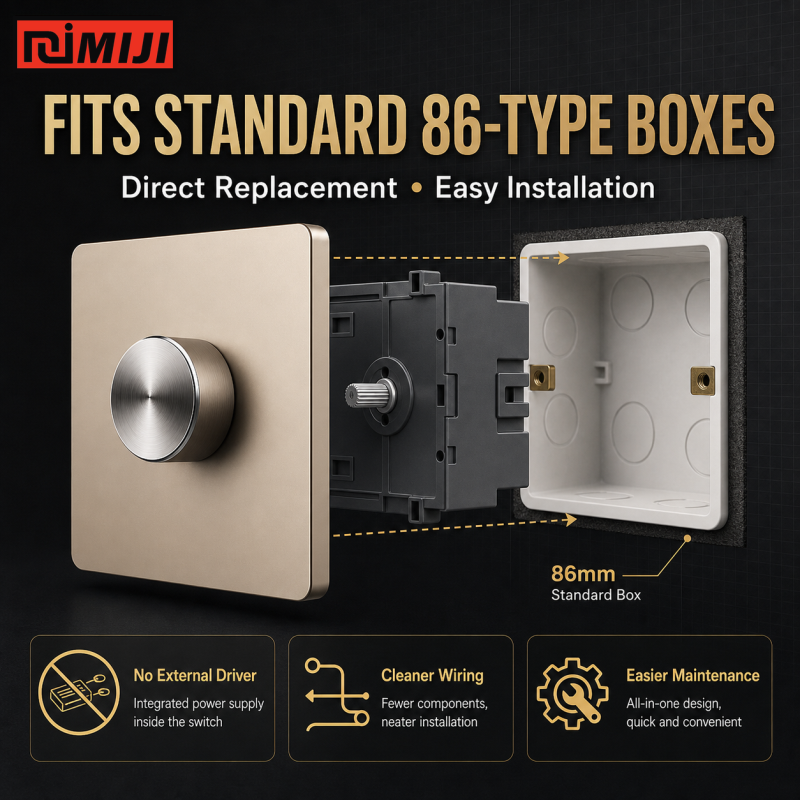

◎ Cleaner Wiring & Easy Maintenance: Reduces installation complexity with fewer components, simpler connections, and easier future maintenance.
◎ 5-Year Warranty: Provides long-term reliability and confidence for residential and commercial lighting projects.
specification
| MODEL | LED POWER SUPPLY | SDP-60W 12V | SDP-60W 24V |
| OUTPUT | Output voltage | 12V DC | 24V DC |
| Output voltage range | 12VDC±0.5VDC | 24VDC±0.5VDC | |
| Output Current | Max 5.0A | Max 2.5A | |
| Output power | Max 60W | ||
| Output power range | 0~60W | ||
| Ripple & Noise | ≤120mV | ≤240mV | |
| Linear Regulation | ±1% | ||
| Load Regulation | ±1% | ||
| Start-up Time (Typ) | 600ms/230VAC | ||
| Hold Up Time(Typ) | 100ms/230VAC | ||
| INPUT | Input voltage | 200-240Vac | |
| Frequency | 50/60Hz | ||
| Input сurrent | 0.52A/230Vac | ||
| Power factor | PF>0.8 | ||
| No-load power consumption | ≤3W | ||
| Efficiency (typ.) | 93% | 95% | |
| Inrush current(typ.) | Cold start 50A at 230Vac | ||
| Control surge capability | L,N:2KV L,N-PE:4KV | ||
| Leakage сurrent | Max. 0.5mA | ||
| ENVIRONMENT | Working temperature | ta: -30°C~ 50°C tc: 80°C | |
| Working humidity | 20 ~ 99%RH, condensing (Waterproof) | ||
| Storage temp., humidity | -40°C ~ 80°C, 10~95%RH | ||
| PROTECTION | Overtemperature | Protection type: Turn off the output voltage, after the temperature drops, re-energize to restore. | |
| Over load protection | Shut down the output when current load above 110%~150%, auto recovers. | ||
| Short circuit protection | Protection type: It can be automatically restored after the fault is eliminated. | ||
| SAFETY&EMC | Withstand voltage | I/P-O/P:3750Vac | |
| Isolation resistance | I/P-O/P: 100MΩ/500VDC/25°C/70%RH | ||
| Safety standards | IEC/EN61347;IEC/EN60950;IP67 | ||
| EMC Test Standards | EN55015: 2013;EN61547: 2009; EN61000-3-2:2014; EN61000-3-3:2013 | ||
| Reliabilityand Quality Control | Impact aging | 100% of the product is fully loaded and impacted for 4 hours under an environment of at least 40°C±5°C | |
| Component derating | Under the steady-state conditions of rated input and output, the stress of components will not exceed its maximum nominal value | ||
| NOTE | 1.All parameters not specifically mentioned are measured at 230VAC input, rated load and 25°C ambient temperature. 2.Ripple and noise test method: connect 0.1uF and 47uF capacitors in parallel at the terminal, and measure under 20MHZ bandwidth. 3.Ensure that the power supply is used under the rated parameters and environment. | ||
Product details

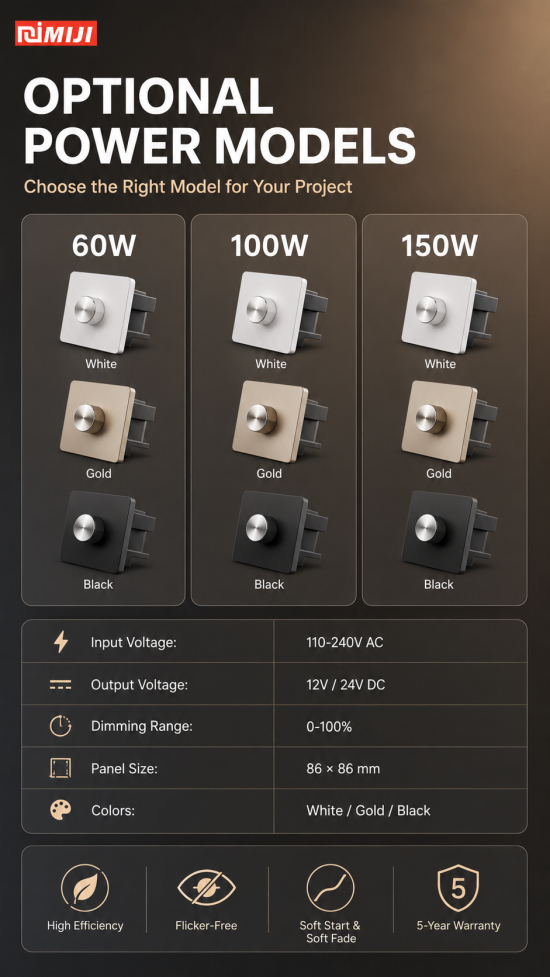

| Model | Power Out | Input Voltage | Output Voltage | Output Current | Efficiency | IP | Size(mm) | Package |
| DM-60W 12V /24V | 60W | 200-240V AC | 12V/24V | 5.0A/ 2.5A | 93% | IP65 | 86*86*58 | 30 |
| DM-100W 12V /24V | 100W | 200-240V AC | 12V/24V | 8.3A/ 4.1A | 93% | IP65 | 86*86*58 | 30 |
| DM-150W 12V /24V | 150W | 200-240V AC | 12V/24V | 12.5A/ 6.25A | 93% | IP65 | 86*86*58 | 30 |
application
MIJI 86-Type Dimming Switch Power Supply is designed for modern low-voltage lighting systems, providing an all-in-one solution for dimming control and power management. By integrating the dimming switch, LED driver, and power supply into one compact device, it simplifies installation and delivers smooth brightness control for residential, commercial, and architectural lighting applications.
It is widely used for LED strip lights, panel lights, downlights, magnetic track lighting, linear lights, cabinet lighting, and other 12V/24V low-voltage LED lighting systems.
• LED Panel & Ceiling Lighting – Ideal for LED panel lights, ceiling lights, and indoor lighting systems in homes, offices, hotels, and commercial spaces.
• Downlight & Recessed Lighting – Provides comfortable dimming control for LED downlights, recessed lights, and modern interior lighting applications.
• Magnetic Track Lighting – Suitable for magnetic track lights and adjustable lighting systems in smart homes, retail stores, galleries, and hotels.
• Linear & Architectural Lighting – Designed for LED linear lights, profile lighting, and architectural lighting projects requiring precise brightness adjustment.
• Cabinet & Furniture Lighting – Perfect for kitchen cabinets, wardrobes, shelves, and furniture lighting with clean installation and easy control.
• Smart Home Lighting – Creates personalized lighting environments for living rooms, bedrooms, kitchens, and modern smart home systems.
• Hotel & Commercial Lighting – Reliable solution for restaurants, shops, offices, hotels, and commercial lighting projects.
• Bathroom & Smart Mirror Lighting – Suitable for LED bathroom mirrors, vanity mirrors, and smart mirror lighting with stable low-voltage power control.
• Decorative & Ambient Lighting – Ideal for mood lighting, background lighting, and indoor decorative lighting applications.
