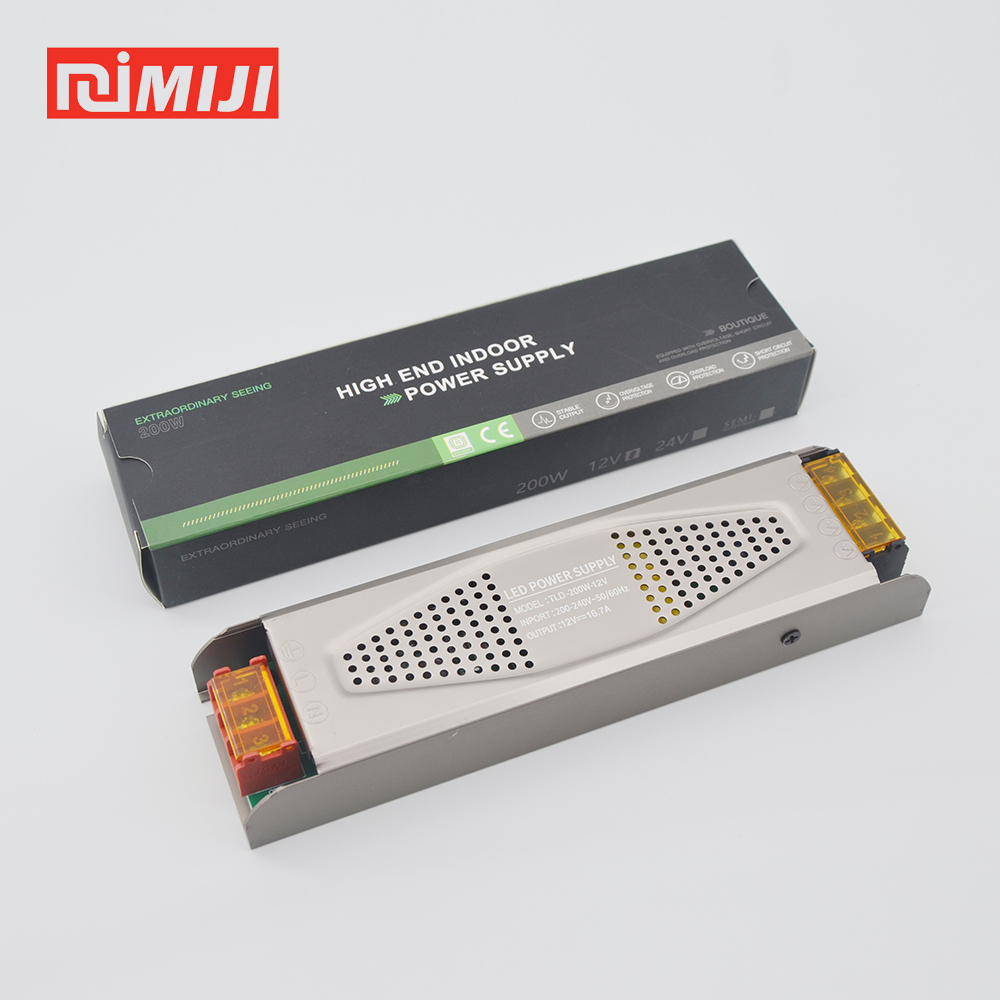

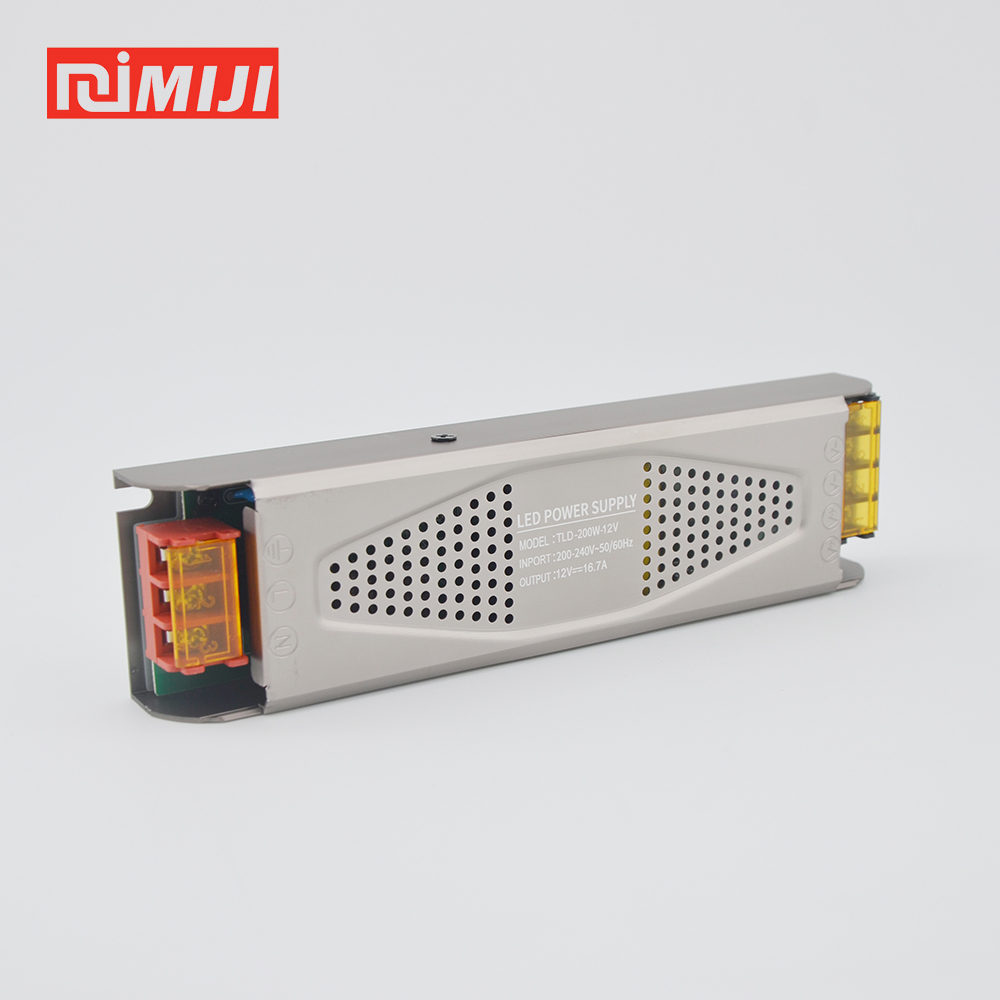

200W Slim Power Supply for Linear Lighting
Feature
◎ Optimized for Linear Lighting: Its slim, low-profile shape is specifically designed to be easily concealed within architectural channels, coves, and custom linear fixtures.
◎ High Efficiency with Active PFC: With an efficiency exceeding 90% and Active Power Factor Correction, it minimizes energy waste and reduces operational costs while meeting modern electrical standards.
◎ OEM & White-Label Ready: Available for custom branding with your company logo and packaging, making it an ideal solution for lighting manufacturers and distributors.
◎ Comprehensive Safety Protections: Equipped with full protection against short circuits, overloads, overvoltage, and overtemperature for maximum safety and long-term reliability.
specification
| Model | TLD-200W 12V | TLD-200W 24V | |
| OUTPUT | DC voltage | 12V | 24V |
| Rated current | 16.7A | 8.3A | |
| Cuttent range | 0-16.7A | 0-8.3A | |
| Rated output power | 200W | 200W | |
| Ripples and noise | ≤200mVp-p | ≤300mVp-p | |
| Output current range | 11.5-12.5V | 23-25V | |
| Precision of output voltage regulation | ±0.5% | ±0.5% | |
| Rate of lenear adjustment | ±0.5% | ±0.5% | |
| Load adjustment rate | ±0.5% | ±0.5% | |
| The startup time | ≤2s/230VAC | ||
| INPUT | Keep time | 10ms/230VAC | |
| Voltage range | 176-264VAC | ||
| Frequency range | 50Hz | ||
| Power factor | PF≥0.6/230VAC | ||
| Efficiency | ≥89% | ≥91% | |
| Alternating current | 3.4A/230VAC | ||
| Surge current | 50A/230VAC | ||
| Leakage current | <5mA/230VAC | ||
| PROTECTION | Overload | 110%-140%: rated 110%-140% of the total power input | |
| protection mode:Auto recovery mode.the system automatically recovers when abnormal load conditions are removed | |||
| Short circuit | protection mode:Auto recovery mode.the system automatically recovers when abnormal load conditions are removed | ||
| Over voltage | protection mode:self-recovery mode,automatic recovery when the overvoltage is removed | ||
| Over temperature | protection mode:self-recovery mode,automatically recover when the temperature drops | ||
| ENVIRONMEN | working temperature | -35~+50°C | |
| working humidity | 20-90% RH | ||
| storage temperature;humidity | -30~+85°C； 10~95% RH | ||
| temperature coefficient | ±0.1%/°C(0-35°C) | ||
| resistance to vibration | 10-500Hz, 3G 10min. / 1 cycle, 60 min. each axes | ||
| SAFETY&EMC | safety norms | EN60950 , GB4943.1 -2011 | |
| withstand voltage | l/P-O/P:1.5KVAC l/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||
| insulation impedance | l/P-O/P, l/P-FG, 0/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | ||
| EMC | -- | ||
| other | protection grade | IP20 | |
| MTBF | ≥30khour 25℃ | ||
| power supply size | L180*W50*H23mm | ||
| power supply weight | 190g | ||
| NOTE | 1.Unless otherwise specified , all specification are measured at an input of 230VAC,rarted negative cut,and ambient temperature of 25°C | ||
| 2.Ripple and noise measurement method:the measured end is connected in parallel with a 0.1uF+10uF capacitor,the oscilloscope is set to 20MHZ bandwidth,and the probe is tested with cap off and full load at 25°C | |||
| 3.Accuracy :includes setting error , linear adjustment rate and load adjustment rate . | |||
| 4. The output power is reduced when the input voltage is less than 200VAC. | |||
OEM Customer design
Model List
| Model | Power Out | Input Voltage | Output Voltage | Output Current | Efficiency | IP | Size(mm) | Package |
| TLD-60W 12V /24V | 60W | 200-240V AC | 12V/24V | 5.0A/ 2.5A | 93% | IP20 | 115*47*26 | 100 |
| TLD-100W 12V /24V | 100W | 200-240V AC | 12V/24V | 8.3A/ 4.1A | 93% | IP20 | 145*47*26 | 90 |
| TLD-200W 12V /24V | 200W | 200-240V AC | 12V/24V | 16.7A/ 8.33A | 92% | IP20 | 184*47*26 | 90 |
| TLD-300W 12V /24V | 300W | 200-240V AC | 12V/24V | 25.0A/ 12.5A | 92% | IP20 | 210*47*26 | 60 |
| TLD-400W 12V /24V | 400W | 200-240V AC | 12V/24V | 33.3A/ 16.7A | 92% | IP20 | 241*47*26 | 60 |
application
The 200W Slim Power Supply for Linear Lighting is a professional-grade driver engineered to solve a specific challenge: delivering substantial power without noise or intrusion. Its design philosophy is centered on silent, invisible performance. The advanced fanless architecture eliminates any operational hum, making it the only choice for acoustically sensitive environments. This, combined with its exceptionally slim profile and high-efficiency electronics featuring Active PFC, makes it the definitive power source for architects, lighting designers, and installers creating sophisticated, uninterrupted lines of light.
Application Scenarios
- Architectural Cove & Ambient Lighting: This driver is perfectly suited for creating seamless ambient light in high-end residential homes, hotel lobbies, and quiet office spaces. Its silent, fanless operation ensures there is no distracting background noise, while its slim form allows it to be completely concealed within architectural coves and soffits for a clean, source-less lighting effect.
- High-End Retail & Showroom Illumination: In luxury retail environments, the focus must be on the product, not the hardware. This power supply can be integrated into custom display cases, shelving units, and linear track systems. The 200W capacity can power extensive runs of high-CRI LED strips from a single source, and its silent operation maintains the store's premium atmosphere.
- Custom Joinery & Integrated Furniture Lighting: For cabinet makers and furniture designers, this driver is an invaluable component. It can be hidden within or on top of custom-built wardrobes, kitchen cabinetry, and library shelving to provide beautiful, integrated task or accent lighting. The fanless design prevents any vibration or noise within the furniture itself.
- OEM for Linear Fixture Manufacturers: This power supply serves as a high-quality engine for companies producing their own linear lighting fixtures. Being OEM-ready, it can be branded and incorporated directly into their product lines, offering their customers a reliable, silent, and highly efficient power solution backed by a 2-year warranty and CE certification.
Conclusion
In essence, the 200W Slim Power Supply is not just a component, but a crucial enabler of minimalist and sophisticated lighting design. It is the ideal solution for any indoor project where the lighting should be experienced, not heard or seen. For any application demanding powerful, efficient, and completely silent operation.
