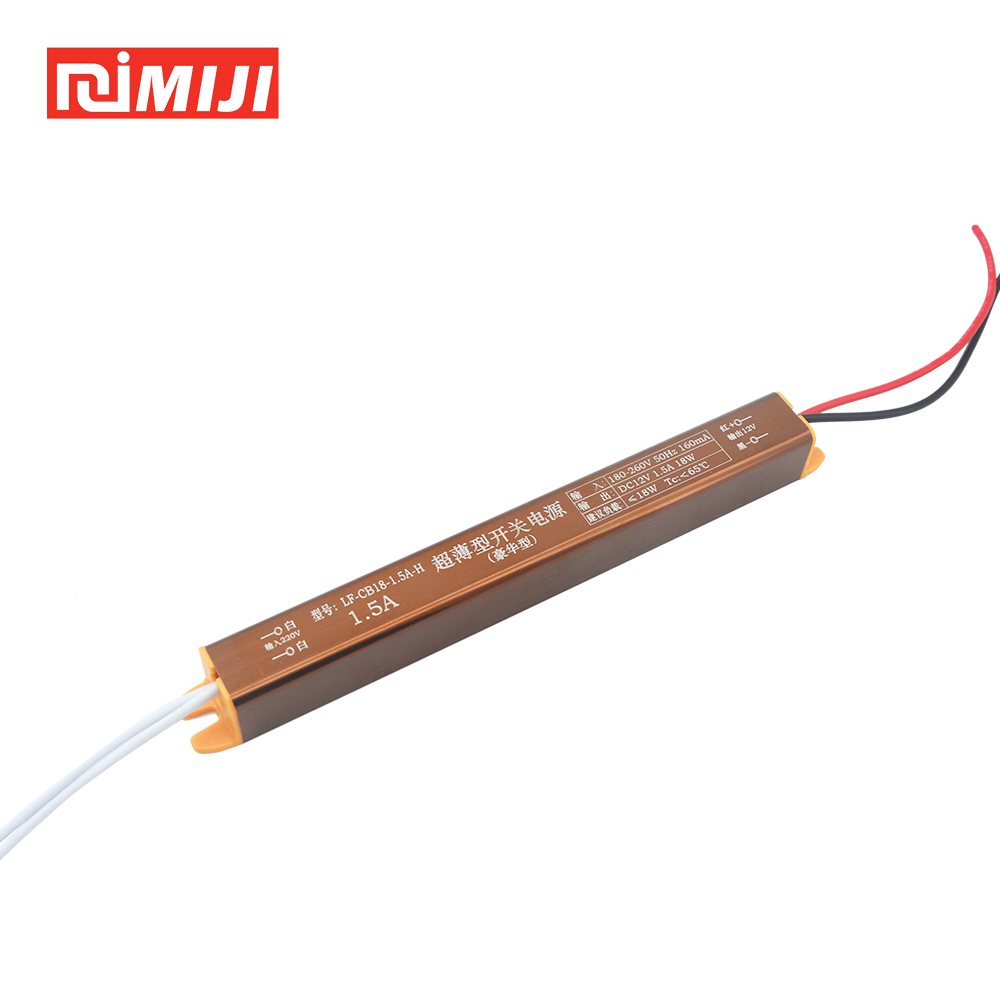

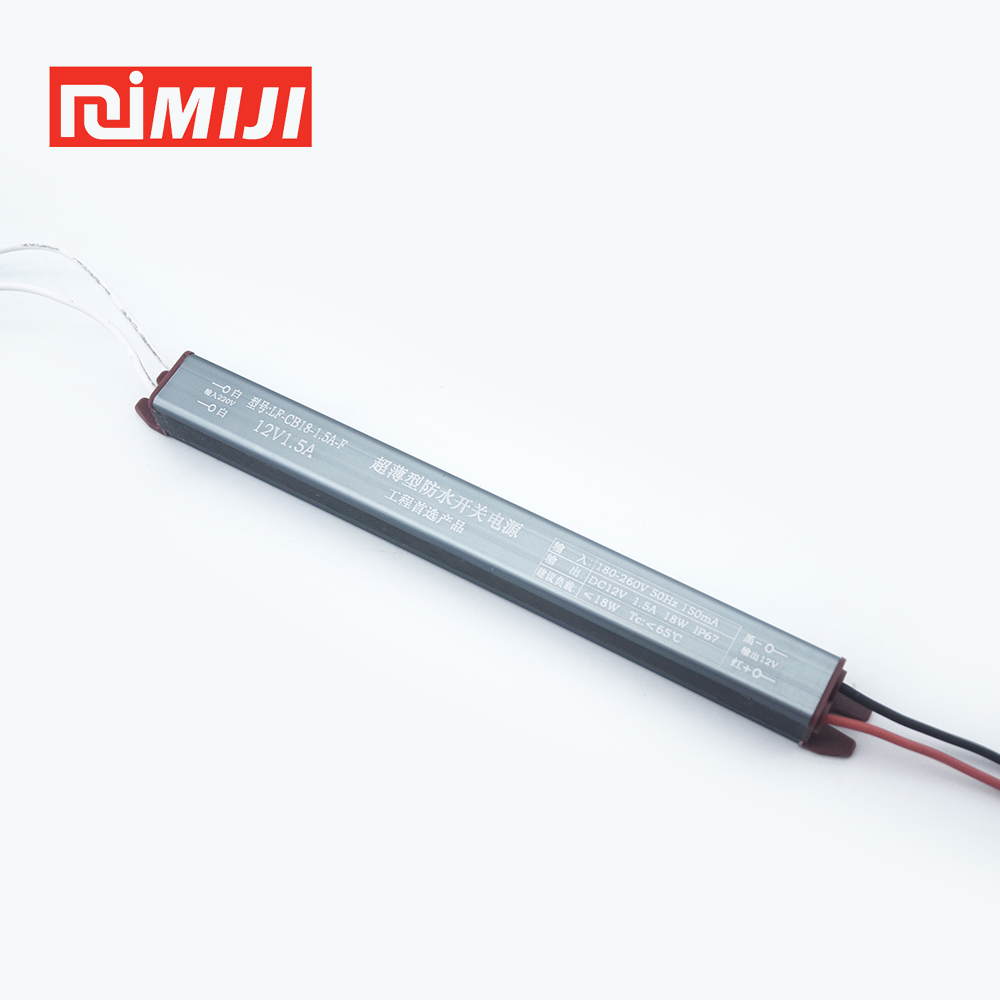

18W Ultra-Slim LED Power Adapter
Feature
◎ Efficient 18W Output: Provides reliable 12V or 24V constant voltage, ideal for powering shorter LED strip runs in accent lighting projects.
◎ Perfect for Concealment: The slim, linear shape is specifically designed to be hidden easily, ensuring a clean and professional aesthetic.
◎ Versatile Application: The ultimate power solution for LED mirrors, cabinet lighting, display cases, and slim linear light fixtures.
◎ Stable Performance: Delivers consistent, flicker-free power to protect your LEDs and ensure a high-quality lighting effect.
specification
| Model | CB-18W 12V | CB-18W 24V | |
| OUTPUT | DC voltage | 12V | 24V |
| Rated current | 1.5A | 0.75A | |
| Cuttent range | 0-1.5A | 0-0.75A | |
| Rated output power | 18W | 18W | |
| Ripples and noise | ≤200mVp-p | ≤500mVp-p | |
| Output current range | 12VDC±0.5VDC | 24VDC±0.5VDC | |
| Precision of output voltage regulation | ±0.5% | ±0.5% | |
| Rate of lenear adjustment | ±0.5% | ±0.5% | |
| Load adjustment rate | ±0.5% | ±0.5% | |
| The startup time | ≤2s/230VAC | ||
| INPUT | Keep time | 10ms/230VAC | |
| Voltage range | 176-264VAC | ||
| Frequency range | 50Hz | ||
| Power factor | PF≥0.6/230VAC | ||
| Efficiency | ≥93% | ≥93% | |
| Alternating current | 3.4A/230VAC | ||
| Surge current | 50A/230VAC | ||
| Leakage current | <5mA/230VAC | ||
| PROTECTION | Overload | 110%-140%: rated 110%-140% of the total power input | |
| protection mode:Auto recovery mode.the system automatically recovers when abnormal load conditions are removed | |||
| Short circuit | protection mode:Auto recovery mode.the system automatically recovers when abnormal load conditions are removed | ||
| Over voltage | protection mode:self-recovery mode,automatic recovery when the overvoltage is removed | ||
| Over temperature | protection mode:self-recovery mode,automatically recover when the temperature drops | ||
| ENVIRONMEN | working temperature | -35~+50°C | |
| working humidity | 20-90% RH | ||
| storage temperature;humidity | -30~+85°C； 10~95% RH | ||
| temperature coefficient | ±0.1%/°C(0-35°C) | ||
| resistance to vibration | 10-500Hz, 3G 10min. / 1 cycle, 60 min. each axes | ||
| SAFETY&EMC | safety norms | EN60950 , GB4943.1 -2011 | |
| withstand voltage | l/P-O/P:1.5KVAC l/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||
| insulation impedance | l/P-O/P, l/P-FG, 0/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | ||
| EMC | -- | ||
| other | protection grade | IP62 | |
| MTBF | ≥30khour 25℃ | ||
| power supply size | L172*W18*H18mm | ||
| power supply weight | 38.3g | ||
| NOTE | 1.Unless otherwise specified , all specification are measured at an input of 230VAC,rarted negative cut,and ambient temperature of 25°C | ||
| 2.Ripple and noise measurement method:the measured end is connected in parallel with a 0.1uF+10uF capacitor,the oscilloscope is set to 20MHZ bandwidth,and the probe is tested with cap off and full load at 25°C | |||
| 3.Accuracy :includes setting error , linear adjustment rate and load adjustment rate . | |||
| 4. The output power is reduced when the input voltage is less than 200VAC. | |||
OEM Customer design

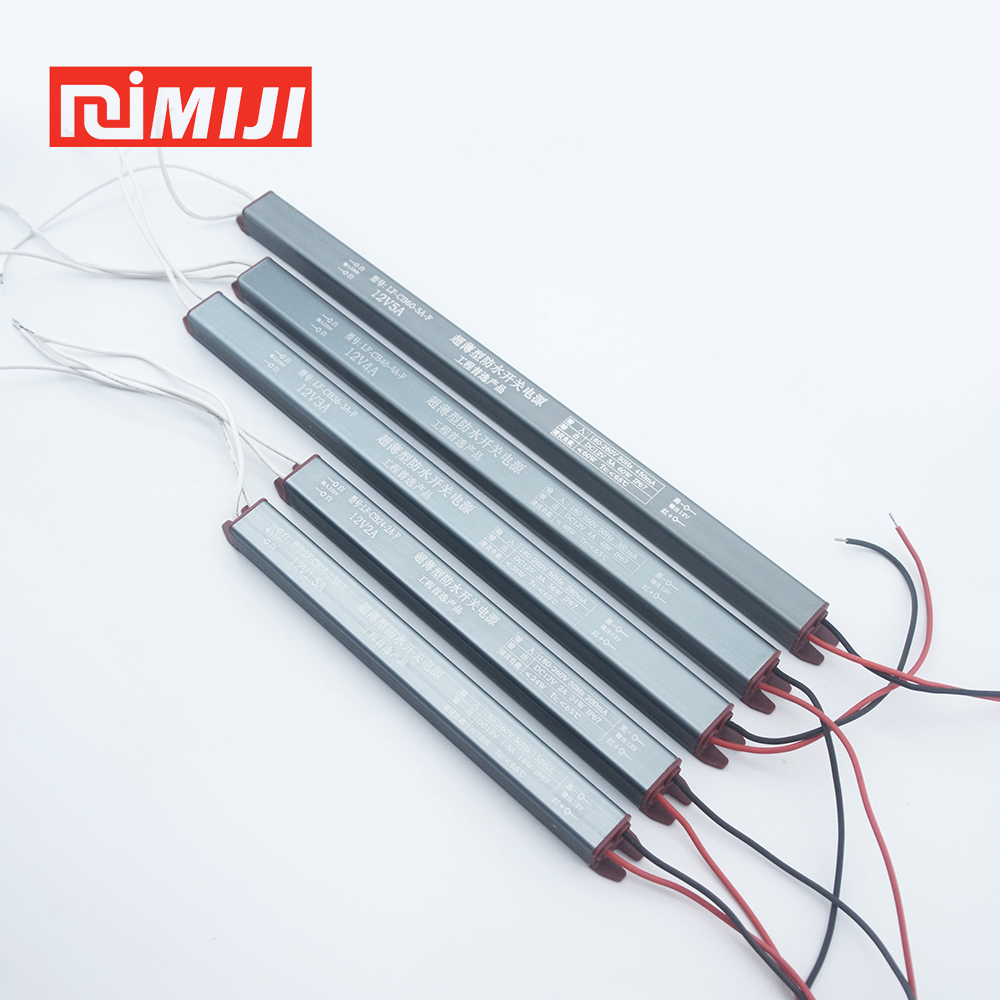

Model List
| Model | Power Out | Input Voltage | Output Voltage | Output Current | Efficiency | IP | Size(mm) | Package |
| CB-18W 12V | 18W | 200-240V AC | 12V / 24V | 1.5A / 0.75A | 93% | IP20 | 172*18*18 | 400 |
| CB-24W 12V | 24W | 200-240V AC | 12V / 24V | 2.0A / 1.0A | 93% | IP20 | 172*18*18 | 400 |
| CB-36W 12V | 36W | 200-240V AC | 12V / 24V | 3.0A / 1.5A | 93% | IP20 | 283*18*18 | 200 |
| CB-48W 12V | 48W | 110-240V AC | 12V / 24V | 4.0A / 2.0A | 92% | IP20 | 313*18*18 | 200 |
| CB-60W 12V | 60W | 200-240V AC | 12V / 24V | 5.0A / 2.5A | 92% | IP20 | 313*18*18 | 200 |
| CB-72W 12V | 72W | 200-240V AC | 12V / 24V | 6.0A / 3.0A | 91% | IP20 | 373*18*18 | 200 |
| IP 67 Waterproof super ultra slim series | ||||||||
| CB-18W 12V F | 18W | 200-240V AC | 12V / 24V | 1.5A / 0.75A | 93% | IP 67 | 192*18*14.8 | 200 |
| CB-24W 12V F | 24W | 200-240V AC | 12V / 24V | 2.0A / 1.0A | 93% | IP 67 | 192*18*14.8 | 200 |
| CB-36W 12V F | 36W | 200-240V AC | 12V / 24V | 3.0A / 1.5A | 93% | IP 67 | 292*18*14.8 | 100 |
| CB-48W 12V F | 48W | 110-240V AC | 12V / 24V | 4.0A / 2.0A | 92% | IP 67 | 292*18*14.8 | 100 |
| CB-60W 12V F | 60W | 200-240V AC | 12V / 24V | 5.0A / 2.5A | 92% | IP 67 | 312*18*14.8 | 100 |
| CB-72W 12V F | 72W | 200-240V AC | 12V / 24V | 6.0A / 3.0A | 91% | IP 67 | 375*18*14.8 | 100 |
application
The 18W Ultra-Slim Stick Power Adapter is a specialized component designed for the age of minimalist and integrated lighting. Its defining feature is its exceptionally narrow, linear "stick" shape (172x18x18mm). This form factor is engineered to solve a specific challenge: powering LED lights from within the structure of the fixture itself. Unlike traditional power supplies, this adapter is meant to be co-located inside aluminum extrusions, narrow cabinet frames, or other tight linear spaces, providing stable 12V or 24V power while being completely invisible.
Integrated Linear Lighting: Its primary application is to be housed directly within aluminum profiles or channels used for creating custom LED linear lights. This creates a self-contained fixture with no external power brick, perfect for modern pendant lights or recessed wall lighting.
Wardrobe & Closet Illumination: The stick-like shape is ideal for mounting vertically inside wardrobe frames or horizontally along the front edge of shelves, providing seamless and integrated task lighting without taking up valuable space.
Display & Museum Cases: In retail or museum settings, this driver can be discreetly tucked into the frame of a display case to illuminate high-value items like jewelry, watches, or artifacts, providing focused light without any visible wiring.
Backlit Mirrors & Medicine Cabinets: Perfect for smaller vanity mirrors or medicine cabinets where space is extremely limited. The driver can be attached to the back of the mirror or hidden within the cabinet's frame to power integrated LED strips.
Miniature Lightboxes & Signage: For small-scale, high-impact signage, this power adapter fits neatly inside the thin frames of custom-built mini lightboxes or illuminated logos, ensuring the focus remains on the graphic display.
In summary, the 18W Ultra-Slim Stick Power Adapter is the ultimate choice for any low-power lighting application that demands a truly integrated and invisible power source. It empowers fixture designers, cabinet makers, and lighting professionals to build elegant and sophisticated products where the power supply becomes a seamless part of the design. When the goal is to make the hardware disappear and let the light shine, this power adapter is the perfect tool for the job.
