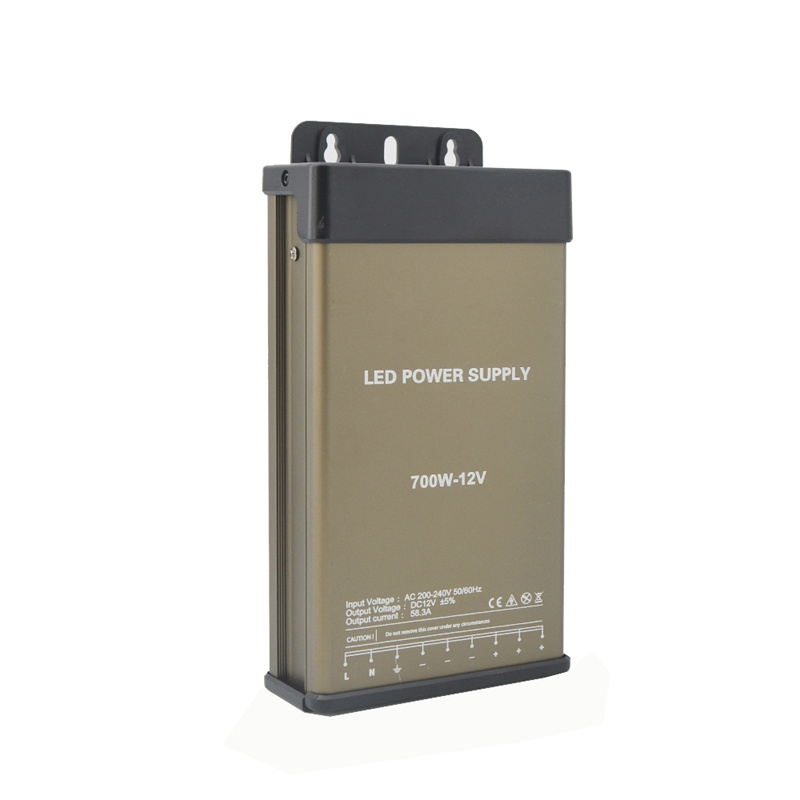

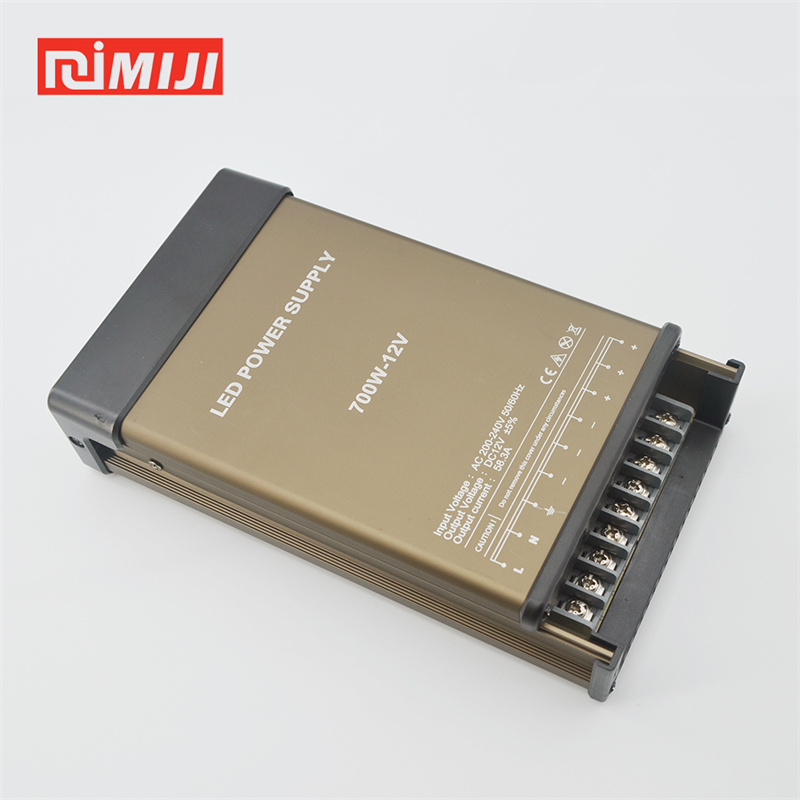

12V 58.3A 700W High Power Rainproof Power Supply

High-performance 12V 58.3A 700W rainproof power supply, built to handle the demands of large-scale LED projects and building facade lighting. With its robust design and higher power output, this unit is perfect for powering extensive LED installations, including oversized LED displays and architectural lighting. The rainproof feature ensures reliable operation in all weather conditions, making it ideal for outdoor use. Whether you're illuminating a skyscraper or creating a stunning visual display, this power supply delivers the stability and power needed for your most ambitious lighting projects.

Model Number JT-700W 12V
Input voltage 200-240V
Output voltage 12V DC
Output Power 700W
Size 225*118*50mm
Warranty 2 years
OEM Customize LOGO, color box, and Carton
Protection Over voltage, over current, short protection

description

model list

application

Feature

◎ Top-end outdoor rainproof power supply with fan

◎ It has 2 years warranty and is widely used in outdoor lighting projects

◎ Smart LED load indicator can remind users to load properly

◎ 100% full load aging test at high temperature with low failure rate and high reliability

◎ It uses big size fan, which is intelligent temperature controlled and has good heat dissipation.

◎ Big watt loading, 700W design, it can be print 1000W selling. Without loading worry.

specification

Model		JT-700W 12V	JT-700W 24V
OUTPUT	DC voltage	12V	24V
	Rated current	58.3A	29.1A
	Cuttent range	0-58.3A	0-29.1A
	Rated output power	700W	700W
	Ripples and noise	≤200mVp-p	≤300mVp-p
	Output current range	11.5-12.5V	23-25V
	Precision of output voltage regulation	±0.5%	±0.5%
	Rate of lenear adjustment	±0.5%	±0.5%
	Load adjustment rate	±0.5%	±0.5%
	The startup time	≤2s/230VAC
INPUT	Keep time	10ms/230VAC
	Voltage range	176-264VAC
	Frequency range	50Hz
	Power factor	PF≥0.6/230VAC
	Efficiency	≥89%	≥91%
	Alternating current	3.4A/230VAC
	Surge current	50A/230VAC
	Leakage current	<5mA/230VAC
PROTECTION	Overload	110%-140%: rated 110%-140% of the total power input
	Overload	protection mode:Auto recovery mode.the system automatically recovers when abnormal load conditions are removed
	Short circuit	protection mode:Auto recovery mode.the system automatically recovers when abnormal load conditions are removed
	Over voltage	protection mode:self-recovery mode,automatic recovery when the overvoltage is removed
	Over temperature	protection mode:self-recovery mode,automatically recover when the temperature drops
ENVIRONMEN		working temperature	-35~+50°C
		working humidity	20-90% RH
		storage temperature;humidity	-30~+85°C； 10~95% RH
		temperature coefficient	±0.1%/°C(0-35°C)
		resistance to vibration	10-500Hz, 3G 10min. / 1 cycle, 60 min. each axes
SAFETY&EMC		safety norms	EN60950 , GB4943.1 -2011
		withstand voltage	l/P-O/P:1.5KVAC l/P-FG:1.5KVAC O/P-FG:0.5KVAC
		insulation impedance	l/P-O/P, l/P-FG, 0/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
		EMC	--
other		protection grade	IP62
		MTBF	≥30khour 25℃
		power supply size	L225W118H50mm
		power supply weight	785g
NOTE		1.Unless otherwise specified , all specification are measured at an input of 230VAC,rarted negative cut,and ambient temperature of 25°C
		2.Ripple and noise measurement method:the measured end is connected in parallel with a 0.1uF+10uF capacitor,the oscilloscope is set to 20MHZ bandwidth,and the probe is tested with cap off and full load at 25°C
		3.Accuracy :includes setting error , linear adjustment rate and load adjustment rate .
		4. The output power is reduced when the input voltage is less than 200VAC.

Caution

● The product MUST be installed vertically and the wiring terminals downwards.

● For the heat dissipation, distance of 10cm from 4 sides (up/down/right/left) and 5cm from the ventilation hole side should be kept.

OEM Customer design

Model List

Our factory offers OEM customization, allowing us to tailor various models and parameters to meet your specific needs. Feel free to contact us for more information and personalized solutions.

Model	Power Out	Input Voltage	Output Voltage	Output Current	Efficiency	IP	Size(mm)	Package
JT-60W 12V	60W	200-240V AC	12V	5.0A	93%	IP43	1307442	100
JT-100W 12V	100W	200-240V AC	12V	8.3A	93%	IP43	1487442	100
JT-150W 12V	150W	200-240V AC	12V	12.5A	93%	IP43	1487442	100
JT-200W 12V	200W	200-240V AC	12V	16.7A	92%	IP43	1957442	80
JT-300W 12V	300W	200-240V AC	12V	25.0A	92%	IP43	1829350	50
JT-400W 12V F	400W	200-240V AC	12V	33.3A	80%	IP43	18211850	48
JT-400W 12V E	400W	200-240V AC	12V	33.3A	80%	IP43	18211850	48
JT-400W 12V C	400W	200-240V AC	12V	33.3A	92%	IP43	18211850	48
JT-500W 12V	500W	200-240V AC	12V	41.7A	90%	IP43	20511850	30
JT-600W 12V	600W	200-240V AC	12V	50.0A	90%	IP43	20511850	30
JT-700W 12V	700W	200-240V AC	12V	58.3A	90%	IP43	22011850	30
JT-1000W 12V	1000W	200-240V AC	12V	83.3A	90%	IP43	22011850	30
JT-400W 24V	400W	200-240V AC	24V	16.7A	92%	IP43	18211850	48
JT-700W 24V	700W	200-240V AC	24V	29.1A	90%	IP43	22011850	30
JT-200W 5V	200W	200-240V AC	5V	40.0A	92%	IP43	18211850	48
JT-300W 5V	300W	200-240V AC	5V	60.0A	92%	IP43	18211850	48
JT-350W 5V	350W	200-240V AC	5V	70.0A	90%	IP43	20511850	30
JT-400W 5V	400W	200-240V AC	5V	80.0A	90%	IP43	20511850	30
JT-500W 5V	500W	200-240V AC	5V	100.0A	89%	IP43	22011850	30

application

The 12V 58.3A 700W Rainproof Power Supply is a high-performance, high-capacity solution designed for large-scale LED applications. With its robust 700W output, it is perfectly suited for powering high-rise mega signage and oversized LED lightboxes, ensuring bright, consistent illumination for towering advertisements and building-sized displays. This power supply delivers the energy needed to keep massive outdoor installations, such as multi-story channel letters and giant billboards, vibrant and visible from great distances, even in adverse weather conditions.

Its high-power capacity also makes it ideal for large commercial lightboxes used in shopping malls, airports, and exhibition centers, where reliability and brightness are essential. The rainproof design ensures durability in outdoor environments, making it a dependable choice for architectural lighting projects that require both scale and performance. Whether for skyscraper signage, monumental displays, or industrial-scale lighting, this power supply guarantees unmatched power and reliability for the most demanding applications.
