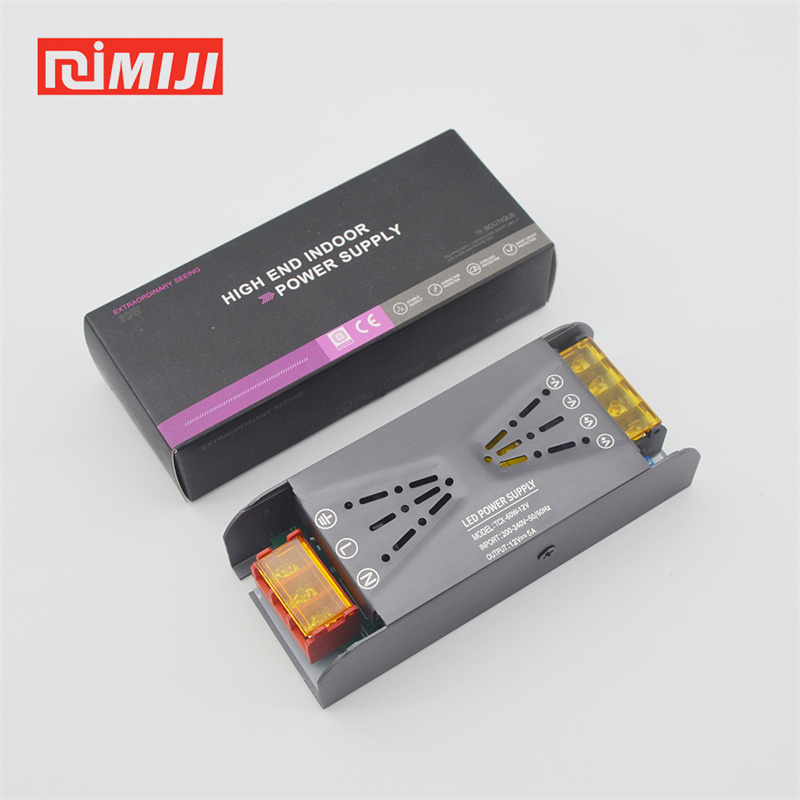

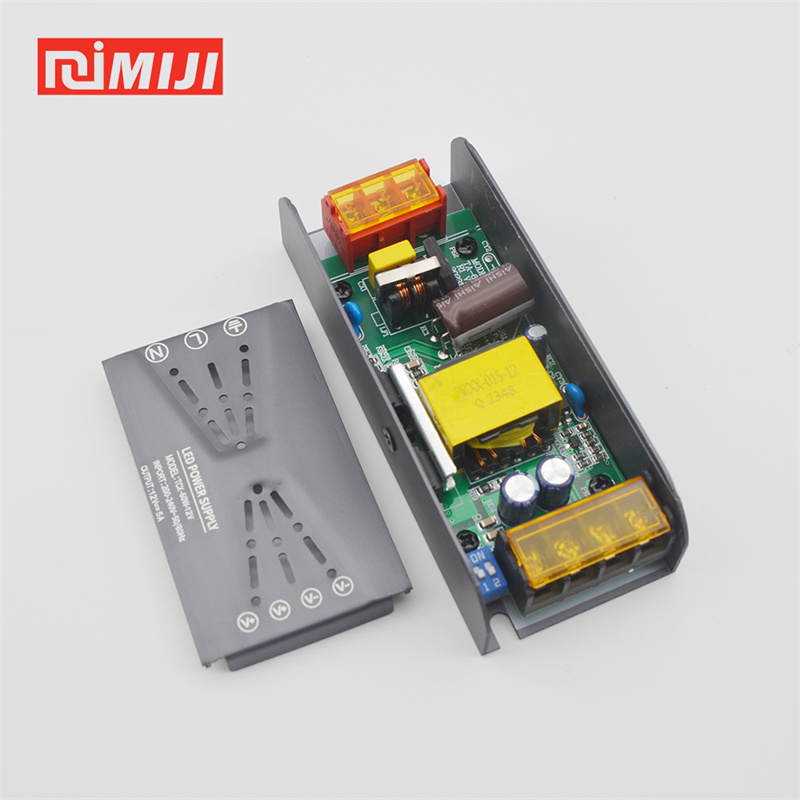

12V 5.0A 60W Ultra Slim Indoor Led Power Supply
Feature
◎ 12V 5A 60W ac-dc power supply housed in a compact metal case.
◎ A highly efficient and reliable single output enclosed power supply.
◎ Linear power supplies have efficiencies in the 40%-60% range, while switching power supplies fall in the 70%-90% range.
◎ Switching Metal Power Supply for all types of strip lights, led lighting, led display, etc.
◎ With short circuit protection, over load protection, stable output voltage.
◎ Not suitable for use in extreme conditions. Normal working conditions is -35° +55°.
specification
| Model | TCX-60W 12V | TCX-60W 24V | |
| OUTPUT | DC voltage | 12V | 24V |
| Rated current | 5.0A | 2.5A | |
| Cuttent range | 0-5.0A | 0-2.5A | |
| Rated output power | 60W | 60W | |
| Ripples and noise | ≤200mVp-p | ≤300mVp-p | |
| Output current range | 11.5-12.5V | 23-25V | |
| Precision of output voltage regulation | ±0.5% | ±0.5% | |
| Rate of lenear adjustment | ±0.5% | ±0.5% | |
| Load adjustment rate | ±0.5% | ±0.5% | |
| The startup time | ≤2s/230VAC | ||
| INPUT | Keep time | 10ms/230VAC | |
| Voltage range | 176-264VAC | ||
| Frequency range | 50Hz | ||
| Power factor | PF≥0.6/230VAC | ||
| Efficiency | ≥89% | ≥91% | |
| Alternating current | 3.4A/230VAC | ||
| Surge current | 50A/230VAC | ||
| Leakage current | <5mA/230VAC | ||
| PROTECTION | Overload | 110%-140%: rated 110%-140% of the total power input | |
| protection mode:Auto recovery mode.the system automatically recovers when abnormal load conditions are removed | |||
| Short circuit | protection mode:Auto recovery mode.the system automatically recovers when abnormal load conditions are removed | ||
| Over voltage | protection mode:self-recovery mode,automatic recovery when the overvoltage is removed | ||
| Over temperature | protection mode:self-recovery mode,automatically recover when the temperature drops | ||
| ENVIRONMEN | working temperature | -35~+50°C | |
| working humidity | 20-90% RH | ||
| storage temperature;humidity | -30~+85°C； 10~95% RH | ||
| temperature coefficient | ±0.1%/°C(0-35°C) | ||
| resistance to vibration | 10-500Hz, 3G 10min. / 1 cycle, 60 min. each axes | ||
| SAFETY&EMC | safety norms | EN60950 , GB4943.1 -2011 | |
| withstand voltage | l/P-O/P:1.5KVAC l/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||
| insulation impedance | l/P-O/P, l/P-FG, 0/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | ||
| EMC | -- | ||
| other | protection grade | IP20 | |
| MTBF | ≥30khour 25℃ | ||
| power supply size | L115*W48*H28mm | ||
| power supply weight | 189g | ||
| NOTE | 1.Unless otherwise specified , all specification are measured at an input of 230VAC,rarted negative cut,and ambient temperature of 25°C | ||
| 2.Ripple and noise measurement method:the measured end is connected in parallel with a 0.1uF+10uF capacitor,the oscilloscope is set to 20MHZ bandwidth,and the probe is tested with cap off and full load at 25°C | |||
| 3.Accuracy :includes setting error , linear adjustment rate and load adjustment rate . | |||
| 4. The output power is reduced when the input voltage is less than 200VAC. | |||
OEM Customer design
01020304
Model List
TCX are high end quality series, 100% full load and aging test. Color box packing.
Our factory offers OEM customization, allowing us to tailor various models and parameters to meet your specific needs. Feel free to contact us for more information and personalized solutions.
| Model | Power Out | Input Voltage | Output Voltage | Output Current | Efficiency | IP | Size(mm) | Package |
| TCX-60W 12V /24V | 60W | 200-240V AC | 12V/24V | 5.0A/ 2.5A | 93% | IP20 | 115*48*28 | 100 |
| TCX-100W 12V /24V | 100W | 200-240V AC | 12V/24V | 8.3A/ 4.1A | 93% | IP20 | 144*48*28 | 90 |
| TCX-200W 12V /24V | 200W | 200-240V AC | 12V/24V | 16.7A/ 8.33A | 92% | IP20 | 184*48*28 | 90 |
| TCX-300W 12V /24V | 300W | 200-240V AC | 12V/24V | 25.0A/ 12.5A | 92% | IP20 | 191*58*30 | 60 |
| TCX-400W 12V /24V | 400W | 200-240V AC | 12V/24V | 33.3A/ 16.7A | 92% | IP20 | 225*58*30 | 60 |
application
The 12V 5.0A 60W indoor slim power supply is meticulously engineered to deliver stable and efficient power for a diverse range of LED lighting applications. Its compact and streamlined design makes it particularly suitable for installations where space is at a premium, ensuring seamless integration into various settings.
Key Applications:
LED Strip Lighting: Ideal for powering LED strip lights, this power supply ensures consistent brightness and performance, enhancing the ambiance in residential and commercial spaces.
Linear Lighting Fixtures: Provides reliable energy for linear LED lights, commonly used in under-cabinet illumination, cove lighting, and accentuating architectural features, contributing to a modern and sleek aesthetic.
S-Shaped LED Strips: Supports the unique configurations of S-shaped LED strips, offering flexible lighting solutions for intricate designs and complex layouts in interior decoration projects.
Indoor Decoration: Perfect for enhancing interior spaces, this power supply can be utilized in various decorative lighting setups, adding warmth and character to living rooms, bedrooms, and other areas within the home.
Outdoor Illumination: While primarily designed for indoor use, when housed appropriately, it can power outdoor lighting features, such as garden lights and patio decorations, creating inviting outdoor environments.
Advertising Signage: Delivers consistent power to LED advertising signs, ensuring vibrant and eye-catching displays that effectively attract attention in commercial areas.
Shopping mall LED Advertising Projects: Essential for large-scale LED advertising installations in shopping centers, providing the necessary power to maintain bright and dynamic promotional visuals.
Neon LED Strips: Compatible with LED neon flex lights, it enables the creation of neon-like effects for artistic displays, signage, and decorative outlines, offering a contemporary alternative to traditional neon lighting.
LED Advertising Light Boxes: Ensures uniform illumination for LED light boxes, commonly used in retail and exhibition settings to highlight promotional content and advertisements effectively.
Various Lighting Fixtures: Versatile enough to power an assortment of LED fixtures, including pendant lights, wall sconces, and ceiling lights, contributing to energy-efficient and aesthetically pleasing lighting designs.
LED DIY Projects: An excellent choice for enthusiasts engaging in DIY LED projects, offering a reliable power source for custom lighting creations and personalized designs.
In summary, the 12V 5.0A 60W indoor slim power supply serves as a fundamental component in numerous LED lighting applications, providing dependable and efficient power to enhance both functional and decorative lighting installations across various environments.
