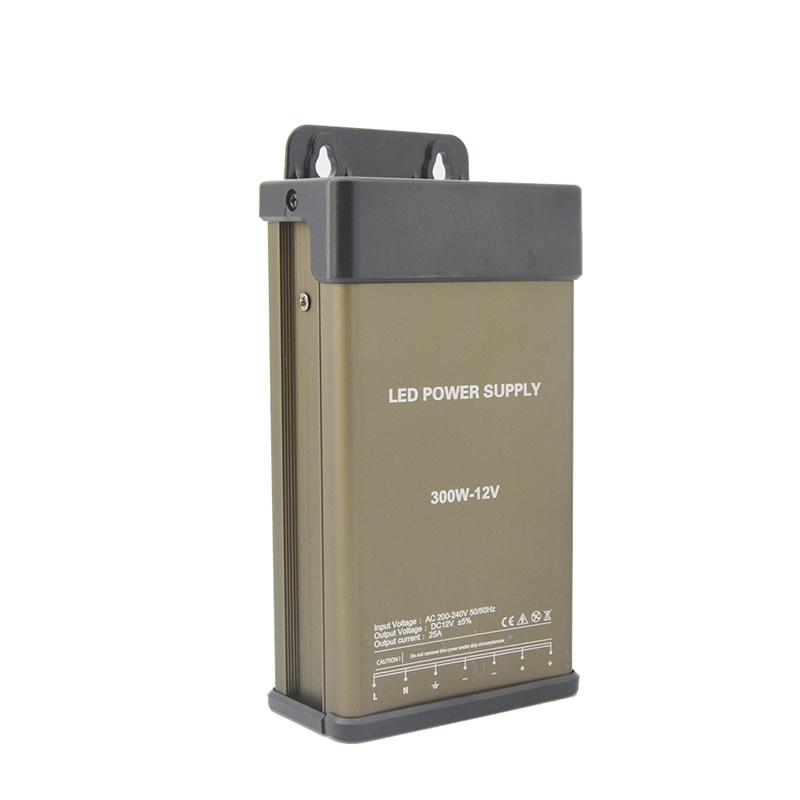

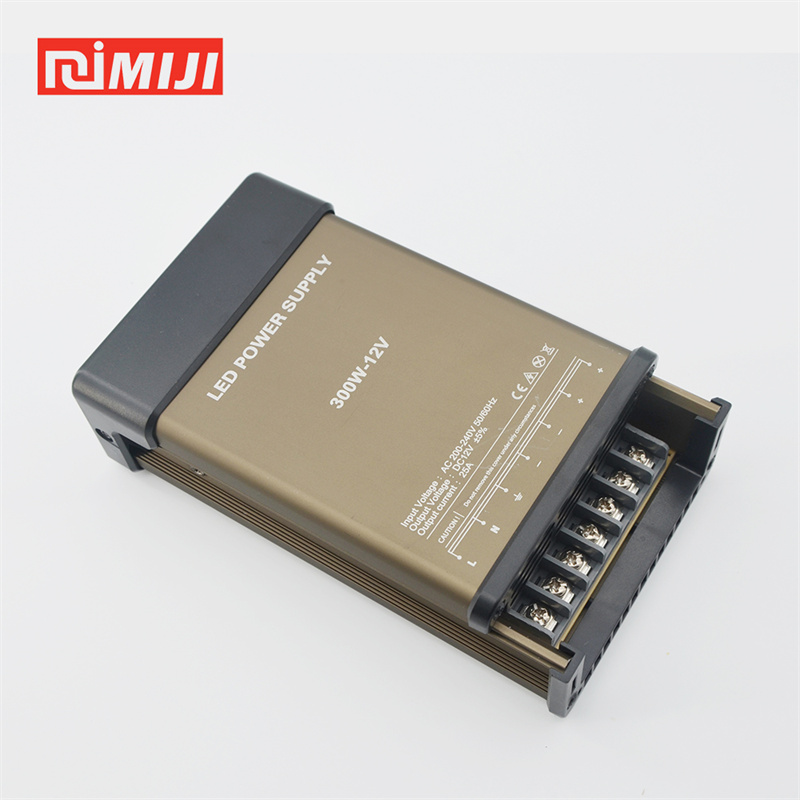

12V 25A 300W LED Module Rainproof Power Supply
Feature
◎ high-quality IP43 grade structure rain proof power supply
◎ Product 100% Full-load aging test
◎ We provide 2 years warranty, after sale worry free
◎ All 100% new component, long life and high reliability
◎ High quality material, fine workmanship, stable voltage, safe and durable
◎ The product has over-voltage, over-load, short circuit and other multiple protection functions, stable and reliable quality, long life.
specification
| Model | JT-300W 12V | JT-300W 24V | |
| OUTPUT | DC voltage | 12V | 24V |
| Rated current | 25.0A | 12.5A | |
| Cuttent range | 0-25.0A | 0-12.5A | |
| Rated output power | 300W | 300W | |
| Ripples and noise | ≤200mVp-p | ≤300mVp-p | |
| Output current range | 11.5-12.5V | 23-25V | |
| Precision of output voltage regulation | ±0.5% | ±0.5% | |
| Rate of lenear adjustment | ±0.5% | ±0.5% | |
| Load adjustment rate | ±0.5% | ±0.5% | |
| The startup time | ≤2s/230VAC | ||
| INPUT | Keep time | 10ms/230VAC | |
| Voltage range | 176-264VAC | ||
| Frequency range | 50Hz | ||
| Power factor | PF≥0.6/230VAC | ||
| Efficiency | ≥89% | ≥91% | |
| Alternating current | 3.4A/230VAC | ||
| Surge current | 50A/230VAC | ||
| Leakage current | <5mA/230VAC | ||
| PROTECTION | Overload | 110%-140%: rated 110%-140% of the total power input | |
| protection mode:Auto recovery mode.the system automatically recovers when abnormal load conditions are removed | |||
| Short circuit | protection mode:Auto recovery mode.the system automatically recovers when abnormal load conditions are removed | ||
| Over voltage | protection mode:self-recovery mode,automatic recovery when the overvoltage is removed | ||
| Over temperature | protection mode:self-recovery mode,automatically recover when the temperature drops | ||
| ENVIRONMEN | working temperature | -35~+50°C | |
| working humidity | 20-90% RH | ||
| storage temperature;humidity | -30~+85°C； 10~95% RH | ||
| temperature coefficient | ±0.1%/°C(0-35°C) | ||
| resistance to vibration | 10-500Hz, 3G 10min. / 1 cycle, 60 min. each axes | ||
| SAFETY&EMC | safety norms | EN60950 , GB4943.1 -2011 | |
| withstand voltage | l/P-O/P:1.5KVAC l/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||
| insulation impedance | l/P-O/P, l/P-FG, 0/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | ||
| EMC | -- | ||
| other | protection grade | IP62 | |
| MTBF | ≥30khour 25℃ | ||
| power supply size | L182*W100*H50mm | ||
| power supply weight | 395g | ||
| NOTE | 1.Unless otherwise specified , all specification are measured at an input of 230VAC,rarted negative cut,and ambient temperature of 25°C | ||
| 2.Ripple and noise measurement method:the measured end is connected in parallel with a 0.1uF+10uF capacitor,the oscilloscope is set to 20MHZ bandwidth,and the probe is tested with cap off and full load at 25°C | |||
| 3.Accuracy :includes setting error , linear adjustment rate and load adjustment rate . | |||
| 4. The output power is reduced when the input voltage is less than 200VAC. | |||
Caution
● The product MUST be installed vertically and the wiring terminals downwards.
● For the heat dissipation, distance of 10cm from 4 sides (up/down/right/left) and 5cm from the ventilation hole side should be kept.
OEM Customer design
Model List
Our factory offers OEM customization, allowing us to tailor various models and parameters to meet your specific needs. Feel free to contact us for more information and personalized solutions.
| Model | Power Out | Input Voltage | Output Voltage | Output Current | Efficiency | IP | Size(mm) | Package |
| JT-60W 12V | 60W | 200-240V AC | 12V | 5.0A | 93% | IP43 | 130*74*42 | 100 |
| JT-100W 12V | 100W | 200-240V AC | 12V | 8.3A | 93% | IP43 | 148*74*42 | 100 |
| JT-150W 12V | 150W | 200-240V AC | 12V | 12.5A | 93% | IP43 | 148*74*42 | 100 |
| JT-200W 12V | 200W | 200-240V AC | 12V | 16.7A | 92% | IP43 | 195*74*42 | 80 |
| JT-300W 12V | 300W | 200-240V AC | 12V | 25.0A | 92% | IP43 | 182*93*50 | 50 |
| JT-400W 12V F | 400W | 200-240V AC | 12V | 33.3A | 80% | IP43 | 182*118*50 | 48 |
| JT-400W 12V E | 400W | 200-240V AC | 12V | 33.3A | 80% | IP43 | 182*118*50 | 48 |
| JT-400W 12V C | 400W | 200-240V AC | 12V | 33.3A | 92% | IP43 | 182*118*50 | 48 |
| JT-500W 12V | 500W | 200-240V AC | 12V | 41.7A | 90% | IP43 | 205*118*50 | 30 |
| JT-600W 12V | 600W | 200-240V AC | 12V | 50.0A | 90% | IP43 | 205*118*50 | 30 |
| JT-700W 12V | 700W | 200-240V AC | 12V | 58.3A | 90% | IP43 | 220*118*50 | 30 |
| JT-1000W 12V | 1000W | 200-240V AC | 12V | 83.3A | 90% | IP43 | 220*118*50 | 30 |
| JT-400W 24V | 400W | 200-240V AC | 24V | 16.7A | 92% | IP43 | 182*118*50 | 48 |
| JT-700W 24V | 700W | 200-240V AC | 24V | 29.1A | 90% | IP43 | 220*118*50 | 30 |
| JT-200W 5V | 200W | 200-240V AC | 5V | 40.0A | 92% | IP43 | 182*118*50 | 48 |
| JT-300W 5V | 300W | 200-240V AC | 5V | 60.0A | 92% | IP43 | 182*118*50 | 48 |
| JT-350W 5V | 350W | 200-240V AC | 5V | 70.0A | 90% | IP43 | 205*118*50 | 30 |
| JT-400W 5V | 400W | 200-240V AC | 5V | 80.0A | 90% | IP43 | 205*118*50 | 30 |
| JT-500W 5V | 500W | 200-240V AC | 5V | 100.0A | 89% | IP43 | 220*118*50 | 30 |
application
The 12V 25A 300W rainproof power supply is designed to handle high-power outdoor LED installations, offering exceptional performance in harsh weather conditions.
● High-Power LED Video Walls – Perfect for powering large-scale video walls used in outdoor advertising, events, and public displays.
● Street & Highway Illumination – Ideal for high-brightness street lighting, highway signage, and tunnel lighting, ensuring visibility and safety in all weather conditions.
● Outdoor Sports Lighting – Provides reliable power for stadium lights, field lights, and outdoor sports arenas, enhancing visibility during evening games and events.
● Architectural Accent Lighting – Suitable for complex building facades, landmarks, and monuments, providing powerful lighting effects for aesthetic purposes.
● Smart City Solutions – Powers smart city infrastructure, including intelligent streetlights, traffic control systems, and environmental sensors.
With its rainproof design, high efficiency, and strong capacity, this power supply ensures stable operation for large outdoor LED systems, providing durability and safety for demanding applications in public spaces.
