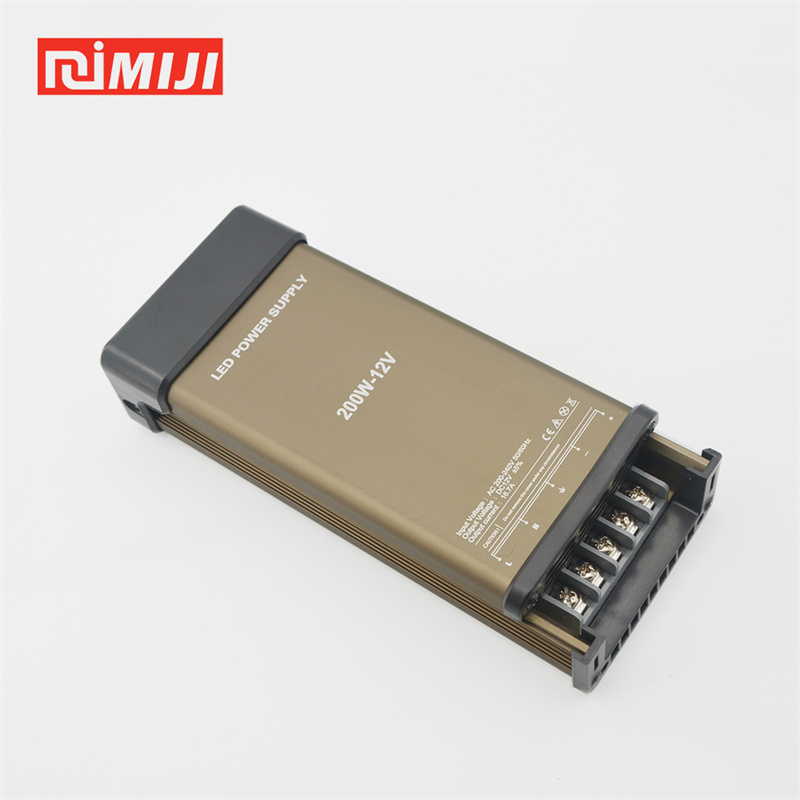

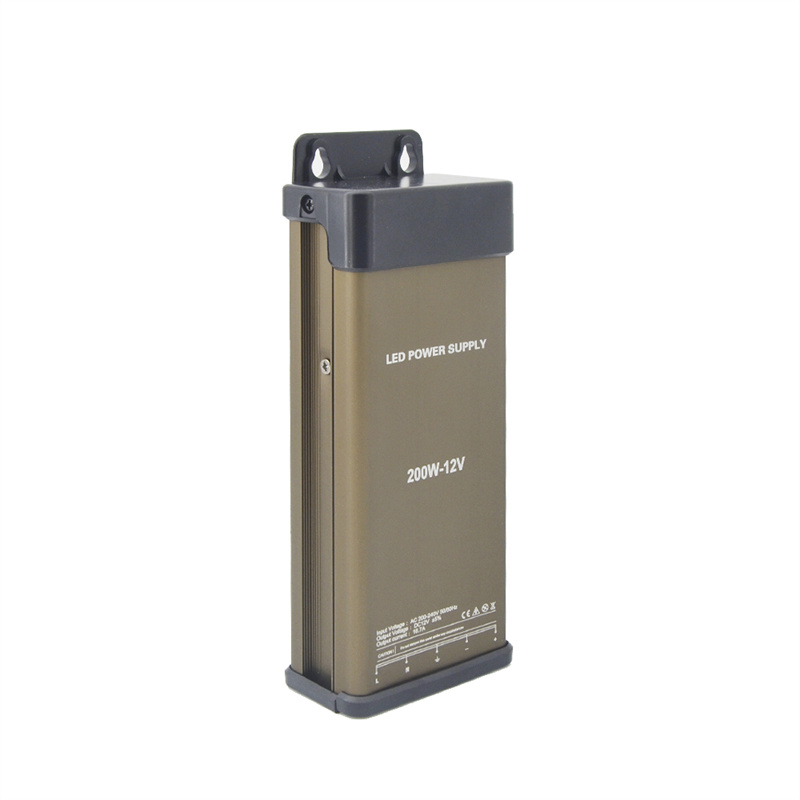

12V 16.7A 200W LED channel letter Rainproof Power Supply
Feature
◎ Available in wattage from 60W to 1000W
◎ Available in silver & gold & gray finishes
◎ With 100% new components and quality PCB design.
◎ Superior heat dissipation with a built-in fan
◎ BIS & CE & RoHS & ISO9001 & FCC listed
◎ 50000hours aging test, long lifespan and reliable.
◎ More dust-proof, moisture-proof, salt proof of three anti-paint-soaked PCB
specification
| Model | JT-200W 12V | JT-200W 24V | |
| OUTPUT | DC voltage | 12V | 24V |
| Rated current | 16.7A | 8.3A | |
| Cuttent range | 0-16.7A | 0-8.3A | |
| Rated output power | 200W | 200W | |
| Ripples and noise | ≤200mVp-p | ≤300mVp-p | |
| Output current range | 11.5-12.5V | 23-25V | |
| Precision of output voltage regulation | ±0.5% | ±0.5% | |
| Rate of lenear adjustment | ±0.5% | ±0.5% | |
| Load adjustment rate | ±0.5% | ±0.5% | |
| The startup time | ≤2s/230VAC | ||
| INPUT | Keep time | 10ms/230VAC | |
| Voltage range | 176-264VAC | ||
| Frequency range | 50Hz | ||
| Power factor | PF≥0.6/230VAC | ||
| Efficiency | ≥89% | ≥91% | |
| Alternating current | 3.4A/230VAC | ||
| Surge current | 50A/230VAC | ||
| Leakage current | <5mA/230VAC | ||
| PROTECTION | Overload | 110%-140%: rated 110%-140% of the total power input | |
| protection mode:Auto recovery mode.the system automatically recovers when abnormal load conditions are removed | |||
| Short circuit | protection mode:Auto recovery mode.the system automatically recovers when abnormal load conditions are removed | ||
| Over voltage | protection mode:self-recovery mode,automatic recovery when the overvoltage is removed | ||
| Over temperature | protection mode:self-recovery mode,automatically recover when the temperature drops | ||
| ENVIRONMEN | working temperature | -35~+50°C | |
| working humidity | 20-90% RH | ||
| storage temperature;humidity | -30~+85°C； 10~95% RH | ||
| temperature coefficient | ±0.1%/°C(0-35°C) | ||
| resistance to vibration | 10-500Hz, 3G 10min. / 1 cycle, 60 min. each axes | ||
| SAFETY&EMC | safety norms | EN60950 , GB4943.1 -2011 | |
| withstand voltage | l/P-O/P:1.5KVAC l/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||
| insulation impedance | l/P-O/P, l/P-FG, 0/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | ||
| EMC | -- | ||
| other | protection grade | IP62 | |
| MTBF | ≥30khour 25℃ | ||
| power supply size | L195*W74*H42mm | ||
| power supply weight | 305g | ||
| NOTE | 1.Unless otherwise specified , all specification are measured at an input of 230VAC,rarted negative cut,and ambient temperature of 25°C | ||
| 2.Ripple and noise measurement method:the measured end is connected in parallel with a 0.1uF+10uF capacitor,the oscilloscope is set to 20MHZ bandwidth,and the probe is tested with cap off and full load at 25°C | |||
| 3.Accuracy :includes setting error , linear adjustment rate and load adjustment rate . | |||
| 4. The output power is reduced when the input voltage is less than 200VAC. | |||
Caution
● The product MUST be installed vertically and the wiring terminals downwards.
● For the heat dissipation, distance of 10cm from 4 sides (up/down/right/left) and 5cm from the ventilation hole side should be kept.
OEM Customer design
01
Model List
Our factory offers OEM customization, allowing us to tailor various models and parameters to meet your specific needs. Feel free to contact us for more information and personalized solutions.
| Model | Power Out | Input Voltage | Output Voltage | Output Current | Efficiency | IP | Size(mm) | Package |
| JT-60W 12V | 60W | 200-240V AC | 12V | 5.0A | 93% | IP43 | 130*74*42 | 100 |
| JT-100W 12V | 100W | 200-240V AC | 12V | 8.3A | 93% | IP43 | 148*74*42 | 100 |
| JT-150W 12V | 150W | 200-240V AC | 12V | 12.5A | 93% | IP43 | 148*74*42 | 100 |
| JT-200W 12V | 200W | 200-240V AC | 12V | 16.7A | 92% | IP43 | 195*74*42 | 80 |
| JT-300W 12V | 300W | 200-240V AC | 12V | 25.0A | 92% | IP43 | 182*93*50 | 50 |
| JT-400W 12V F | 400W | 200-240V AC | 12V | 33.3A | 80% | IP43 | 182*118*50 | 48 |
| JT-400W 12V E | 400W | 200-240V AC | 12V | 33.3A | 80% | IP43 | 182*118*50 | 48 |
| JT-400W 12V C | 400W | 200-240V AC | 12V | 33.3A | 92% | IP43 | 182*118*50 | 48 |
| JT-500W 12V | 500W | 200-240V AC | 12V | 41.7A | 90% | IP43 | 205*118*50 | 30 |
| JT-600W 12V | 600W | 200-240V AC | 12V | 50.0A | 90% | IP43 | 205*118*50 | 30 |
| JT-700W 12V | 700W | 200-240V AC | 12V | 58.3A | 90% | IP43 | 220*118*50 | 30 |
| JT-1000W 12V | 1000W | 200-240V AC | 12V | 83.3A | 90% | IP43 | 220*118*50 | 30 |
| JT-400W 24V | 400W | 200-240V AC | 24V | 16.7A | 92% | IP43 | 182*118*50 | 48 |
| JT-700W 24V | 700W | 200-240V AC | 24V | 29.1A | 90% | IP43 | 220*118*50 | 30 |
| JT-200W 5V | 200W | 200-240V AC | 5V | 40.0A | 92% | IP43 | 182*118*50 | 48 |
| JT-300W 5V | 300W | 200-240V AC | 5V | 60.0A | 92% | IP43 | 182*118*50 | 48 |
| JT-350W 5V | 350W | 200-240V AC | 5V | 70.0A | 90% | IP43 | 205*118*50 | 30 |
| JT-400W 5V | 400W | 200-240V AC | 5V | 80.0A | 90% | IP43 | 205*118*50 | 30 |
| JT-500W 5V | 500W | 200-240V AC | 5V | 100.0A | 89% | IP43 | 220*118*50 | 30 |
application
The 12V 16.7A 200W rainproof power supply is a powerful solution for high-demand outdoor LED systems, providing reliable and consistent performance in challenging weather conditions.
● Large-Scale LED Displays – Perfect for powering large digital billboards, stadium scoreboards, and public information displays.
● Outdoor Lighting Systems – Ideal for high-powered streetlights, floodlights, and area lighting in urban and commercial spaces.
● LED Curtain Walls – Supports large-scale LED curtain wall installations for building facades and architectural lighting.
● Smart Outdoor Furniture Lighting – Powers LED-integrated furniture in public spaces like parks or shopping malls.
● Festival & Event Lighting – Suitable for large outdoor event setups, including stage lighting, decorative lighting, and exhibition displays.
With robust rainproof design, high capacity, and efficient energy management, this power supply is built to support heavy-duty outdoor LED applications, ensuring reliable, long-lasting performance in demanding environments.
