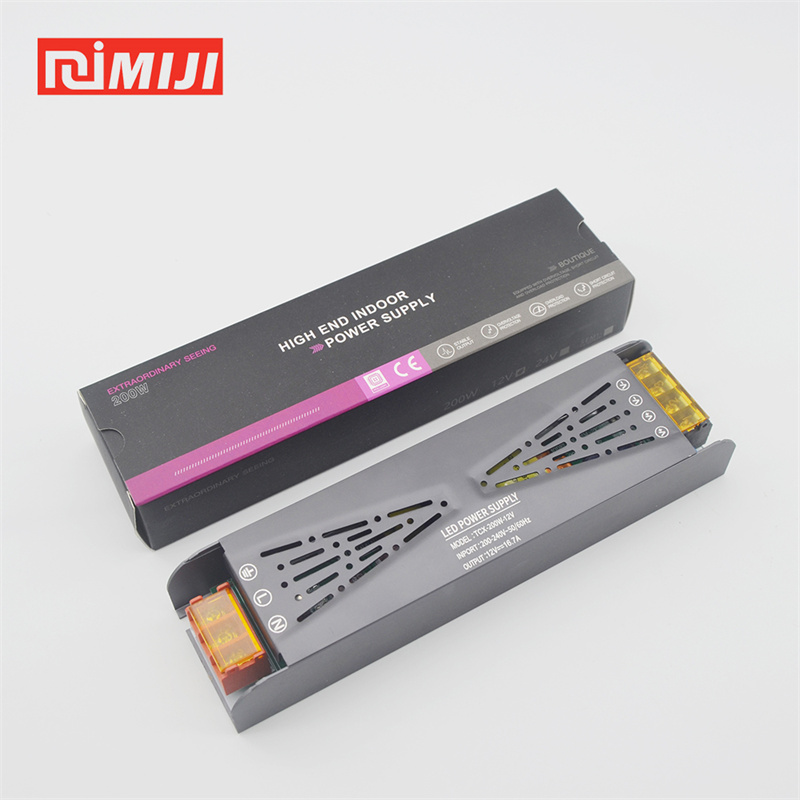

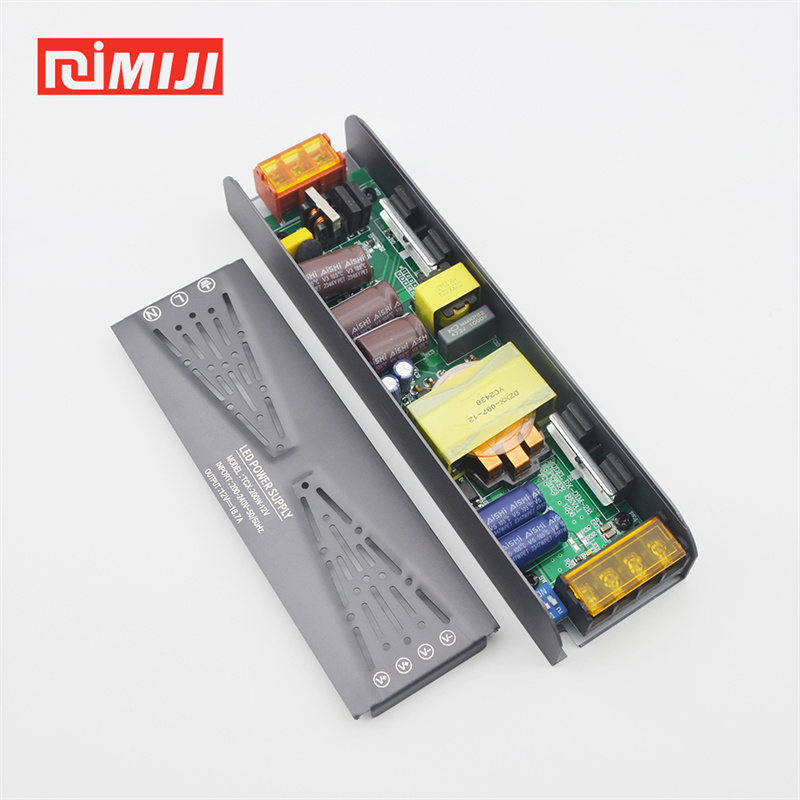

12V 16.7A 200W Indoor Ultra-thin LED Strip Power Supply
Feature
◎ Two years warranty
◎ Ultra slim design, suitable narrow install
◎ 100% Load burn-in test
◎ Low output ripple and noise
◎ Built-in EMI filter
◎ Average no trouble working >20,000 hours
◎ Output over- voltage, over-current and short- circuit protection
specification
| Model | TCX-200W 12V | TCX-200W 24V | |
| OUTPUT | DC voltage | 12V | 24V |
| Rated current | 16.7A | 8.3A | |
| Cuttent range | 0-16.7A | 0-8.3A | |
| Rated output power | 200W | 200W | |
| Ripples and noise | ≤200mVp-p | ≤300mVp-p | |
| Output current range | 11.5-12.5V | 23-25V | |
| Precision of output voltage regulation | ±0.5% | ±0.5% | |
| Rate of lenear adjustment | ±0.5% | ±0.5% | |
| Load adjustment rate | ±0.5% | ±0.5% | |
| The startup time | ≤2s/230VAC | ||
| INPUT | Keep time | 10ms/230VAC | |
| Voltage range | 176-264VAC | ||
| Frequency range | 50Hz | ||
| Power factor | PF≥0.6/230VAC | ||
| Efficiency | ≥89% | ≥91% | |
| Alternating current | 3.4A/230VAC | ||
| Surge current | 50A/230VAC | ||
| Leakage current | <5mA/230VAC | ||
| PROTECTION | Overload | 110%-140%: rated 110%-140% of the total power input | |
| protection mode:Auto recovery mode.the system automatically recovers when abnormal load conditions are removed | |||
| Short circuit | protection mode:Auto recovery mode.the system automatically recovers when abnormal load conditions are removed | ||
| Over voltage | protection mode:self-recovery mode,automatic recovery when the overvoltage is removed | ||
| Over temperature | protection mode:self-recovery mode,automatically recover when the temperature drops | ||
| ENVIRONMEN | working temperature | -35~+50°C | |
| working humidity | 20-90% RH | ||
| storage temperature;humidity | -30~+85°C； 10~95% RH | ||
| temperature coefficient | ±0.1%/°C(0-35°C) | ||
| resistance to vibration | 10-500Hz, 3G 10min. / 1 cycle, 60 min. each axes | ||
| SAFETY&EMC | safety norms | EN60950 , GB4943.1 -2011 | |
| withstand voltage | l/P-O/P:1.5KVAC l/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||
| insulation impedance | l/P-O/P, l/P-FG, 0/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | ||
| EMC | -- | ||
| other | protection grade | IP20 | |
| MTBF | ≥30khour 25℃ | ||
| power supply size | L184*W48*H28mm | ||
| power supply weight | 285g | ||
| NOTE | 1.Unless otherwise specified , all specification are measured at an input of 230VAC,rarted negative cut,and ambient temperature of 25°C | ||
| 2.Ripple and noise measurement method:the measured end is connected in parallel with a 0.1uF+10uF capacitor,the oscilloscope is set to 20MHZ bandwidth,and the probe is tested with cap off and full load at 25°C | |||
| 3.Accuracy :includes setting error , linear adjustment rate and load adjustment rate . | |||
| 4. The output power is reduced when the input voltage is less than 200VAC. | |||
OEM Customer design
01020304
Model List
TCX are high end quality series, 100% full load and aging test. Color box packing.
Our factory offers OEM customization, allowing us to tailor various models and parameters to meet your specific needs. Feel free to contact us for more information and personalized solutions.
| Model | Power Out | Input Voltage | Output Voltage | Output Current | Efficiency | IP | Size(mm) | Package |
| TCX-60W 12V /24V | 60W | 200-240V AC | 12V/24V | 5.0A/ 2.5A | 93% | IP20 | 115*48*28 | 100 |
| TCX-100W 12V /24V | 100W | 200-240V AC | 12V/24V | 8.3A/ 4.1A | 93% | IP20 | 144*48*28 | 90 |
| TCX-200W 12V /24V | 200W | 200-240V AC | 12V/24V | 16.7A/ 8.33A | 92% | IP20 | 184*48*28 | 90 |
| TCX-300W 12V /24V | 300W | 200-240V AC | 12V/24V | 25.0A/ 12.5A | 92% | IP20 | 191*58*30 | 60 |
| TCX-400W 12V /24V | 400W | 200-240V AC | 12V/24V | 33.3A/ 16.7A | 92% | IP20 | 225*58*30 | 60 |
application
The 12V 16.7A 200W indoor power supply is specifically designed to deliver reliable and efficient power for various LED lighting applications. Its robust capacity makes it suitable for both residential and commercial environments, ensuring optimal performance of LED systems. With TCX full load series 200w slim power supply will solve all below application. .
Key Applications:
● LED Panel Lights: This power supply effectively supports LED panel lights, commonly used in offices, conference rooms, and educational institutions, providing bright and uniform illumination conducive to productivity and learning.
● LED Track Lighting: Ideal for powering LED track lights, it allows for adjustable and focused lighting in galleries, retail stores, and exhibition spaces, enhancing the visual appeal of displayed items.
● LED Recessed Lighting: Ensures consistent power for LED recessed lights, offering a sleek and modern lighting solution for homes, hotels, and commercial buildings.
● LED Cove Lighting: Supports LED cove lighting installations, creating ambient lighting effects that add depth and dimension to interior spaces.
● LED Wall Washers: Provides the necessary power for LED wall washers, which are used to illuminate large wall areas in theaters, auditoriums, and architectural settings, highlighting textures and colors effectively.
● LED High Bay Lights: Suitable for LED high bay lighting in warehouses, factories, and gymnasiums, delivering bright illumination from high ceilings to ensure safety and visibility.
● LED Grow Lights: Powers LED grow lights used in indoor horticulture and hydroponic systems, promoting plant growth by providing appropriate light spectra.
● LED Aquarium Lighting: Supports LED aquarium lights, maintaining optimal lighting conditions for aquatic life in both residential and commercial aquarium setups.
● LED Stage Lighting: Provides reliable power for LED stage lights, essential for concerts, theater productions, and other live events, ensuring dynamic and vibrant lighting effects.
● LED Emergency Lighting Systems: Ensures that LED emergency lights remain operational during power outages, enhancing safety in buildings and public spaces.
In summary, the 12V 16.7A 200W indoor power supply is a versatile and dependable solution for a wide range of LED lighting applications, ensuring consistent performance and longevity of lighting systems across various indoor environments. For more details welcome contact MIJI led.
