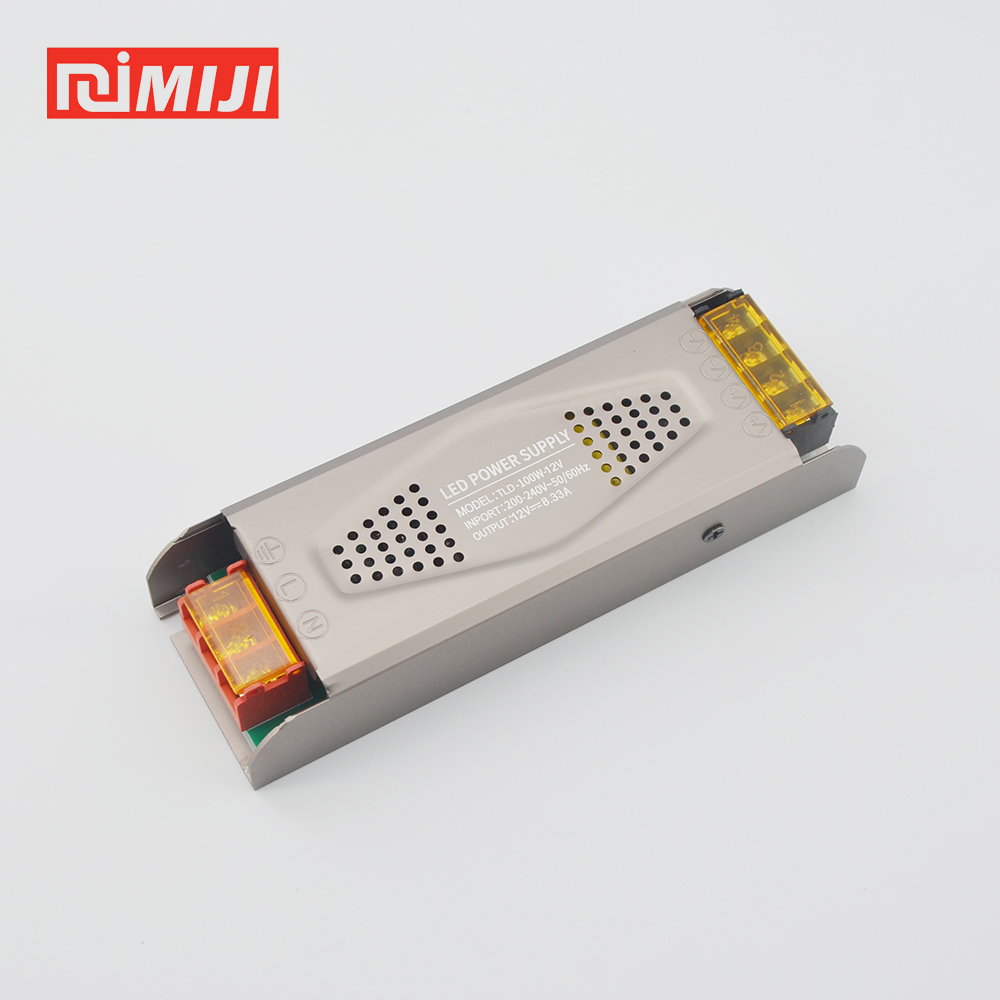

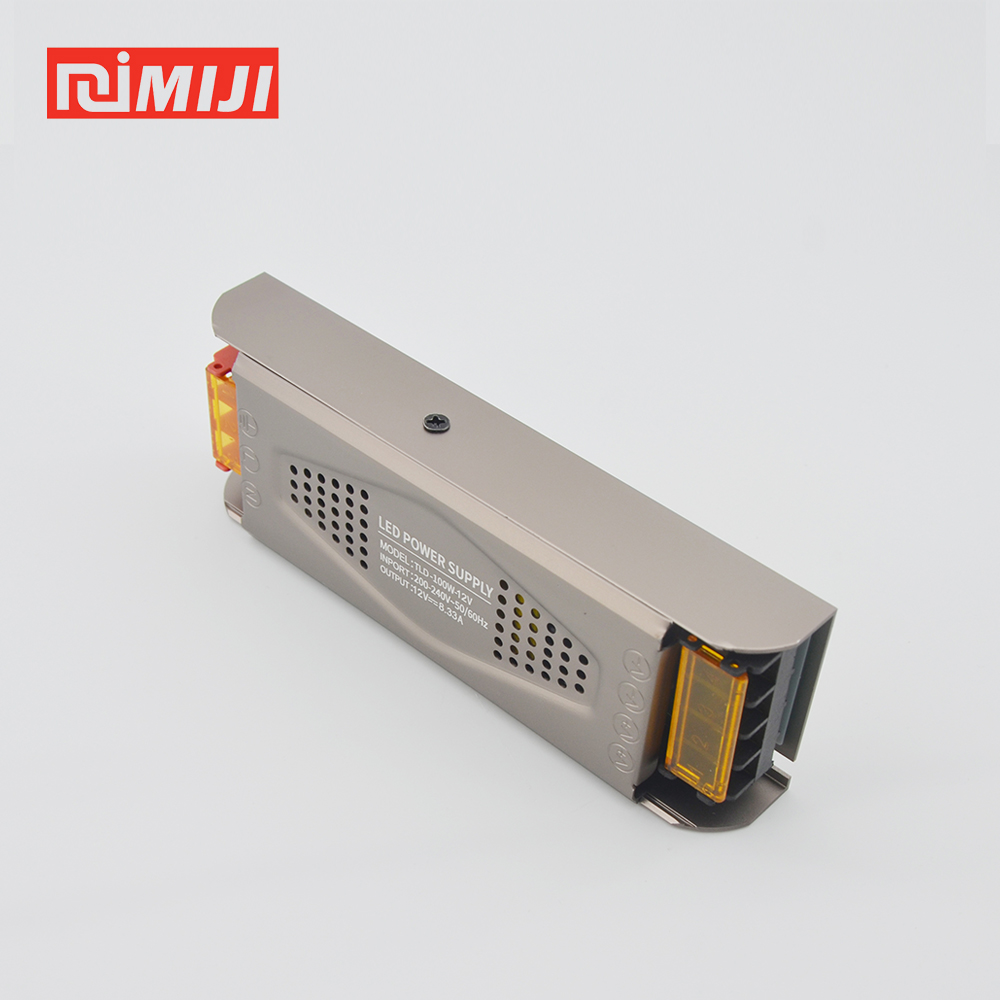

100W Ultra-Slim SMPS for Industrial & Home Use
Feature
◎ Ultra-Thin, Compact Design: Engineered with a super slim profile, allowing for easy installation in tight spaces where traditional power supplies won't fit.
◎ Advanced Safety Protections: Features a complete safety suite, including overload, overvoltage, short-circuit, and overheat protection to safeguard your connected electronics.
◎ Highly Versatile Application: An ideal power solution for a wide range of uses, from commercial LED signage and security systems to industrial and home automation projects.
◎ Energy-Efficient Performance: Designed for high efficiency to minimize energy waste, reduce operating costs, and ensure reliable, long-term operation.
specification
| Model | TLD-100W 12V | TLD-100W 24V | |
| OUTPUT | DC voltage | 12V | 24V |
| Rated current | 8.3A | 4.16A | |
| Cuttent range | 0-8.3A | 0-4.16A | |
| Rated output power | 100W | 100W | |
| Ripples and noise | ≤200mVp-p | ≤300mVp-p | |
| Output current range | 11.5-12.5V | 23-25V | |
| Precision of output voltage regulation | ±0.5% | ±0.5% | |
| Rate of lenear adjustment | ±0.5% | ±0.5% | |
| Load adjustment rate | ±0.5% | ±0.5% | |
| The startup time | ≤2s/230VAC | ||
| INPUT | Keep time | 10ms/230VAC | |
| Voltage range | 176-264VAC | ||
| Frequency range | 50Hz | ||
| Power factor | PF≥0.6/230VAC | ||
| Efficiency | ≥89% | ≥91% | |
| Alternating current | 3.4A/230VAC | ||
| Surge current | 50A/230VAC | ||
| Leakage current | <5mA/230VAC | ||
| PROTECTION | Overload | 110%-140%: rated 110%-140% of the total power input | |
| protection mode:Auto recovery mode.the system automatically recovers when abnormal load conditions are removed | |||
| Short circuit | protection mode:Auto recovery mode.the system automatically recovers when abnormal load conditions are removed | ||
| Over voltage | protection mode:self-recovery mode,automatic recovery when the overvoltage is removed | ||
| Over temperature | protection mode:self-recovery mode,automatically recover when the temperature drops | ||
| ENVIRONMEN | working temperature | -35~+50°C | |
| working humidity | 20-90% RH | ||
| storage temperature;humidity | -30~+85°C； 10~95% RH | ||
| temperature coefficient | ±0.1%/°C(0-35°C) | ||
| resistance to vibration | 10-500Hz, 3G 10min. / 1 cycle, 60 min. each axes | ||
| SAFETY&EMC | safety norms | EN60950 , GB4943.1 -2011 | |
| withstand voltage | l/P-O/P:1.5KVAC l/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||
| insulation impedance | l/P-O/P, l/P-FG, 0/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | ||
| EMC | -- | ||
| other | protection grade | IP20 | |
| MTBF | ≥30khour 25℃ | ||
| power supply size | L138*W50*H27mm | ||
| power supply weight | 145g | ||
| NOTE | 1.Unless otherwise specified , all specification are measured at an input of 230VAC,rarted negative cut,and ambient temperature of 25°C | ||
| 2.Ripple and noise measurement method:the measured end is connected in parallel with a 0.1uF+10uF capacitor,the oscilloscope is set to 20MHZ bandwidth,and the probe is tested with cap off and full load at 25°C | |||
| 3.Accuracy :includes setting error , linear adjustment rate and load adjustment rate . | |||
| 4. The output power is reduced when the input voltage is less than 200VAC. | |||
OEM Customer design
Model List
| Model | Power Out | Input Voltage | Output Voltage | Output Current | Efficiency | IP | Size(mm) | Package |
| TLD-60W 12V /24V | 60W | 200-240V AC | 12V/24V | 5.0A/ 2.5A | 93% | IP20 | 115*47*26 | 100 |
| TLD-100W 12V /24V | 100W | 200-240V AC | 12V/24V | 8.3A/ 4.1A | 93% | IP20 | 145*47*26 | 90 |
| TLD-200W 12V /24V | 200W | 200-240V AC | 12V/24V | 16.7A/ 8.33A | 92% | IP20 | 184*47*26 | 90 |
| TLD-300W 12V /24V | 300W | 200-240V AC | 12V/24V | 25.0A/ 12.5A | 92% | IP20 | 210*47*26 | 60 |
| TLD-400W 12V /24V | 400W | 200-240V AC | 12V/24V | 33.3A/ 16.7A | 92% | IP20 | 241*47*26 | 60 |
application
The 100W Ultra-Thin Switching Power Supply is a high-performance component designed to meet the demands of modern electronics where both power density and a minimal footprint are critical. It expertly combines a potent 100W (12V 8.3A) output with a super-slim chassis, solving the common challenge of fitting capable power sources into constrained spaces. More than just a power converter, this unit is a robust central hub for your systems, fortified with a complete set of advanced safety protections—including overload, overvoltage, short-circuit, and thermal shutdown—to ensure the stable and secure operation of sensitive equipment.
Commercial LED Lighting & Signage: Its high 100W capacity makes it perfect for powering long runs of high-density LED strips or multiple smaller strips in large-scale retail displays, architectural accent lighting, and bright commercial signage. The slim profile allows for seamless integration into narrow sign frames or discreet architectural coves.
CCTV & Security Systems: An ideal centralized power source for multi-camera security systems. A single 100W unit can reliably power several CCTV cameras, IR illuminators, and DVRs, simplifying wiring and reducing clutter. The stable 12V output and overvoltage protection are crucial for protecting sensitive surveillance equipment.
Industrial Automation & Control Panels: In industrial settings, this power supply fits perfectly inside crowded control cabinets to power sensors, actuators, relays, and other 12V automation components. Its robust safety features and thermal management are essential for maintaining uninterrupted operations in demanding environments.
Home Automation & Advanced DIY Electronics: For the tech enthusiast, this power supply is the perfect core for sophisticated projects. It can run a centralized hub for various smart home devices, power custom-built electronics, or serve as the main power source for complex robotics projects that require a stable and protected 12V rail.
In summary, the 100W Ultra-Thin Switching Power Supply is the ultimate choice for professionals and hobbyists who refuse to compromise on power or space. It is an enabling technology that allows for cleaner, more efficient, and more compact designs across a diverse range of applications. Whether you are building a complex lighting display, securing a facility, or automating a process, this power supply delivers the reliable performance and integrated safety needed to execute your vision with confidence..
